A2004WV-7P

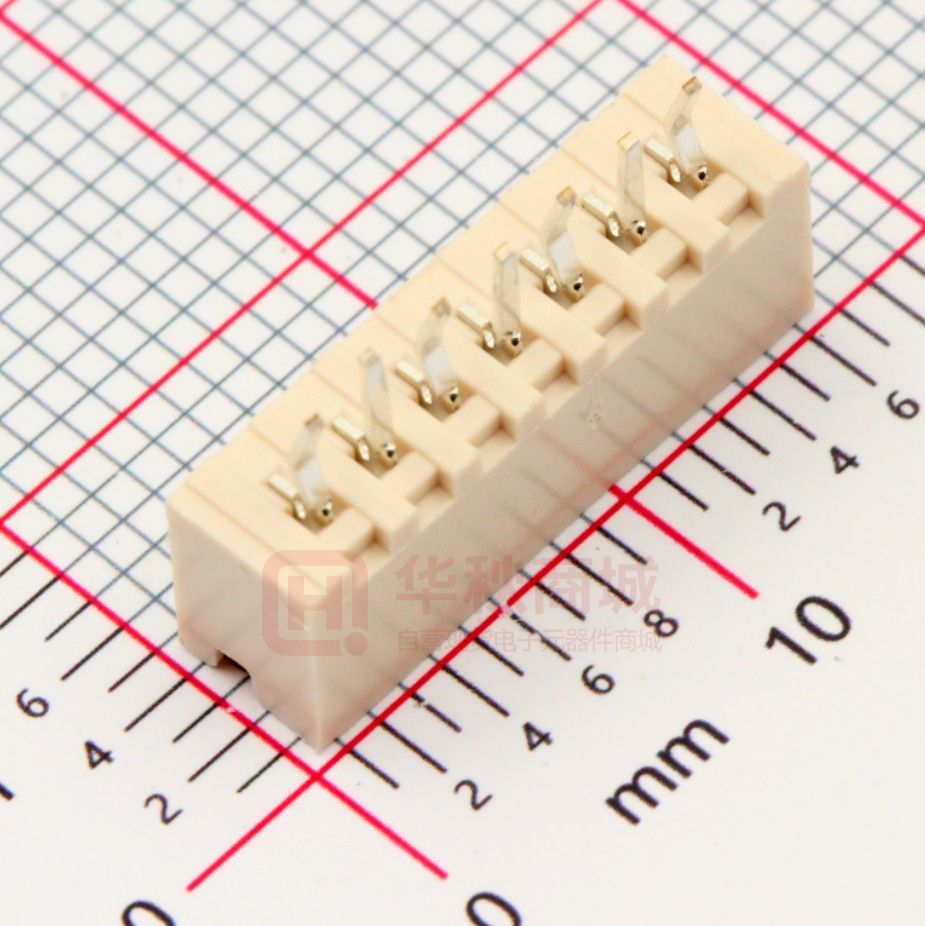

A2004 SERIES 2.00mm pitch wire to board connector Specifications Current rating:2A AC,DC Voltage rating:125V AC,DC Temperature range:-40°C~+105°C Contact resistance:20m Max. Insulation resistance:1000M Min. Withstanding voltage:800V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 E326732 1.60 1.90 1.90 1.60 4.65 7.50 REF 4.35 8.30 REF CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-155 A2004 SERIES A2004-T 2.00mm pitch wire to board connector 2.00mm pitch Crimp Terminal 1.90±0.25 0.70 0.15 2.00±0.25 Reference Informations: *Used in CJT A2004H-XP series Housing 1.30±0.25 B 1.30±0.20 B 1.50 A 1.20±0.25 0.90 A 4.90±0.25 SEC:A-A 2.00 0.40 SEC:B-B 1.50 Ordering information & Specifications: Unit:mm Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A2004-TP AWG#24-#28 1.40mm(max) Phosphor Bronze Tin over Nickel 10,000 PCS AWG#24-#28 1.40mm(max) Phosphor Bronze Gold over Nickel 10,000 PCS A2004-GP Optional Gold plating available but MOQ requested A2004H-XP 2.00mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2004-T series Terminal *Mates with CJT A2004WV,WR-XP series Wafer *Color:White Ordering Information: A2004H-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT :Nylon 66,UL94V-0 GWT 750 ℃ Circuit 1 2P 2.00±0.10 Ordering Information & Dimensions: A±0.20 PART NO. 3~15P B±0.25 5.80±0.25 3.35±0.25 3.80±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 2.00 5.90 4.00 7.90 6.00 9.90 8.00 11.90 10.00 13.90 12.00 15.90 14.00 17.90 16.00 19.90 18.00 21.90 20.00 23.90 22.00 25.90 24.00 27.90 26.00 29.90 28.00 31.90 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-156 A2004 SERIES A2004WV-XP 2.00mm pitch 180° Wafer Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2004H-XP series Housing *Color:Ivory 1.55 0.45 Circuit 1 2.00mm pitch wire to board connector Ordering Information: A2004WV-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT :Nylon 66,UL94V-0 GWT 750 ℃ Circuit 1 2.00±0.10 ∅0.90+0.00 -0.10 2.00±0.10 P.C.B LAYOUT A±0.20 Ordering Information & Dimensions: PART NO. B±0.25 4.35±0.25 3.45±0.20 5.85±0.25 B±0.25 0.30 0.60 2P 3~15P 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 30.00 26.00 28.00 32.00 Unit: mm A2004WR-XP 2.00mm pitch 90° Wafer Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2004H-XP series Housing *Color:Ivory Ordering Information: A2004WR-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT :Nylon 66,UL94V-0 GWT 750 ℃ 0.60 2.00±0.10 0.45 1.55 Circuit 1 ∅0.90+0.00 -0.10 2.00±0.10 Ordering Information & Dimensions: P.C.B LAYOUT Circuit 1 PART NO. A±0.20 3~15P 6.65±0.25 2P 4.65±0.25 7.60±0.25 B±0.25 5.95±0.25 B±0.25 3.50±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 26.00 30.00 28.00 32.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-157
