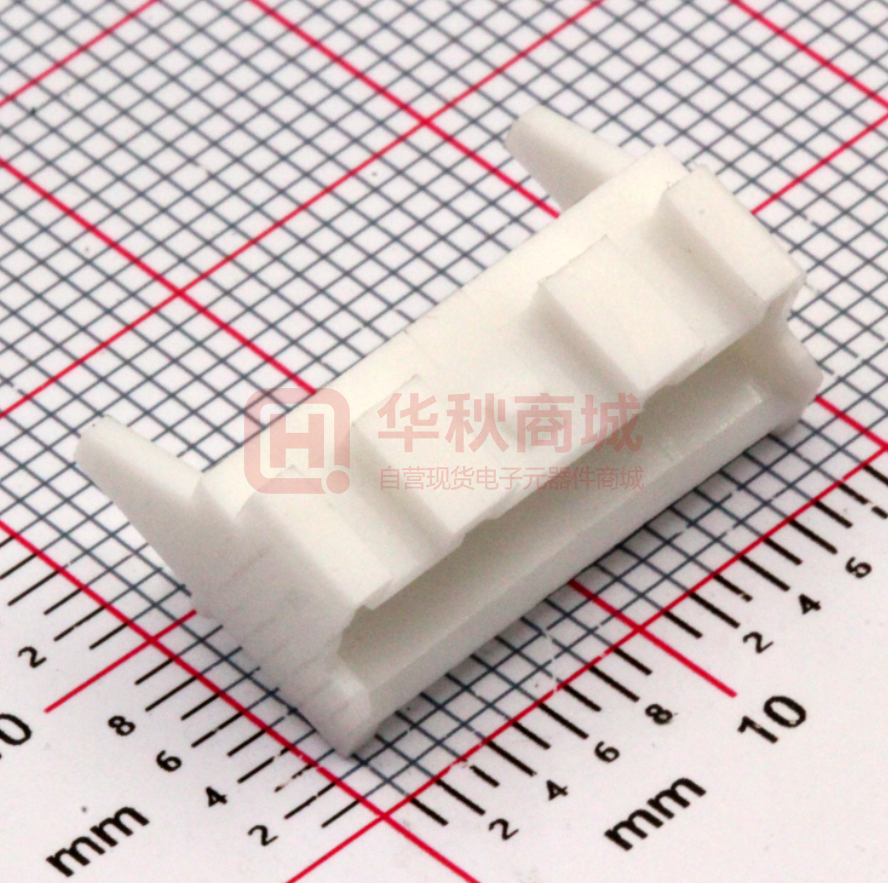

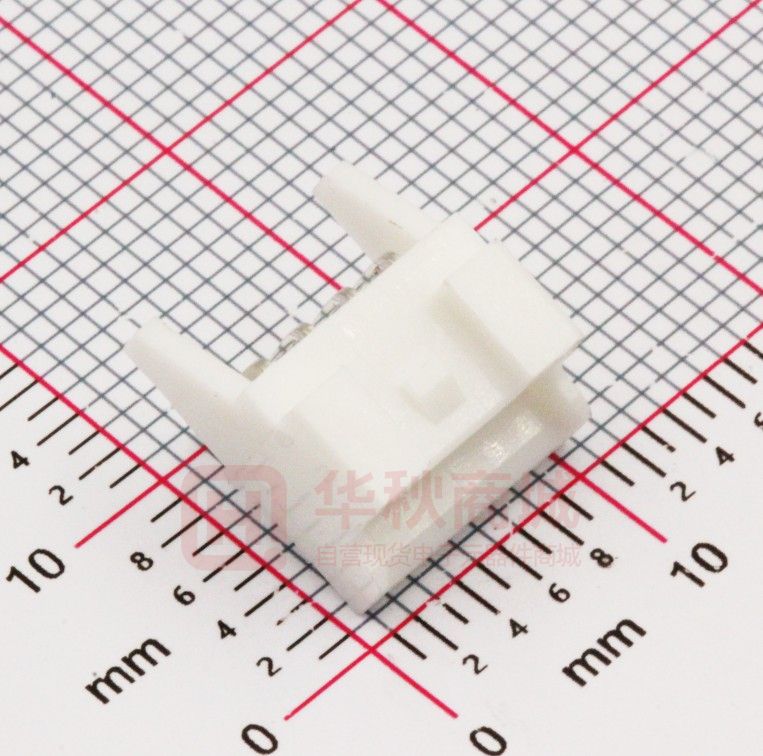

A2012WRA-F-8P

A2012 SERIES 2.00mm pitch wire to board connector Specifications Current rating:3A AC,DC Voltage rating:250V AC,DC Temperature range:-40°C~+105°C Contact resistance:10mΩMax. Insulation resistance:1000MΩMin. Withstanding voltage:800V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 6.41 E326732 6.41 1.60 6.47 9.76.REF 1.60 1.60 1.60 6.41 9.65.REF 9.76.REF 9.44.REF CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-266 A2012 SERIES A2012-T-D 2.00mm pitch wire to board connector 2.00mm pitch Crimp Terminal Reference Informations: *Used in CJT A2012HD-2xXP series Dual Row Housing 0.20 1.50±0.25 B SEC:A-A 1.75 B 1.35 A 5.90±0.25 A 2.75±0.25 0.80 2.15±0.25 1.75±0.25 1.00±0.10 2.00±0.10 0.40 SEC:B-B 0.75±0.10 1.45±0.10 Unit:mm Ordering information & Specifications: Wire Range Insulation O.D. Material Finish Qty/reel A2012-TP-D AWG#24-#30 1.50mm(max) Phosphor Bronze Tin over Nickel 10,000 PCS A2012-GP-D AWG#24-#30 1.50mm(max) Phosphor Bronze Gold over Nickel 10,000 PCS Part NO. Optional Gold plating available but MOQ requested A2012H-XP 2.00mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2006-T series Terminal *Mates with CJT A2012WV,WR,WV-S,WR-S,WV-F-XP, A2012WVA,WRA,WVA-F,WRA-F-XP series Wafer *Color:White Ordering Information: A2012H-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black PK:Pink RD:Red YL:Yellow BL:Blue LY:Lemon yellow GN:Green VY:Vivid yellow OR:Orange LE:Light blue BR:Brown GY:Gray VI:Violet TR:Tomato red A±0.20 2.00±0.10 Ordering Information & Dimensions: PART NO. Circuit 1 B±0.25 8.00±0.25 7.30±0.25 4.60±0.25 4.60±0.20 5.80±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Dimensions A B 2.00 4.30 4.00 6.30 6.00 8.30 8.00 10.30 10.00 12.30 12.00 14.30 14.00 16.30 16.00 18.30 18.00 20.30 20.00 22.30 22.00 24.30 24.00 26.30 26.00 28.30 28.00 30.30 30.00 32.30 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-267 A2012 SERIES A2012HD-2xXP 2.00mm pitch wire to board connector 2.00mm pitch Dual Row Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2012-T-D series Terminal *Mates with CJT A2012WV,WV-F,WR-F-2xXP series Dual Row Wafer *Color:White A±0.20 8.60±0.20 2.00±0.10 2.00±0.10 Ordering Information: A2012HD-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ B±0.25 11.00±0.25 7.60±0.20 0.75 10.00±0.25 Ordering Information & Dimensions: PART NO. 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P Dimensions A B 2.00 5.00 4.00 7.00 6.00 9.00 8.00 10.50 10.00 12.50 12.00 14.50 14.00 16.50 16.00 18.50 18.00 20.50 20.00 22.50 22.00 24.50 24.00 26.50 26.00 28.50 28.00 30.50 30.00 32.50 32.00 34.50 34.00 36.50 36.00 38.50 38.00 40.50 Unit: mm A2012WV-XP 2.00mm pitch 180° Wafer Ordering Information: A2012WV-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:Ivory A±0.20 A±0.20 2.00±0.10 2.00±0.05 Ø0.80±0.05 Ordering Information & Dimensions: P.C.B LAYOUT PART NO. 3.50±0.20 6.85±0.25 PIN 0.50 SQ Circuit 1 8.65±0.25 5.60±0.25 B±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Dimensions A B 2.00 8.00 4.00 10.00 6.00 12.00 8.00 14.00 10.00 16.00 12.00 18.00 14.00 20.00 16.00 22.00 18.00 24.00 20.00 26.00 22.00 28.00 24.00 30.00 26.00 32.00 28.00 34.00 30.00 36.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-268 A2012 SERIES A2012WR-XP 2.00mm pitch 90° Wafer Ordering Information: A2012WR-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:Ivory A±0.20 PIN 0.50 SQ Circuit 1 2.00±0.10 2.00mm pitch wire to board connector A±0.20 2.00±0.05 Ordering Information & Dimensions: Ø0.80±0.05 P.C.B LAYOUT B±0.25 5.20±0.20 6.85±0.20 0.40 8.65±0.25 Dimensions A B 2.00 8.00 4.00 10.00 6.00 12.00 8.00 14.00 10.00 16.00 12.00 18.00 14.00 20.00 16.00 22.00 18.00 24.00 20.00 26.00 22.00 28.00 24.00 30.00 26.00 32.00 34.00 28.00 30.00 36.00 PART NO. 3.50±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Unit: mm A2012WV-S-XP 2.00mm pitch 180° Wafer-SMT TYPE Ordering Information: A2012WV-S-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel 1.80 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:Ivory A±0.20 1.45±0.05 2.00±0.10 5.00±0.10 Circuit 1 2.00±0.05 B±0.25 A±0.20 P.C.B LAYOUT 2.70±0.10 3.80±0.05 1.00±0.05 5.20±0.20 C±0.25 7.10±0.20 8.90±0.25 0.40 1.63±0.20 Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P A 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 Dimensions B 4.50 6.50 8.50 10.50 12.50 14.50 16.50 18.50 20.50 22.50 24.50 26.50 28.50 30.50 32.50 C 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 32.00 34.00 36.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-269 A2012 SERIES A2012WR-S-XP 2.00mm pitch wire to board connector 2.00mm pitch 90° Wafer-SMT TYPE Ordering Information: A2012WR-S-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel 1.80 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:Ivory A±0.20 1.45±0.05 5.00±0.10 2.00±0.10 2.00±0.05 B±0.25 A±0.20 P.C.B LAYOUT C±0.25 2.70±0.10 3.80±0.05 1.00±0.05 0.40 1.10±0.20 7.10±0.20 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 5.20±0.20 8.90±0.25 Ordering Information & Dimensions: Circuit 1 A 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 Dimensions B 4.50 6.50 8.50 10.50 12.50 14.50 16.50 18.50 20.50 22.50 24.50 26.50 28.50 30.50 32.50 C 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 32.00 34.00 36.00 Unit: mm A2012WV-F-XP 2.00mm pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:Ivory A±0.20 A±0.20 1.50 Ø1.10 1.70 2.00±0.05 2.00±0.10 Ordering Information: A2012WV-F-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel Ø0.80±0.05 P.C.B LAYOUT Ordering Information & Dimensions: PART NO. 3.50±0.20 6.85±0.25 1.20 ∅0.80 PIN 0.50 SQ Circuit 1 8.65±0.25 5.60±0.25 B±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Dimensions A B 2.00 8.00 4.00 10.00 6.00 12.00 8.00 14.00 10.00 16.00 12.00 18.00 14.00 20.00 16.00 22.00 18.00 24.00 20.00 26.00 22.00 28.00 24.00 30.00 26.00 32.00 28.00 34.00 30.00 36.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-270 A2012 SERIES A2012WVA-XP 2.00mm pitch wire to board connector 2.00mm pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:White Circuit 1 2.00±0.10 2.00±0.10 A±0.20 B±0.25 B±0.25 5.30±0.25 PIN 0.50 SQ 3.30±0.20 6.10±0.25 A±0.20 7.70±0.25 Circuit 1 Ordering Information: A2012WVA-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black PK:Pink RD:Red YL:Yellow BL:Blue LY:Lemon yellow GN:Green VY:Vivid yellow OR:Orange LE:Light blue BR:Brown GY:Gray VI:Violet TR:Tomato red 4.Finish: (blank):Tin over Nickel G:Gold over Nickel PIN 0.50 SQ 2P~9P 10P~15P Circuit 1 2.00±0.05 +0.10 0 Ø0.80 P.C.B LAYOUT 2.00±0.10 A±0.20 Ordering Information & Dimensions: B±0.25 PART NO. PIN 0.50 SQ 16P 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 26.00 30.00 28.00 32.00 30.00 34.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-271 A2012 SERIES A2012WRA-XP 2.00mm pitch wire to board connector 2.00mm pitch 90° Wafer Ordering Information: A2012WRA-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black PK:Pink RD:Red YL:Yellow BL:Blue LY:Lemon yellow GN:Green VY:Vivid yellow OR:Orange LE:Light blue BR:Brown GY:Gray VI:Violet TR:Tomato red 4.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:White Circuit 1 Circuit 1 2.00±0.10 2.00±0.10 PIN 0.50 SQ PIN 0.50 SQ 2P~9P 10P~15P 6.50±0.25 8.20±0.20 B±0.25 6.10±0.25 B±0.25 7.70±0.20 A±0.20 11.70±0.25 A±0.20 3.40±0.20 Circuit 1 2.00±0.05 +0.10 0 Ø0.80 P.C.B LAYOUT 2.00±0.10 A±0.20 Ordering Information & Dimensions: PART NO. B±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P PIN 0.50 SQ 16P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 26.00 30.00 28.00 32.00 30.00 34.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-272 A2012 SERIES A2012WVA-F-XP 2.00mm pitch wire to board connector 2.00mm pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:White Ordering Information: A2012WVA-F-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black PK:Pink RD:Red YL:Yellow BL:Blue LY:Lemon yellow GN:Green VY:Vivid yellow OR:Orange LE:Light blue BR:Brown GY:Gray VI:Violet TR:Tomato red 4.Finish: (blank):Tin over Nickel G:Gold over Nickel Circuit 1 Circuit 1 2.00±0.10 2.00±0.10 5.30±0.25 3.30 7.70±0.25 B±0.25 6.10±0.25 B±0.25 1.20 A±0.20 1.20 A±0.20 Ø0.80 Ø0.80 1.70 PIN 0.50 SQ PIN 0.50 SQ 1.50 1.50 10P~15P Ø1.00±0.05 2.00±0.05 1.70±0.05 2P~9P Circuit 1 +0.10 Ø0.800 1.50±0.05 P.C.B LAYOUT 2.00±0.10 A±0.20 Ordering Information & Dimensions: PART NO. 1.20 B±0.25 Ø0.80 PIN 0.50 SQ 1.50 16P 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 26.00 30.00 28.00 32.00 30.00 34.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-273 A2012 SERIES A2012WRA-F-XP 2.00mm pitch wire to board connector 2.00mm pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2012H-XP series Housing *Color:White Ordering Information: A2012WRA-F-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black PK:Pink RD:Red YL:Yellow BL:Blue LY:Lemon yellow GN:Green VY:Vivid yellow OR:Orange LE:Light blue BR:Brown GY:Gray VI:Violet TR:Tomato red 4.Finish: (blank):Tin over Nickel G:Gold over Nickel Circuit 1 Circuit 1 2.00±0.10 2.00±0.10 PIN 0.50 SQ 6.10±0.20 8.20±0.20 6.50±0.25 Ø0.80 B±0.25 6.10±0.25 B±0.25 7.70±0.20 A±0.20 11.70±0.25 A±0.20 PIN 0.50 SQ 10P~15P 2P~9P 3.40±0.20 Circuit 1 1.50±0.05 +0.10 0 Ø1.10 +0.10 0 Ø0.80 P.C.B LAYOUT 2.00±0.10 2.10±0.05 2.00±0.05 A±0.20 Ordering Information & Dimensions: PART NO. B±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P PIN 0.50 SQ 16P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 26.00 30.00 28.00 32.00 30.00 34.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-274 A2012 SERIES A2012WV-2xXP 2.00mm pitch wire to board connector 2.00mm pitch 180° Dual Row Wafer Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2012HD-2xXP series Dual Row Housing *Color:Ivory A±0.20 Ordering Information: A2012WV-2xXP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel +0.10 ∅0.800 2.00±0.05 2.00±0.10 2.00±0.05 A±0.10 P.C.B LAYOUT B±0.30 10.50±0.25 Ordering Information & Dimensions: 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x20P 3.40±0.20 7.80±0.25 10.20±0.25 PART NO. Circuit 1 PIN 0.50 SQ 2.00±0.10 A2012WV-F-2xXP Dimensions A B 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 38.00 42.00 Unit: mm 2.00mm pitch 180° Dual Row Wafer Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2012HD-2xXP series Dual Row Housing *Color:Ivory 1.30±0.05 +0.10 ∅0.800 2.00±0.05 2.00±0.10 2.50±0.50 A±0.20 Ordering Information: A2012WV-F-2xXP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel 2.00±0.05 ∅1.00±0.05 A±0.10 P.C.B LAYOUT B±0.30 10.50±0.25 Ordering Information & Dimensions: 3.40±0.20 7.80±0.25 10.20±0.25 PART NO. Circuit 1 PIN 0.50 SQ 2.00±0.10 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x20P Dimensions A B 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 38.00 42.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-275 A2012 SERIES A2012WR-F-2xXP 2.00mm pitch wire to board connector 2.00mm pitch 90° Dual Row Wafer Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2012HD-2xXP series Dual Row Housing *Color:White A±0.20 1.60±0.05 2.00±0.10 0.75 +0.10 ∅1.00±0.05 2.00±0.05 A±0.10 2.00±0.05 1.40±0.05 ∅0.800 Ordering Information: A2012WR-F-2xXP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel P.C.B LAYOUT B±0.30 10.50±0.25 Ordering Information & Dimensions: Circuit 1 PIN 0.50 SQ 3.00±0.20 10.70±0.25 2.00±0.20 3.00±0.20 8.75±0.25 13.20±0.25 PART NO. 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x20P Dimensions A B 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 38.00 42.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-276
