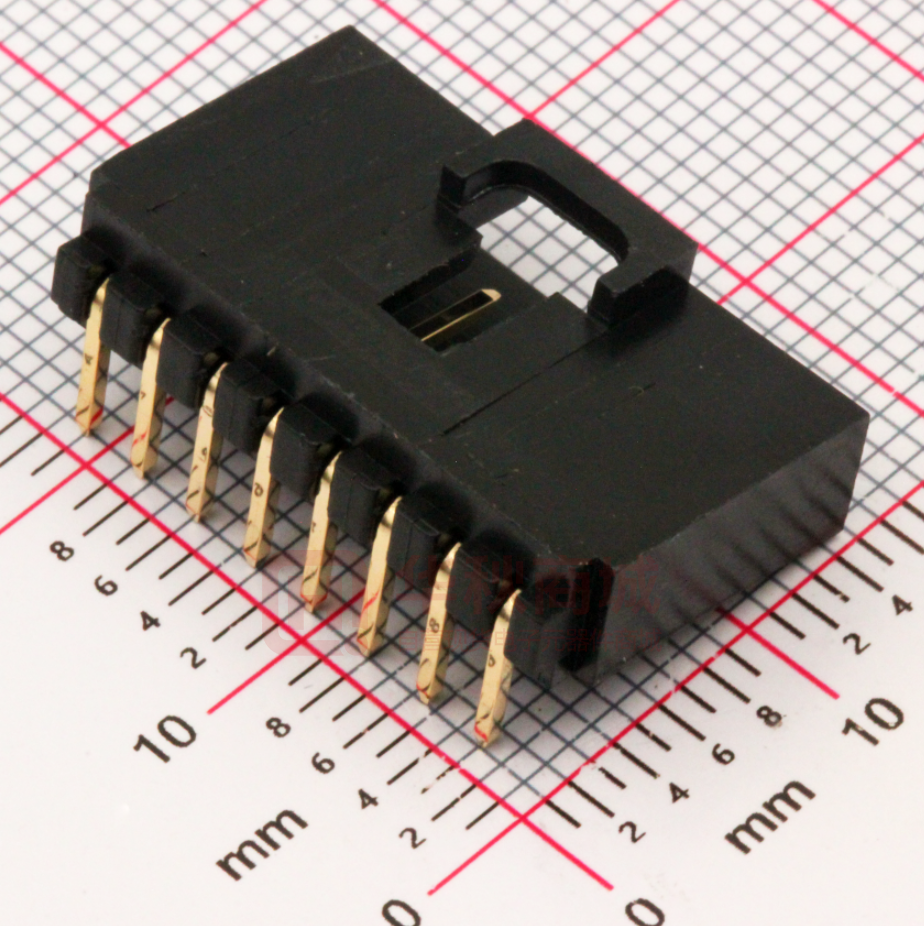

A2547WR-8P

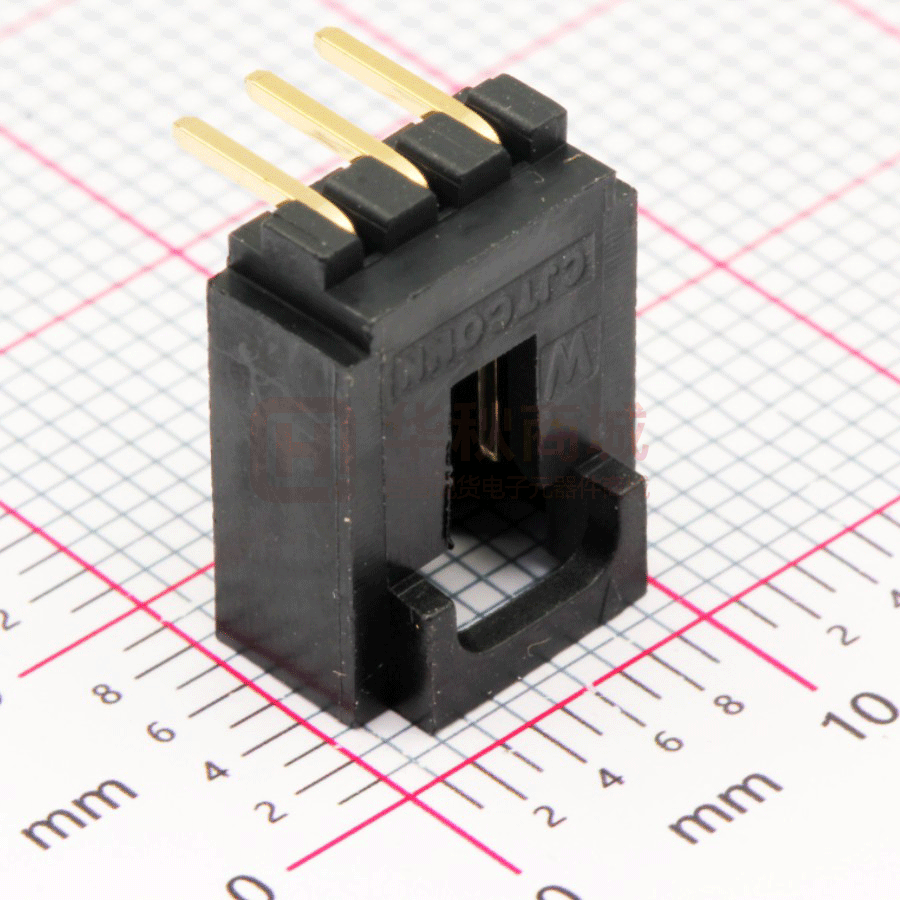

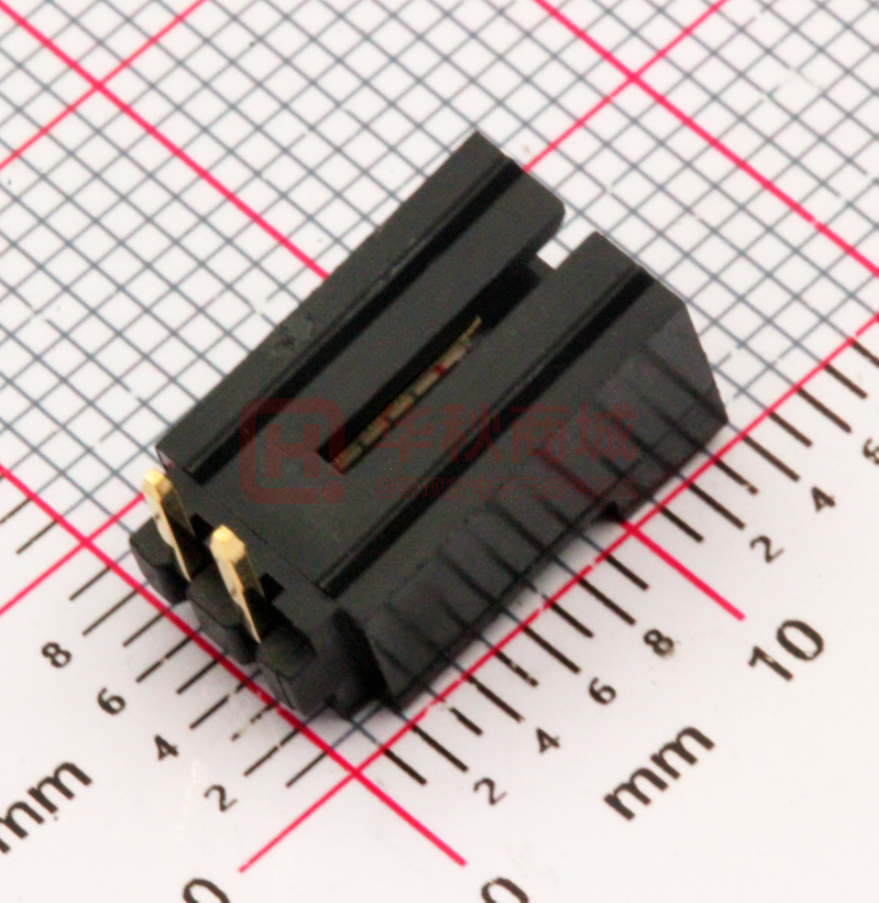

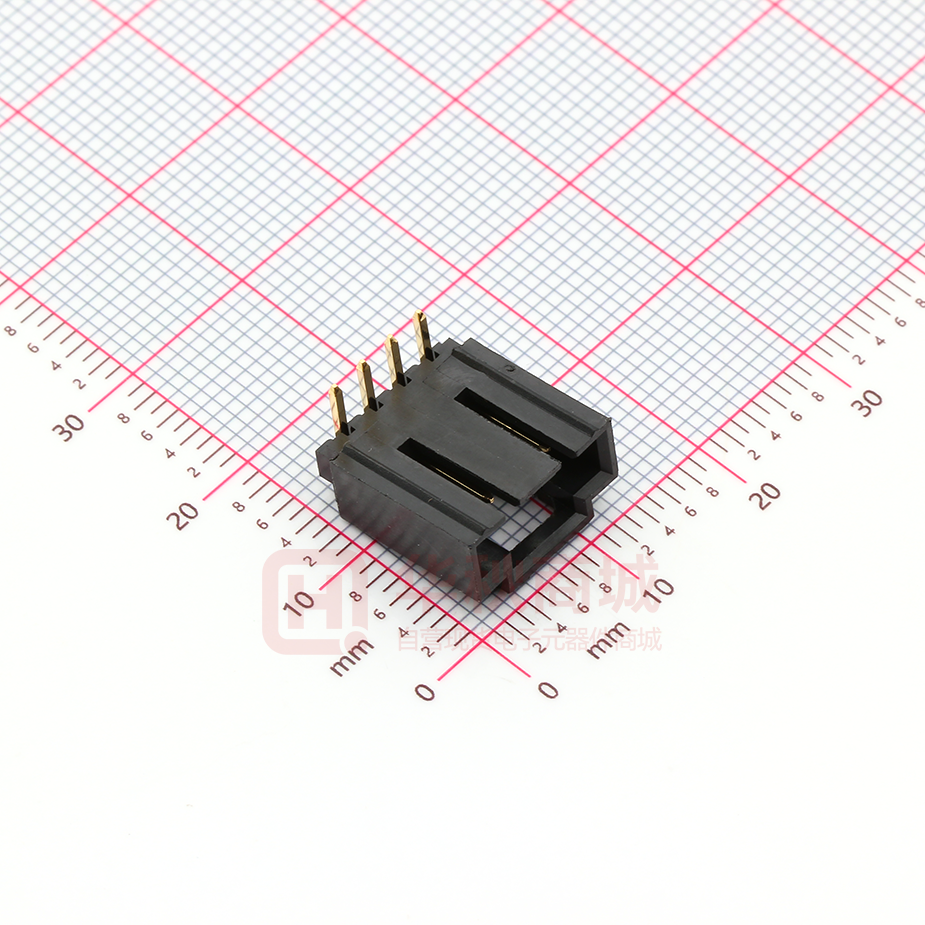

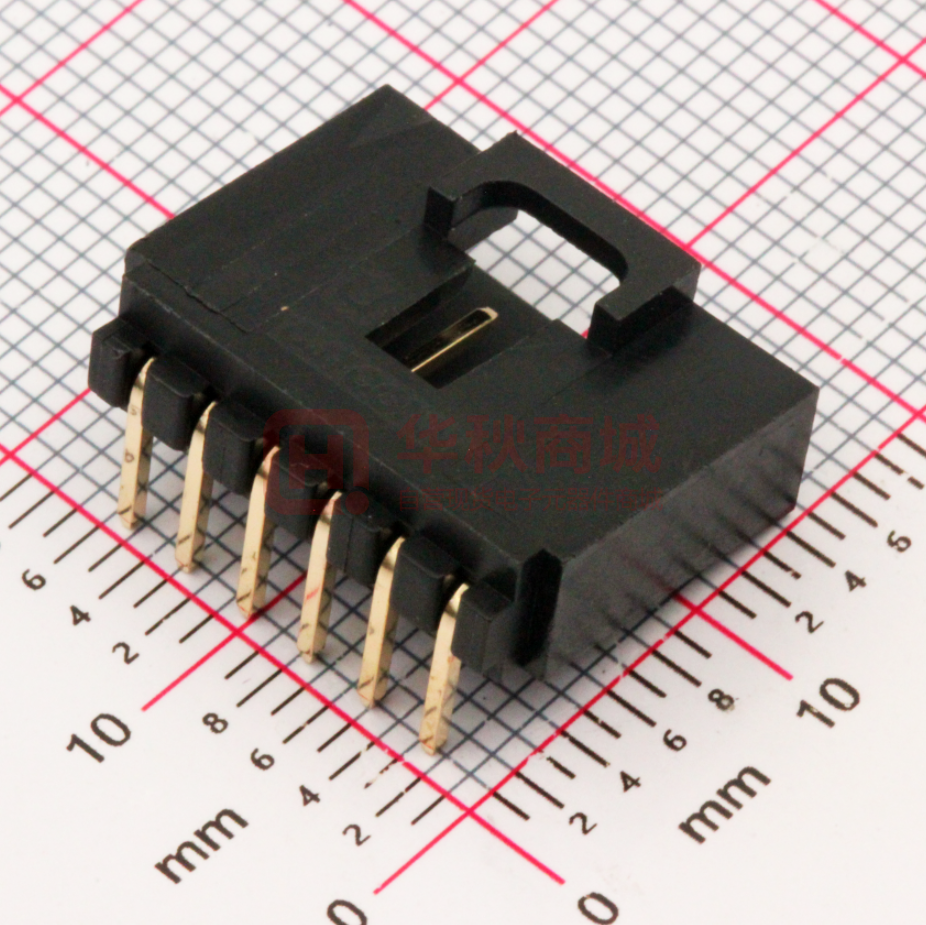

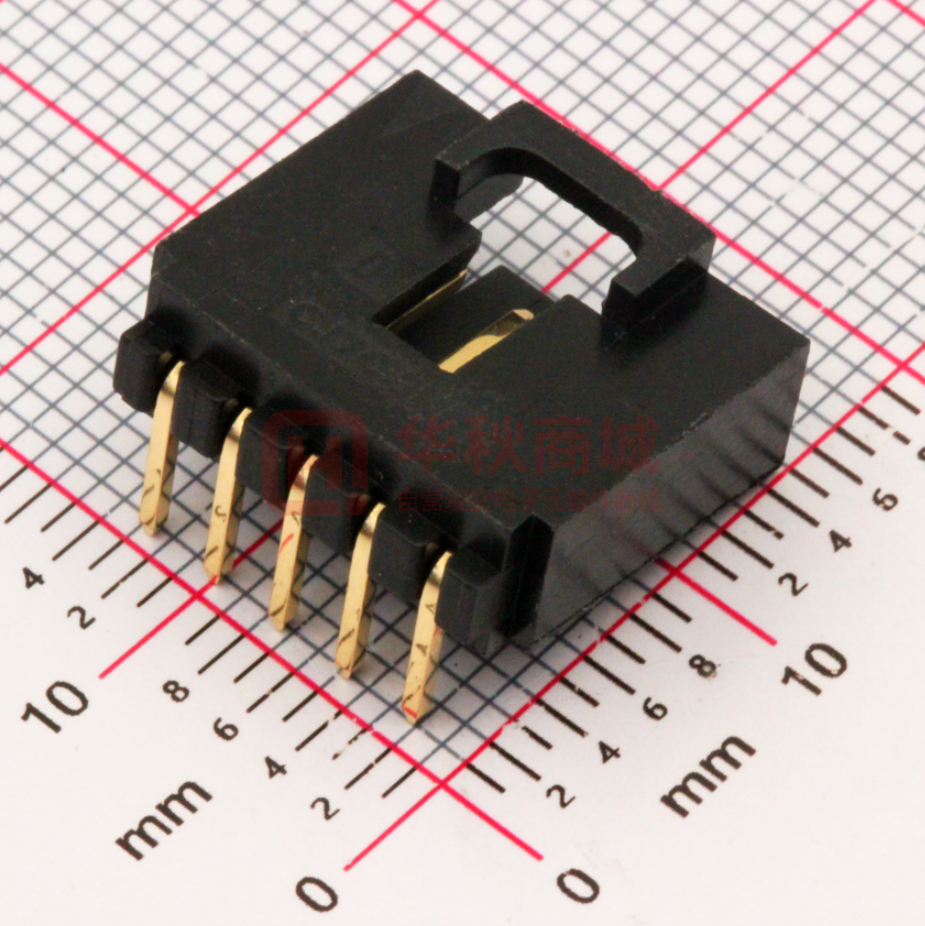

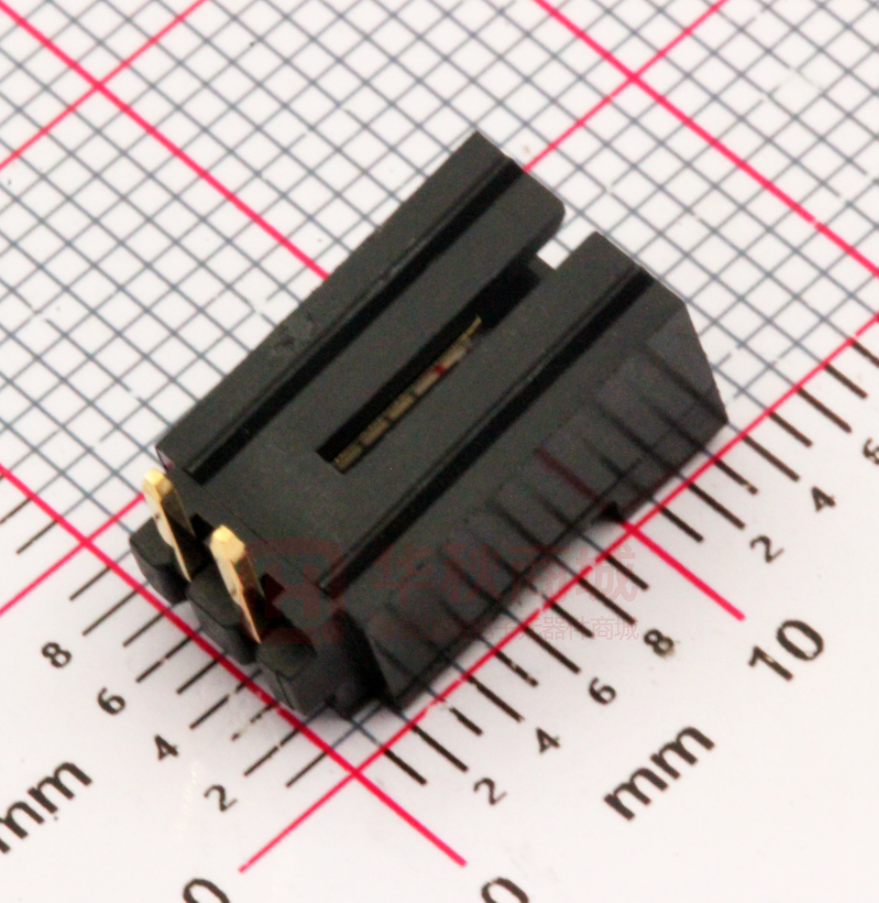

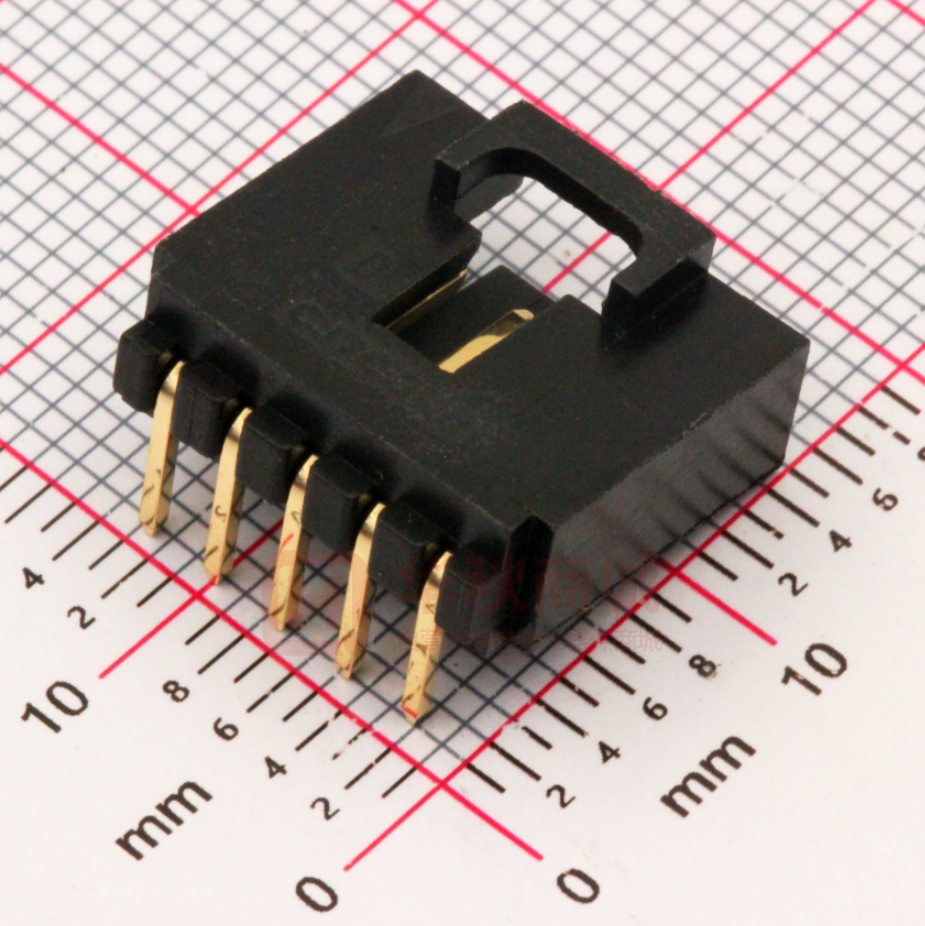

A2547 SERIES 2.54mm pitch wire to board and wire to wire connector Specifications Current rating:3A AC,DC Voltage rating:250V AC,DC Temperature range:-40°C~+105°C Contact resistance:20mΩ Max. Insulation resistance:1000MΩ Min. Withstanding voltage:1500V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 E326732 CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-411 A2547 SERIES 2.54mm pitch wire to board and wire to wire connector 6.33 8.35 1.60 17.51.REF 1.60 20.10 REF. 1.60 20.10 REF. 1.60 20.10 REF. 1.60 20.10 REF. 27.50.REF 6.60 6.60 1.60 8.90 1.60 6.60 1.60 1.60 18.06.REF 1.60 1.60 18.06.REF 30.65.REF 6.60 8.90 17.50.REF 6.87 6.87 18.06.REF 6.87 1.60 2.54 2.54 7.24 1.60 7.24 1.60 19.17.REF 1.60 19.17.REF 1.60 1.60 7.24 19.84.REF 2.54 19.50.REF 19.50.REF 19.07 REF. 1.60 19.07 REF. 1.60 1.60 1.60 19.07 19.07 REF. 1.60 1.60 19.07 REF. 1.60 6.97 24.64.REF CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-412 A2547 SERIES A2547-T 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Crimp Terminal Use With CJT A2547 series Housing ： Reference Informations: *Used in CJT A2547 series Housing A2547HF-2xXP,A2547HG-2xXP,A2547HJ-2xXP SEC:A-A SEC:B-B 2.10±0.20 12.90±0.25 16.80±0.25 0.63 6.45±0.20 B 1.75±0.20 2.00 2.10±0.20 1.65±0.20 2.80±0.20 A A2547H-2xXP,A2547HA-2xXP,A2547HD-2xXP,A2547HN-2xXP Dual Row 1.20 ∅1.50 A B A2547HG-XP,A2547HC-2P,A2547HD-2P,A2547HJ-XP 0.20 1.80±0.20 2.54 A2547H-XP,A2547H-XP-2,A2547H-XP-3,A2547HE-XP Single Row 0.22±0.06 C C 1.35±0.10 SEC:C-C 1.50±0.10 Unit:mm Ordering information & Specifications: Wire Range Insulation O.D. Material Finish Qty/reel A2547-TP AWG#22-#24 1.60mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A2547-GP AWG#22-#24 1.60mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Part NO. Optional Gold plating available but MOQ requested A2547-T-L 2.54mm Pitch Crimp Terminal Use With CJT A2547 series Housing ： Reference Informations: *Used in CJT A2547 series Housing A2547HG-XP,A2547HC-2P,A2547HD-2P,A2547HJ-XP SEC:B-B 2.10±0.20 SEC:A-A 12.90±0.25 0.63 6.45±0.20 B 1.30±0.20 2.00 2.10±0.20 16.80±0.25 B A2547HF-2xXP,A2547HG-2xXP,A2547HJ-2xXP 1.50±0.20 2.80±0.20 A Dual Row 1.20 ∅1.50 A A2547H-2xXP,A2547HA-2xXP,A2547HD-2xXP,A2547HN-2xXP 0.20 1.80±0.20 2.54 A2547H-XP,A2547H-XP-2,A2547H-XP-3,A2547HE-XP Single Row 0.22±0.06 C C 1.35±0.10 SEC:C-C 1.50±0.10 Unit:mm Ordering information & Specifications: Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A2547-TP-L AWG#24-#30 1.60mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A2547-GP-L AWG#24-#30 1.60mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Optional Gold plating available but MOQ requested CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-413 A2547 SERIES A2547-T-C 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Crimp Terminal Use With CJT A2547 series Housing ： Reference Informations: *Used in CJT A2547 series Housing A2547H-XP,A2547H-XP-2,A2547H-XP-3,A2547HE-XP Single Row A2547HG-XP,A2547HC-2P,A2547HD-2P,A2547HJ-XP 0.20 1.20 2.00 1.75±0.20 SEC:B-B 2.10±0.20 SEC:A-A 0.63 6.45±0.20 B 12.90±0.25 B A2547HF-2xXP,A2547HG-2xXP,A2547HJ-2xXP 2.10±0.20 16.80±0.25 A 2.80±0.20 A A2547H-2xXP,A2547HA-2xXP,A2547HD-2xXP,A2547HN-2xXP Dual Row 1.65±0.20 ∅1.50 1.80±0.20 2.54 0.48±0.05 C SEC:C-C 1.35±0.10 C 1.50±0.10 Unit:mm Ordering information & Specifications: Wire Range Insulation O.D. Material Finish Qty/reel A2547-TP-C AWG#22-#24 1.60mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A2547-GP-C AWG#22-#24 1.60mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Part NO. Optional Gold plating available but MOQ requested A2547-T-C-L 2.54mm Pitch Crimp Terminal Use With CJT A2547 series Housing ： Reference Informations: *Used in CJT A2547 series Housing A2547HG-XP,A2547HC-2P,A2547HD-2P,A2547HJ-XP 2.00 1.30±0.20 SEC:B-B 2.10±0.20 SEC:A-A 0.63 6.45±0.20 B 12.90±0.25 B A2547HF-2xXP,A2547HG-2xXP,A2547HJ-2xXP 2.10±0.20 16.80±0.25 A 2.80±0.20 A A2547H-2xXP,A2547HA-2xXP,A2547HD-2xXP,A2547HN-2xXP Dual Row 1.20 ∅1.50 1.50±0.20 0.20 1.80±0.20 2.54 A2547H-XP,A2547H-XP-2,A2547H-XP-3,A2547HE-XP Single Row 0.48±0.05 C C SEC:C-C 1.35±0.10 1.50±0.10 Unit:mm Ordering information & Specifications: Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A2547-TP-C-L AWG#24-#30 1.60mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A2547-GP-C-L AWG#24-#30 1.60mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Optional Gold plating available but MOQ requested CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-414 A2547 SERIES A2547-T-B 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Crimp Terminal Reference Informations: *Used in CJT A2547HA,HB-XP,A2549H,HA-XP,A2549H-2xXP series Housing 1.00±0.10 D D 4.00±0.10 1.50±0.10 2.20±0.20 1.70±0.10 SEC:B-B 0.80±0.10 1.90±0.20 C 1.30 C SEC:C-C 2.35 B SEC:A-A 5.40±0.20 B 1.70±0.20 1.70±0.10 3.05±0.20 A 12.00±0.25 A 2.00±0.10 1.50±0.20 0.25 ∅1.50 5.08 SEC:D-D Unit:mm Ordering information & Specifications: Wire Range Insulation O.D. Material Finish Qty/reel A2547-TP-B AWG#22-#26 1.55mm(max) Phosphor Bronze Tin over Nickel 20,000 PCS A2547-GP-B AWG#22-#26 1.55mm(max) Phosphor Bronze Gold over Nickel 20,000 PCS Part NO. Optional Gold plating available but MOQ requested A2547-T-D 2.54mm Pitch Insulation Displacement Terminal Use With CJT A2547 series Housing ： Reference Informations: *Used in CJT A2547 series Housing A2547HG-XP,A2547HC-2P,A2547HD-2P,A2547HJ-XP ∅1.50 0.20 A2547H-2xXP,A2547HA-2xXP,A2547HD-2xXP,A2547HN-2xXP Dual Row Odering Information: A2547-TP(GP)-D - ** 1 2 1.Part No. 2.Finish: (blank) - 24 AWG 26 - 26 AWG 28 - 28 AWG 22 - 22 AWG 2.80±0.20 6.45±0.20 13.50±0.25 1.80±0.20 A 16.80±0.25 A A2547HF-2xXP,A2547HG-2xXP,A2547HJ-2xXP 1.73±0.20 0.22±0.06 SEC:A-A B B 1.35±0.10 0.63 SEC:B-B 1.50±0.10 2.10±0.20 2.54 A2547H-XP,A2547H-XP-2,A2547H-XP-3,A2547HE-XP Single Row Unit:mm Ordering information & Specifications: Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A2547-TP-D AWG#22-#28 1.60mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A2547-GP-D AWG#22-#28 1.60mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Optional Gold plating available but MOQ requested CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-415 A2547 SERIES A2547-T-S 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Crimp Terminal Reference Informations: *Used in CJT A2547HS,HSA-2xXP series Housing 2.20±0.25 0.20 2.30±0.25 0.22±0.05 1.30±0.25 SEC:A-A 1.80±0.25 SEC:B-B 1.68±0.25 C 1.60±0.25 0.45 0.95 C 4.72±0.20 B 5.85±0.20 B 11.35±0.25 A 2.40 1.45 A SEC:C-C 0.60±0.10 Unit:mm Ordering information & Specifications: Wire Range Insulation O.D. Material Finish Qty/reel A2547-TP-S AWG#22-#28 1.63mm(max) Phosphor Bronze Tin over Nickel 10,000 PCS A2547-GP-S AWG#22-#28 1.63mm(max) Phosphor Bronze Gold over Nickel 10,000 PCS Part NO. Optional Gold plating available but MOQ requested A2547M-T 2.54mm Pitch Crimp Terminal Reference Informations: *Used in CJT A2547HM,HMA-XP,A2547H-XP-2,A2547H-XP-3,A2547HE-XP,A2547HF-2xXP series Housing ∅1.60 D D SEC:C-C 0.64 SEC:B-B 2.10±0.10 1.40 0.65 1.50 C 1.80±0.20 SEC:A-A 8.50±0.20 C 15.00±0.20 B 25.00±0.25 B 21.50±0.25 A 2.10 2.90±0.20 A 2.00±0.20 1.70±0.20 1.85±0.20 0.20 1.10 5.08±0.20 0.64 SEC:D-D Unit:mm Ordering information & Specifications: Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A2547M-TP AWG#22-#24 1.60mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A2547M-GP AWG#22-#24 1.60mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Optional Gold plating available but MOQ requested CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-416 A2547 SERIES A2547M-T-L 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Crimp Terminal Reference Informations: *Used in CJT A2547HM,HMA-XP,A2547H-XP-2,A2547H-XP-3,A2547HE-XP,A2547HF-2xXP series Housing ∅1.60 D D 1.85±0.20 0.64 21.50±0.25 1.40 0.65 SEC:B-B 2.10±0.10 C 1.50 C 1.30±0.20 SEC:A-A 8.50±0.20 B 25.00±0.25 B 15.00±0.20 A 2.10 2.90±0.20 A 2.00±0.20 1.50±0.20 0.20 1.10 5.08±0.20 SEC:C-C 0.64 SEC:D-D Unit:mm Ordering information & Specifications: Wire Range Insulation O.D. Material Finish Qty/reel A2547M-TP-L AWG#24-#30 1.60mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A2547M-GP-L AWG#24-#30 1.60mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Part NO. Optional Gold plating available but MOQ requested A2547M-T-B Reference Informations: *Used in CJT A2547HMB-XP series Housing 0.20 ∅1.60 1.88±0.20 1.90±0.20 SEC:B-B +0.10 0.640 1.50±0.20 C 2.10 C 1.74±0.20 1.80 B 12.46±0.25 B 21.50±0.20 A SEC:A-A 25.00±0.25 A 2.90±0.20 1.10 5.08±0.20 1.80±0.20 2.54mm Pitch Crimp Terminal 1.40±0.20 SEC:C-C +0.10 0.640 Ordering information & Specifications: Unit:mm Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A2547M-TP-B AWG#22-#26 1.63mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A2547M-GP-B AWG#22-#26 1.63mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Optional Gold plating available but MOQ requested CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-417 A2547 SERIES A2547H-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Housing With Lock Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547HM,HMA,HMB-XP series Housing or A2547WV,WR,WVA,WRA-XP,A2547WR-F,WR-S-F-XP series single row Wafer *Color:Black Ordering Information: A2547H-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ PART NO. 2.54±0.10 2P 3P A±0.20 3.51±0.20 CJTCONN 15.24±0.25 Circuit 1 2.51±0.10 B±0.25 Ordering Information & Dimensions: 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 5.08 5.08 7.62 7.62 10.16 10.16 12.70 12.70 15.24 15.24 17.78 17.78 20.32 20.32 22.86 22.86 25.40 25.40 27.94 27.94 30.48 30.48 33.02 33.02 35.56 35.56 38.10 38.10 40.64 40.64 43.18 43.18 45.72 45.72 48.26 48.26 50.80 50.80 53.34 53.34 55.88 55.88 58.42 58.42 60.96 60.96 63.50 Unit: mm A2547H-XP-2 2.54mm Pitch Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547M-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547 series single row Housing or A2547 A2541 series single row Wafer *Color:Black Ordering Information: A2547H-XP-2 - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ PART NO. 2.54±0.10 A±0.20 CJTCONN 15.24±0.25 Circuit 1 B±0.25 Ordering Information & Dimensions: 2.54±0.10 1P 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B ---2.54 2.54 5.08 5.08 7.62 7.62 10.16 10.16 12.70 12.70 15.24 15.24 17.78 17.78 20.32 20.32 22.86 22.86 25.40 25.40 27.94 27.94 30.48 30.48 33.02 33.02 35.56 35.56 38.10 38.10 40.64 43.18 40.64 43.18 45.72 45.72 48.26 48.26 50.80 50.80 53.34 53.34 55.88 55.88 58.42 58.42 60.96 60.96 63.50 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-418 A2547 SERIES A2547H-XP-3 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547M-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547 series single row Housing or A2547 A2541 series single row Wafer *Color:Black Ordering Information: A2547H-XP-3 - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 2.54±0.10 2P 3P A±0.20 CJTCONN 15.24±0.25 Circuit 1 2.54±0.10 B±0.25 Dimensions A B 2.54 5.08 5.08 7.62 7.62 10.16 10.16 12.70 12.70 15.24 15.24 17.78 17.78 20.32 20.32 22.86 22.86 25.40 25.40 27.94 27.94 30.48 30.48 33.02 33.02 35.56 35.56 38.10 38.10 40.64 40.64 43.18 43.18 45.72 45.72 48.26 48.26 50.80 50.80 53.34 53.34 55.88 55.88 58.42 58.42 60.96 60.96 63.50 Unit: mm A2547HA-XP 2.54mm Pitch Housing With Lock Ordering Information: A2547HA-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T-B series Terminal *Mates with CJT A2547HM,HMA,HMB-XP series Housing or A2547WV,WR,WVA,WRA-XP,A2547WR-F,WR-S-F-XP series Wafer *Color:Black B±0.25 2.90±0.25 3.20±0.25 Ordering Information & Dimensions: 13.80±0.25 CJT 13.80±0.25 PART NO. 2.50±0.25 2.50±0.25 A±0.20 3P～25P 2.54±0.10 2P Circuit 1 4.00±0.25 4P～25P 2P 3P 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 4.92 5.08 7.46 7.62 10.00 10.16 12.54 12.70 15.08 15.24 17.62 17.78 20.16 20.32 22.70 22.86 25.24 25.40 27.78 27.94 30.32 30.48 32.86 33.02 35.40 35.56 37.94 38.10 40.48 40.64 43.02 43.18 45.56 45.72 48.10 48.26 50.64 50.80 53.18 53.34 55.72 55.88 58.26 58.42 60.80 60.96 63.34 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-419 A2547 SERIES A2547HB-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Housing Ordering Information: A2547HB-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T-B series Terminal *Mates with CJT A2547 series single row Housing or A2547 A2541 series single row Wafer *Color:Black B±0.25 Ordering Information & Dimensions: 3.20±0.25 Circuit 1 2.54±0.10 2.46±0.25 2.46±0.25 A±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 1.34 CJT 13.71±0.25 PART NO. Dimensions A B 2.54 4.92 5.08 7.46 7.62 10.00 10.16 12.54 12.70 15.08 15.24 17.62 17.78 20.16 20.32 22.70 22.86 25.24 25.40 27.78 27.94 30.32 30.48 32.86 33.02 35.40 35.56 37.94 38.10 40.48 40.64 43.02 43.18 45.56 45.72 48.10 48.26 50.64 50.80 53.18 53.34 55.72 55.88 58.26 58.42 60.80 60.96 63.34 Unit: mm A2547HE-XP 2.54mm Pitch Housing Ordering Information: A2547HE-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547M-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Color:Black Ordering Information & Dimensions: PART NO. 2.54±0.10 3P 2P A±0.20 4P~25P B±0.25 3.80±0.10 CJTCONN 15.24±0.25 2.54±0.20 3.54±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 5.08 5.08 7.62 7.62 10.16 10.16 12.70 12.70 15.24 15.24 17.78 17.78 20.32 20.32 22.86 22.86 25.40 25.40 27.94 27.94 30.48 30.48 33.02 33.02 35.56 35.56 38.10 38.10 40.64 40.64 43.18 43.18 45.72 45.72 48.26 48.26 50.80 50.80 53.34 53.34 55.88 55.88 58.42 58.42 60.96 60.96 63.50 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-420 A2547 SERIES A2547HG-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Housing Ordering Information: A2547HG-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Color:Black Ordering Information & Dimensions: 1.20 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 2.54±0.10 A±0.20 3P 2P 4P~25P 5.82±0.20 B±0.25 15.24±0.25 CJTCONN 4.10±0.20 2.20 2.54±0.20 Dimensions A B 2.54 5.08 5.08 7.62 7.62 10.16 10.16 12.70 12.70 15.24 15.24 17.78 17.78 20.32 20.32 22.86 22.86 25.40 25.40 27.94 27.94 30.48 30.48 33.02 33.02 35.56 35.56 38.10 38.10 40.64 40.64 43.18 43.18 45.72 45.72 48.26 48.26 50.80 50.80 53.34 53.34 55.88 55.88 58.42 58.42 60.96 60.96 63.50 Unit: mm 2.54mm Pitch Housing Ordering Information: A2547HC(HD)-2P - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 5.05±0.25 3.75±0.20 13.55±0.20 15.25±0.25 2.50±0.10 15.25±0.25 2.50±0.10 5.05±0.25 3.75±0.20 Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547HMC-2P A2547HMD-2P Housing and A2547WVC(WRC)-2P , A2547WVD(WRD)-2P Wafer 13.55±0.20 A2547HC(HD)-2P 3.15±0.20 5.00±0.20 5.00±0.20 3.15±0.20 2.50±0.10 2.50±0.10 A2547HC-2P(White) A2547HD-2P(Black) (Mates with CJT A2547HMC-2P Housing) (Mates with CJT A2547WVC(WRC)-2P Wafer) (Mates with CJT A2547HMD-2P Housing) (Mates with CJT A2547WVD(WRD)-2P Wafer) Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-421 A2547 SERIES 2.54mm pitch wire to board and wire to wire connector Unit: mm A2547HMC(HMD)-2P 2.54mm Pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2547M-T(-L) series Terminal *Mates with CJT A2547HC-2P ,A2547HD-2P Housing Ordering Information: A2547HMC(HMD)-2P - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 2.50±0.10 2.50±0.10 8.00±0.20 8.00±0.20 7.00±0.20 6.44±0.25 6.44±0.25 24.40±0.25 24.40±0.25 7.00±0.20 3.00±0.20 3.00±0.20 A2547HMC-2P(White) A2547HMD-2P(Black) (Mates with CJT A2547HC-2P Housing) (Mates with CJT A2547HD-2P Housing) A2547WVC(WVD)-XP 2.54mm Pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HC-2P, A2547HD-2P series Housing 7.63±0.25 6.62±0.25 7.63±0.25 PIN 0.64 SQ Circuit 1 PIN 0.64 SQ Circuit 1 A2547WVC-2P(White) A2547WVD-2P(Black) (Mates with CJT A2547HC-2P Housing) (Mates with CJT A2547HD-2P Housing) 3.30±0.20 11.70±0.20 11.43±0.20 11.43±0.20 5.09±0.20 2.55±0.20 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-422 A2547 SERIES A2547WRC(WRD)-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HC-2P, A2547HD-2P series Housing PIN 0.64 SQ PIN 0.64 SQ 7.62±0.25 Circuit 1 13.59±0.25 11.41±0.25 6.98±0.25 11.41±0.25 7.62±0.25 Circuit 1 3.30±0.20 A2547WRC-2P(White) A2547WRD-2P(Black) (Mates with CJT A2547HC-2P Housing) (Mates with CJT A2547HD-2P Housing) Unit: mm A2547HM-XP 2.54mm Pitch Housing With Lock Ordering Information: A2547HM-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547M-T(-L) series Terminal *Mates with CJT A2547H,HA-XP,A2547H-XP-3,A2550H-XP-A, A2550H-XP-A1,A2550H-XP-A2,A2550H-XP-A3H,A2550H-XP-H, A2550H-XP-M,A2550H-XP-M2 series Housing *Color:Black A±0.20 1.27 Ordering Information & Dimensions: 1.27 1.27 2.54±0.10 PART NO. Circuit 1 2P 3P 7.12±0.20 4P~25P 6.70±0.20 4.60±0.20 2.98±0.10 8.90±0.20 14.40±0.20 24.40±0.25 CJTCONN B±0.25 3.00±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 7.12 5.08 9.66 7.62 12.20 10.16 14.74 12.70 17.28 15.24 19.82 17.78 22.36 20.32 24.90 22.86 27.44 25.40 29.98 27.94 32.52 30.48 35.06 33.02 37.60 35.56 40.14 38.10 42.68 40.64 45.22 43.18 47.76 45.72 50.30 48.26 52.84 50.80 55.38 53.34 57.92 55.88 60.46 58.42 63.00 60.96 65.54 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-423 A2547 SERIES A2547HMA-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Housing With Lock Ordering Information: A2547HMA-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547M-T(-L) series Terminal *Mates with CJT A2547H,HA-XP,A2547H-XP-3,A2550H-XP-A, A2550H-XP-A1,A2550H-XP-A2,A2550H-XP-A3H,A2550H-XP-H, A2550H-XP-M,A2550H-XP-M2 series Housing *Color:Black 1.30 Circuit 1 1.30 Ordering Information & Dimensions: 1.30 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 2.54±0.10 3P A±0.20 2P 4P~25P 6.70±0.20 B±0.25 7.10±0.20 10.05±0.20 8.90±0.20 2.98±0.10 24.40±0.25 CJTCONN 4.60±0.15 Dimensions A B 2.54 7.12 5.08 9.66 7.62 12.20 10.16 14.74 12.70 17.28 15.24 19.82 17.78 22.36 20.32 24.90 22.86 27.44 25.40 29.98 32.52 27.94 30.48 35.06 33.02 37.60 35.56 40.14 38.10 42.68 40.64 45.22 43.18 47.76 45.72 50.30 48.26 52.84 50.80 55.38 53.34 57.92 55.88 60.46 58.42 63.00 60.96 65.54 3.00±0.20 A2547HMB-XP Unit: mm 2.54mm Pitch Housing With Lock Ordering Information: A2547HMB-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547M-T-B series Terminal *Mates with CJT A2547H,HA-XP,A2550H-XP series single row Housing *Color:Black 1.30 1.30 Ordering Information & Dimensions: A±0.20 1.30 2.54±0.10 1 3P 2P Circuit 1 3.70±0.20 7.50±0.20 4P~25P 2.98±0.10 8.90±0.20 4.60±0.20 14.35±0.20 1 24.40±0.25 1 CJTCONN B±0.20 6.70±0.20 3.00±0.20 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 7.50 5.08 10.04 7.62 12.58 10.16 15.12 12.70 17.66 15.24 20.20 17.78 22.74 20.32 25.28 22.86 27.82 25.40 30.36 27.94 32.90 30.48 35.44 33.02 37.98 35.56 40.52 38.10 43.06 40.64 45.60 43.18 48.14 45.72 50.68 48.26 53.22 50.80 55.76 53.34 58.30 55.88 60.84 58.42 63.38 60.96 65.92 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-424 A2547 SERIES A2547HMB-4P-A 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Housing With Lock Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547M-T-B series Terminal *Mates with CJT A2550H series single row Housing *Color:Black Ordering Information: A2547HMB-4P-A - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 7.62±0.20 1.30 2.54±0.10 1 Circuit 1 3.70±0.20 7.50±0.20 4.60±0.20 2.98±0.10 8.90±0.20 12.58±0.20 6.70±0.20 14.35±0.20 24.40±0.25 1 1 3.00±0.20 Unit: mm A2547H-2xXP 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WV,WR-2xXP, A2547HI,HIA-2xXP series Wafer *Color:Black A±0.20 2.54±0.10 Circuit 2 3.30 2.54±0.10 PART NO. Ordering Information: A2547H-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Circuit 1 7.10±0.25 15.10±0.25 5.80±0.20 5.20 B±0.25 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 5.08 12.22 7.62 14.76 10.16 17.30 12.70 19.84 15.24 22.38 17.78 24.92 20.32 27.46 22.86 30.00 25.40 32.54 27.94 35.08 30.48 37.62 33.02 40.16 35.56 42.70 38.10 45.24 40.64 47.78 43.18 50.32 45.72 52.86 48.26 55.40 50.80 57.94 53.34 60.48 55.88 63.02 58.42 65.56 60.96 68.10 63.50 70.64 66.04 73.18 68.58 75.72 78.26 71.12 73.66 80.80 76.20 83.34 78.74 85.88 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-425 A2547 SERIES A2547HA-2xXP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WV,WR,WVC,WRC-2xXP series Wafer *Color:Black 2.54±0.10 A±0.20 Circuit 2 2.54±0.10 3.30 PART NO. Ordering Information: A2547HA-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Circuit 1 7.10±0.25 B±0.25 15.10±0.25 5.20 5.80±0.20 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 5.08 12.22 7.62 14.76 10.16 17.30 12.70 19.84 15.24 22.38 17.78 24.92 20.32 27.46 22.86 30.00 25.40 32.54 27.94 35.08 30.48 37.62 33.02 40.16 35.56 42.70 38.10 45.24 40.64 47.78 43.18 50.32 45.72 52.86 48.26 55.40 50.80 57.94 53.34 60.48 55.88 63.02 58.42 65.56 60.96 68.10 63.50 70.64 73.18 66.04 68.58 75.72 71.12 78.26 73.66 80.80 76.20 83.34 78.74 85.88 Unit: mm A2547HB-2xXP 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Reference Informations: *Material: PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WV,WR-2xXP series Wafer *Color:Black PART NO. 2.54±0.10 Circuit 2 Circuit 1 2.54±0.10 A±0.20 Ordering Information: A2547HB-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ B±0.25 15.10±0.25 5.80±0.25 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 5.08 12.22 7.62 14.76 10.16 17.30 12.70 19.84 15.24 22.38 17.78 24.92 20.32 27.46 22.86 30.00 25.40 32.54 27.94 35.08 30.48 37.62 33.02 40.16 35.56 42.70 38.10 45.24 40.64 47.78 43.18 50.32 45.72 52.86 48.26 55.40 50.80 57.94 53.34 60.48 55.88 63.02 58.42 65.56 60.96 68.10 63.50 70.64 66.04 73.18 68.58 75.72 78.26 71.12 73.66 80.80 76.20 83.34 78.74 85.88 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-426 A2547 SERIES A2547HC-2xXP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WV,WR-2xXP series Wafer *Color:Black PART NO. 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 2.54±0.10 Circuit 2 Circuit 1 2.54±0.10 A±0.20 Ordering Information: A2547HC-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ B±0.25 15.10±0.25 5.80±0.25 Dimensions A B 2.54 9.68 5.08 12.22 7.62 14.76 10.16 17.30 12.70 19.84 15.24 22.38 17.78 24.92 20.32 27.46 22.86 30.00 25.40 32.54 27.94 35.08 30.48 37.62 33.02 40.16 35.56 42.70 38.10 45.24 40.64 47.78 43.18 50.32 45.72 52.86 48.26 55.40 50.80 57.94 53.34 60.48 55.88 63.02 58.42 65.56 60.96 68.10 63.50 70.64 73.18 66.04 68.58 75.72 71.12 78.26 73.66 80.80 76.20 83.34 78.74 85.88 Unit: mm A2547HD-2xXP 2.54mm Pitch Dual Row Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WVA,WRA-2xXP series Wafer *Color:Black 2.54±0.10 Circuit 2 Circuit 1 3.30 A±0.20 2.54±0.10 Last Circuit Ordering Information: A2547HD-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 7.10±0.25 26.18±0.20 15.10±0.25 5.20 5.80±0.20 Ordering Information & Dimensions: PART NO. 2x25P 2x30P 2x32P B±0.25 Dimensions A B 60.96 68.10 73.66 80.80 78.74 85.88 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-427 A2547 SERIES A2547HN-2xXP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Ordering Information: A2547HN-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2549-T-C(-H/-L) series Terminal *Mates with CJT A2547WV-N,WR-N-2xXP, A2547WV-N-S-2xXP series Wafer *Color:Black PART NO. A±0.20 Last Circuit 2.54±0.10 Circuit 2 Circuit 1 7.55±0.25 B±0.25 5.20±0.20 15.24±0.25 6.10±0.25 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 5.08 12.22 7.62 14.76 10.16 17.30 12.70 19.84 15.24 22.38 17.78 24.92 20.32 27.46 22.86 30.00 25.40 32.54 27.94 35.08 30.48 37.62 33.02 40.16 35.56 42.70 38.10 45.24 40.64 47.78 43.18 50.32 45.72 52.86 48.26 55.40 50.80 57.94 53.34 60.48 55.88 63.02 58.42 65.56 60.96 68.10 63.50 70.64 73.18 66.04 68.58 75.72 71.12 78.26 73.66 80.80 76.20 83.34 78.74 85.88 Unit: mm A2547HF-2xXP 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547M-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WV,WR,WVC,WRC-2xXP series Wafer or A2541WV,WR-2xXP series Wafer *Color:Black Last Circuit 2.54±0.10 Circuit 1 A±0.20 2.54±0.10 Circuit 2 PART NO. Ordering Information: A2547HF-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ B±0.25 15.10±0.25 5.80±0.25 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 2.54 5.05 5.08 7.59 7.62 10.13 10.16 12.67 12.70 15.21 15.24 17.75 17.78 20.29 20.32 22.83 22.86 25.37 25.40 27.91 27.94 30.45 30.48 32.99 33.02 35.53 35.56 38.07 38.10 40.61 40.64 43.15 43.18 45.69 45.72 48.23 48.26 50.77 50.80 53.31 53.34 55.85 55.88 58.39 58.42 60.93 60.96 63.47 63.50 66.01 66.04 68.55 68.58 71.09 73.63 71.12 73.66 76.17 76.20 78.71 78.74 81.25 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-428 A2547 SERIES A2547HG-2xXP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WV,WR-2xXP series Wafer *Color:Black A±0.20 2.54±0.10 Circuit 2 3.30 2.54±0.10 PART NO. Circuit 1 Ordering Information: A2547HG-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT :PBT,UL94V-0 GWT 750 ℃ 7.10±0.25 B±0.25 15.10±0.25 5.20 5.80±0.25 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 5.08 7.59 7.62 10.13 10.16 12.67 12.70 15.21 15.24 17.75 17.78 20.29 20.32 22.83 22.86 25.37 25.40 27.91 27.94 30.45 30.48 32.99 33.02 35.53 35.56 38.07 38.10 40.61 40.64 43.15 43.18 45.69 48.23 45.72 48.26 50.77 50.80 53.31 53.34 55.85 55.88 58.39 58.42 60.93 60.96 63.47 63.50 66.01 66.04 68.55 68.58 71.09 71.12 73.63 73.66 76.17 76.20 78.71 78.74 81.25 Unit: mm A2547HJ-2xXP 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WVB,WRB-2xXP(-A) A2547WVB-S-2xXP(-A) series Dual row Wafer *Color:Black PART NO. Circuit 1 2.54±0.10 A±0.20 6.20±0.25 Circuit 2 Ordering Information: A2547HJ-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0 GWT 750 ℃ B±0.25 4.30±0.05 15.10±0.25 7.72±0.25 3.50±0.10 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 5.08 7.59 7.62 10.13 10.16 12.67 12.70 15.21 15.24 17.75 17.78 20.29 20.32 22.83 22.86 25.37 25.40 27.91 27.94 30.45 30.48 32.99 33.02 35.53 35.56 38.07 38.10 40.61 40.64 43.15 43.18 45.69 45.72 48.23 48.26 50.77 50.80 53.31 53.34 55.85 55.88 58.39 58.42 60.93 60.96 63.47 63.50 66.01 66.04 68.55 68.58 71.09 73.63 71.12 73.66 76.17 76.20 78.71 78.74 81.25 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-429 A2547 SERIES A2547HJ-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Single Row Housing Ordering Information & Dimensions: Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WVB,WRB-XP series Single Row Wafer *Color:Black Ordering Information: A2547HJ-XP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Circuit 1 2.54±0.10 1.00 1.00 A±0.20 2P~3P 4P~32P B±0.25 4.69±0.20 0.80 CJTCONN 15.24±0.25 0.65 4.30±0.20 3.55 3.81±0.10 Dimensions A B 2.54 6.14 5.08 8.68 7.62 11.22 10.16 13.76 12.70 16.30 15.24 18.84 17.78 21.38 20.32 23.92 22.86 26.46 25.40 29.00 27.94 31.54 30.48 34.08 33.02 36.62 35.56 39.16 38.10 41.70 40.64 44.24 43.18 46.78 49.32 45.72 48.26 51.86 50.80 54.40 53.34 56.94 55.88 59.48 58.42 62.02 60.96 64.56 63.50 67.10 66.04 69.64 68.58 72.18 71.12 74.72 73.66 77.26 76.20 79.80 78.74 82.34 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 26P 27P 28P 29P 30P 31P 32P Unit: mm A2547HK-2xXP 2.54mm Pitch Dual Row Housing Reference Informations: *Material: PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WV,WR-2xXP-L series Dual row Wafer *Color:Black A±0.20 Circuit 2 Ordering Information & Dimensions: PART NO. Ordering Information: A2547HK-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 2.54±0.10 4.30±0.20 Circuit 1 B±0.25 C±0.25 7.72±0.25 15.24±0.25 6.85±0.25 10.75±0.25 3.55 6.20±0.25 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P A 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 Dimensions B 14.93 17.47 20.01 22.55 25.09 27.63 30.17 32.71 35.25 37.79 40.33 42.87 45.41 47.95 50.49 53.03 55.57 58.11 60.65 63.19 65.73 68.27 70.81 73.35 75.89 78.43 80.97 83.51 86.05 C 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 81.28 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-430 A2547 SERIES A2547HL-2xXP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Ordering Information: A2547HL-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0 GWT 750 ℃ Reference Informations: *Material: PBT,UL94V-0 *Suitable CJT A2547 series Terminal *Mates with CJT A2547 series Wafer *Color:Black A±0.20 2.54±0.10 Circuit 2 Circuit 1 Last Circuit 1.27 0.76 B±0.25 3.81±0.25 15.24±0.25 5.05±0.25 7.09±0.25 PART NO. 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 2.54 5.05 5.08 7.59 7.62 10.13 10.16 12.67 12.70 15.21 15.24 17.75 17.78 20.29 20.32 22.83 22.86 25.37 25.40 27.91 27.94 30.45 30.48 32.99 33.02 35.53 35.56 38.07 38.10 40.61 40.64 43.15 43.18 45.69 48.23 45.72 48.26 50.77 50.80 53.31 53.34 55.85 55.88 58.39 58.42 60.93 60.96 63.47 63.50 66.01 66.04 68.55 68.58 71.09 71.12 73.63 73.66 76.17 76.20 78.71 78.74 81.25 Unit: mm A2547HP-2xXP 2.54mm Pitch Dual Row Housing Ordering Information & Dimensions: Reference Informations: *Material: PBT,UL94V-0 *Suitable CJT A2547 series Terminal *Mates with CJT A2547 series Wafer *Color:Black Ordering Information: A2547HP-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0 GWT 750 ℃ A±0.20 2.54±0.10 2.54±0.10 Circuit 2 Circuit 1 7.12±0.25 7.70±0.25 B±0.25 6.10±0.20 15.24±0.25 5.80±0.25 5.05±0.25 PART NO. 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B 2.54 5.05 5.08 7.59 7.62 10.13 10.16 12.67 12.70 15.21 15.24 17.75 17.78 20.29 20.32 22.83 22.86 25.37 25.40 27.91 27.94 30.45 30.48 32.99 33.02 35.53 35.56 38.07 38.10 40.61 40.64 43.15 43.18 45.69 45.72 48.23 48.26 50.77 50.80 53.31 53.34 55.85 55.88 58.39 58.42 60.93 60.96 63.47 63.50 66.01 66.04 68.55 68.58 71.09 73.63 71.12 73.66 76.17 76.20 78.71 78.74 81.25 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-431 A2547 SERIES A2547HS-2xXP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch Dual Row Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WV,WR,WVC,WRC-2xXP series Wafer *Color:Black Circuit 2 2.54±0.10 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P A±0.20 B±0.30 3.50±0.20 13.90±0.25 14.10±0.25 6.00±0.20 2.00±0.10 Dimensions A B 10.16 17.25 12.70 19.79 15.24 22.33 17.78 24.87 20.32 27.41 22.86 29.95 32.49 25.40 27.94 35.03 30.48 37.57 33.02 40.11 35.56 42.65 38.10 45.19 40.64 47.73 43.18 50.27 45.72 52.81 48.26 55.35 50.80 57.89 53.34 60.43 55.88 62.97 58.42 65.51 60.96 68.05 63.50 70.59 73.13 66.04 68.58 75.67 71.12 78.21 73.66 80.75 76.20 83.29 78.74 85.83 PART NO. Ordering Information: A2547HS-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 2.54±0.10 Circuit 1 Ordering Information & Dimensions: 7.00±0.20 Unit: mm A2547HSA-2xXP 2.54mm Pitch Dual Row Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A2547-T(-L) A2547-T-C(-L) A2547-T-D series Terminal *Mates with CJT A2547WVA,WRA-2xXP series Wafer *Color:Black Ordering Information: A2547HSA-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):PBT,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ Circuit 1 2.54±0.10 2.54±0.10 Circuit 2 3.64±0.20 A±0.20 B±0.30 6.00±0.20 14.10±0.20 3.50±0.20 13.90±0.20 2.00±0.10 7.00±0.20 22.86±0.20 Ordering Information & Dimensions: PART NO. 2x25P 2x30P 2x32P Dimensions A B 60.96 68.05 73.66 80.75 78.74 85.83 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-432 A2547 SERIES A2547WV-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 180° Wafer 2.54±0.08 Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black ∅1.09±0.08 P.C.B LAYOUT Ordering Information & Dimensions: 3.05 5.09±0.20 PART NO. 2.54±0.10 3P 2P A±0.20 B±0.25 6.62±0.25 CJTCONN PIN 0.64 SQ Circuit 1 3.30±0.20 11.70±0.20 11.43±0.20 7.65±0.20 Ordering Information: A2547WV-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750℃ 3.Finish: (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 2.55±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 7.62 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 33.02 27.94 30.48 35.56 33.02 38.10 35.56 40.64 38.10 43.18 40.64 45.72 43.18 48.26 45.72 50.80 53.34 48.26 50.80 55.88 53.34 58.42 55.88 60.96 58.42 63.50 60.96 66.04 Unit: mm A2547WR-XP 2.54mm Pitch 90° Wafer 2.54±0.08 Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black ∅1.09±0.08 P.C.B LAYOUT Ordering Information & Dimensions: PIN 0.64 SQ 5.08±0.20 PART NO. 2.54±0.10 3P A±0.20 B±0.25 Circuit 1 13.59±0.25 11.41±0.25 6.98±0.25 2P Ordering Information: A2547WR-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750℃ 3.Finish: (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 3.30±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 7.62 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 27.94 33.02 30.48 35.56 33.02 38.10 35.56 40.64 38.10 43.18 40.64 45.72 43.18 48.26 45.72 50.80 48.26 53.34 50.80 55.88 53.34 58.42 55.88 60.96 58.42 63.50 60.96 66.04 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-433 A2547 SERIES A2547WR-XP-2 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black Ordering Information: A2547WR-XP-2 - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 2.54±0.08 ∅1.09±0.08 A±0.20 P.C.B LAYOUT 2.54±0.10 5.08±0.25 1.00 Ordering Information & Dimensions: 4P-25P PART NO. 2P 3P 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P B±0.25 13.59±0.25 6.10±0.20 11.43±0.25 3.30±0.20 8.95±0.20 6.98±0.25 7.61±0.25 Dimensions A B 2.54 7.62 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 27.94 33.02 30.48 35.56 33.02 38.10 35.56 40.64 Unit: mm 2.54mm Pitch 180° Wafer - SMT TYPE 3.18±0.20 A2547WV-S-XP A±0.20 2.54±0.10 5.08±0.20 4P~25P 1.27±0.20 2.54±0.20 A2547WV-S-XP - *** - *** 1 2 3 P.C.B LAYOUT 1.Part No. 2.Material: (Blank):LCP,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:LCP,UL94V-0,GWT 750℃ 3.Finish: (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel B±0.25 3.80±0.20 11.43±0.25 1.52±0.10 13.26±0.25 Circuit 1 1.02 Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:LCP,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing Ordering Information: *Color:Black CJTCONN PIN 0.64 SQ 3P 6.48±0.20 Ordering Information & Dimensions: PART NO. 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 27.94 33.02 30.48 35.56 33.02 38.10 35.56 40.64 38.10 43.18 40.64 45.72 43.18 48.26 45.72 50.80 48.26 53.34 50.80 55.88 53.34 58.42 55.88 60.96 58.42 63.50 60.96 66.04 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-434 A2547 SERIES A2547WR-F-XP 2.54mm Pitch 90° Wafer With Peg Odering Information: A2547WR-F-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black 1.40±0.08 8.64±0.08 2.54mm pitch wire to board and wire to wire connector ∅3.40±0.05 ∅1.09±0.08 2.54±0.08 P.C.B LAYOUT 13.59±0.25 B±0.25 3.30±0.20 PIN 0.64 SQ, Circuit 1 2.30 2.54±0.10 6.99±0.25 6.62±0.25 11.43±0.25 12.92±0.25 A±0.20 A2547WR-S-F-XP 10.69±0.08 5.33±0.08 Unit: mm PART NO. 2.54±0.08 1.40±0.08 Odering Information: A2547WR-S-F-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel ∅3.40±0.05 13.59±0.25 B±0.25 2.30±0.20 6.99±0.20 11.43±0.25 6.62±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 7.62 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 33.02 27.94 30.48 35.56 33.02 38.10 35.56 40.64 38.10 43.18 40.64 45.72 43.18 48.26 45.72 50.80 53.34 48.26 50.80 55.88 53.34 58.42 55.88 60.96 58.42 63.50 60.96 66.04 Ordering Information & Dimensions: P.C.B LAYOUT 2.54±0.10 PART NO. 2.54mm Pitch 90° Wafer-SMT TYPE Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black 1.65±0.08 PIN 0.64 SQ Circuit 1 Ordering Information & Dimensions: 3.61±0.20 A±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 7.62 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 27.94 33.02 30.48 35.56 33.02 38.10 35.56 40.64 38.10 43.18 40.64 45.72 43.18 48.26 45.72 50.80 48.26 53.34 50.80 55.88 53.34 58.42 55.88 60.96 58.42 63.50 60.96 66.04 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-435 A2547 SERIES A2547WVA-XP 2.54mm Pitch 180° Wafer Odering Information: A2547WVA-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 2.54±0.10 Circuit 1 2.54mm pitch wire to board and wire to wire connector 3P 2P 7.62±0.20 C±0.25 4P~25P 6.60±0.20 B±0.25 3.30±0.20 13.60±0.25 12.10±0.20 5.09±0.20 2.54±0.05 ∅0.89±0.05 P.C.B LAYOUT Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 Pin 0.64 SQ Unit: mm A2547WRA-XP 2.54mm Pitch 90° Wafer Odering Information: A2547WRA-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 2.54±0.10 Pin 0.64 SQ 3P Circuit 1 2P 7.62±0.20 C±0.25 4P~25P 6.60±0.20 5.09±0.20 13.60±0.25 B±0.25 12.10±0.20 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 3.30±0.20 2.54±0.05 ∅0.89±0.05 P.C.B LAYOUT Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-436 A2547 SERIES A2547WVA-F1-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 2.54±0.10 2P Odering Information: A2547WVA-F1-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin 2.54±0.05 7.62±0.20 3.43 Circuit 1 C±0.25 4P~25P 3P 6.60±0.20 5.09±0.20 ∅1.65±0.05 1.90±0.08 P.C.B LAYOUT 3.30±0.20 12.10±0.20 13.60±0.25 B±0.25 ∅0.89±0.05 Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 Pin 0.64 SQ Unit: mm A2547WRA-F1-XP 2.54mm Pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 2.54±0.10 Pin 0.64 SQ Odering Information: A2547WRA-F1-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin 7.62±0.20 C±0.25 4P~25P 8.64±0.10 1.47±0.10 Circuit 1 2P 3P 6.60±0.20 5.09±0.20 ∅2.36±0.05 ∅0.89±0.05 2.54±0.05 P.C.B LAYOUT 4.60 13.60±0.25 12.10±0.20 B±0.25 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 3.30±0.20 Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-437 A2547 SERIES A2547WRA-FJ-XP 2.54mm Pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 Pin 0.64 SQ Odering Information: A2547WRA-FJ-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Circuit 1 8.64±0.10 1.40±0.10 7.62±0.20 C±0.25 2P 3P ∅3.40±0.05 ∅0.89±0.05 6.60±0.20 4P~25P B±0.25 2.54±0.05 P.C.B LAYOUT 4.25 13.60±0.25 12.10±0.20 5.09±0.20 3.30±0.20 A2547WVA-F-XP A±0.20 2.54±0.10 Odering Information: A2547WVA-F-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin 3P 2P 6.60±0.20 5.09±0.20 3.30±0.20 13.60±0.25 B±0.25 12.10±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm 7.62±0.20 C±0.25 4P~25P 4.06 PART NO. 2.54mm Pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black Circuit 1 Ordering Information & Dimensions: 4.06 2.54±0.05 0.76 2.54±0.10 2.54mm pitch wire to board and wire to wire connector ∅0.89±0.05 P.C.B LAYOUT Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm Pin 0.64 SQ CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-438 A2547 SERIES A2547WRA-F-XP 2.54mm Pitch 90° Wafer Odering Information: A2547WRA-F-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 Pin 0.64 SQ Circuit 1 8.64±0.10 1.40±0.10 7.62±0.20 2P 3P C±0.25 4P~25P ∅3.40±0.05 ∅0.89±0.05 6.60±0.20 B±0.25 2.54±0.05 P.C.B LAYOUT 13.60±0.25 12.10±0.20 5.09±0.20 3.30±0.20 A2547WVA-F2-XP Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 2.54±0.10 Circuit 1 Odering Information: A2547WVA-F2-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin 3P 6.60±0.20 B±0.25 2P 3.30±0.20 3.81±0.20 5.09±0.20 13.60±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 2.54mm Pitch 180° Wafer C±0.25 12.10±0.20 PART NO. Unit: mm 7.62±0.20 4P~25P Ordering Information & Dimensions: 4.06 2.54±0.05 ∅0.89±0.05 P.C.B LAYOUT 0.76 2.54±0.10 2.54mm pitch wire to board and wire to wire connector Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm Pin 0.64 SQ CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-439 A2547 SERIES A2547WRA-F2-XP 2.54mm Pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 2.54±0.10 2.54mm pitch wire to board and wire to wire connector Pin 0.64 SQ Odering Information: A2547WRA-F2-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Circuit 1 8.64±0.10 1.27±0.05 7.62±0.20 2P 3P C±0.25 ∅3.40±0.05 ∅0.89±0.05 6.60±0.20 4P~25P 2.54±0.05 5.09±0.20 4.19 P.C.B LAYOUT 13.60±0.25 12.10±0.20 B±0.25 3.30±0.20 Circuit 1 1.40±0.05 ∅3.40±0.05 5.33±0.08 10.69±0.08 7.62±0.20 C±0.25 4P~25P P.C.B LAYOUT 3P 6.60±0.20 2.76±0.20 12.10±0.20 5.09±0.20 13.60±0.25 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Odering Information: A2547WRA-S-F-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):LCP,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:LCP,UL94V-0,GWT 750℃ Ordering Information & Dimensions: 3.Finish: (Blank):Tin over Nickel Dimensions G:Gold-flash PART NO. A B C G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin 2.54 7.62 5.59 2P G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 3P 5.08 10.16 8.13 100μin (2.54μm) MIN.Select Tin 2.54±0.08 1.65±0.08 B±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 2.54mm Pitch 90° Wafer - SMT TYPE Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:LCP,UL94V-0 *Mates with CJT A2547H-XP(-2,-3),A2547HA,HB-XP, A2550H-XP-(A,A1,A2,A3H,B,H,G,M,M1,M2), A2541H-XP series Housing *Color:Black A±0.20 PART NO. Unit: mm A2547WRA-S-F-XP 2.54±0.10 Ordering Information & Dimensions: Pin 0.64 SQ 2P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-440 A2547 SERIES A2547WVE-XP 2.54mm Pitch 180° Wafer 2.54±0.05 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2549H,HA-XP,A2550H-XP-C A2550H-XP-C1,A2550H-XP-I series Housing *Color:Black Odering Information: A2547WVE-XP - *** - *** 1 2 3 1.Part No. 2.Material: (blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin A±0.20 5.09±0.20 2.54±0.10 Circuit 1 C±0.20 B±0.25 3.30±0.20 A 13.60±0.25 5.46±0.20 11.65±0.20 1.50 2.54mm pitch wire to board and wire to wire connector ∅0.89±0.05 P.C.B LAYOUT Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm A2547WRE-XP Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2549H,HA-XP,A2550H-XP-C A2550H-XP-C1,A2550H-XP-I series Housing *Color:Black A±0.20 5.09±0.20 2.54±0.10 Odering Information: A2547WRE-XP - *** - *** 1 2 3 1.Part No. 2.Material: (blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin 2.54±0.05 C±0.20 B±0.25 ∅0.89±0.05 P.C.B LAYOUT A 13.60±0.25 5.46±0.20 11.65±0.20 1.50 Circuit 1 2.54mm Pitch 90° Wafer 2.80±0.20 Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 5.59 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-441 A2547 SERIES A2547WVF-XP 2.54mm Pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2549HD-XP series Single Row Housing *Color:Black Odering Information: 2.54±0.05 A2547WVF-XP - *** - *** 1 2 3 1.Part No. 2.Material: ∅0.89±0.05 (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 P.C.B LAYOUT GWT:PBT,UL94V-0,GWT 750℃ 3.Finish: Ordering Information & Dimensions: (Blank):Tin over Nickel G:Gold-flash Dimensions G15:15μin (0.38μm) MIN.Select Gold(Mating Area) PART NO. A B C 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 3P 5.08 10.16 8.13 100μin (2.54μm) MIN.Select Tin 4P 7.62 12.70 10.67 A±0.20 5.09±0.20 2.54±0.10 Circuit 1 2.54mm pitch wire to board and wire to wire connector C±0.20 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 3P B±0.25 3.30±0.20 A 13.60±0.25 5.46±0.20 11.65±0.20 1.50 4P~25P 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm A2547WRF-XP 2.54mm Pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2549HD-XP series Single Row Housing *Color:Black Odering Information: A2547WRF-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin A±0.20 5.09±0.20 2.54±0.10 Circuit 1 2.54±0.05 C±0.20 ∅0.89±0.05 3P P.C.B LAYOUT B±0.25 A 13.60±0.25 5.46±0.20 11.65±0.20 1.50 4P~25P 2.80±0.20 Ordering Information & Dimensions: PART NO. 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P A 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 Dimensions B 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 C 8.13 10.67 13.21 15.75 18.29 20.83 23.37 25.91 28.45 30.99 33.53 36.07 38.61 41.15 43.69 46.23 48.77 51.31 53.85 56.39 58.93 61.47 64.01 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-442 A2547 SERIES A2547WRE-S-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 90° Wafer - SMT TYPE Odering Information: A2547WRE-S-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):LCP,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:LCP,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:LCP,UL94V-0 *Mates with CJT A2549H,HA-XP,A2550H-XP-C, A2550H-XP-C1 series Housing *Color:Black A±0.20 5.09±0.20 2.54±0.10 B±0.25 5.46±0.20 5.33±0.10 1.50 Circuit 1 2.76±0.20 A 13.60±0.25 A 2.54 1.65 P.C.B LAYOUT PIN 0.64 SQ Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 7.62 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 33.02 27.94 30.48 35.56 33.02 38.10 35.56 40.64 38.10 43.18 40.64 45.72 43.18 48.26 45.72 50.80 53.34 48.26 50.80 55.88 53.34 58.42 55.88 60.96 58.42 63.50 60.96 66.04 Unit: mm A2547WRF-S-XP 2.54mm Pitch 90° Wafer - SMT TYPE Odering Information: A2547WRF-S-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):LCP,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:LCP,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:LCP,UL94V-0 *Mates with CJT A2549HD-XP series Single Row Housing *Color:Black A±0.20 5.09±0.20 2.54±0.10 3P 4P~25P B±0.25 5.46±0.20 2.76±0.20 A 13.60±0.25 A 2.54 1.65 P.C.B LAYOUT PIN 0.64 SQ 5.33±0.10 1.50 Circuit 1 Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P Dimensions A B 2.54 7.62 5.08 10.16 7.62 12.70 10.16 15.24 12.70 17.78 15.24 20.32 17.78 22.86 20.32 25.40 22.86 27.94 25.40 30.48 27.94 33.02 30.48 35.56 33.02 38.10 35.56 40.64 38.10 43.18 40.64 45.72 43.18 48.26 45.72 50.80 48.26 53.34 50.80 55.88 53.34 58.42 55.88 60.96 58.42 63.50 60.96 66.04 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-443 A2547 SERIES A2547WVB-XP 2.54mm Pitch 180° Box Header Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HJ-XP series Single Row Housing *Color:Black 3.83 C±0.20 Odering Information: A2547WVB-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 1.27 A±0.20 2.54±0.05 3.82 Circuit 1 2.54±0.10 ∅1.00 P.C.B LAYOUT A±0.20 7.21±0.20 B±0.25 PIN 0.64 SQ 2P~3P 2.90±0.20 2.90 6.43 10.90±0.25 B±0.25 PIN 0.64 SQ 4P~32P CJTCONN C±0.20 2.54mm pitch wire to board and wire to wire connector Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 26P 27P 28P 29P 30P 31P 32P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 Dimensions B 8.43 10.97 13.51 16.05 18.59 21.13 23.67 26.21 28.75 31.29 33.83 36.37 38.91 41.45 43.99 46.53 49.07 51.61 54.15 56.69 59.23 61.77 64.31 66.85 69.39 71.93 74.47 77.01 79.55 82.09 84.63 C 6.60 9.14 11.68 14.22 16.76 19.30 21.84 24.38 26.92 29.46 32.00 34.54 37.08 39.62 42.16 44.70 47.24 49.78 52.32 54.86 57.40 59.94 62.48 65.02 67.56 70.10 72.64 75.18 77.72 80.26 82.80 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-444 A2547 SERIES A2547WRB-XP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 90° Box Header Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HJ-XP series Single Row Housing *Color:Black PIN 0.64 SQ PIN 0.64 SQ Circuit 1 1.27 Odering Information: A2547WRB-XP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 3.82 A±0.20 2.54±0.10 C±0.20 A±0.20 C±0.20 7.21±0.20 B±0.25 13.14±0.25 2.90 6.43 2P~3P CJTCONN B±0.25 2.90±0.20 2P-6P 4P-6P Ordering Information & Dimensions: PART NO. PIN 0.64 SQ Circuit 1 2.54±0.05 ∅1.00±0.05 3.82 P.C.B LAYOUT 2.54±0.10 A±0.20 C±0.20 7.21±0.20 B±0.25 7P~32P CJTCONN 2.90 10.90±0.25 6.43 7P-32P 2.90±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P 21P 22P 23P 24P 25P 26P 27P 28P 29P 30P 31P 32P A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 Dimensions B 8.43 10.97 13.51 16.05 18.59 21.13 23.67 26.21 28.75 31.29 33.83 36.37 38.91 41.45 43.99 46.53 49.07 51.61 54.15 56.69 59.23 61.77 64.31 66.85 69.39 71.93 74.47 77.01 79.55 82.09 84.63 C 6.60 9.14 11.68 14.22 16.76 19.30 21.84 24.38 26.92 29.46 32.00 34.54 37.08 39.62 42.16 44.70 47.24 49.78 52.32 54.86 57.40 59.94 62.48 65.02 67.56 70.10 72.64 75.18 77.72 80.26 82.80 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-445 A2547 SERIES A2547WV-2xXP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 180° Box Header Odering Information: A2547WV-2xXP - *** - *** - ** - * 1 2 3 4 5 Ordering Information & Dimensions: 1.Part No. 2.Material: Dimensions (blank):PBT,UL94V-0 PART NO. 6T:Nylon 6T,UL94V-0 A B C GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: 2x5P 10.16 32.00 18.22 (blank):Gold-flash 2x6P 12.70 34.54 20.76 G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin 2x7P 15.24 37.08 23.30 G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 2x8P 17.78 39.62 25.84 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 2x9P 20.32 42.16 28.38 4.Color: 2x10P 22.86 44.70 30.92 (blank):Black GY:Gray 2x11P 25.40 47.24 33.46 5.Size(L) : 2x12P 27.94 49.78 36.00 (blank):14.35mm L:10.50mm Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H,HA,HB,HC,HF, HG,HK,HS-2xXP series Dual row Housing *Color:Black A±0.20 2.54±0.10 B±0.25 3.65±0.20 2.54±0.08 L 27.50±0.25 2.54±0.10 C±0.25 Circuit 1 8.35 6.15 2.54±0.08 Last Circuit ∅1.09±0.08 P.C.B LAYOUT Circuit 2 A2547WR-2xXP 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 52.32 54.86 57.40 59.94 62.48 65.02 67.56 70.10 72.64 75.18 77.72 80.26 82.80 85.34 87.88 90.42 92.96 95.50 98.04 100.58 38.54 41.08 43.62 46.16 48.70 51.24 53.78 56.32 58.86 61.40 63.94 66.48 69.02 71.56 74.10 76.64 79.18 81.72 84.26 86.80 Unit: mm 2.54mm Pitch 90° Box Header Odering Information: A2547WR-2xXP - *** - *** - ** - * 1 2 3 4 5 1.Part No. Ordering Information & Dimensions: 2.Material: (Blank):PBT,UL94V-0 Dimensions 6T:Nylon 6T,UL94V-0 PART NO. A B C GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: 2x5P 10.16 32.00 18.22 (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 2x6P 12.70 34.54 20.76 100μin (2.54μm) MIN.Select Tin 2x7P 15.24 37.08 23.30 G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin 2x8P 17.78 39.62 25.84 T:Tin over Nickel 2x9P 20.32 42.16 28.38 4.Color: (blank):Black 2x10P 22.86 44.70 30.92 GY:Gray 2x11P 25.40 47.24 33.46 5.Size(L) : (blank):14.35mm 27.94 49.78 36.00 2x12P L:10.50mm Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H,HA,HB,HC,HF, HG,HK,HS-2xXP series Dual row Housing *Color:Black A±0.20 2.54±0.10 B±0.25 L 27.50±0.25 2.54±0.10 3.65±0.20 2.54±0.08 8.35 6.15 Circuit 1 ∅1.09±0.08 P.C.B LAYOUT Circuit 2 2.54 C±0.25 Last Circuit 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 52.32 54.86 57.40 59.94 62.48 65.02 67.56 70.10 72.64 75.18 77.72 80.26 82.80 85.34 87.88 90.42 92.96 95.50 98.04 100.58 38.54 41.08 43.62 46.16 48.70 51.24 53.78 56.32 58.86 61.40 63.94 66.48 69.02 71.56 74.10 76.64 79.18 81.72 84.26 86.80 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-446 A2547 SERIES 2.54mm Pitch 180° Box Header Odering Information: A2547WVA-2xXP - *** - *** - * 1 2 3 4 1.Part No. 2.Material: (blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 4.Size(L): (blank):14.35mm L:10.50mm Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HD,HSA-2xXP series Dual row Housing *Color:Black A±0.20 2.54±0.10 27.50±0.25 L 2.54±0.08 2.54±0.10 B±0.25 2.54±0.08 3.65±0.20 A2547WVA-2xXP 2.54mm pitch wire to board and wire to wire connector ∅1.09±0.08 P.C.B LAYOUT Circuit 1 Ordering Information & Dimensions: Last Circuit Circuit 2 8.35±0.25 6.15±0.25 PART NO. C±0.25 2x25P 2x30P 2x32P A 60.96 73.66 78.74 Dimensions B 82.80 95.50 100.58 C 69.02 81.72 86.80 Unit: mm 2.54mm Pitch 90° Box Header Odering Information: A2547WRA-2xXP - *** - *** - * 1 2 3 4 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 4.Size(L): (blank):14.35mm L:10.50mm Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HD,HSA-2xXP series Dual row Housing *Color:Black A±0.20 2.54±0.10 B±0.25 3.65±0.20 2.54±0.08 A2547WRA-2xXP 2.54±0.10 L 27.50±0.25 2.54±0.08 ∅1.09±0.08 Last Circuit 8.35±0.25 6.15±0.25 P.C.B LAYOUT C±0.25 Circuit 1 Circuit 2 Ordering Information & Dimensions: PART NO. 2x25P 2x30P 2x32P A 60.96 73.66 78.74 Dimensions B 82.80 95.50 100.58 C 69.02 81.72 86.80 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-447 A2547 SERIES A2547WVB-2xXP 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 180° Box Header Ordering Information & Dimensions: PART NO. ∅1.00±0.05 P.C.B LAYOUT A±0.20 8.20±0.20 C±0.25 8.98±0.25 Circuit 2 2.54±0.10 2.54±0.10 Last Circuit Odering Information: A2547WVB-2xXP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel Circuit 1 2.90±0.20 2.54 Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HJ-2xXP series Housing *Color:Black 2.54±0.10 9.75±0.25 2.90±0.20 10.90±0.25 7.10±0.20 B±0.25 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P A 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 Dimensions B 9.96 12.50 15.04 17.58 20.12 22.66 25.20 27.74 30.28 32.82 35.36 37.90 40.44 42.98 45.52 48.06 50.60 53.14 55.68 58.22 60.76 63.30 65.84 68.38 70.92 73.46 76.00 78.54 81.08 83.62 PIN 0.64 SQ Unit: mm A2547WRB-2xXP 2.54mm Pitch 90° Box Header Ordering Information & Dimensions: PART NO. 2.54±0.10 ∅1.00±0.05 P.C.B LAYOUT C±0.25 8.98±0.25 Circuit 2 8.20±0.20 2.54±0.10 Last Circuit Circuit 1 10.90±0.25 7.10±0.20 B±0.25 9.75±0.25 2.54±0.10 PIN 0.64 SQ Odering Information: A2547WRB-2xXP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 2.90±0.20 A±0.20 2.54±0.10 2.54 Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HJ-2xXP series Housing *Color:Black 2.54±0.10 C 8.12 10.66 13.20 15.74 18.28 20.82 23.36 25.90 28.44 30.98 33.52 36.06 38.60 41.14 43.68 46.22 48.76 51.30 53.84 56.38 58.92 61.46 64.00 66.54 69.08 71.62 74.16 76.70 79.24 81.78 2.90±0.20 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P A 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 Dimensions B 9.96 12.50 15.04 17.58 20.12 22.66 25.20 27.74 30.28 32.82 35.36 37.90 40.44 42.98 45.52 48.06 50.60 53.14 55.68 58.22 60.76 63.30 65.84 68.38 70.92 73.46 76.00 78.54 81.08 83.62 C 8.12 10.66 13.20 15.74 18.28 20.82 23.36 25.90 28.44 30.98 33.52 36.06 38.60 41.14 43.68 46.22 48.76 51.30 53.84 56.38 58.92 61.46 64.00 66.54 69.08 71.62 74.16 76.70 79.24 81.78 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-448 A2547 SERIES A2547WVB-2xXP-A 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch 180° Box Header - VERSION WITH VOIDS Odering Information: A2547WVB-2xXP-A - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0 GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HJ-2xXP series Housing *Color:Black C±0.25 2.54±0.10 8.98±0.25 Circuit 2 8.20±0.20 2.54±0.10 Ø1.00±0.05 Ordering Information & Dimensions: P.C.B LAYOUT 2 CKTS VOID 2 CKTS VOID PART NO. 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P Circuit 1 2.90±0.20 2.54±0.10 Last Circuit 2.54±0.10 A±0.20 9.75±0.25 2.90±0.20 10.90±0.25 7.10±0.20 B±0.25 PIN 0.64 SQ Odering Information: A2547WRB-2xXP-A - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel C±0.25 A±0.20 2.54±0.10 Last Circuit 2.54±0.10 Ø1.00±0.05 P.C.B LAYOUT 2.54±0.10 10.90±0.25 9.75±0.25 2.54±0.10 2.90±0.20 Circuit 1 B±0.25 7.10±0.20 2.54±0.10 8.98±0.25 8.20±0.20 2.54±0.10 Circuit 2 PIN 0.64 SQ Dimensions A B C 38.10 48.06 46.22 40.64 50.60 48.76 43.18 53.14 51.30 45.72 55.68 53.84 48.26 58.22 56.38 50.80 60.76 58.92 53.34 63.30 61.46 55.88 65.84 64.00 58.42 68.38 66.54 60.96 70.92 69.08 63.50 73.46 71.62 66.04 76.00 74.16 68.58 78.54 76.70 71.12 81.08 79.24 73.66 83.62 81.78 2.54mm Pitch 90° Box Header - VERSION WITH VOIDS Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547HJ-2xXP series Housing *Color:Black 2 CKTS VOID PART NO. 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Unit: mm A2547WRB-2xXP-A 2 CKTS VOID Dimensions A B C ---9.96 8.12 2.54 12.50 10.66 5.08 15.04 13.20 7.62 17.58 15.74 10.16 20.12 18.28 12.70 22.66 20.82 15.24 25.20 23.36 17.78 27.74 25.90 20.32 30.28 28.44 22.86 32.82 30.98 25.40 35.36 33.52 27.94 37.90 36.06 30.48 40.44 38.60 33.02 42.98 41.14 35.56 45.52 43.68 2.90±0.20 Ordering Information & Dimensions: PART NO. 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P Dimensions A B C ---9.96 8.12 2.54 12.50 10.66 5.08 15.04 13.20 7.62 17.58 15.74 10.16 20.12 18.28 12.70 22.66 20.82 15.24 25.20 23.36 17.78 27.74 25.90 20.32 30.28 28.44 22.86 32.82 30.98 25.40 35.36 33.52 27.94 37.90 36.06 30.48 40.44 38.60 33.02 42.98 41.14 35.56 45.52 43.68 PART NO. 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B C 38.10 48.06 46.22 40.64 50.60 48.76 43.18 53.14 51.30 45.72 55.68 53.84 48.26 58.22 56.38 50.80 60.76 58.92 53.34 63.30 61.46 55.88 65.84 64.00 58.42 68.38 66.54 60.96 70.92 69.08 63.50 73.46 71.62 66.04 76.00 74.16 68.58 78.54 76.70 71.12 81.08 79.24 73.66 83.62 81.78 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-449 A2547 SERIES 2.54mm Pitch 180° Box Header - SMT TYPE A±0.20 2.54±0.10 8.98±0.25 Ordering Information & Dimensions: Circuit 1 C±0.25 2x2P B±0.25 11.11±0.25 2.90±0.20 10.90±0.20 7.10±0.20 9.75±0.25 9.58±0.20 PIN 0.64 SQ 2x3P~2x34P Odering Information: A2547WVB-S-2xXP-A - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel A±0.20 2.54±0.10 2 CKTS VOID 8.98±0.25 Circuit 2 8.20±0.20 2.54±0.10 2 CKTS VOID Circuit 1 2x2P B±0.25 9.75±0.25 2.90±0.20 10.90±0.20 7.10±0.20 PART NO. 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 2x33P 2x34P Dimensions A B C 45.72 50.60 48.76 48.26 53.14 51.30 50.80 55.68 53.84 53.34 58.22 56.38 55.88 60.76 58.92 58.42 63.30 61.46 60.96 65.84 64.00 63.50 68.38 66.54 66.04 70.92 69.08 68.58 73.46 71.62 71.12 76.00 74.16 73.66 78.54 76.70 76.20 81.08 79.24 78.74 83.62 81.78 81.28 86.16 84.32 83.82 88.70 86.86 A 1.27 2.54 P.C.B LAYOUT Ordering Information & Dimensions: C±0.25 PIN 0.64 SQ Dimensions A B C 2.54 7.42 5.58 5.08 9.96 8.12 7.62 12.50 10.66 10.16 15.04 13.20 12.70 17.58 15.74 15.24 20.12 18.28 17.78 22.66 20.82 20.32 25.20 23.36 22.86 27.74 25.90 25.40 30.28 28.44 27.94 32.82 30.98 30.48 35.36 33.52 33.02 37.90 36.06 35.56 40.44 38.60 38.10 42.98 41.14 40.64 45.52 43.68 43.18 48.06 46.22 2.54mm Pitch 180° Box Header - SMT TYPE VERSION WITH VOIDS Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator: Nylon 6T,UL94V-0 *Mates with CJT A2547HJ-2xXP series Housing *Color:Black Last Circuit PART NO. 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P Unit: mm 11.11±0.25 A2547WVB-S-2xXP-A A±0.10 P.C.B LAYOUT 4.24 2.54±0.10 8.20±0.20 Circuit 2 2.54±0.05 9.25 Last Circuit 1.27±0.05 3.94±0.05 Odering Information: A2547WVB-S-2xXP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2547HJ-2xXP series Dual row Housing *Color:Black 10.16±0.10 A2547WVB-S-2xXP 2.54mm pitch wire to board and wire to wire connector 9.58±0.20 2x3P~2x34P PART NO. 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P Dimensions A B C ---9.96 8.12 2.54 12.50 10.66 5.08 15.04 13.20 7.62 17.58 15.74 10.16 20.12 18.28 12.70 22.66 20.82 15.24 25.20 23.36 17.78 27.74 25.90 20.32 30.28 28.44 22.86 32.82 30.98 25.40 35.36 33.52 27.94 37.90 36.06 30.48 40.44 38.60 33.02 42.98 41.14 35.56 45.52 43.68 PART NO. 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P Dimensions A B C 38.10 48.06 46.22 40.64 50.60 48.76 43.18 53.14 51.30 45.72 55.68 53.84 48.26 58.22 56.38 50.80 60.76 58.92 53.34 63.30 61.46 55.88 65.84 64.00 58.42 68.38 66.54 60.96 70.92 69.08 63.50 73.46 71.62 66.04 76.00 74.16 68.58 78.54 76.70 71.12 81.08 79.24 73.66 83.62 81.78 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-450 A2547 SERIES A2547WVC-2xXP Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547 series Dual row Housing *Color:Black Odering Information: A2547WVC-2xXP - *** - *** 1 2 3 Ordering Information & Dimensions: 1.Part No. 2.Material: Dimensions PART NO. (Blank):PBT,UL94V-0 A B 6T:Nylon 6T,UL94V-0 2x5P 10.16 31.90 GWT:PBT,UL94V-0,GWT 750 ℃ 2x6P 12.70 34.44 3.Finish: 2x7P 15.24 36.98 (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 2x8P 17.78 39.52 100μin (2.54μm) MIN.Select Tin 2x9P 20.32 42.06 G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 2x10P 22.86 44.60 100μin (2.54μm) MIN.Select Tin 2x11P 25.40 47.14 T:Tin over Nickel 2x12P 27.94 49.68 2x13P 30.48 52.22 A±0.10 33.02 54.76 2x14P 2.54±0.05 2x15P 35.56 57.30 2x16P 38.10 59.84 40.64 62.38 2x17P 2x18P 43.18 64.92 Ø1.02±0.05 2x19P 45.72 67.46 P.C.B LAYOUT 2x20P 48.26 70.00 2x21P 50.80 72.54 53.34 75.08 2x22P 2x23P 55.88 77.62 2x24P 58.42 80.16 2x25P 60.96 82.70 2x26P 63.50 85.24 2x27P 66.04 87.78 2x28P 68.58 90.32 2x29P 71.12 92.86 2x30P 73.66 95.40 2.54±0.10 2x31P 76.20 97.94 8.40±0.25 2x32P 78.74 100.48 2.54±0.05 Last Circuit 2.54mm Pitch 180° Box Header Circuit 1 3.60±0.25 13.40±0.25 B±0.25 Pin 0.64 SQ 2.54±0.10 A±0.20 26.30±0.25 Circuit 2 2.54mm pitch wire to board and wire to wire connector Unit: mm A2547WRC-2xXP Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547 series Dual row Housing *Color:Black A±0.20 Pin 0.64 SQ 2.54±0.10 Last Circuit Odering Information: A2547WRC-2xXP - *** - *** 1 2 3 Ordering Information & Dimensions: 1.Part No. Dimensions 2.Material: PART NO. (Blank):PBT,UL94V-0 A B 6T:Nylon 6T,UL94V-0 2x5P 10.16 31.90 GWT:PBT,UL94V-0,GWT 750 ℃ 2x6P 12.70 34.44 3.Finish: 2x7P 15.24 36.98 (Blank):Gold-flash 2x8P 17.78 39.52 G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 2x9P 20.32 42.06 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 2x10P 22.86 44.60 100μin (2.54μm) MIN.Select Tin 2x11P 25.40 47.14 T:Tin over Nickel 27.94 49.68 2x12P 2x13P 30.48 52.22 A±0.10 33.02 54.76 2x14P 2.54±0.05 2x15P 35.56 57.30 2x16P 38.10 59.84 40.64 62.38 2x17P 2x18P 43.18 64.92 Ø1.02±0.05 2x19P 45.72 67.46 2x20P 48.26 70.00 P.C.B LAYOUT 2x21P 50.80 72.54 53.34 75.08 2x22P 2x23P 55.88 77.62 2x24P 58.42 80.16 2x25P 60.96 82.70 2x26P 63.50 85.24 2x27P 66.04 87.78 2x28P 68.58 90.32 8.40±0.25 2x29P 92.86 71.12 2x30P 73.66 95.40 3.50±0.25 2x31P 76.20 97.94 2x32P 78.74 100.48 26.30±0.25 13.40±0.25 Circuit 1 B±0.25 2.54±0.10 2.54±0.05 Circuit 2 2.54mm Pitch 90° Box Header Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-451 A2547 SERIES A2547WV-N-2xXP 2.54mm Pitch 180° Dual Row Box Header Circuit 1 Ordering Information: A2547WV-N-2xXP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Ordering T:Tin over Nickel Circuit 2 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2.54±0.05 A±0.20 (B-2.30)±0.25 ∅1.02±0.05 P.C.B LAYOUT 9.10±0.25 3.00±0.20 8.80±0.25 B±0.25 PIN 0.64 SQ 8.90±0.25 Ordering Information: A2547WR-N-2xXP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT :PBT,UL94V-0 GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel Ordering 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 2x33P 2x34P 2x35P 2x36P 2x37P 2x38P 2x39P 2x40P Dimensions A B 53.34 63.50 55.88 66.04 58.42 68.58 60.96 71.12 63.50 73.66 66.04 76.20 68.58 78.74 81.28 71.12 73.66 83.82 76.20 86.36 78.74 88.90 81.28 91.44 83.82 93.98 86.36 96.52 88.90 99.06 91.44 101.60 93.98 104.14 96.52 106.68 99.06 109.22 Circuit 2 2.54±0.05 2.54±0.10 A±0.20 ∅1.02±0.05 P.C.B LAYOUT (B-2.30)±0.25 9.10±0.25 2.00±0.20 2.54±0.10 B±0.25 8.80±0.25 Information & Dimensions: PART NO. 2.54±0.05 6.55±0.10 2.54±0.10 Circuit 1 PIN 0.64 SQ PART NO. 2.54mm Pitch 90° Dual Row Box Header Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2541H-N-2xXP,A2541H-N-2xXP-2, A2547HN-2xXP series Dual row Housing *Color:Black Last Circuit Dimensions A B 2.54 12.70 5.08 15.24 7.62 17.78 10.16 20.32 12.70 22.86 15.24 25.40 17.78 27.94 20.32 30.48 22.86 33.02 25.40 35.56 27.94 38.10 30.48 40.64 33.02 43.18 35.56 45.72 38.10 48.26 40.64 50.80 43.18 53.34 45.72 55.88 48.26 58.42 50.80 60.96 Unit: mm A2547WR-N-2xXP 4.40±0.10 Information & Dimensions: PART NO. 2.54±0.05 2.54±0.10 Last Circuit 8.90±0.25 6.55±0.15 2.54±0.10 Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2541H-N-2xXP,A2541H-N-2xXP-2, A2547HN-2xXP series Dual row Housing *Color:Black 4.40±0.10 2.54mm pitch wire to board and wire to wire connector 3.00±0.20 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P Dimensions A B 2.54 12.70 5.08 15.24 7.62 17.78 10.16 20.32 12.70 22.86 15.24 25.40 17.78 27.94 20.32 30.48 33.02 22.86 25.40 35.56 27.94 38.10 30.48 40.64 33.02 43.18 35.56 45.72 38.10 48.26 40.64 50.80 43.18 53.34 45.72 55.88 48.26 58.42 50.80 60.96 PART NO. 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 2x33P 2x34P 2x35P 2x36P 2x37P 2x38P 2x39P 2x40P Dimensions A B 53.34 63.50 55.88 66.04 58.42 68.58 60.96 71.12 63.50 73.66 66.04 76.20 68.58 78.74 81.28 71.12 73.66 83.82 76.20 86.36 78.74 88.90 81.28 91.44 83.82 93.98 86.36 96.52 88.90 99.06 91.44 101.60 93.98 104.14 96.52 106.68 99.06 109.22 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-452 A2547 SERIES A2547WV-S-2xXP 2.54mm Pitch 180° Box Header - SMT TYPE Odering Information: A2547WV-S-2xXP - *** - *** - * 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel 4.Size(L) : (blank) : 14.35mm L : 10.50mm Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2547H,HA,HB,HC,HF, HG,HS-2xXP series Dual row Housing A *Color:Black 1.02 12.00 5.00 2.54 P.C.B LAYOUT PIN 0.64 SQ Circuit 1 Last Circuit 8.35±0.20 6.15±0.25 Circuit 2 2.54mm pitch wire to board and wire to wire connector C±0.25 L 27.50±0.25 B±0.35 2.54±0.10 11.00±0.25 A±0.20 2.54±0.10 1.02±0.10 (B-2.30)±0.15 P.C.B LAYOUT B±0.25 10.50±0.20 9.10±0.25 8.75±0.25 8.80±0.25 PIN 0.64 SQ Dimensions B 26.92 29.46 32.00 34.54 37.08 39.62 42.16 44.70 47.24 49.78 52.32 54.86 57.40 59.94 62.48 65.02 67.56 70.10 72.64 75.18 77.72 80.26 82.80 85.34 87.88 90.42 92.96 95.50 98.04 100.58 C 13.14 15.68 18.22 20.76 23.30 25.84 28.38 30.92 33.46 36.00 38.54 41.08 43.62 46.16 48.70 51.24 53.78 56.32 58.86 61.40 63.94 66.48 69.02 71.56 74.10 76.64 79.18 81.72 84.26 86.80 Information & Dimensions: PART NO. 12.00±0.25 6.55±0.15 A±0.20 Odering Information: A2547WV-N-S-2xXP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Ordering T:Tin over Nickel 4.70±0.20 Circuit 2 8.90±0.25 2.54±0.10 Circuit 1 2.54 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P A 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 2.54mm Pitch 180° Box Header - SMT TYPE Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2541H-2xXP,A2541H-N-2xXP, A2547HN-2xXP series Dual row Housing *Color:Black Last Circuit PART NO. Unit: mm A2547WV-N-S-2xXP 4.40±0.10 Ordering Information & Dimensions: 9.50±0.25 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P Dimensions A B 2.54 12.70 5.08 15.24 7.62 17.78 10.16 20.32 12.70 22.86 15.24 25.40 17.78 27.94 20.32 30.48 22.86 33.02 25.40 35.56 27.94 38.10 30.48 40.64 33.02 43.18 35.56 45.72 38.10 48.26 40.64 50.80 43.18 53.34 45.72 55.88 48.26 58.42 50.80 60.96 PART NO. 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 2x33P 2x34P 2x35P 2x36P 2x37P 2x38P 2x39P 2x40P Dimensions A B 53.34 63.50 55.88 66.04 58.42 68.58 60.96 71.12 63.50 73.66 66.04 76.20 68.58 78.74 81.28 71.12 73.66 83.82 76.20 86.36 78.74 88.90 81.28 91.44 83.82 93.98 86.36 96.52 88.90 99.06 91.44 101.60 93.98 104.14 96.52 106.68 99.06 109.22 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-453 A2547 SERIES A2547WVA-N-2xXP 2.54mm Pitch 180° Box Header Ordering Information: A2547WVA-N-2xXP - *** - ** - *** - *** 1 2 3 4 5 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Color: (blank):Black GY:Gray BL:Blue 4.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 2x6P~2x7P 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Ordering Information & Dimensions: T:Tin over Nickel 5.Size(D): Dimensions (blank):2.90mm PART NO. PART NO. A B D45:4.50mm 2.54 Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547 series Dual row Housing *Color:Black A±0.20 Circuit 2 2.54±0.10 2.54mm pitch wire to board and wire to wire connector Last Circuit Circuit 1 B±0.25 8.90±0.25 D(2.90±0.20) 8.90±0.25 PIN 0.64 SQ 2.54±0.10 2x8P~2x40P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 2x33P 2x34P 2x35P 2x36P 2x37P 2x38P 2x39P 2x40P A 2.54 Ø1.00 P.C.B LAYOUT Dimensions A B 58.42 68.58 60.96 71.12 63.50 73.66 66.04 76.20 68.58 78.74 81.28 71.12 73.66 83.82 76.20 86.36 78.74 88.90 81.28 91.44 83.82 93.98 86.36 96.52 88.90 99.06 91.44 101.60 93.98 104.14 96.52 106.68 99.06 109.22 Unit: mm A2547WRA-N-2xXP 2.54mm Pitch 90° Box Header Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator: PBT,UL94V-0 *Mates with CJT A2547 series Dual row Housing *Color:Black 2.54 A±0.20 2.54±0.10 Circuit 2 Ordering Information: A2547WRA-N-2xXP - *** - ** - *** - *** 1 2 3 4 5 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Color: (blank):Black GY:Gray BL:Blue 4.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 2x6P~2x7P 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Ordering Information & Dimensions: T:Tin over Nickel 5.Size(D): Dimensions (blank):4.50mm PART NO. PART NO. A B D29:2.90mm Last Circuit Circuit 1 B±0.25 PIN 0.64 SQ 3.30 8.90±0.25 2.54±0.10 8.90±0.25 D(2.90±0.20) 2x8P~2x40P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P 2x33P 2x34P 2x35P 2x36P 2x37P 2x38P 2x39P 2x40P A 2.54 Ø1.00 P.C.B LAYOUT Dimensions A B 58.42 68.58 60.96 71.12 63.50 73.66 66.04 76.20 68.58 78.74 81.28 71.12 73.66 83.82 76.20 86.36 78.74 88.90 81.28 91.44 83.82 93.98 86.36 96.52 88.90 99.06 91.44 101.60 93.98 104.14 96.52 106.68 99.06 109.22 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-454 A2547 SERIES A2547FC-N-2xXP-Y 2.54mm pitch wire to board and wire to wire connector 2.54mm Pitch IDC Socket Ordering Information: A2547FC-N-2xXP-Y - *** - ** - *** 1 2 3 4 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Color: (blank):Black GY:Gray 4.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin A±0.20 6.80±0.25 B±0.25 6.00±0.20 2.35±0.20 3.80 7.00±0.25 2.54±0.10 2.54±0.10 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547 series Dual row Wafer *Color:Black 10.50±0.25 0.30 6.00±0.20 Ordering Information & Dimensions: PART NO. 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P Dimensions A B 5.08 12.42 10.16 14.96 15.24 17.50 20.32 20.04 25.40 22.58 30.48 25.12 35.56 27.66 30.20 40.64 45.72 32.74 50.80 35.28 55.88 37.82 60.96 40.36 66.04 42.90 PART NO. 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x30P 2x32P Dimensions A B 38.10 45.44 40.64 47.98 43.18 50.52 45.72 53.06 48.26 55.60 50.80 58.14 53.34 60.68 63.22 55.88 58.42 65.76 60.96 68.30 73.66 81.00 78.74 86.08 Unit: mm A2547FCWV-2xXP 2.54mm Pitch 180° IDC Wafer 2.54 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:PBT,UL94V-0 *Color:Black B±0.25 2.54 7.30±0.25 Ø0.80±0.10 P.C.B LAYOUT 6.00±0.20 Ordering Information: A2547FCWV-2xXP - *** - ** - *** 1 2 3 4 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Color: (blank):Black GY:Gray 4.Finish: (Blank):Tin over Nickel G:Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin Ordering Information & Dimensions: 2.54±0.10 0.60 3.30±0.20 1.27±0.10 5.97±0.20 5.00±0.20 3.50±0.20 0.30 2.54±0.10 6.00 A±0.20 B±0.25 PART NO. 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P Dimensions A B 5.08 13.08 10.16 15.62 15.24 18.16 20.32 20.70 25.40 23.24 30.48 25.78 35.56 28.32 40.64 30.86 45.72 33.40 50.80 35.94 55.88 38.48 60.96 41.02 66.04 43.56 PART NO. 2x16P 2x17P 2x18P 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x30P 2x32P Dimensions A B 38.10 46.10 40.64 48.64 43.18 51.18 45.72 53.72 48.26 56.26 50.80 58.80 53.34 61.34 55.88 63.88 58.42 66.42 60.96 68.96 73.66 81.66 78.74 86.74 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-455 A2547 SERIES 2.54mm Pitch 180° Box Header Odering Information: A2547HI-2xXP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-2xXP series Dual row Housing *Color:Gray E±0.25 3.80±0.25 8.20±0.25 D±0.25 6.50±0.25 A2547HI-2xXP 2.54mm pitch wire to board and wire to wire connector 3.00 C±0.25 5.10 A±0.20 8.20±0.25 Circuit 2 2.54±0.10 2.54±0.10 Circuit 1 Last Circuit 30.10±0.25 19.10±0.25 5.00±0.20 B±0.25 Ordering Information & Dimensions: PART NO. 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P A 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 B 24.39 26.93 29.47 32.01 34.55 37.09 39.63 42.17 44.71 47.25 49.79 52.33 54.87 57.41 Dimensions C 31.92 34.46 37.00 39.54 42.08 44.62 47.16 49.70 52.24 54.78 57.32 59.86 62.40 64.94 D 47.32 49.86 52.40 54.94 57.48 60.02 62.56 65.10 67.64 70.18 72.72 75.26 77.80 80.34 E 17.27 19.81 22.35 24.89 27.43 29.97 32.51 35.05 37.59 40.13 42.67 45.21 47.75 50.29 PART NO. 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P A 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 B 59.95 62.49 65.03 67.57 70.11 72.65 75.19 77.73 80.27 82.81 85.35 87.89 90.43 92.97 Dimensions C 67.18 69.72 72.26 74.80 77.34 79.88 82.42 84.96 87.50 90.04 92.58 95.12 97.66 100.20 D 82.88 85.42 87.96 90.50 93.04 95.58 98.12 100.66 103.20 105.74 108.28 110.82 113.36 115.90 E 52.83 55.37 57.91 60.45 62.99 65.53 68.07 70.61 73.15 75.69 78.23 80.77 83.31 85.85 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-456 A2547 SERIES 2.54mm Pitch 180° Box Header Odering Information: A2547HIA-2xXP - *** - *** 1 2 3 1.Part No. 2.Material: (Blank):PBT,UL94V-0 6T:Nylon 6T,UL94V-0 GWT:PBT,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Gold-flash G15:15μin (0.38μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin G30:30μin (0.76μm) MIN.Select Gold(Mating Area) 100μin (2.54μm) MIN.Select Tin T:Tin over Nickel Reference Informations: *Material:Pin:Brass/Gold over Nickel Insulator:PBT,UL94V-0 *Mates with CJT A2547H-2xXP series Dual row Housing *Color:Gray D±0.25 3.80±0.25 8.20±0.25 6.50±0.25 A2547HIA-2xXP 2.54mm pitch wire to board and wire to wire connector 3.00 C±0.25 5.10 A±0.20 8.20±0.25 Circuit 2 2.54±0.10 2.54±0.10 Circuit 1 Last Circuit 30.10±0.25 19.10±0.25 B±0.25 Ordering Information & Dimensions: PART NO. 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x17P 2x18P A 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 Dimensions B C 24.39 31.92 26.93 34.46 29.47 37.00 32.01 39.54 34.55 42.08 37.09 44.62 39.63 47.16 49.70 42.17 44.71 52.24 47.25 54.78 49.79 57.32 52.33 59.86 54.87 62.40 57.41 64.94 D 17.27 19.81 22.35 24.89 27.43 29.97 32.51 35.05 37.59 40.13 42.67 45.21 47.75 50.29 PART NO. 2x19P 2x20P 2x21P 2x22P 2x23P 2x24P 2x25P 2x26P 2x27P 2x28P 2x29P 2x30P 2x31P 2x32P A 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.20 78.74 Dimensions B C 59.95 67.18 62.49 69.72 65.03 72.26 67.57 74.80 70.11 77.34 72.65 79.88 75.19 82.42 77.73 84.96 80.27 87.50 82.81 90.04 85.35 92.58 87.89 95.12 90.43 97.66 92.97 100.20 D 52.83 55.37 57.91 60.45 62.99 65.53 68.07 70.61 73.15 75.69 78.23 80.77 83.31 85.85 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-457
