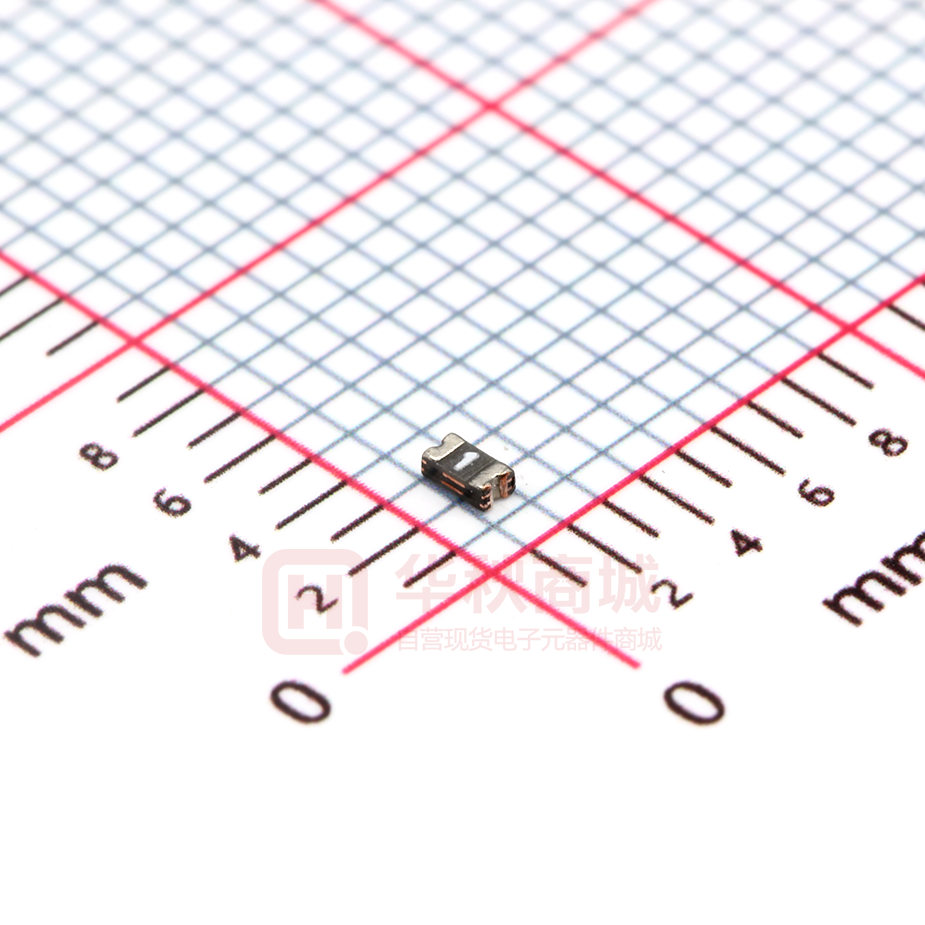

SMD0603-010

Features Applications ■ Surface Mount Devices Almost anywhere there is a low voltage ■ Lead free device power supply, up to 15V and a load to be ■ Size 1.5*0.8 mm / 0.06*0.03 inch protected, including: ■ Surface Mount packaging ■ Computer mother board, Modem. USB hub for automated assembly ■ PDAs & Charger, Analog & digital line card SMD0603 Series ■ Digital cameras, Disk drivers, CD-ROMs, Alpha-Top (Sea & Land Alliance) Performance Specification Pd Ihold Itrip Model Marking @25°C @25°C Typ. (Vdc) (A) (A) (A) (W) SMD0603-010 1 15.0 40 0.10 0.30 0.5 SMD0603-020 2 9.0 40 0.20 0.50 0.5 SMD0603-025 2 9.0 40 0.25 0.55 0.5 6.0 40 0.35 0.75 0.5 SMD0603-035 3 6.0 40 0.50 1.00 0.5 SMD0603-050 5 6.0 40 0.75 1.40 0.5 SMD0603-075 7 6.0 40 1.00 2.00 0.5 SMD0603-100 0 Ihold = Hold Current. Maximum current device will not trip in 25°C still air. Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air. Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax). Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax). Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage. Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C. R1max = Maximum device resistance is measured one hour post reflow. CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame. Vmax Imax Maximum Time To Trip Current Time (A) (Sec) 0.5 1.00 1.0 0.60 8.0 0.08 8.0 0.10 8.0 0.10 8.0 0.10 8.0 0.10 Environmental Specifications Test Conditions Passive aging +85°C, 1000 hrs. Humidity aging +85°C, 85% R.H. , 168 hours Thermal shock +85°C to -40°C, 20 times Resistance to solvent MIL-STD-202,Method 215 Vibration MIL-STD-202,Method 201 Ambient operating conditions : - 40 °C to +85 °C Maximum surface temperature of the device in the tripped state is 125 °C AGENCY APPROVALS : UL pending Regulation/Standard: 2002/95/EC Resistance Rimin (Ω) 0.900 0.550 0.500 0.200 0.100 0.060 0.040 Resistance change ±5% typical ±5% typical ±33% typical No change No change EN14582 Ihold Versus Temperature Model SMD0603-010 SMD0603-020 SMD0603-025 SMD0603-035 SMD0603-050 SMD0603-075 SMD0603-100 Maximum ambient operating temperature (T mao ) vs. hold current (Ihold) -40°C 0.13 0.27 0.32 0.47 0.67 0.98 1.30 -20°C 0.12 0.25 0.29 0.41 0.59 0.85 1.12 0°C 0.11 0.23 0.27 0.38 0.54 0.81 1.08 25°C 0.10 0.20 0.25 0.35 0.50 0.75 1.00 40°C 0.08 0.17 0.21 0.29 0.41 0.60 0.80 第2页 50°C 0.07 0.14 0.18 0.26 0.37 0.54 0.72 60°C 0.06 0.12 0.16 0.24 0.34 0.44 0.58 70°C 0.05 0.10 0.05 0.20 0.29 0.40 0.53 85°C 0.03 0.07 0.03 0.14 0.20 0.31 0.42 R1max (Ω) 6.000 3.500 3.000 1.400 0.800 0.450 0.300 SMD0603 Series Alpha-Top (Sea & Land Alliance) Construction And Dimension (Unit:mm) A Model Min. SMD0603-010 1.45 SMD0603-020 1.45 SMD0603-025 1.45 SMD0603-035 1.45 SMD0603-050 1.45 1.45 SMD0603-075 1.45 SMD0603-100 B Max. 1.85 1.85 1.85 1.85 1.85 1.85 1.85 Min. 0.65 0.65 0.65 0.65 0.65 0.65 0.65 Dimensions & Marking A Min. 0.40 0.40 0.40 0.40 0.50 0.50 0.50 Max. 1.00 1.00 1.00 1.00 1.10 1.10 1.10 E Min. 0.10 0.10 0.10 0.10 0.10 0.10 0.10 Recommended Pad Layout (mm) 0.7 士0.1 1.0士0.1 0.7士0.1 1 B D Min. 0.15 0.15 0.15 0.15 0.15 0.15 0.15 C Max. 1.05 1.05 1.05 1.05 1.05 1.05 1.05 1 = Part identification D E 1.0士0.1 C Termination Pad Characteristics Terminal pad materials： Terminal pad solderability： Tin-plated Nickel-Copper Meets EIA specification RS186-9E and ANSI/J-STD-002 Category 3. Rework Use standard industry practices, the removal device must be replaced with a fresh one. Thermal Derating Curve Typical Time-To-Trip At 25°C Derating Curves for SMD0603 Series Average Time Current Curves 140 0.10A 120 0.20A 100 100 0.25A 80 60 0.35A 40 0.50A 20 0.75A 0 -40 -20 0 20 40 60 1.00A 80 Temperature (°C) Time In Seconds Percentage of Derated Current 160 10 1 0.1 0.01 0.001 0.1 1 Current In Amperes 10 · Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame. · PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. · Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. · Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC. · Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space. · Contamination of the PPTC material with certain silicon based oils or some aggressive solvents can adversely impact the performance of the devices. PPTC SMD can be cleaned by standard methods. · Requests that customers comply with our recommended solder pad layouts and recommended reflow profile. Improper board layouts or reflow profile could negatively impact solderability performance of our devices. 第3页 SMD0603 Series Alpha-Top (Sea & Land Alliance) Recommended Solder Reflow Conditions 300 Preheating Soldering ‧Recommended reflow methods：IR, vapor phase oven, hot air oven. Cooling ‧Devices are not designed to be wave soldered to the bottom side 250 of the board. 200 ‧Recommended maximum paste thickness is 0.25 mm (0.010 inch). 190 ‧Devices can be cleaned using standard method and solvents. 160 Note：If reflow temperatures exceed the recommended profile, 100 0 devices may not meet the performance requirements. 60-120 sec. 30~60sec. 120 sec. Tape And Reel Specifications (mm) Paper Tape Component Dimensions P0 Governing Specifications W P0 8.0 ± 0.2 4.0 ± 0.10 P1 4.0 ± 0.10 P2 2.0 ± 0.05 A0 1.05 ± 0.10 B0 1.85 ± 0.10 D0 1.55 + 0.05 F E1 3.5 ± 0.05 1.75 ± 0.10 E2min. 6.25 T 0.75 T1max. K0 D0 T E1 Cover tape A0 F K0 B0 P1 EIA Reel Dimensions 0.75/0.95 ± 0.1 390 Trailer min. 160 W2(m easured at hub) Reel Dimensions W2 E2 B0 T1 W 0.1 Leader min. A max. N min. W1 P2 178 60 9.0 ± 0.5 12.0 ± 0.05 A N(hub dia.) 0 Cover tape W1(m easured at hub) Carrier tape Emboss ed cavity Storage And Handling ‧ Storage conditions：40°C max, 70% R.H. ‧ Devices may not meet specified performance if storage conditions are exceeded. Order Information Packaging SMD0603 Product name Size 1508 mm / 0603 inch SMD：surface mount device Tape & reel packaging per EIA481-1 010 Hold Current 0.10A Labeling Information Sea & Land Electronic Corp. Pb RoHS Model: Part no.: Spec.: Lot no.: Q'ty: 倉儲：密封！溫度：18～33℃/濕度：30～60％ A 第4页 Tape & Reel Quantity 5,000 pcs/reel
