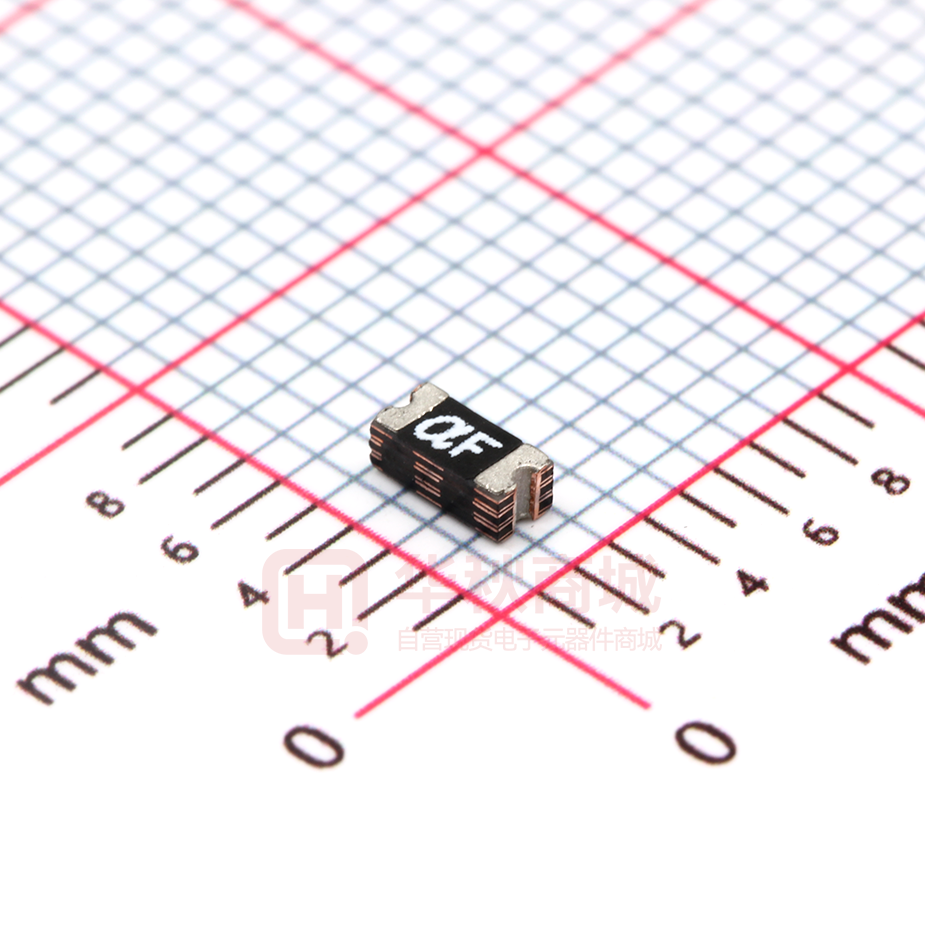

nSMD050-33V

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: nSMD050-33V DOCUMENT: QR0429 ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse 2017-8-2 1 of 1 Specification Sheet Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. A Terminal Pad Materials: Tin-plated Nickel-Copper F B Lead-Free, RoHS Compliant Marking: Part Identification nSMD050 = D αF E TABLE I. DIMENSIONS: Model Marking nSMD050-33V αF A Min. 3.00 B Max. 3.50 Min. 1.50 C Max. 1.80 Min. 0.80 Max. 1.40 D Min. 0.15 E Min. 0.10 Unit:mm TABLE II. PERFORMANCE RATINGS: Maximum Model Marking nSMD050-33V αF Vmax Imax (Vdc) (A) 33.0 100 Ihold Pd Itrip @25°C @25°C (A) (A) 0.50 1.00 Typ. Current Time (W) (A) (Sec) 0.6 Order Information SMD1206 050 －33V Hold Max Current voltage Size 3216 mm / 1206 mils Recognition: UL Pending. 8.0 0.10 Rimin Rityp R1max (W) (W) (W) 0.150 0.300 0.700 Packaging Product name SMD：surface mount device Resistance Time To Trip 0.50A Tape & Reel Quantity 3500 pcs/reel C
