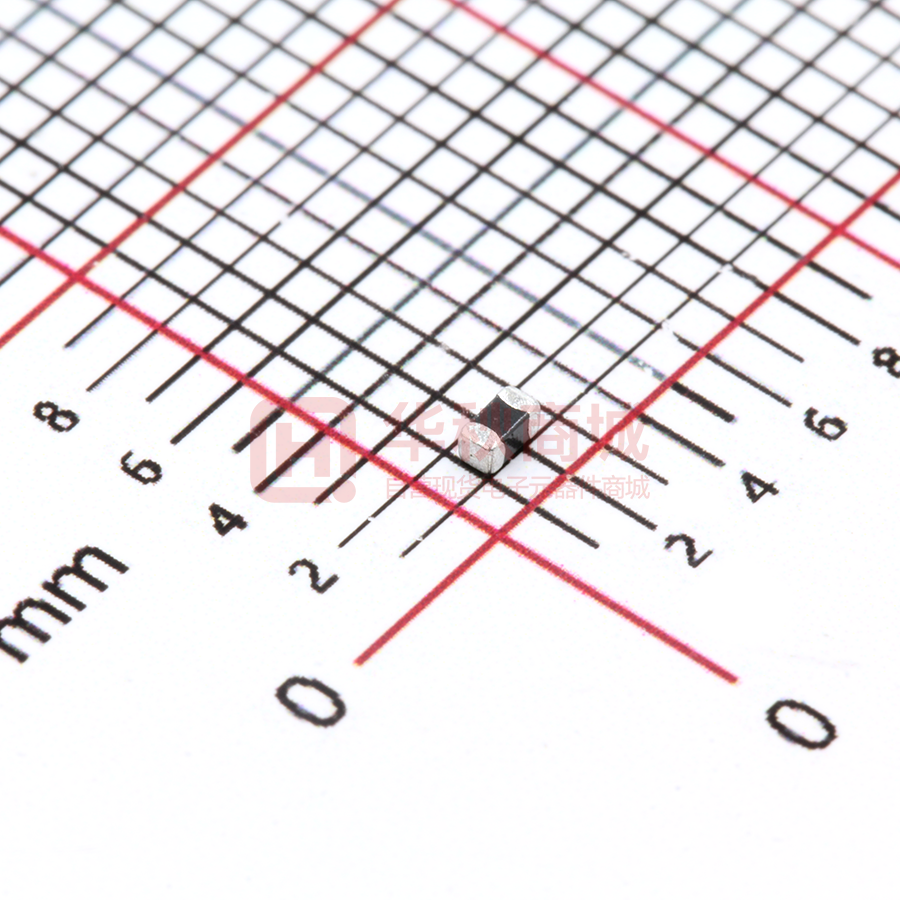

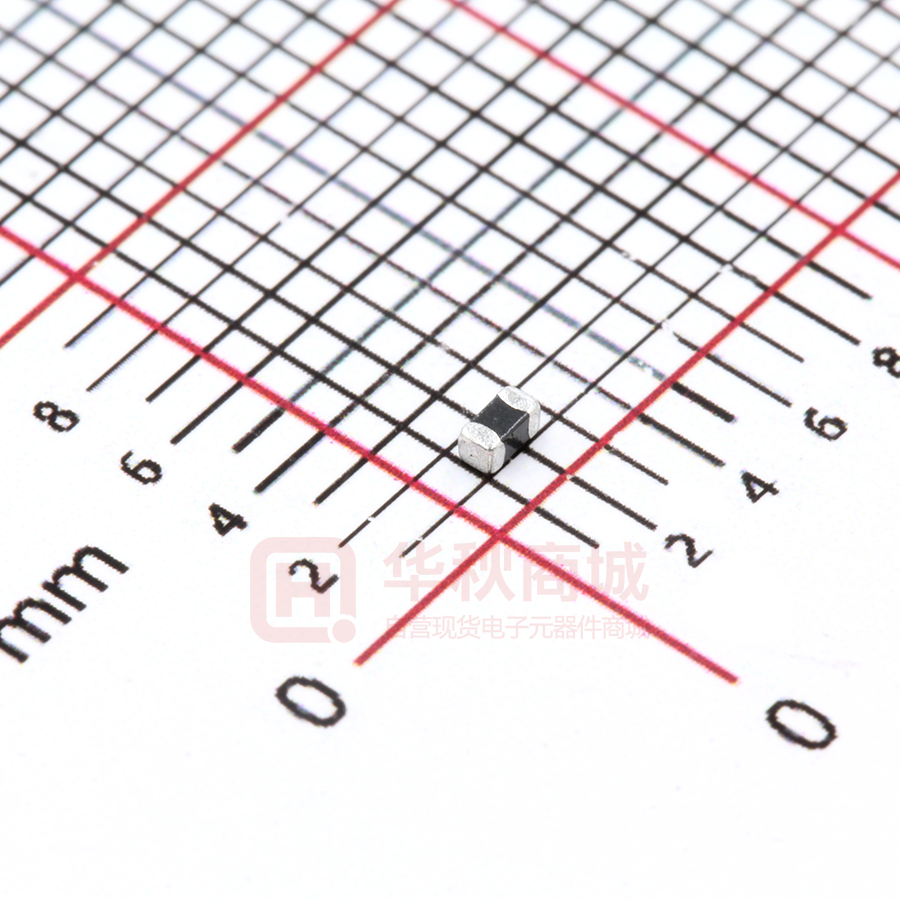

SDNT1608X473F4150FTF 数据手册
Chip Temp. Sensing NTC Thermistor – SDNT Series
Operating Temp. : -55℃~+125℃
FEATURES
SMD type suitable for high density mounting
Series of B constant for various applications
Excellent solderability
●
●
●
APPLICATIONS
Telecommunication equipments such as cellular phone, automobile phone, cordless phone, etc.
Office automation such as printer, facsimile, word processor, etc.
Consumer electronics such as VCR, DVD, CD players, etc.
PRODUCT IDENTIFICATION
SDNT
1005
X
103
F
3380
F
T
F
①
②
③
④
⑤
⑥
⑦
⑧
⑨
①
②
Type
SDNT
③
External Dimensions (L×W) (mm)
0603 [0201]
0.6×0.3
Chip NTC Thermistor
1005 [0402]
1608 [0603]
1.6×0.8
2012 [0805]
2.0×1.25
Zero-power Resistance
Example
Nominal Value
472
4.7kΩ
103
10kΩ
X
1.0×0.5
⑤
④
Internal Code
⑥
F
H
J
K
Tolerance of Resistance
±1%
±3%
±5%
±10%
⑦
B Constant (25-50℃)
Example
Nominal Value
3380
3380K
4250
4250K
⑨
⑧
Tolerance of B Constant
F
±1%
H
±3%
Packing
Tape & Reel
T
Hazardous Substance
Free Products
F
SHAPE AND DIMENSIONS
Unit: mm [inch]
Sunlord
Type
L
W
T
a
SDNT0603
0.6±0.05
0.3±0.05
0.3±0.05
0.15±0.05
[0201]
[.024±.002]
[.012±.002]
[.012±.002]
[.006±.002]
SDNT1005
1.0±0.15
0.5±0.15
0.5±0.15
0.25±0.1
[0402]
[.039±.006]
[.020±.006]
[.020±.006]
[.010±.004]
SDNT1608
1.6±0.15
0.8±0.15
0.8±0.15
0.3±0.2
[0603]
[.063±.006]
[.031±.006]
[.031±.006]
[.012±.008]
SDNT2012
2.0±0.2
1.25±0.2
0.85±0.2
0.5±0.3
[0805]
[.079±.008]
[.049±.008]
[.033±.008]
[.020±.012]
Specifications subject to change without notice. Please check our website for latest information.
Revised 2016/04/15
Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
SPECIFICATIONS
SDNT0603 TYPE
Part Number
Resistance B Constant
at 25℃
(25-50℃)
B
Max. Permissive
Operating
Current (25℃)
Thermal Time Dissipation Rated Electric
Constant
Factor
Power
Units
kΩ
K
mA
sec
mW/℃
mW
Symbol
R25
B25/50
Imax
t
C
P
SDNT0603X103□3380◎TF
10
3380
0.31
SDNT0603X223□3380◎TF
22
3380
0.22
SDNT0603X223□3900◎TF
22
3900
0.22
SDNT0603X473□3950◎TF
47
3950
0.12
SDNT0603X473□4100◎TF
47
4100
0.12
SDNT0603X683□4150◎TF
68
4150
0.11
