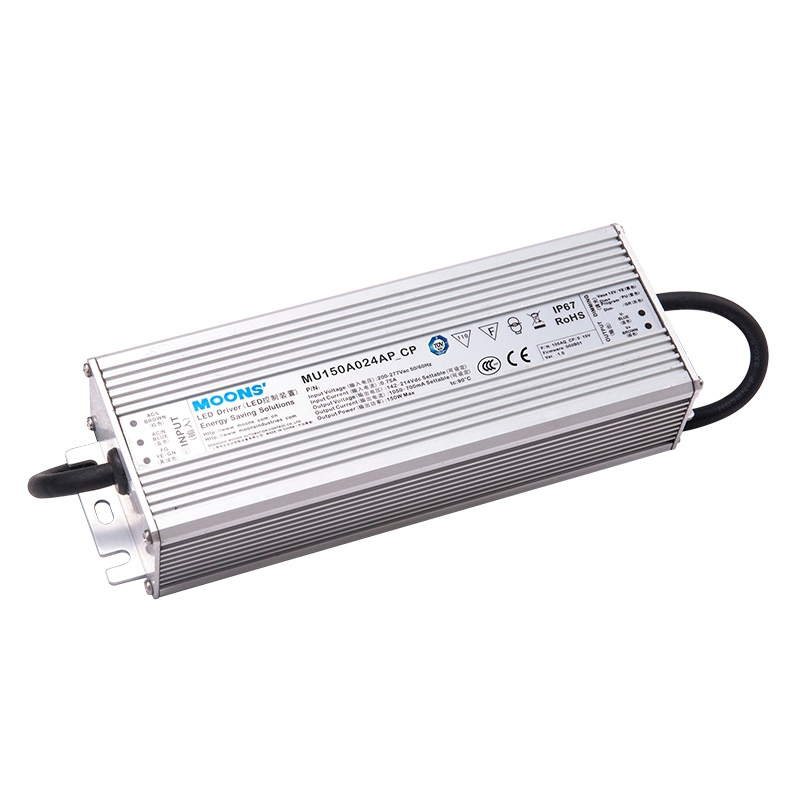

MU150A024AP

MOONS' RELEASE DEPARTMENT: PAGE: R&D 1 of 6 TITLE: REVISION: A0 MU150A024AP SPECIFICATIONS Doc. No.: MSSD-2909_02A0 LED DRIVER SPECIFICATIONS Part Description: Input: 90～305Vac, Output: 24Vdc/0-6.25A Customer’s Part Number: MOONS’ Part Number: MU150A024AP Customer: Company: Department: Approved by: Date: EDITED: DATE: CHECKED: DATE: STANDARD: DATE: APPROVED: DATE: SHANGHAI MOONS’ AUTOMATION CONTROL Co., LTD. MOONS' RELEASE DEPARTMENT: PAGE: R&D 2 of 6 TITLE: REVISION: A0 MU150A024AP SPECIFICATIONS REVISIONS: Rev. Date A0 2015.8.4 Descriptions ECO No. Edited 陈建华 Checked Approved 杨智 涂必林 MOONS' RELEASE DEPARTMENT: R&D PAGE: 3 of 6 TITLE: MU150A024AP SPECIFICATIONS REVISION: A0 1. ELECTRICAL CHARACTERISTICS 1.1 Input Specifications: 1.1.1 Rated Voltage 100Vac ～ 277Vac 1.1.2 Input Voltage Range 90Vac ～ 305Vac 1.1.3 Rated Frequency 50Hz/60Hz 1.1.4 Frequency Range 47Hz ~ 63Hz 1.1.5 Efficiency 90%（Typical）, 88%（minimum）, at 110Vac input voltage and 100% load. 92%（Typical）, 90%（minimum）, at 220Vac input voltage and 100% load. （Measured after the unit is thermally stabilized. It will be lower about 1%, if measured immediately after startup.） 1.1.6 Power Factor 0.99（Typical）， 0.98（minimum），at 110Vac input voltage and 100% load. 0.96（Typical）， 0.95（minimum），at 220Vac input voltage and 100% load. 1.1.7 Inrush Current Less than 65A at 220Vac/50Hz input voltage and max load, 25°C, cold start,. 1.1.8 Maximum Input Current Less than 1.75A at 100Vac input voltage and 100% load. 1.2 Output Specifications: 1.2.1 Output Channel Single output 1.2.2 Output Voltage and Current Output Voltage: 24Vdc±5% Output Current: constant current 0-6.25A 1.2.3 Total Output Power 150W Max. 1.2.4 Operating Mode Continuous operating. 1.2.5 Turn-on Delay Time The time after switch on for the output current reach the normal current should be within 3.0S when operating at rated input and rated load. 1.3 Protection: 1.3.1 Short Circuit Protection The short circuit protection is provided. The characteristic is hiccup mode, automatic recovery. The function operates when the output is shorted. The output will be automatically recovered when the short circuit is released. MOONS' RELEASE DEPARTMENT: PAGE: R&D 4 of 6 TITLE: MU150A024AP SPECIFICATIONS REVISION: A0 1.3.2 Over Voltage Protection OVP may occur when internal regulation function of the power supply fails, OVP function operates to insure the output voltage value less than 32V（Typical）. 1.3.3 Over Temperature Protection When the inside temperature of PSU rise to 100~130℃,the PSU will shutdown. The power supply should resume it’s normal operation when the inside temperature of PSU drop to normal temperature. 1.4 Life Time: More than 50,000 hours（case temperature: 75℃） 1.5 MTBF: More than 300,000 hours（full load at ambient temperature: 25℃） 2. ENVIRONMENTAL CHARACTERISTICS 2.1 Temperature: 2.1.1 Operating Temperature -35℃ ～ 60℃（Maximum case temperature 90°C） 2.1.2 Storage Temperature -40℃ ～ 85℃ 2.2 Humidity: 2.2.1 Operating Humidity 20％ ～ 95% RH 2.2.2 Storage Humidity 10％ ～ 95% RH。 2.3 Altitude: Operating altitude: 0~3km（otherwise, check HI-POT and leakage current.） 2.4 Vibration: Sweep range：10-55-500Hz Peak acceleration：2G（10～55Hz），5G（55～500Hz） Sweep rate：1 octave/minute Repeat periods：1h/axis（X/Y/Z） 2.5 Shock: Acceleration value：40G Duration：11ms Shock times：6 shocks/ axis（X/Y/Z） 2.6 Degree of protection: IP67 3. SAFETY TESTS 3.1 Dielectric Withstand Voltage (HI-POT): 3.1.1 Input to Output: 3.75kVac, 10mA, 1 minute. 3.1.2 Input to FG: 1.875kVac, 10mA, 1 minute. MOONS' RELEASE DEPARTMENT: R&D PAGE: 5 of 6 TITLE: MU150A024AP SPECIFICATIONS 3.1.3 Output to FG: 500Vac, 10mA, 1 minute. 3.2 Leakage Current: 3.2.1 Line to FG: 0.75 mA Max at 277Vac input voltage. 3.2.2 Neutral to FG: 0.75mA Max at 277Vac input voltage. 3.3 Insulation Resistance: 3.3.1 Input to Output: 500Vdc, 100MΩ, 1 minute. 3.3.2 Output to FG: 500Vdc, 100MΩ, 1 minute. 4. SAFETY & EMC COMPLIANCE 4.1 The power supply must be compliant with the following safety rules: UL8750,UL1012, EN61347-1,EN61347-2-13 4.2 Conducted Emission: FCC PART15 Class B, EN55015 4.3 Radiated Emission: FCC PART15 Class B, EN55015 4.4 Harmonic Emission: EN61000-3-2 4.5 Surge Immunity: EN61000-4-5 Line to FG: ±4kV, Neutral to FG: ±4kV, Line to Neutral: ±2kV 4.6 Electrostatic Discharge (ESD): EN61000-4-2 Level 4（±8kV contact discharge, ±15kV air discharge） 5. DERATING CURVE 5.1 DERATING CURVE 5.2 LIFETIME CURVE REVISION: A0 MOONS' RELEASE DEPARTMENT: R&D PAGE: 6 of 6 TITLE: MU150A024AP SPECIFICATIONS 6. MECHANICAL CHARACTERISTICS 6.1 Outline: 6.2 Weight: 1300g(Typical) 7. NAMEPLATE REVISION: A0
