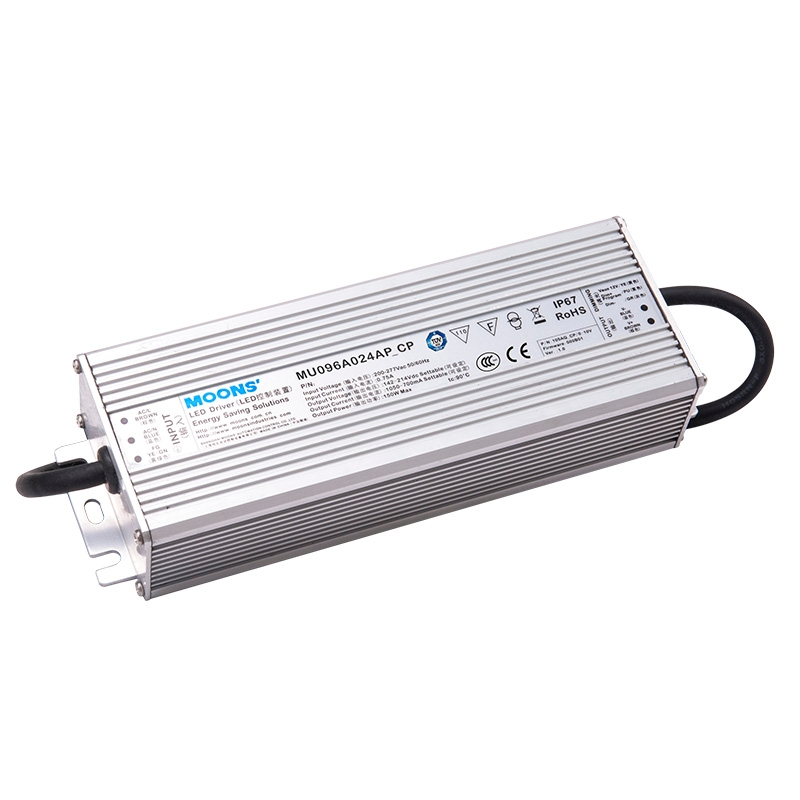

MU096A024AP

MOONS' RELEASE DEPARTMENT: PAGE: R&D 1 of 5 TITLE: MU096A024AP SPECIFICATIONS REVISION: A0 Doc. No.: MSSD-3095_02 A0 LED DRIVER SPECIFICATIONS Part Description: Input: 90Vac～305Vac, Output: 24Vdc/4000mA (max.) Customer’s Part Number: MOONS’ Part Number: MU096A024AP Customer: Company: Department: Approved by: Date: EDITED: DATE: CHECKED: DATE: STANDARD: DATE: APPROVED: DATE: SHANGHAI MOONS’ AUTOMATION CONTROL Co., LTD. REVISION HISTORY Rev. Date A0 2013-10-9 DOC NO.: MSSD-3095_02 A0 Contents ECO NO. DWG CHK APPR New release 娄元雎 冯振民 涂必林 MU096AxxxAP Series ■ Features General-Outdoor · Input voltage: 90-305Vac · Built-in active PFC function: 0.99 Typ. · High efficency: 87% Typ. · IP67 design for indoor or outdoor installations · Lightning protection · Compliance to worldwide safety regulations for lighting · Suitable for dry/damp/wet locations · 5 Years Warranty ■ Specification Model (MU096AXXXAP) 024 Efficency(110Vac) 84% (Typ.) Efficency(220Vac) 87% (Typ.) 90～305 Voltage Range (Vac) 47~63 Frequency Range (Hz) Input 0.99(typ.) at 110Vac input, 0.96(typ.) at 220Vac input Power Factor ＜20%, at 100～277Vac input, with 80%～100% load conditions THD 1.2A at 110Vac input, 0.6A at 220Vac input AC Current(Typ.) 50A at 230Vac input 25℃ cold start Inrush Current(Typ.) 0.75mA at 277Vac 50Hz input Leakage Current(Typ.) 24 DC Voltage (V) 4000 Rated Current(mA) 96 Rated Power (W) Output Ripple&Noise (Vp-p) 3.00 Current Range (mA) 0~4000 Voltage ToleranceNote.1 5% Line Regulation 1% Load Regulation 3% Setup, Rise Time 3s, measured at 110Vac input; 1.5s, measured at 220Vac input 10ms at 220Vac 100% load Hold Up Time 29 (Max.) Over Voltage(V) Protection The voltage will not exceed the upper limit. After the cause of activation of over voltage removed, the power supply will be automatically recovered. Over Current 100%~110%, Hiccup mode. The power supply shall be self-recovery when the fault condition is removed. Short Circuit damage shall occur when any output operating in a short circuit confition.The power supply shall be self-recovery when the fault is remov Over Temperature When the inside temperature of PSU rise to 100~130℃,the PSU will shutdown. The power supply should resume it’s normal operation when the inside temperature of PSU drop to normal temperature. -35~+70℃ Working Temp. 10~100%RH, non-condensing Working Humidity Environment Storage Temp., Humidity -40~+85℃, 5-100%RH 0.03%/℃（0~50℃） Temp. Coefficient 10-500Hz, 5G 12min/cycle, period for 72min each along X、Y、Z axes Vibration Safety Standard UL8750, UL1012, UL1310 Class 2,CSA-C22.2 No. 107.1, CSA C22.2 NO. 223-M91 Class 2,EN61347-1, EN61347-2-13 I/P-O/P:3.75KVac I/P-FG:1.5KV O/P-FG:0.5KV Withstand Voltage I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500Vdc/25℃/70%RH Safety & EMC Isolation Resistance EN55015/FCC Part 15 Class B, EN61000-3-2 Class C, EN61000-3-3 EMC Emission EN61000-4-2,3,4,5,6,8,11, EN61547 EMC Immunity 300,000 hours, measured at full load, 25℃ ambient temperature MIL-HDBK-217F(25℃) MTBF Others 201 x 67.5 x 37 mm（LxWxH） Dimension Weight Note.1: Includes set up tolerance, line regulation and load regulation. All Rights Reserved 0.86kg 2013-7-10 Page 3 of 5 SHANGHAI MOONS' AUTOMATION CONTROL CO., LTD. Add: No.168, Mingjia Road, Minbei Industrial Park, Shanghai 201107, P.R.China Tel: +86 (0)21 52634688 Website: www.moons.com.cn MU096AxxxAP Series General-Outdoor ■ Mechanical Specification ■ Label RoHS Compliance: Our products comply with the European Directive 2002/95/EC, calling for the elimination of lead and other hazardous substances from electronic products. All Rights Reserved 2013-7-10 Page 4 of 5 SHANGHAI MOONS' AUTOMATION CONTROL CO., LTD. Add: No.168, Mingjia Road, Minbei Industrial Park, Shanghai 201107, P.R.China Tel: +86 ((0)21 ) 52634688 Website: www.moons.com.cn MU096AxxxAP Series General-Outdoor ■ Test Curve Derating Curve All Rights Reserved 2013-7-10 Page 5 of 5 SHANGHAI MOONS' AUTOMATION CONTROL CO., LTD. Add: No.168, Mingjia Road, Minbei Industrial Park, Shanghai 201107, P.R.China Tel: +86 (0)21 52634688 Website: www.moons.com.cn
