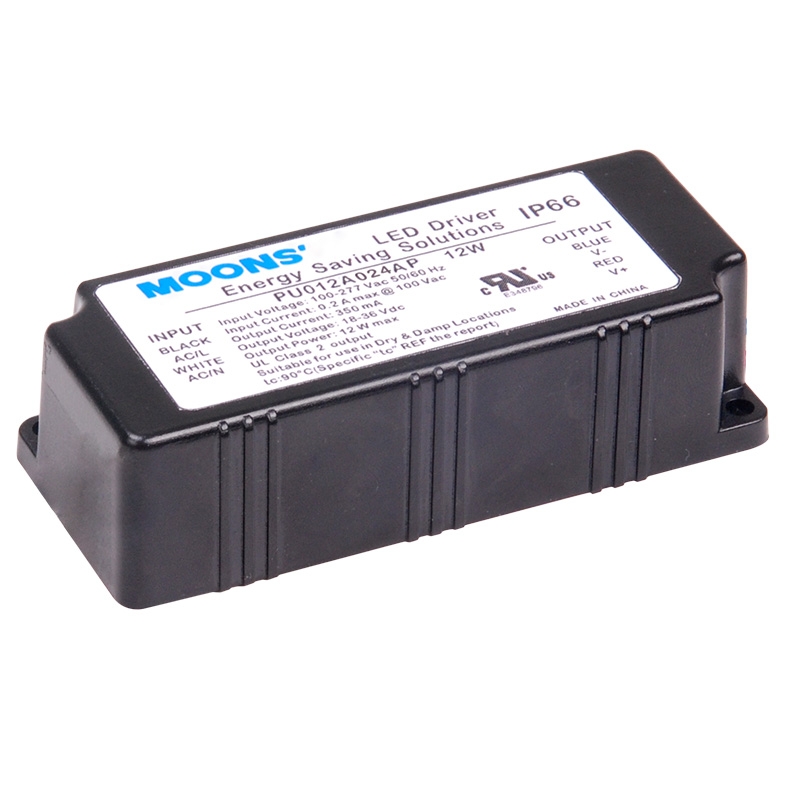

PU012A024AP

MOONS' RELEASE DEPARTMENT: PAGE: R&D 1 of 6 TITLE: PU012A024AP SPECIFICATIONS REVISION: A1 Doc No.: MSSD-4197 A1 LED DRIVER SPECIFICATIONS Part Description: Input: 90VAC～305VAC, Output: 24V, 50 ~ 500mA. Customer’s Part Number: MOONS’ Part Number: PU012A024AP Customer: Company: Department: Approved by: Date: EDITED: DATE: CHECKED: DATE: STANDARD: DATE: APPROVED: DATE: SHANGHAI MOONS’ AUTOMATION CONTROL Co., LTD. MOONS' RELEASE DEPARTMENT: PAGE: R&D 2 of 6 TITLE: PU012A024AP SPECIFICATIONS REVISION: A1 REVISIONS: Rev. Date Descriptions A0 2013-3-21 New release A1 2015-3-20 Update “Outline” ECO No. ECO15-0488 Edited Checked Approved 朱一岑 庄勤锋 涂必林 李微 庄勤锋 涂必林 MOONS' RELEASE DEPARTMENT: R&D PAGE: 3 of 6 TITLE: PU012A024AP SPECIFICATIONS REVISION: A1 1. ELECTRICAL CHARACTERISTICS 1.1 Input Specifications: 1.1.1 Rated Voltage 100VAC ~ 277VAC. 1.1.2 Input Voltage Range 90VAC ~ 305VAC. 1.1.3 Rated Frequency 50Hz/60Hz 1.1.4 Frequency Range 47Hz ~ 63Hz 1.1.5 Efficiency 83%（Typical）, 81%（minimum）, at 220VAC/50 Hz input voltage and maximum load. 83%（Typical）, 81%（minimum）, at 110VAC/60 Hz input voltage and maximum load. 1.1.6 Power Factor 0.97（Typical）, 0.96（minimum）, at 110VAC/60 Hz input voltage and maximum load. 0.94（Typical）, 0.93（minimum）, at 220VAC/50 Hz input voltage and maximum load. 1.1.7 Inrush Current Less than 15A at 220VAC/50Hz input voltage and rated load. 1.1.8 Maximum Input Current Less than 0.18A at 100VAC/60Hz input voltage and rated load. 1.2 Output Specifications: 1.2.1 Output Channel Single output 1.2.2 Output Voltage and Current Output Voltage: 24Vdc. Output Current: 50 ~ 500mA. 1.2.3 Total Output Power 12W Max. 1.2.4 Operating Mode Continuous operating. 1.2.5 Start time
