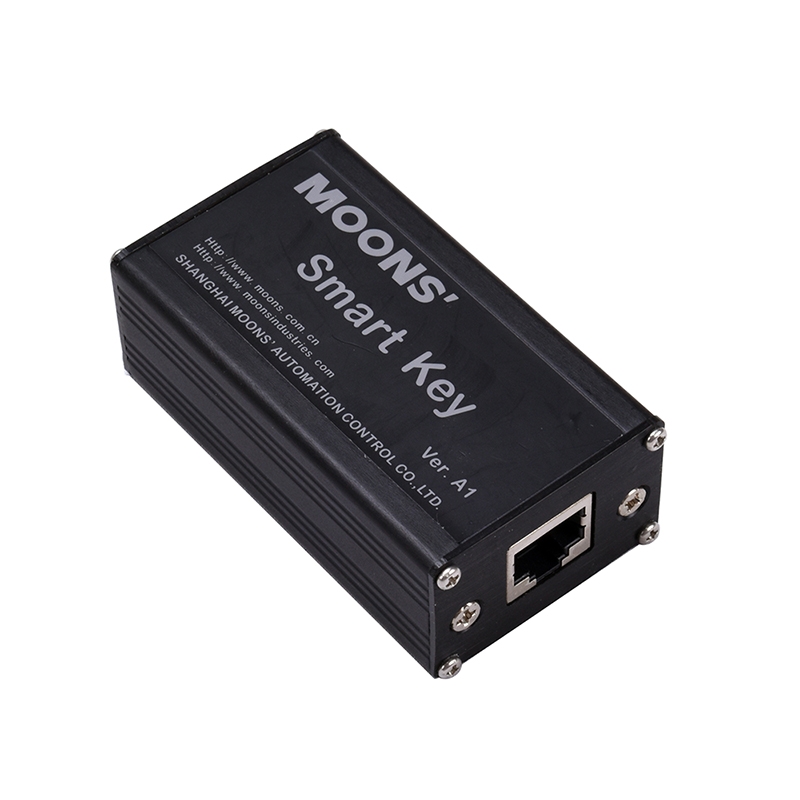

1 I. Introduction 1) All MOONS’ S Series Intelligent (0-10V, DALI, DMX) Driver can be programmed through SmartkeyII/ Smartkey A1 and Smartkey Network Software. Such as dimming solution, output current value, minimum dimming level, dimming curve, etc. 2) This user manual was written for: Smartkey Network Software; Smartkey II (Firmware version ≧2.0) that only supports charged mode; Smartkey A1 that supports uncharged programming mode and charged programming mode; All MOONS’ S Series Intelligent (0-10V, DALI, DMX) Drivers; 3) There are two main documents in the software package. Folder “Smartkey Network” : the free-install software. The file “CDM v2.12.00 WHQL Certified.exe” : the USB driver of Smartkey II. II. Operating System Requirement △ Operating system should be senior to Windows 7 (Including Windows 7) △ .NET Framework version 4.0 or senior version; (.NET Framework is the part of your operating system; It also can be download from the Microsoft official website.) △ The USB driver of Smartkey II/A1 should be installed on the operating system. 2 Run “CDM v2.12.00 WHQL Certified.exe” as Administrator right and install the USB driver on your computer. III. Hardware Wring Connection All MOONS’ Intelligent Driver can be programmed through MCS±port by Smartkey II/Smartkey A1 and Smartkey Network Software. Charged programming method 3 Uncharged programming method Dimming Port List (Only for Dual 0-10V driver): Dimming Solution Dimming Port Tunable White CCT Port: CCT changing; DIM Port: Intensity changing; Channel 1 is connected to Cool LEDs, Channel 2 is connected to Warm LEDs; Dim to Warm DIM Port: CCT & Intensity changing; Channel 1 is connected to Cool LEDs, Channel 2 is connected to Warm LEDs; Solo 0-10V Dimming DIM Port: Intensity changing; Dual 0-10V Dimming CCT Port: control Ch2’s intensity; DIM Port: control Ch1’s intensity; 4 IV. Guide for programming Intelligent driver. 1) Activate software interface. i) Double Click SmartKeyTool that in the folder “Smartkey Network V1.9” ii) Click Setting iii) Choose “One Wire” and then Click “OK” iv) Click “Read” to activate software interface. Click “Save” to program driver’s configuration. 5 Software Interface 6 2) Programming DALI driver Device Information Device Type Change driver’s type. Solo: use one address to control two channels simultaneously Dual: use two addresses to control two channels respectively DT8 CCT: use one address to achieve tunable white 7 DT6 CCT: achieve tunable white through two addresses, one address to control CCT, another address to control intensity. Firmware Version The firmware version of driver. Dimming Curve Set driver’s dimming curve to be liner or logarithmic. Minimum Level Set driver’s minimum dimming level. The valid range of logarithmic dimming curve: 0.1%~100%. The valid range of linear dimming curve: 0.4%~100%, the minimum adjustable unit is 1/254; Current Setting CH1,CH2 Set driver’s output current. In order to achieve accurate CCT range, please keep CH1=CH2. Power Output Enable Enable or disable DALI power output on the driver. 15V-100mA. Physical Warmest, Physical Coolest Set driver’s CCT range according to fixture. The valid range is 1500~6500K. In order to achieve accurate CCT range, please set driver’s CCT range according to fixture’s actual CCT range. 8 3) S Series Dual 0-10V driver has four dimming solutions. i) Tunable White (0-10V CCT Driver) The Color Temperature & Intensity tuning can be achieved by MOONS' Dual 0-10V Driver & Standard 0-10V dimmer; 0-10V dimming Channel (A)——Color Temperature Tuning; 0-10V dimming Channel (B)——Intensity Changing Device Information Device Type Change driver’s dimming solution. Firmware Version The firmware version of driver. Dimming Curve Set driver’s dimming curve to be liner or logarithmic. 9 Minimum Level Set driver’s minimum dimming level. The valid range of logarithmic dimming curve: 0.1%~100%. The valid range of linear dimming curve: 0.4%~100%, the minimum adjustable unit is 1/254; Current Setting CH1,CH2 Set driver’s output current. In order to achieve accurate CCT range, please keep CH1=CH2. Max Volt (7~10V) Set the voltage of dimming signal at 100% intensity & coolest CCT. e.g. If the driver’s max volt is set to be 8V. The driver will keeps 100% intensity as long as the dimming signal’s voltage ≧8V. The driver will keeps coldest CCT as long as the dimming signal’s voltage ≧8V. CCT Physical Warmest, Physical Coolest Set driver’s CCT range according to fixture. The valid range is 1500~6500K. In order to achieve accurate CCT range, please set driver’s CCT range according to fixture’s actual CCT range. Fade Time Intensity Fade Set the fade time of intensity changing. The Valid range is 150~1000 ms, the minimum adjustable unit is 50ms. 10 If the value is set to be 800ms, driver will cost 800ms to achieve intensity B from intensity A. CCT Fade Set the fade time of CCT changing. The Valid range is 150~1000 ms, the minimum adjustable unit is 50ms. If the value is set to be 500ms, driver will cost 500ms to achieve CCT B from CCT A. ii) Dim to Warm (0-10V Dim to Warm Driver) 11 Dimming like incandescent light bulb, change a luminaire’s color temperature when dimmed. Note: For the explanation of Device Information, Current Setting, CCT, Fade Time, please refer to i) Tunable White (0-10V CCT Driver) Logical CCT Rang ≤ Physical CCT Range Dim to Warm Warmest Level The intensity level of corresponding warmest CCT. Logical Warmest The warmest CCT driver can achieve. The valid range: 1500~3200K. Assume that the warmest level is set to be 10%, warmest is set to be 2200K. The driver will keep CCT at 2200K as long as the intensity is≦10%. Coolest Level The intensity level of corresponding coolest CCT. Logical Coolest The warmest CCT driver can achieve. The valid range: 1500~3200K. Assume that the coolest level is set to be 80%, coolest is set to be 2700K. The driver will keep CCT at 2700 as long as the intensity is ≧80%. Intensity Ratio Intensity Ratio=Warmer LED’s power ÷Cooler LED’s power Max Volt (7~10V) Set the voltage of dimming signal at 100% intensity. e.g. If the driver’s max volt is set to be 8V. The driver will keeps 100% intensity as long as the dimming signal’s voltage ≧8V. 12 iii) Solo 0-10V Dimming (0-10V Solo Driver) Setting different current value of each output channel, perform broadcast dimming by single 0-10V dimming signal. Note: For the explanation of Device Information, Current Setting, Max Volt, Fade Time, please refer to i) Tunable White (0-10V CCT Driver) 13 iv) Dual 0-10V Dimming (0-10V Dual Driver) Dim each channel to different intensity by dual 0-10V dimming signal individually. Note: For the explanation of Device Information, Current Setting, Max Volt, Fade Time, please refer to i) Tunable White (0-10V CCT Driver) 14 4) Programming DMX driver There are three dimming solutions in the DMX 2 channels driver: DMX CCT: achieve tunable white through two DMX addresses, one address to control CCT, another DMX address to control intensity. DMX Solo: use one address to control two channels simultaneously. DMX Dual: use two addresses to control two channels respectively. DMX CCT mode Device Type Change driver’s dimming mode: Solo, Dual, CCT Firmware Version Check driver’s firmware version Diming Curve Chang driver’s dimming curve: Linear or Gamma 15 Minimum Level Set the minimum dimming level: 0.1~100% NTC Set the temperature value of NTC. DMX Address Set driver’s start address Current Setting Set driver’s output current value Physical CCT Set the physical CCT range according to fixture’s actual color temperature. Logic CCT Set the logic CCT range according to actual requirement. Notes: the Logic CCT range ≤ the Physical CCT range Power on level The intensity the driver outputs, when there is no dimming signal during starting process. Power on CCT The CCT the driver achieves, when there is no dimming signal during starting process. Failure level The intensity the driver outputs, when the driver loses the dimming signal. Hold means the driver will keep the previous intensity level when the driver loses the dimming signal. The valid range: 0~100%, Hold. Failure CCT The CCT the driver outputs, when the driver loses the dimming signal. Hold means the driver will keep the previous CCT level when the driver loses the dimming signal. The valid range: logic CCT range, Hold. Delay time Set the time to trigger “Failure level” and “Failure time” mode. DMX Solo mode, DMX Dual mode: please refer to above list. 16
