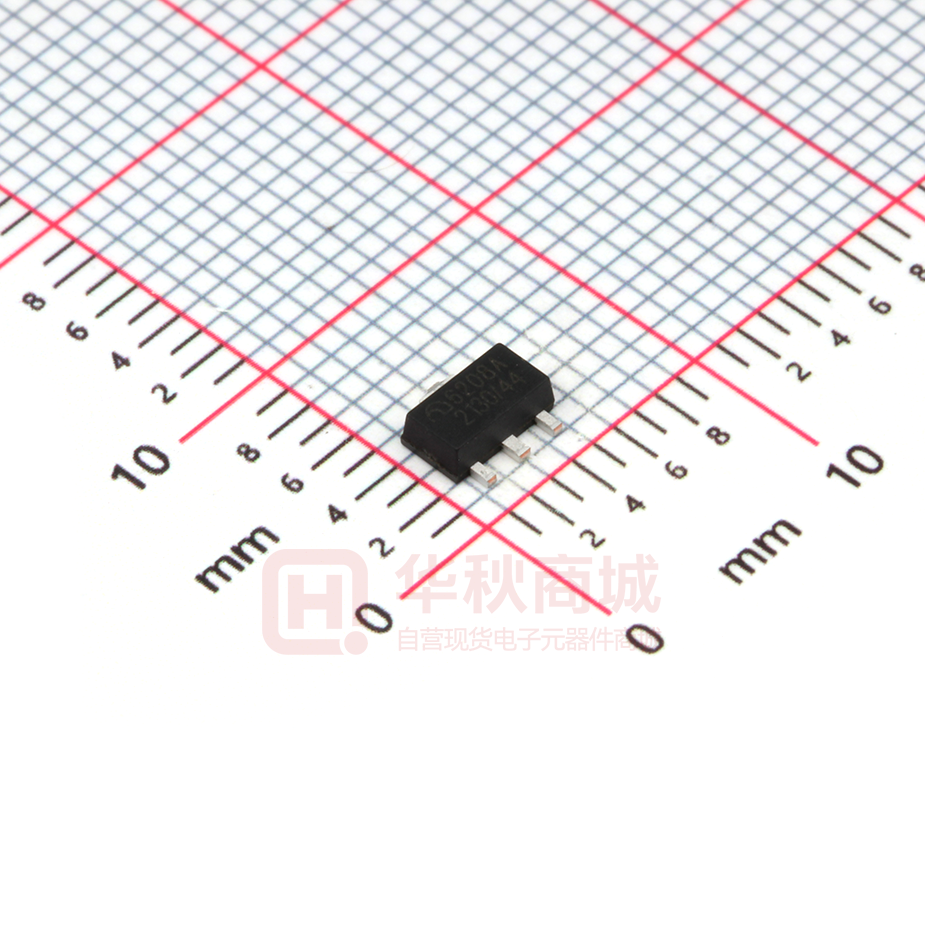

ME6208A36PG

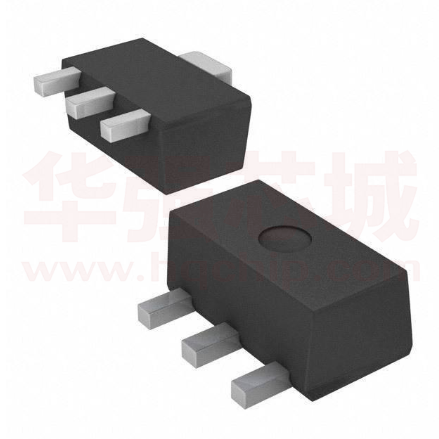

ME6208 150 mA, high input voltage LDO Linear Regulators ME6208 Series General Description Features ME6208 series are low-dropout linear  High output accuracy：± 2% voltage regulators with a built-in voltage  Input voltage：up to 18 V reference module, error correction module  Output voltage：3.0 V ~ 5.0V and phase compensation module. ME6208  Ultra-low quiescent current (Typ. = 3 µ A) series are based on the CMOS process and  Output Current：Iout = 200mA （When Vin = 7V and Vout =5V） allow high voltage input with low quiescent current. This series has the function of  Importation good stability：Typ. 0.05% / V internal feedback resistor setting from 3.0V  Low temperature coefficient to 5.0V. The output accuracy is ± 2%.  Ceramic capacitor can be used Typical Application  Electronic weighbridge  SCM  Phones, cordless phones  Security Products  Water meters, power meters Package ● 3-pin SOT23-3、SOT89-3、TO92 Typical Application Circuit V07 www.microne.com.cn Page 1 of 11 ME6208 Selection Guide ME 6208X X X X X G Environment mark Package: M3--SOT23-3 P--SOT89-3 T--TO92 Output Voltage Function Product Type Product Series Microne product series product description ME6208A21M3G VOUT =2.1V； Package：M3,P,T ME6208A30M3G VOUT =3.0V； Package：M3,P,T ME6208A33M3G VOUT =3.3V； Package:：M3,P,T ME6208A36M3G VOUT =3.6V； Package：M3,P,T ME6208A40M3G VOUT =4.0V； Package:：M3,P,T ME6208A44M3G VOUT =4.4V； Package：M3,P,T ME6208A45M3G VOUT =4.5V； Package：M3,P,T ME6208A50M3G VOUT =5.0V； Package：M3,P,T Note：If you need other voltage and package, please contact our sales staff。 V07 www.microne.com.cn Page 2 of 11 ME6208 Pin Configuration Pin Assignment Pin Number Pin Name Functions 1 VSS Ground 2 3 VIN Power Input 3 2 VOUT Output SOT89-3 / TO92 SOT23-3 1 Block Diagram V07 www.microne.com.cn Page 3 of 11 ME6208 Absolute Maximum Ratings Parameter Symbol Ratings Units Input Voltage VIN 18 V Output Current IOUT 250 mA Output Voltage VOUT Vss-0.3～VIN +0.3 V 500 mW 500 mW 300 mW SOT89-3 Power Dissipation TO92 PD SOT23-3 Operating Temperature Range TOPR －45～＋150 ℃ Storage Temperature Range TSTG －55～＋150 ℃ Lead Temperature 260℃，10sec Electrical Characteristics (VIN= VOUT+2.0V，CIN=CL=10uF，Ta=25OC, unless otherwise noted) Parameter Output Voltage Input Voltage Maximum Output Current Load Regulation Dropout Voltage (Note 3) Supply Current Line Regulations Symbol Conditions VOUT(E) IOUT=10mA, (Note 2) VIN=Vout+2V Min. X 0.98 Typ. VOUT (T) (Note 1) VIN IOUT _max ∆VOUT VIN=Vout+2V VIN=Vout+2V, 1mA≤IOUT≤100mA Max. Units X 1.02 V 18 V 150 mA 10 mV Vdif1 IOUT =50mA 250 mV Vdif2 IOUT =100mA 500 mV Vdif3 IOUT =200mA 1000 mV ISS VIN=Vout+2V 3 ∆VOUT IOUT =10mA ∆VIN ×VOUT Vout+2V ≤VIN≤18V 5 0.05 μ A %/V Note ： 1. VOUT (T) ：Specified Output Voltage 2.VOUT (E) ：Effective Output Voltage ( ie. The output voltage when “VOUT (T)+2.0V”is provided at the Vin pin while maintaining a certain Iout value.) 3.VDIF：VIN1 –VOUT (E)’ VIN1 ：The input voltage when VOUT(E)’ appears as input voltage is gradually decreased. VOUT (E)’=A voltage equal to 98% of the output voltage whenever an amply stabilized Iout and {VOUT (T) +2.0V} is input. V07 www.microne.com.cn Page 4 of 11 ME6208 Precautions  During the test, if AC/DC power supply and the ceramic chip capacitors collocation is used, there may be serious voltage spike phenomenon instantaneously. When the power supply access to 16V, the voltage is rushed to about 30V instantaneously. Because of exceeding the limit voltage of chip, the chip is damaged. If you string a small resistance of 1 ohm in the input end during the test, the peak phenomenon can be avoided.  In the test, there is serious burr phenomenon only when the AC/DC power is used with ceramic chip capacitors. But electrolytic capacitors and tantalum capacitance won't appear above phenomenon. Please be sure to pay attention to this point when you use AC/DC power.  In normal use, when any type of capacitor is used with battery or the supply of fire power, the above phenomenon doesn’t occur. Type Characteristics （1）Output CurrentVS.Output Voltage（ Ta = 25 °C） ME6208A50 Output Voltage VS. Output Current Output Voltage (V) 5.30 5.20 5.10 5.00 4.90 4.80 4.70 0 20 40 60 80 100 120 140 160 180 200 Output Current(mA) V07 www.microne.com.cn Page 5 of 11 ME6208 （2）Input VoltageVS.Output Voltage（Ta = 25 °C） ME6208A50 Output Voltage(V) Output Voltage VS. Input Voltage 5.50 5.00 4.50 4.00 3.50 3.00 2.50 2.00 1.50 1.00 0.50 0.00 Io=0mA Io=40mA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 Input Voltage(V) （3）Output Current VS.Droput Voltage（ Ta = 25 °C） ME6208A50 Dropout Voltage VS.Output Current Dropout Voltage(mV) 1200 1000 800 600 400 200 0 0 50 100 150 200 Output Current (mA) V07 www.microne.com.cn Page 6 of 11 ME6208 （4）Input Voltage VS. Supply Current（Ta = 25 °C） ME6208A50 Quiescent Current VS. Input Voltage Quiescent Current (uA) 5 4 3 2 1 0 0 2 4 6 8 10 12 14 16 18 Input Voltage(V) （5）Output Voltage VS. Temperature ME6208A33PG Output Voltage VS.Temperature 3.34 Output Voltage(V) 3.32 3.3 3.28 3.26 3.24 3.22 3.2 -45 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Temperature(℃) V07 www.microne.com.cn Page 7 of 11 ME6208 Packaging Information ● Packaging Type: SOT23-3 Millimeters DIM Min 1 0 0.9 0.6 0.25 0.1 2.8 2.6 1.5 A A1 A2 A3 b c D E E1 e L L1 θ c1 Inches Max 1.5 0.15 1.3 0.7 0.5 0.25 3.1 3.1 1.8 Min 0.0394 0 0.0354 0.0236 0.0098 0.0039 0.1102 0.1023 0.0591 0.95(TYP) 0.25 0.0374(TYP) 0.6 0.0098 0.59(TYP) 0 0.0236 0.0232(TYP) 8° 0.2(TYP) V07 Max 0.0591 0.0059 0.0512 0.0276 0.0197 0.0098 0.122 0.122 0.0709 0 8° 0.0079(TYP) www.microne.com.cn Page 8 of 11 ME6208 ● Packaging Type: SOT89-3 Millimeters DIM Min 1.4 0.32 0.4 0.35 4.4 A b b1 c D D1 D2 e1 E E1 E2 e L θ Inches Max 1.6 0.52 0.58 0.45 4.6 Min 0.0551 0.0126 0.0157 0.0138 0.1732 1.55(TYP) 1.75(TYP) 3(TYP) 2.3 3.94 0.061(TYP) 0.0689(TYP) 0.1181(TYP) 2.6 4.4 0.0906 0.1551 1.9(TYP) 1.5(TYP) 0.8 0.1023 0.1732 0.0748(TYP) 0.0591(TYP) 1.2 45° V07 Max 0.063 0.0205 0.0228 0.01772 0.1811 0.0315 0.0472 45° www.microne.com.cn Page 9 of 11 ME6208 ● Packaging Type:TO-92 Millimeters DIM Min 3.3 1.1 0.38 0.36 4.3 3.43 4.3 A A1 b c D D1 E e e1 L h Φ Inches Max 3.7 1.4 0.55 0.51 4.7 一 4.7 Min 0.1299 0.0433 0.015 0.0142 0.1693 0.135 0.1693 1.27 2.44 14.1 0 一 V07 Max 0.1457 0.0551 0.0217 0.0201 0.185 一 0.185 0.05 2.64 14.5 0.38 1.6 www.microne.com.cn 0.0961 0.5551 0 一 0.1039 0.5709 0.015 0.063 Page 10 of 11 ME6208      The information described herein is subject to change without notice. Nanjing Micro One Electronics Inc is not responsible for any problems caused by circuits or diagrams described herein whose related industrial properties, patents, or other rights belong to third parties. The application circuit examples explain typical applications of the products, and do not guarantee the success of any specific mass-production design. Use of the information described herein for other purposes and/or reproduction or copying without the express permission of Nanjing Micro One Electronics Inc is strictly prohibited. The products described herein cannot be used as part of any device or equipment affecting the human body, such as exercise equipment, medical equipment, security systems, gas equipment, or any apparatus installed in airplanes and other vehicles, without prior written permission of Nanjing Micro One Electronics Inc. Although Nanjing Micro One Electronics Inc exerts the greatest possible effort to ensure high quality and reliability, the failure or malfunction of semiconductor products may occur. The user of these products should therefore give thorough consideration to safety design, including redundancy, fire-prevention measures, and malfunction prevention, to prevent any accidents, fires, or community damage that may ensue. V07 www.microne.com.cn Page 11 of 11
