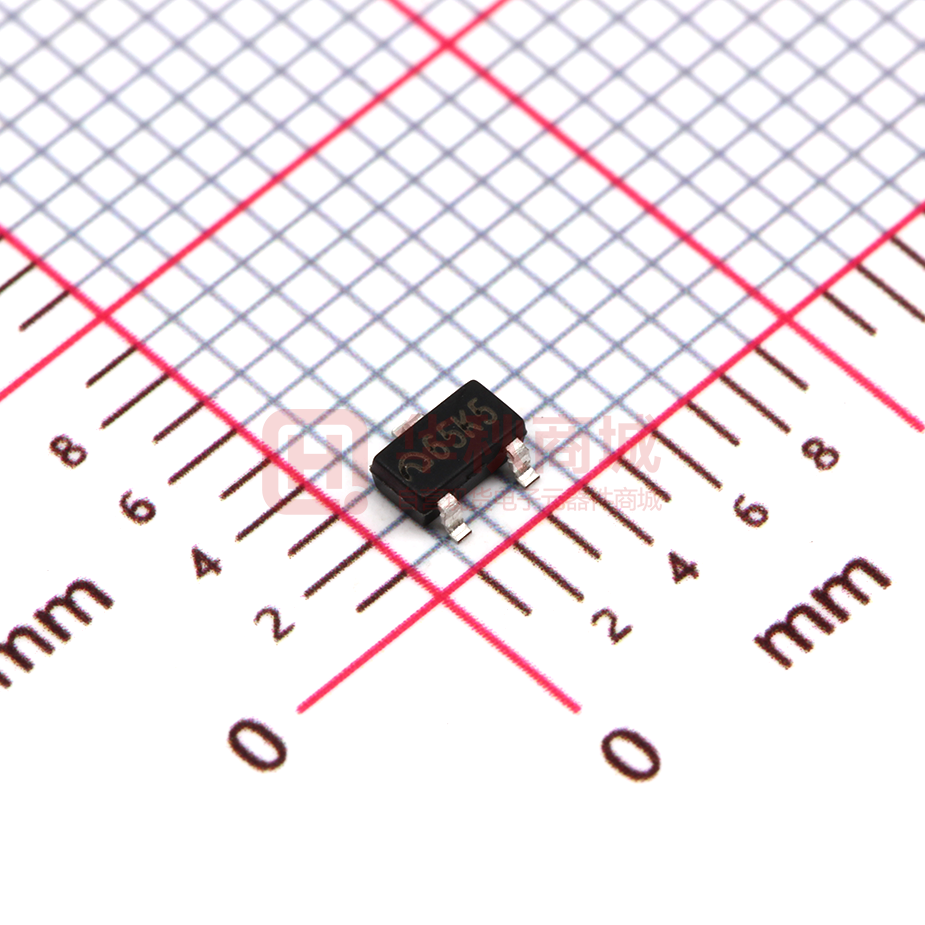

ME6206A18M3G

ME6206 Low power consumption,Low ESR Cap.Compatible ME6206 Series General Description Features ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies .The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors .The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin. Selection Guide         Highly Accurate：±2% Output voltage range：1.5V~5.0V ( selectable in 0.1V steps) Low power consumption：8uA(TYP.) Large output current：300mA (VIN＝4.3V,VOUT＝3.3V) Input voltage: up to 6 V Excellent Input Stability Be available to regulator and reference voltage Packages:SOT23-3，SOT89-3，SOT23，TO-92 Typical Application        Battery powered equipment Communication tools Mobile phones Portable games Portable AV systems Cameras, Video systems Reference voltage sources Typical Application Circuit V17.0 Product Supply Current ME6206A 8 uA ME6206K 180 uA www.microne.com.cn Page 1 of 12 ME6206 Pin Configuration Pin Assignment ME6206Axx/ ME6206Kxx Pin M3 P P1 X T SOT23-3 SOT89-3 SOT89-3 SOT23 TO-92 1 1 2 1 2 3 1 3 2 3 Name Function 1 Vss Ground 2 3 Vout Output 3 2 Vin input ， P1： The difference of mark on the chip between P and P1 is : P： Absolute Maximum Ratings Parameter Symbol Description Units Input Voltage VIN 6.5 V Output Current Iout 500 mA Output Voltage Vout Vss-0.3 ~ Vout+0.3 V SOT23-3 Pd 300 mW SOT89-3 Pd 500 mW SOT23 Pd 300 mW TO-92 Pd 500 mW Operating Ambient Temperature TOpr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +125 ℃ Power Dissipation V17.0 www.microne.com.cn Page 2 of 12 ME6206 Block Diagram ME6206A15 O (VIN=Vout+1V,Cin=Cout=1uF,Ta=25 C Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 100 120 mA Load Regulation ∆VOUT VIN=Vout+1V, 1mA≤IOUT≤80mA 10 20 mV Dropout Voltage (Note 3) Vdif1 IOUT =20mA 140 160 mV Vdif2 IOUT =50mA 300 330 mV Supply Current ISS VIN=Vout+1V 7 15 μA Line Regulations ∆VOUT ∆VIN •VOUT IOUT =10mA Vout+1V ≤VIN≤5V 0.1 0.3 %/V Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz 45 Short Circuit Current Ishort Vin=Vout(T)+1.5V Vout=Vss 20 50 mA Over Current Protection I limit 300 350 mA V17.0 www.microne.com.cn -5 1 dB Page 3 of 12 ME6206 ME6206A18 (VIN=Vout+1V,Cin=Cout=1uF,Ta=25OC Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 120 150 mA Load Regulation ∆VOUT VIN=Vout+1V, 1mA≤IOUT≤80mA 12 27 mV Dropout Voltage (Note 3) Vdif1 IOUT =20mA 140 160 mV Vdif2 IOUT =50mA 300 330 mV Supply Current ISS VIN=Vout+1V 7 15 μA IOUT =10mA Vout+1V ≤VIN≤5V 0.1 0.3 %/V 45 25 50 mA 400 450 mA Line Regulations ∆VOUT ∆VIN •VOUT Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz Short Circuit Current Ishort Vin=Vout(T)+1.5V Vout=Vss Over Current Protection I limit -5 1 dB ME6206A28 (VIN=Vout+1V,Cin=Cout=1uF,Ta=25OC Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 300 350 mA Load Regulation ∆VOUT VIN=Vout+1V 1mA≤IOUT≤100mA 14 28 mV Dropout Voltage (Note 3) Vdif1 IOUT =80mA 130 150 mV Vdif2 IOUT =200mA 320 340 mV Supply Current ISS VIN=Vout+1V 8 15 μA IOUT =40mA Vout+1V ≤VIN≤6V 0.03 0.3 %/V 50 30 60 mA 500 550 mA Line Regulations ∆VOUT ∆VIN •VOUT Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz Short Circuit Current I short Vin=Vout(T)+1.5V Vout=Vss Over Current Protection I limit V17.0 www.microne.com.cn -5 dB Page 4 of 12 ME6206 ME6206A30 O (VIN=Vout+1V,Cin=Cout=1uF,Ta=25 C Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 300 350 mA Load Regulation ∆VOUT VIN=Vout+1V 1mA≤IOUT≤100mA 14 28 mV Dropout Voltage (Note 3) Vdif1 IOUT =80mA 140 160 mV Vdif2 IOUT =200mA 330 350 mV Supply Current ISS VIN=Vout+1V 8 15 μA Line Regulations ∆VOUT ∆VIN •VOUT IOUT =40mA Vout+1V ≤VIN≤6V 0.03 0.3 %/V Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz 50 Short Circuit Current I short Vin=Vout(T)+1.5V Vout=Vss 30 60 mA Over Current Protection I limit 500 550 mA -5 1 dB ME6206A33 (VIN=Vout+1V,Cin=Cout=1uF,Ta=25OC Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 300 350 mA Load Regulation ∆VOUT VIN=Vout+1V 1mA≤IOUT≤100mA 14 28 mV Dropout Voltage (Note 3) Vdif1 IOUT =80mA 130 150 mV Vdif2 IOUT =200mA 320 340 mV Supply Current ISS VIN=Vout+1V 9 15 μA Line Regulations ∆VOUT ∆VIN •VOUT IOUT =40mA Vout+1V ≤VIN≤6V 0.03 0.3 %/V Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz 50 Short Circuit Current I short Vin=Vout(T)+1.5V Vout=Vss 30 60 mA Over Current Protection I limit 500 550 mA V17.0 www.microne.com.cn -5 dB Page 5 of 12 ME6206 ME6206K33 (VIN=Vout+1V,Cin=Cout=1uF,Ta=25OC Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 300 350 mA Load Regulation ∆VOUT VIN=Vout+1V 1mA≤IOUT≤100mA 14 28 mV Dropout Voltage (Note 3) Vdif1 IOUT =80mA 130 150 mV Vdif2 IOUT =200mA 320 340 mV Supply Current ISS VIN=Vout+1V 180 230 μA Line Regulations ∆VOUT ∆VIN •VOUT IOUT =40mA Vout+1V ≤VIN≤6V 0.03 0.2 %/V Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz 50 Short Circuit Current I short Vin=Vout(T)+1.5V Vout=Vss 30 60 mA Over Current Protection I limit 500 550 mA -5 100 dB Note : 1. VOUT (T) ：Specified Output Voltage 2.VOUT (E) ：Effective Output Voltage ( le. The output voltage when “VOUT (T)+1.0V”is provided at the Vin pin while maintaining a certain Iout value.) 3.Vdif ：VIN1 –VOUT (E)’ VIN1 ：The input voltage when VOUT(E)’ appears as input voltage is gradually decreased. VOUT (E)’=A voltage equal to 98% of the output voltage whenever an amply stabilized Iout {VOUT (T)+1.0V} is input. V17.0 www.microne.com.cn Page 6 of 12 ME6206 Type Characteristics （1） Output Current VS. Output Voltage（VIN=Vout+1, Ta = 25 °C） ME6206A18PG ME6206A28PG Output CurrentVS.Output Voltage 3 Output Voltage(V) Output Voltage(V) Output CurrentVS.Output Voltage 2 1.9 1.8 1.7 1.6 1.5 1.4 1.3 1.2 1.1 1 2.9 2.8 2.7 2.6 2.5 0 50 100 150 200 250 0 300 50 100 ME6206A30PG 200 250 300 ME6206A33PG Output CurrentVS.Output Voltage Output CurrentVS.Output Voltage 4 4.3 3.8 4.1 Output Voltage （ V） Output Voltage （ V） 150 Output Current(mA) Output Current(mA) 3.6 3.4 3.2 3 2.8 2.6 2.4 2.2 3.9 3.7 3.5 3.3 3.1 2.9 2.7 2.5 2 2.3 0 50 100 150 200 250 300 0 50 100 Output Current（mA） 150 200 250 300 Output Current（mA） （2）Input Voltage VS. Output Voltage（Ta = 25 °C） ME6206A18PG ME6206A28PG Input VoltageVS.Output Voltage Input VoltageVS.Output Voltage 2 3.6 1.8 3.2 1mA 1.4 Output Voltage(V) Output Voltage(V) 1.6 1.2 1 10mA 0.8 0.6 100mA 0.4 2.8 2.4 1.6 0.8 0.4 0 0 1.5 2.5 3.5 4.5 5.5 6.5 100mA 0.5 1.5 2.5 3.5 4.5 5.5 Input Voltage(V) Input Voltage(V) V17.0 10mA 1.2 0.2 0.5 1mA 2 www.microne.com.cn Page 7 of 12 6.5 ME6206 ME6206A30PG ME6206A33PG Input VoltageVS.Output Voltage 3.5 4 3 3.6 3.2 1mA 2.5 Output Voltage(V) Output Voltage(V) Input VoltageVS.Output Voltage 2 10mA 1.5 1 100m A 0.5 0 0.5 1.5 2.5 2.8 1mA 2.4 2 1.6 10mA 1.2 0.8 0.4 100mA 0 3.5 4.5 5.5 6.5 0.5 1.5 2.5 3.5 4.5 5.5 6.5 Input Voltage(V) Input Voltage(V) （3）Output Current VS. Dropout Voltage（VIN=Vout+1V,Ta = 25 °C） ME6206A18PG ME6206A28PG Output Current VS.Droput Voltage 450 900 800 400 Droput Voltage(mV) Droput Voltage(mV) Output Current VS.Droput Voltage 1000 700 600 500 400 300 200 100 0 350 300 250 200 150 100 50 0 0 50 100 150 200 0 250 50 ME6206A30PG 150 200 250 ME6206A33PG Output Current VS.Droput Voltage Output Current VS.Droput Voltage 450 450 400 400 350 350 Droput Voltage(mV) Droput Voltage(mV) 100 Output Current(mA) Output Current(mA) 300 250 200 150 100 50 300 250 200 150 100 50 0 0 0 50 100 150 200 250 0 100 150 200 250 Output Current (mA) Output Current(mA) V17.0 50 www.microne.com.cn Page 8 of 12 ME6206 （4）Input Voltage VS. Supply Current（Ta = 25 °C） ME6206A18PG ME6206A28PG Input Voltage VS. Supply Current 8 8 7 Supply Current(uA) Supply Current(uA) Input Voltage VS. Supply Current 9 7 6 5 4 3 2 1 6 5 4 3 2 1 0 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 0.5 6.5 1 1.5 2 2.5 Input Voltage(V) ME6206A30PG 3.5 4 4.5 5 5.5 6 6.5 ME6206A33PG Input Voltage VS. Supply Current Input Voltage VS. Supply Current 8 7 7 6 6 Supply Current(uA) Supply Current(uA) 3 Input Voltage(V) 5 4 3 2 1 5 4 3 2 1 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 0.5 V17.0 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 Input Voltage(V) Input Voltage(V) www.microne.com.cn Page 9 of 12 6.5 ME6206 Packaging Information ● SOT89-3 ● SOT23-3 V17.0 www.microne.com.cn Page 10 of 12 ME6206 ● SOT23 ● TO-92 V17.0 www.microne.com.cn Page 11 of 12 ME6206      The information described herein is subject to change without notice. Nanjing Micro One Electronics Inc is not responsible for any problems caused by circuits or diagrams described herein whose related industrial properties, patents, or other rights belong to third parties. The application circuit examples explain typical applications of the products, and do not guarantee the success of any specific mass-production design. Use of the information described herein for other purposes and/or reproduction or copying without the express permission of Nanjing Micro One Electronics Inc is strictly prohibited. The products described herein cannot be used as part of any device or equipment affecting the human body, such as exercise equipment, medical equipment, security systems, gas equipment, or any apparatus installed in airplanes and other vehicles, without prior written permission of Nanjing Micro One Electronics Inc. Although Nanjing Micro One Electronics Inc exerts the greatest possible effort to ensure high quality and reliability, the failure or malfunction of semiconductor products may occur. The user of these products should therefore give thorough consideration to safety design, including redundancy, fire-prevention measures, and malfunction prevention, to prevent any accidents, fires, or community damage that may ensue. V17.0 www.microne.com.cn Page 12 of 12
