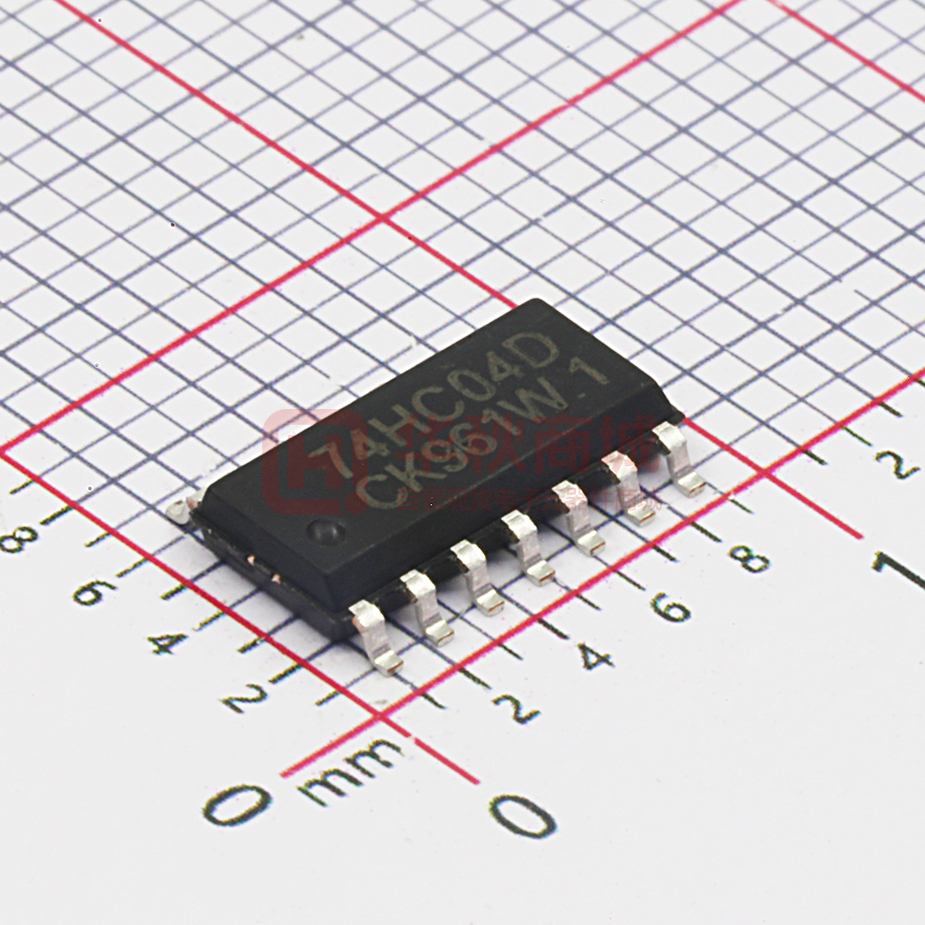

74HC04D

深圳市富满电子有限公司 SHENZHEN FUMAN ELECTRONICS CO., LTD. 74HC04/74HCT04(文件编号：S&CIC0463) FEATURES    Complies with JEDEC standard no. 8-1A ESD protection HBM EIA/JESD22-A114-A exceeds 2000V MM EIA/JESD22-A115-A exceeds 200V Specified from –40 to +85℃ and –40 to +125℃ DESCRIPTION The 74HC04/74HCT04 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC04/74HCT04 provide six inverting buffers. QUICK REFERENCE DATA GND = 0V; Tamb = 25℃; tf = tf≤6.0ns SYMBOL PARAMETER CONDITIONS TPLH/tPLH Propagation delay nA to nY CL = 15pF; VCC = 5V CI Input capacitance CPD Power dissipation capacitance per gate TYPICAL HCT04 7 8 ns 3.5 3.4 pF 21 24 pF Notes 1 and 2 Notes 1. CPD is used to determine the dynamic power dissipation (PD in uW). PD = CPD×VCC2×fi×N+Σ(CL×VCC2×fo)where: fi = input frequency in MHz; fo = output frequency in MHz; CL = output load capacitance in pF; VCC = supply voltage in volts; N = total load switching outputs; 2. For 74HC04: the condition is VI = GND to VCC. For 74HCT04: the condition is VI = GND to VCC-1.5V FUNCTION TABLE See note 1. INPUT OUTPUT nA nY L H H L Note 1. H = HIGH voltage level; L = LOW voltage level. 第 1 页 共 18 页 UNIT HC04 深圳市富满电子有限公司 SHENZHEN FUMAN ELECTRONICS CO., LTD. 74HC04/74HCT04(文件编号：S&CIC0463) ORDERING INFORMATION TYPE NUMBER PACKAGE TEMPERATURE RANGE PINS PACKAGE MATERIAL CODE 74HC04N –40 to +125℃ 14 DIP14 Plastic SOT27-1 74HCT04N –40 to +125℃ 14 DIP14 Plastic SOT27-1 74HC04D –40 to +125℃ 14 SO14 Plastic SOT108-1 74HCT04D –40 to +125℃ 14 SO14 Plastic SOT108-1 74HC04DB –40 to +125℃ 14 SSOP14 Plastic SOT337-01 74HCT04DB –40 to +125℃ 14 SSOP14 Plastic SOT337-01 74HC04PW –40 to +125℃ 14 TSSOP14 Plastic SOT402-1 74HCT04PW –40 to +125℃ 14 TSSOP14 Plastic SOT402-1 74HC04BQ –40 to +125℃ 14 DHVQF14 Plastic SOT762-1 74HCT04BQ –40 to +125℃ 14 DHVQF14 Plastic SOT762-1 1 PINNING PIN SYMBOL DESCRIPTION 1 1A Data input 2 1Y Data output 3 2A Data input 4 2Y Data output 5 3A Data input 6 3Y Data output 7 GND 8 1A 1 14 VCC 1Y 2 13 6A 2A 3 12 6Y 2Y 4 11 5A Ground (0V) 3A 5 10 5Y 4Y Data output 3Y 6 9 4A 9 4A Data input 10 5Y Data output GND 7 8 4Y 11 5A Data input 12 6Y Data output 13 6A Data input 14 VCC Supply votage D 04 MNA340 Fig. 1 Pin configuration DIP14,SO14 and (T)SSOP14. C 第 2 页 共 18 页 深圳市富满电子有限公司 SHENZHEN FUMAN ELECTRONICS CO., LTD. 2 74HC04/74HCT04(文件编号：S&CIC0463) 1A VCC 1 14 1Y 2 13 6A 2A 3 12 6Y GND(1) 2Y 4 4 11 5A 3A 5 10 5Y 3Y 6 Top view 3 9 7 8 GND 4Y 1 1A 1Y 2 3 2A 2Y 4 5 3A 3Y 6 9 4A 4Y 8 11 5A 5Y 10 13 6A 6Y 12 4A MBL 760 (1) The die substrate is attached to this pad using conductive die attach material.it can not be used as a supply pin or input. MNA342 Fig.3 Logic symbol. Fig.2 Pin configuration DHVQFN14. 1 1 2 1 3 4 1 5 6 1 9 8 A Y MNA341 1 11 10 1 13 12 MNA343 Fig.4 IEC logic symbol. Fig.5 Logic diagram(one inverter). 第 3 页 共 18 页 2 3 4 深圳市富满电子有限公司 SHENZHEN FUMAN ELECTRONICS CO., LTD. 74HC04/74HCT04(文件编号：S&CIC0463) RECOMMENDED OPERATING CONDITIONS SYMBOL PARAMETER VCC CONDITIONS 74HC04 74HCT04 UNIT MIN TYP MAX MIN TYP MAX Supply voltage 2.0 5.0 6.0 4.5 5.0 5.5 V VI Input voltage 0 - Vcc 0 - Vcc V VO Output voltage 0 - Vcc 0 - Vcc V See DC and AC Characteristics per Device -40 +25 +125 -40 +25 +125 ℃ Vcc = 2.0V - - 1000 - - - ns Vcc = 4.5V - 6.0 500 - 6.0 500 ns Vcc = 6.0V - - 400 - - - ns Tamb tr, tf Ambient temperature Input rise and fall times LIMITING VALUES In accordance with the absolute maximum rating system (IEC 60134); voltages are referenced to GND (fround = 0V) SYMBOL PARAMETER Vcc Suupply voltage IIK Input diode current IOK CONDITIONS MIN TYP MAX -0.5 +7.0 V VI
