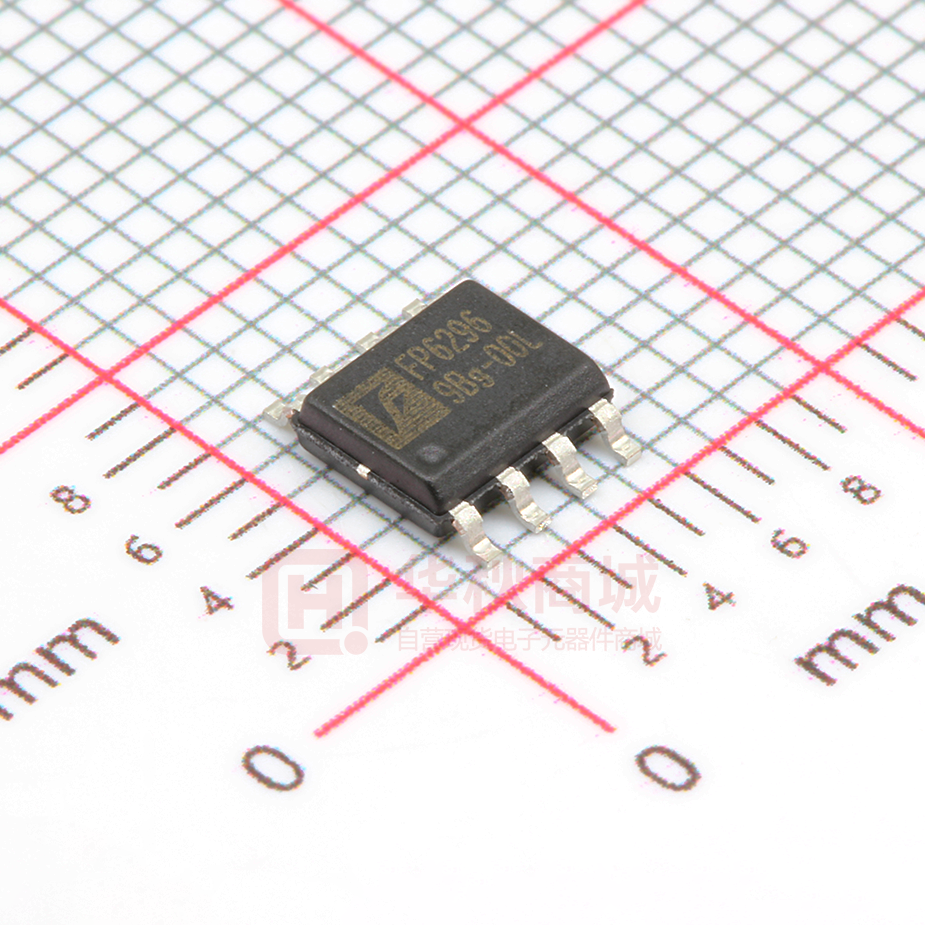

FP6296XR-G1

FP6296 10A Current Mode Non-Synchronous PWM Boost Converter General Description The FP6296 is a current mode boost DC-DC converter. It is PWM circuitry with built-in 15mΩ power MOSFET make this regulator highly power efficient. The non-inverting input of error amplifier connects to a 1.2V precision reference voltage. Current mode control and external compensation network make is easy and flexible to stabilize the system. The FP6296 is available in the SOP-8L(EP) package to fit in space-saving PCB for the application fields. Features  Supply Voltage Operating Range: 2.7V to 12V  Adjustable Output up to 13V  Internal Fixed PWM frequency: 400KHz  Precision Feedback Reference Voltage: 1.2V (±2%)  Internal 15mΩ, 10A, 14V Power MOSFET  Shutdown Current: 1μA (Max.)  Over Temperature Protection  Internal Soft Start Function  Adjustable Over Current Protection: 2A ~ 10A  Package: SOP-8L(EP) Applications  Chargers  LCD Displays  Digital Cameras  Handheld Devices  Portable Products  Power Bank This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 1/13 FP6296 Typical Application Circuit VIN VOUT 1 2 LX HVDD LX OC 8 7 FP6296 3 ON/OFF 4 COMP VCC EN FB 6 5 GND 9 Function Block Diagram EN HVDD OC Shutdown Circuitry Adjustable 150KΩ~51KΩ Current Limit 2A~10A UVLO Vcc LDO Vcc=5V LX OTP Error Amp. FB 1.2V PWM Comp. COMP Control and Driver Logic GND Oscillator Current Sense Amp. Slope Compensation 400KHz This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 2/13 FP6296 Pin Descriptions SOP-8L(EP) Top View 1 8 HVDD LX 2 7 OC Vcc 3 6 COMP EN 4 5 FB FP6296 XXx-XXL LX Bottom View EP (GND) Name No. I/O Description LX 1 I Power Switch Output LX 2 I Vcc 3 P EN 4 I Power Switch Output Power Supply for Internal Control Circuits and Gate Drivers Enable Control (Active High) FB 5 I Error Amplifier Inverting Input COMP 6 O Compensation OC 7 I Adjustable Current Limit (Floating Invalid) HVDD 8 P GND EP P IC Power Supply IC Ground (Exposed PAD) – Must Connect to Ground This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 3/13 FP6296 Marking Information SOP-8L(EP) FP6296 XXx-XXL Halogen Free Lot Number Internal ID Per - Half Month Year Halogen Free: Halogen free product indicator Lot Number: Wafer lot number’s last two digits For Example Lot : 123456 XXx-56L Internal ID: Internal Identification Code Per-Half Month: Production period indicator in half month time unit For Example : A → First Half Month of January B → Second Half Month of January C → First Half Month of February D → Second Half Month of February Year: Production year’s last digit This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 4/13 FP6296 Ordering Information Part Number Operating Temperature Package MOQ Description FP6296XR-G1 -25°C ~ 85°C SOP-8L(EP) 2500EA Tape & Reel Absolute Maximum Ratings Parameter Supply Voltage Symbol Conditions Min. Typ. Max. Unit HVDD 0 12 V VLX 0 14 V 0 6 V LX Voltage Others Pin Voltage Thermal Resistance (Junction to Ambient) θJA +60 °C / W Thermal Resistance (Junction to Case) θJC +10 °C / W Junction Temperature TJ +150 °C Operating Temperature TOP -25 +85 °C Storage Temperature TST -65 +150 °C +260 °C Lead Temperature (soldering, 10 sec) Note1: θJA is measured in the natural convection at T A=25°C on a low effective thermal conductivity test board of JEDEC 51-3 thermal measurement standard. IR Re-flow Soldering Curve This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 5/13 FP6296 Recommended Operating Conditions Parameter Symbol Supply Voltage Conditions HVDD Operating Temperature Range TA Ambient Temperature Min. Typ. Max. Unit 2.7 12 V -25 85 °C DC Electrical Characteristics (HVDD=12V, TA=25°C, unless otherwise specified) Parameter Symbol Conditions Min. Typ. Max. Unit 12 V System Supply Input Input Supply Range HVDD Under Voltage Lockout VUVLO 2.7 UVLO Hysteresis Quiescent Current IDD VFB=1.3V, No switching Average Supply Current IDD VFB=1.1V, Switching Shutdown Supply Current IDD VEN=GND Input Supply Voltage VCC HVDD=12V, VCC no current 2.2 V 0.1 V 0.45 mA 4 mA 1 µA 4.75 5 5.25 V 340 400 460 KHZ Oscillator Operation Frequency FOSC Frequency Change with Voltage △ f / △ V HVDD=2.5V to 12V 5 % Maximum Duty Cycle 90 % TDUTY Reference Voltage Reference Voltage VREF Line Regulation 1.176 1.2 1.224 V 0.2 %/V ISINK 45 µA ISOURCE 45 µA HVDD=2.5V～12V Error Amplifier COMP Pin Sink Current COMP Pin Source Current Enable Control Enable Voltage VEN Shutdown Voltage VEN 1.1 V 0.6 V MOSFET On Resistance of Driver RDS(ON) VCC=5V, ILX=0.5A 15 mΩ 10 A Protection OCP Current IOCP Adjustable OCP Current IOCP OTP Temperature TOTP With External Resistor： 150k~51kΩ 2 10 +150 A °C This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 6/13 FP6296 Typical Operating Characteristics (TA=25℃, unless otherwise specified) This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 7/13 FP6296 Function Description Operation The FP6296 is a current mode boost converter. The switching frequency is 400KHz and operates with pulse width modulation (PWM). Build-in 14V / 10A MOSFET provides a high output voltage. The control loop architecture is peak current mode control; therefore slope compensation circuit is added to the current signal to allow stable operation for duty cycles larger than 50%. Current Limit Program A resistor between OC and GND pin programs peak switch current. The resistor value should be between 150k to 51kΩ. The current limit will be set from 2A to 10A. Keep traces at this pin as short as possible. Do not put capacitance at this pin. This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 8/13 FP6296 Over Temperature Protection (OTP) FP6296 will turn off the power MOSFET automatically when the internal junction temperature is over 150°C. The power MOSFET wake up when the junction temperature drops 20°C under the OTP threshold temperature. Enable Mode / Shutdown Mode Drive the EN pin to ground to shutdown the IC. Shutdown mode forces to turn off all internal circuitry, and reduces the HVDD supply current to 1uA (max). The EN pin rising threshold is 1.1V. This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 9/13 FP6296 Application Information Inductor Selection Inductance value is decided based on different condition. 3.3uH to 10µH inductor value is recommended for general application circuit. There are three important inductor specifications, DC resistance, saturation current and core loss. Low DC resistance has better power efficiency. Capacitor Selection The output capacitor is required to maintain the DC voltage. Low ESR capacitors are preferred to reduce the output voltage ripple. Ceramic capacitor of X5R and X7R are recommended, which have low equivalent series resistance (ESR) and wider operation temperature range. Diode Selection Schottky diodes with fast recovery times and low forward voltages are recommended. Ensure the diode average and peak current rating exceed the average output current and peak inductor current. In addition, the diode’s reverse breakdown voltage must exceed the output voltage. Output Voltage Programming The output voltage is set by a resistive voltage divider from the output voltage to FB. The output voltage is: R1   VOUT  1.2V 1    R2  Layout Considerations 1. The power traces, consisting of the GND trace, the LX trace and the V IN trace should be kept short, direct and wide. 2. LX、L1 and D1 switching node, wide and short trace to reduce EMI. 3. The resistive divider R1and R2 must be connected to FB pin directly as closely as possible. 4. FB is a sensitive node. Please keep it away from switching node, LX. 5. The GND of the IC, CIN and COUT should be connected close together directly to a ground plane. 6. The ground of COUT should be connected close and together directly to IC’s GND pin. This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 10/13 FP6296 VIN R8 C1 VOUT D1 L1 C12 C2 ROUT 1 C9 HVDD 8 LX VIA to GND R3 C3 ON/OFF 2 LX OC 7 FP6296 3 Vcc 4 EN C4 R4 COMP 6 C10 FB 5 GND R1 R2 C5 C6 C8 GND GND Suggested Layout This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 11/13 FP6296 Typical Application VIN 3V~4.2V C1 22µF L1 3.3µH D1 SVM1045V2 VOUT 12V/1.5A ROUT 10R C2 22µF R8 1.5R 1 C12 1nF 2 LX HVDD LX OC C5 22µF R3 51K 7 R4 24K COMP VCC R1 100K 8 FP6296 3 C9 0.1µF C6 100µF C8 22µF R2 11K C4 4.7nF 6 C3 1µF ON/OFF 4 EN FB 5 C10 200pF GND 9 VIN 3V~4.2V C1 22µF L1 3.3µH D1 SVM1045V2 VOUT 12V/1.5A ROUT 10R C2 22µF R8 1.5R 1 C12 1nF 2 LX HVDD LX OC 7 C5 22µF R3 51K R4 8.2K COMP VCC R1 100K 8 FP6296 3 C9 0.1µF C6 22µF C8 22µF R2 11K C4 47nF 6 C3 1µF ON/OFF 4 EN FB 5 GND 9 C10 10pF This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 12/13 FP6296 Package Outline SOP-8L(EP) UNIT: mm Symbols Min. (mm) Max. (mm) A 1.30 1.70 A1 0 0.15 A2 1.25 1.55 D 4.70 5.10 E 3.80 4.00 H 5.80 6.20 L 0.40 1.27 Symbols Min. (mm) Max. (mm) D1 2.60 3.45 E1 1.90 2.56 Exposed PAD Dimensions: Note: 1. Package dimensions are in compliance with JEDEC outline: MS-012 AA. 2. Dimension ”D” does not include molding flash, protrusions or gate burrs. 3. Dimension “E” does not include inter-lead flash or protrusions. This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product. Website: http://www.feeling-tech.com.tw Rev. 0.60 13/13
