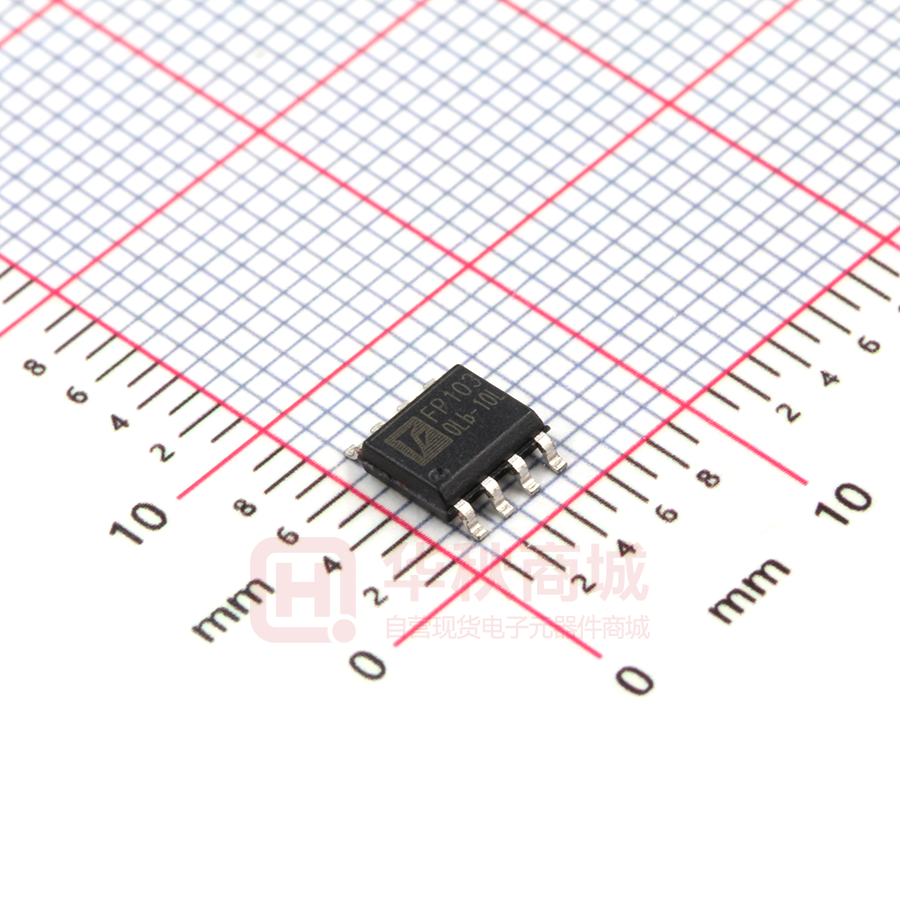

FP103DR-LF

FP103DR-LF

  • 厂商:

    FEELING(遠翔科技)

  • 封装:

    SOP8_150MIL

  • 描述:

    双运算放大器和参考调节器 SOP8

  • 数据手册
  • 价格&库存
FP103DR-LF 数据手册
FP103 Technology DUAL OPERATIONAL AMPLIFIER AND REFERENCE REGULATOR GENERAL DESCRIPTION The FP103, a 1-chip composed of one independent op-amp (OPA2) and another op-amp (OPA1) with a 2.5V precision voltage reference on non-inverting input, applied to offer space and low cost in many applications such as the secondary feedback control of power supply, DC/DC converter or adaptor. Using few external components, FP103, a high performance integrated IC, is designed for a feedback circuit. The circuit diagram of the typical application example is as below. FEATURES ˙Fixed Reference Voltage: 2.5V ˙Reference Voltage Precision: 1% ˙Output sink current up to 100mA SOP8 ˙Low quiescent supply current ˙Wide operating voltage range: 3~32V(+/-16V) ˙Low input offset voltage ˙Unit gain bandwidth: 0.9MHz ˙Package: PDIP8/SOP8 PDIP8 TYPICAL APPLICATION CIRCUIT Va Vin Va Va OPA1 OPA2 FB VO VREF PWM Control Board AC-DC Adaptor Secondary Feedback Circuits Rev0.5 Mar. 12, 2007 P1/FP103 FP103 Technology FUNCTIONAL BLOCK DIAGRAM 1 REGULATOR 8 OPA1 2 7 OPA2 3 6 VREF 4 5 MARK VIEW PIN DESCRIPTION NAME NO. STATUS DESCRIPTION 8 VO1 1 O OPA1 Output 2 7 VI1 2 I OPA1 Inverting Input VNI1 3 I OPA1 Non-inverting Input VEE 4 P IC Ground or Negative Supply Voltage VNI2 5 I OPA2 Non-inverting Input VI2 6 I OPA2 Inverting Input VO2 7 O OPA2 Output VCC 8 P Positive Supply Voltage 3 - 4 F P1 03 1 6 5 L Rev0.5 Mar. 12, 2007 P2/FP103 FP103 Technology ORDER INFORMATION Part Number Operating Temperature Package Description FP103P-LF -20°C~85℃ PDIP8 Tube FP103D-LF -20°C~85℃ SOP8 Tube FP103DR-LF -20°C~85℃ SOP8 Tape & Reel IC DATE CODE DISTINGUISH FP103 - L Lead Free Lot Number Mass Production Version Per Half Month Year FOR EXAMPLE: January February March A (Front Half Month), B (Last Half Month) C, D E, F ------------And so on Lot Number is the last two numbers For Example: A3311C62 Lot Number Rev0.5 Mar. 12, 2007 P3/FP103 FP103 Technology ABSOLUTE MAXIMUM RATINGS Supply Voltage (Vcc) ------------------------------------------------------------------------------ +36V Differential Input Voltage (Vid) ------------------------------------------------------------------ +36V Input Voltage (Vi) ------------------------------------------------------------------------- -0.3 ~+36V Maximum Junction Temperature (Tj) ----------------------------------------------------------- Thermal Resistance Junction to Ambient (SOP package) ----------------------------- 150℃ 175℃/W (PDIP package) ------------------------------ 100℃/W Power Dissipation (SOP8 package) Ta=25℃ ----------------------------------------------------------------------------- 650mW Ta=70℃ ----------------------------------------------------------------------------- 550mW Operating Temperature Range (Tmin ~Tmax. ) -------------------------------------------- -20℃~85℃ -65℃~150℃ Storage Temperature Range ------------------------------------------------------ SOP8 Lead Temperature (soldering, 10 sec) ----------------------------------------- +260℃ PDIP8 Lead Temperature (soldering, 20 sec) ---------------------------------------- +260℃ 260℃ / 10 sec 260℃ -1.2℃ / sec +0.23℃ / sec 210℃ 180℃ +3.4℃ / sec 25℃ 15s 60s 190s 280s IR-REFLOW Rev0.5 Mar. 12, 2007 P4/FP103 FP103 Technology DC ELECTRICAL CHARACTERISTICS Operating Amplifier1 PARAMETER Input Offset Voltage Input Offset Voltage Drift SYMBOL Vio DVio Input Bias Current (negative input) Iib Large Signal Voltage Gain Avd Supply Voltage Rejection Ratio SVR Output Current Source Isource Short Circuit to Ground Io Output Current Sink Isink High Level Output Voltage VOH Low Level Output Voltage VOL Slew Rate at Unity Gain SR Gain Bandwidth Product GBP Total Harmonic Distortion THD TEST CONDITIONS MIN TYP MAX UNIT FP103,Tamb=25℃ Tmin<Tamb<Tmax. 1 4 5 mV Tamb=25℃ 7 μV/℃ 20 nA 100 V/mV Tamb=25℃ Tmin<Tamb<Tmax Vicm =0V VCC=15V,RL=2K Vicm =0V VCC=5V to 30V VCC =+15V VO=2V,Vid=+1V Vcc=+15V Vid=-1V VCC=+15V, VO=2V VCC +=30V Tamb=25℃,RL=10K Tmin<Tamb<Tmax RL=10K Tmin<Tamb<Tmax Vi=0.5 to 2V, Vcc=15V RL=2K,CL=100pF Unity Gain VCC=30V, RL=2K CL=100pF,f=100kHz, Vin=10 mV f=1kHz ,AV=20dB RL=2K, VCC=30V CL=100pF, VO=2VPP 65 100 30 50 50 8 27 27 dB mA 70 10 mA mA V 28 3 20 20 mV 0.2 0.4 V/μS 0.5 0.9 MHz 0.02 % Rev0.5 Mar. 12, 2007 P5/FP103 FP103 Technology DC ELECTRICAL CHARACTERISTICS (Cont.) Operating Amplifier2 PARAMETER Input Offset Voltage Input Offset Voltage Drift SYMBOL Vio DVio TEST CONDITIONS TYP MAX UNIT FP103,Tamb=25℃ Tmin<Tamb<Tmax. 1 4 5 mV Tamb=25℃ 7 Tamb=25℃ Tmin<Tamb<Tmax Tamb=25℃ Tmin<Tamb<Tmax VCC=15V,RL=2K, VO=1.4V to 11.4V Tmin<Tamb<Tmax 2 30 50 nA 20 150 200 nA Input Offset Current Iio Input Bias Current Iib Large Signal Voltage Gain Avd Supply Voltage Rejection Ratio SVR Vcc=5V to 30V Input Common Mode Voltage Range Vicm VCC=+30V Tmin<Tamb<Tmax Common Mode Rejection Ratio CMRR Output Current Source Isource Short Circuit to Ground Io Output Current Sink Isink High Level Output Voltage VOH Low Level Output Voltage VOL Slew Rate at Unity Gain SR Gain Bandwidth Product GBP Total Harmonic Distortion THD Tamb=25℃ Tmin<Tamb<Tmax VCC=+15V, VO =2V,Vid=+1V Vcc=+15V, Vid=-1V, VCC=+15V, VO =2V VCC+=30V Tamb=25℃,RL=10K Tmin<Tamb<Tmax RL=10K Tmin<Tamb<Tmax Vi=0.5 to 3V, Vcc=15V RL=2K,CL=100pF, Unity Gain VCC=30V, RL=2K CL=100pF,f=100kHz, Vin=10mV f=1kHz ,AV=20dB RL=2K, VCC=30V CL=100pF, VO =2VPP MIN 50 25 100 65 100 0 0 70 60 30 27 27 V/mV dB (Vcc+)-1.5 (Vcc+)-2 85 V dB 50 50 7 μV/℃ mA 70 10 mA mA V 28 3 20 20 mV 0.2 0.4 0.5 0.9 MHz 0. 02 % V/μS Rev0.5 Mar. 12, 2007 P6/FP103 FP103 Technology DC ELECTRICAL CHARACTERISTICS (Cont.) Voltage Reference PARAMETER SYMBOL VALUE UNIT Cathode Current Ik 1 to 100 mA PARAMETER SYMBOL Reference Input Voltage Reference Input Voltage Deviation Over Temperature Range Minimum Cathode Current for Regulation Dynamic Impedance (note 1) TEST CONDITIONS MIN TYP MAX UNIT 2.475 2.450 2.5 2.525 2.550 V 7 30 VKA=Vref 0.2 1 mA VKA=Vref, ΔIK=1 to100mA, f<1KHz ,note1 0.2 0.5 Ω TYP MAX UNIT Vref FP103,Tamb=25℃ Tmin<Tamb<Tmax. ΔVref VKA=Vref;IK=10mA Tmin<Tamb<Tmax. Imin | ZKA | mV 1.The dynamic impedance is defined as ZkA=△VKA/ △IK Total Supply Current PARAMETER Total Supply Current, excluding Current in the Voltage Reference SYMBOL ICC TEST CONDITIONS Vcc+=5V,no load Tmin<Tamb<Tmax Vcc+=30V,no load Tmin<Tamb<Tmax. MIN 1.2 0.7 2 mA Rev0.5 Mar. 12, 2007 P7/FP103 FP103 Technology TYPICAL CHARACTERISTICS REFERENCE VOLTAGE REFERENCE CURRENT VS VS FREE-ATR TEMPERATURE REFERENCE VOLTAGE 2580 75 VKA=VREF IKA=10mA VKA=VREF Ta=25℃ 50 2540 Iref R eferen ce C urrent - m A V ref - R eference V oltage - m V 2560 2520 2500 2480 2460 25 0 -25 -50 2440 -75 2420 2400 -75 -100 -50 -25 0 25 50 75 100 -2 125 -1 TA - Free-Air Temperature - C POWER SUPPLY VOLTAGE 1 2 3 POWER SUPPLY VOLTAGE VS VS POWER SUPPLY CURRENT REFERENCE VOLTAGE 0.9 2.518 0.8 VKA=VREF IKA=10mA 0.7 V ref Referen ce V oltag e - V Icc - P ow er Sup ply C urren t - m A 0 Vref-Reference Voltage-V o 0.6 0.5 0.4 0.3 2.517 2.516 2.515 0.2 0.1 0 0 5 10 15 20 25 30 0 POWER SUPPLY VOLTAGE 10 15 20 25 30 35 OUTPUT CURRENT VS VS LOW LEVEL OUTPUT VOLTAGE OUTPUT LOW LEVEL VOLTAGE 30 6.0 25 4.0 V ol - O utpu t Low Level V oltag e - m V V ol - L ow Le ve l O utp ut V olta ge - m V 5 Vcc+-Power Supply Voltage-V Vcc+ - Power Supply Voltage - V 20 15 10 5 0 2.0 0 - 2.0 - 4.0 - 6.0 -5 -10 0 5 10 15 20 Vcc+ - Power Supply Voltage - V 25 30 - 8.0 -2.0 -1.8 -1.6 -1.4 -1.2 -1.0 -0.8 -0.6 -0.4 -0.2 0 Iout - Output Current - ZA Rev0.5 Mar. 12, 2007 P8/FP103 FP103 Technology TYPICAL CHARACTERISTICS (Cont.) OUTPUT CURRENT CATHODE CURRENT VS VS OUTPUT HIGH LEVEL VOLTAGE CATHODE VOLTAGE 30 0.8 VKA = Vref TA = 25 o C 0.6 20 I K - Cathode Current - mA A VoH - High Level Output Voltage - V 0.7 10 0 0.5 0.4 0.3 I min 0.2 0.1 0 -0.1 -10 -60 -55 -50 -45 -40 -35 -0.2 -30 -25 -20 -15 -10 Iout - Output Current - mA -5 0 -1 0 1 2 3 V K - Cathode Voltage - V A Rev0.5 Mar. 12, 2007 P9/FP103 FP103 Technology PACKAGE OUTLINE SOP 8 0.016typ 0.015X45 H E 0.008typ. 0.050typ D A L A1 SEATING PLANE 0.004max SYMBOLS A A1 D E H L θ° MIN 0.053 0.004 0.189 0.150 0.228 0.016 0 MAX 0.069 0.010 0.196 0.157 0.244 0.050 8 UNIT:INCH NOTE: 1. JEDEC OUTLINE:MS-012 AA 2. DIMENSIONS “D” DOES NOT INCLUDE MOLD FLASH,PROTRUSIONS OR GATE BURRS.MOLD FLASH,PROTRUSIONS AND GATE BURRS SHALL NOT EXCEED .15mm (.0.06in) PER SIDE 3. DIMENSIONS “E” DOES NOT INCLUDE INTER-LEAD FLASH,OR PROTRUSIONS. INTER-LEAD FLASH AND PROTRUSIONS SHALL NOT EXCEED .25mm (.0.10in) PER SIDE. Rev0.5 Mar. 12, 2007 P10/FP103 FP103 Technology PDIP 8 SYMBOLS A A1 A2 D E E1 L eΘ Θ° MIN 0.015 0.125 0.355 0.245 0.115 0.335 0 NOR 0.130 0.365 0.300BSC 0.250 0.130 0.355 7 MAX 0.210 0.135 0.400 0.255 0.150 0.375 15 UNIT:INCH Note: 4. JEDEC OUTLINE:MS-001 BA 5. “D””E1”DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED .010 INCH 6. eB IS MEASURED AT THE LEAD TIPS WITH THE LEADS UNCONSTRAINED POINTED OR ROUNDED LEAD TIPS ARE PREFERRED TO EASE INSERTIDN 7. DISTANCE BETWEEN LEADSINCLUDING DAM BAR PROTRUSIONS TO BE .005 INCH MININUM 8. DATUM PLANE H CONINCIDENT WITH THE BOTTOM OF LEAD, WHERE LEAD EXITS BODY. Rev0.5 Mar. 12, 2007 P11/FP103 FP103 Technology PACKING SPECIFICATIONS BOX DIMENSION TUBE INSIDE BOX AND CARTON 100mm 220mm FTC Logo FTC Logo 630mm BOX LABEL 640mm BOX LABEL 190mm 380mm INSIDE BOX TUBE CARTON TAPE & REEL INSIDE BOX AND CARTON 380mm 362mm 365mm 342mm 230mm FTC label 50mm CARTON LABEL FTC Logo Tape & Reel Carton PACKING QUANTITY SPECIFICATIONS 100 EA / TUBE 2500 EA / REEL 100 TUBES / INSIDE BOX 4 INSIDE BOXES / CARTON 4 INSIDE BOXES / CARTON LABEL SPECIFICATIONS TAPPING & REEL CARTON Feeling Technology Corp. Product Type: FP103 Feeling Technology Corp. Product FP103 Lot No A3311C62 4Xx-XXL D/C Q'ty ◎~◎ Lot No: A3311C62 Date Code: 4Xx-XXL Package Type: SOP-8L 無鉛 Lead Free Marking Type: Laser Total Q'ty: 10,000 無鉛 Lead Free Rev0.5 Mar. 12, 2007 P12/FP103 FP103 Technology CARRIER TAPE DIMENSIONS APPLICATION SOP8 W +0.3 12.0 -0.1 P E F D D1 8.0±0.1 1.75±0.1 5.5±0.1 1.55±0.1 1.5+0.25 APPLICATION P0 P1 A0 B0 K0 t SOP8 4.0±0.1 2.0±0.1 6.4±0.1 5.20±0.1 2.1±0.10 0.30±0.013 REEL DIMENISIONS APPLICATION MATERIAL A B C D T1 T2 SOP8 PLASTIC REEL 330±0.1 62±1.5 12.75+0.15 2+0.6 12.4+0.2 2.0+0.2 Rev0.5 Mar. 12, 2007 P13/FP103
