RB521S-30

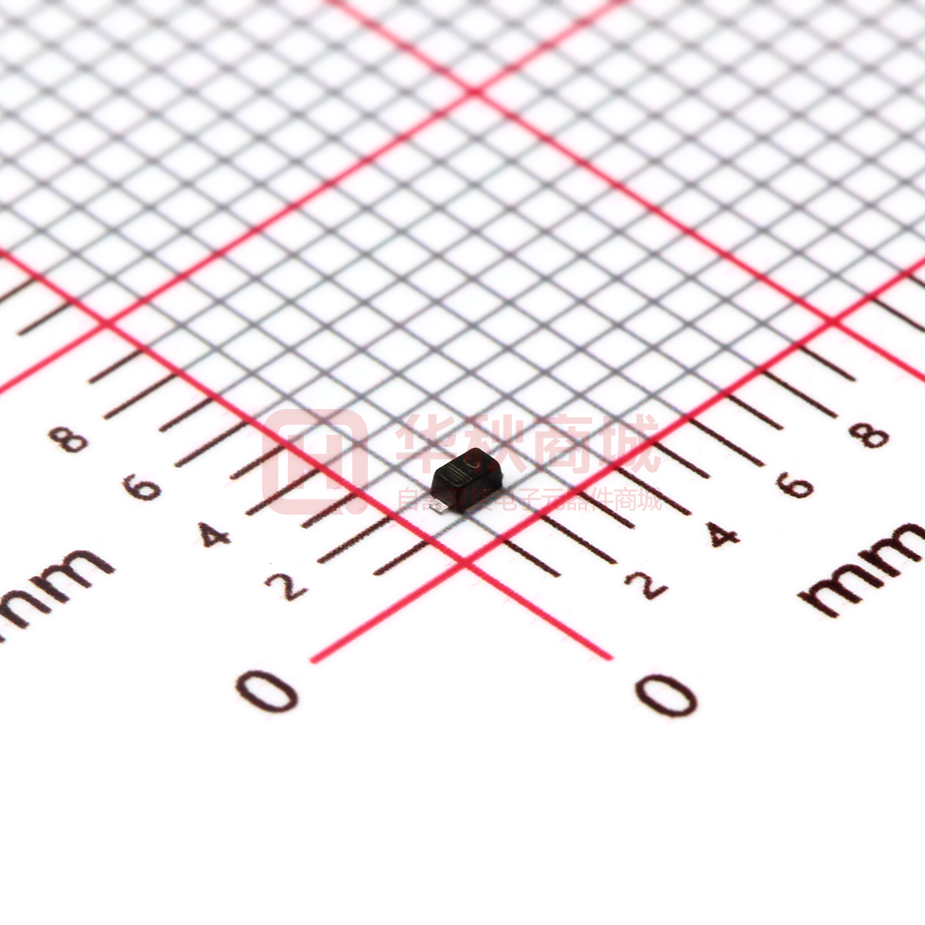

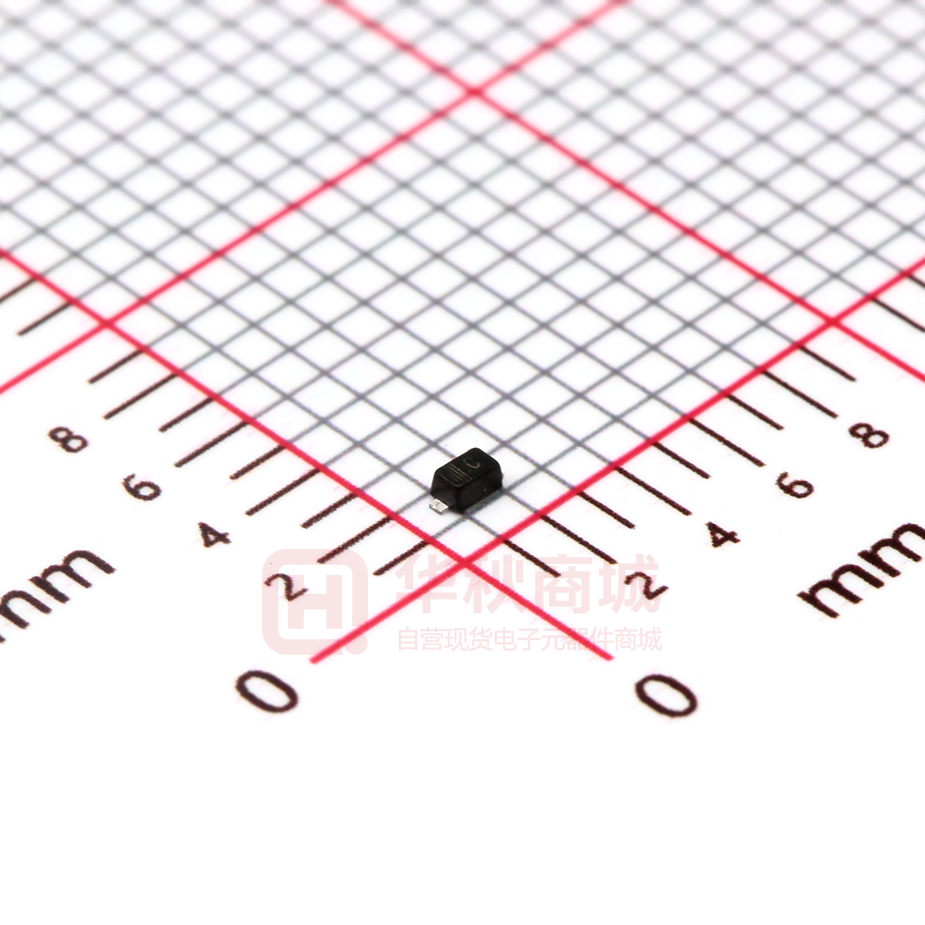

RB521S-30-HAF Silicon Epitaxial Planar Schottky Barrier Diode for low current rectification and high speed switching applications PINNING DESCRIPTION PIN Features • Extremely small surface mounting type • Halogen and Antimony Free(HAF), RoHS compliant 1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-523 and symbol Absolute Maximum Ratings (Ta = 25℃) Parameter Symbol Value Unit VR 30 V Average Forward Forward Current IF(AV) 200 mA Peak Forward Surge Current (60 Hz for Cyc.) IFSM 1 A Tj 125 ℃ Tstg - 40 to + 125 ℃ Reverse Voltage Junction Temperature Storage Temperature Range Characteristics at Ta = 25℃ Parameter Reverse Breakdown Voltage at IR = 150 μA Forward Voltage at IF = 200 mA Reverse Current at VR = 10 V 1/3 Symbol Min. Max. Unit V(BR)R 30 - V VF - 0.5 V IR - 30 µA ® Dated : 22/09/2022 Rev: 03 RB521S-30-HAF Electrical Characteristics Curves Fig 2. Forward Characteristic Curve Forward Current (mA) Reverse Current (mA) Fig 1. Reverse Characteristic Curve Forward Voltage (mV) Reverse Voltage (V) Fig 4. Average Rectified Current Derating Curve Junction Capacitance (pF) Average Rectified Current (mA) Fig 3. Junction Capacitance 300 250 200 150 100 50 0 0 25 50 75 100 125 150 Ambient Temperature (℃) Reverse Voltage (V) 2/3 ® Dated : 22/09/2022 Rev: 03 RB521S-30-HAF PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-523 ALL ROUND C A ∠ HE D E bp A UNIT A bp C D E HE V mm 0.70 0.60 0.4 0.3 0.135 0.100 1.25 1.15 0.85 0.75 1.7 1.5 0.1 ∠ 5 O Recommended Soldering Footprint 1.7 0.6 0.8 Packing information Package SOD-523 Pitch Tape Width Reel Size (mm) mm inch mm inch 8 4 ± 0.1 0.157 ± 0.004 178 7 Per Reel Packing Quantity 4,000 Marking information " C " = Part No. " III " = Cathode line " • " = HAF (Halogen and Antimony Free) Font type: Arial .C 3/3 ® Dated : 22/09/2022 Rev: 03
