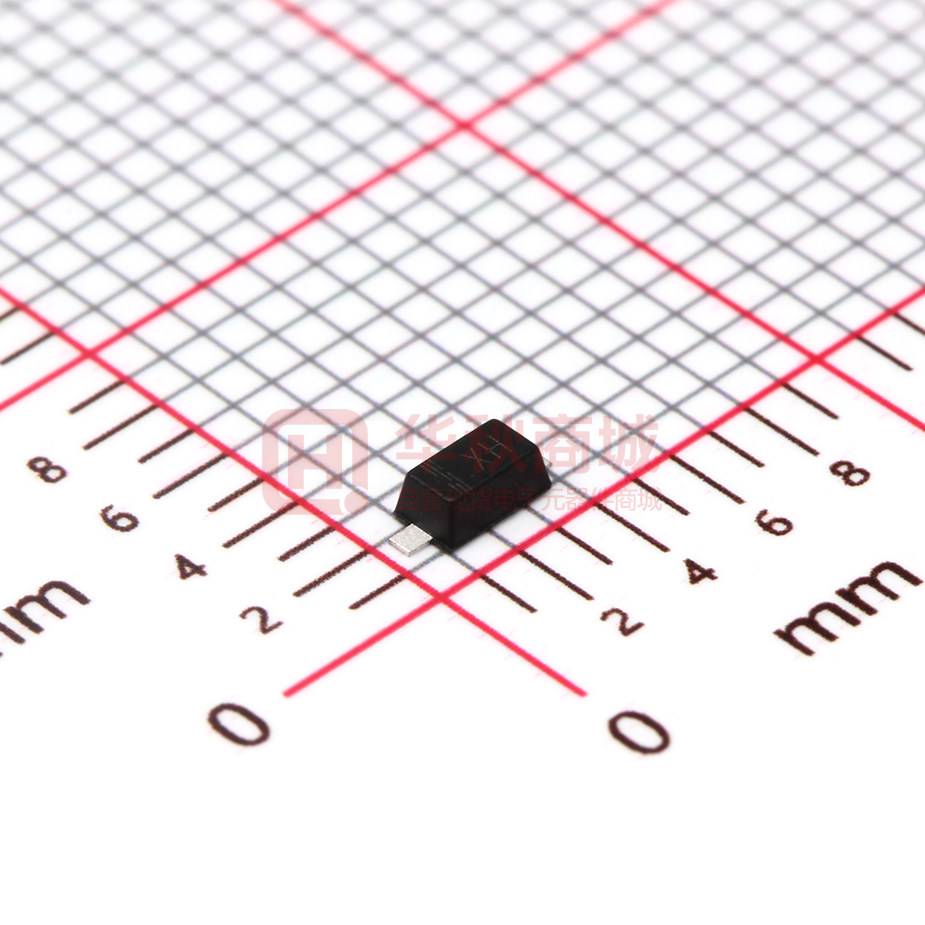

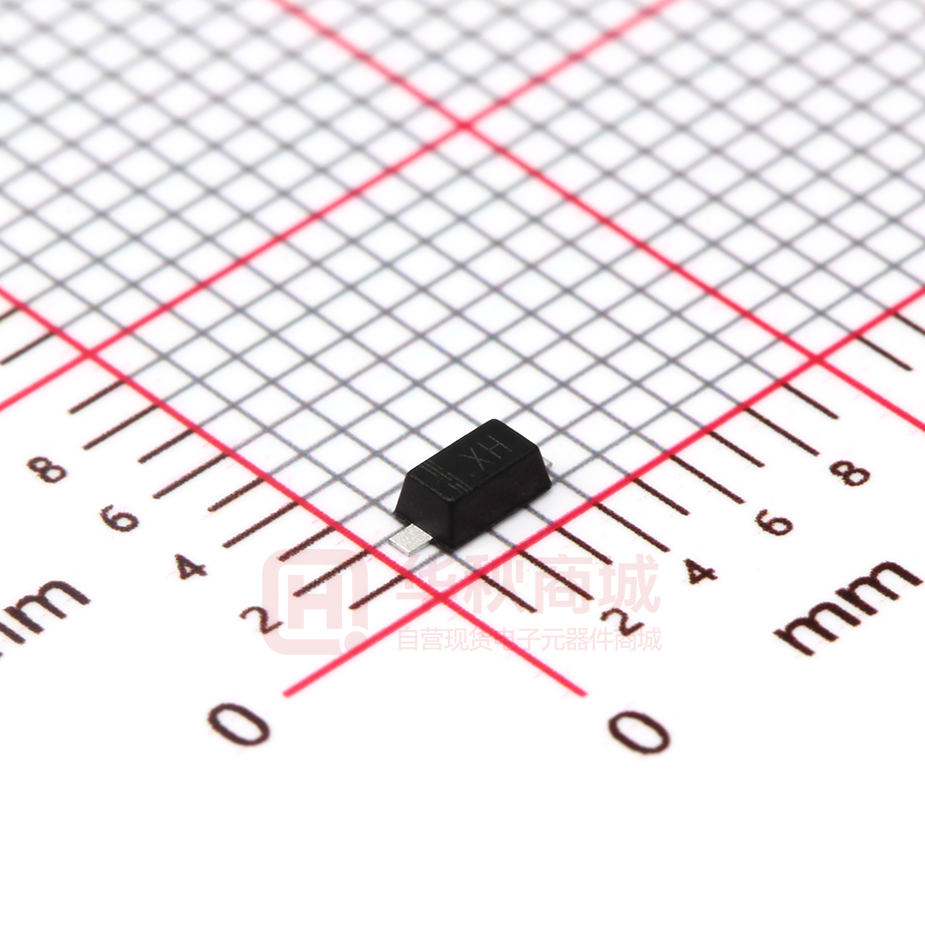

BAT46W

BAT46W-HAF Surface Mount Schottky Barrier Diode PIN Features • High breakdown voltage • Low forward voltage • Surface mount device • Halogen and Antimony Free(HAF), RoHS compliant DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-123 and symbol Absolute Maximum Ratings (Ta = 25℃) Parameter Symbol Value Unit VRRM 100 V IF 150 mA Repetitive Peak Forward Current (at tp < 1 s) IFRM 350 mA Surge Forward Current (at tp < 10 ms) IFSM 750 mA Power Dissipation Ptot 200 mW Tj - 55 to + 125 ℃ Tstg - 55 to + 150 ℃ Symbol Max. Unit RθJA 500 ℃/W Repetitive Peak Reverse Voltage Continuous Forward Current Operating Junction Temperature Range Storage Temperature Range Thermal Characteristics Parameter Thermal Resistance from Junction to Ambient 1) 1) Device mounted on FR-4 substrate PC board, 2oz copper, with minimum recommended pad layout. 1/4 ® Dated: 10/02/2023 Rev: 05 BAT46W-HAF Characteristics at Ta = 25℃ Parameter Reverse Breakdown Voltage at IR = 100 µA Forward Voltage at IF = 0.1 mA at IF = 10 mA at IF = 250 mA Symbol Min. Typ. Max. Unit V(BR)R 100 - - V - - 0.25 0.45 1 - - 0.5 0.8 2 5 5 7.5 15 20 - 11 6 40 35 VF Reverse Current at VR = 1.5 V at VR = 10 V at VR = 50 V at VR = 75 V at VR = 1.5 V, Tj = 60℃ at VR = 10 V, Tj = 60℃ at VR = 50 V, Tj = 60℃ at VR = 75 V, Tj = 60℃ IR Total Capacitance at VR = 0 V, f = 1 MHz at VR = 1 V, f = 1 MHz CT 2/4 V µA pF ® Dated: 10/02/2023 Rev: 05 BAT46W-HAF Electrical Characteristics Curves Fig 2. Forward Characteristics Curve Reverse Current (µA) Forward Current (mA) Fig 1. Reverse Characteristics Curve Forward Voltage (V) Reverse Voltage (V) Junction Capacitance (pF) Fig 3. Junction Capacitance Reverse Voltage (V) 3/4 ® Dated: 10/02/2023 Rev: 05 BAT46W-HAF PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123 c A ∠ ALL ROUND HE A bp E D UNIT A bp c D E HE v ∠ mm 1.15 1.05 0.6 0.5 0.135 0.100 2.7 2.6 1.65 1.55 3.85 3.55 0.2 5 O Recommended Soldering Footprint 3.05 0.85 1.2 Packing information Package Tape Width (mm) SOD-123 8 Pitch Reel Size mm (inch) mm (inch) 4 ± 0.1 0.157 ± 0.004 178 7 Per Reel Packing Quantity 3,000 Marking information " XH " = Part No. " III " = Cathode line " • " = HAF (Halogen and Antimony Free) Font type: Arial . XH 4/4 ® Dated: 10/02/2023 Rev: 05
