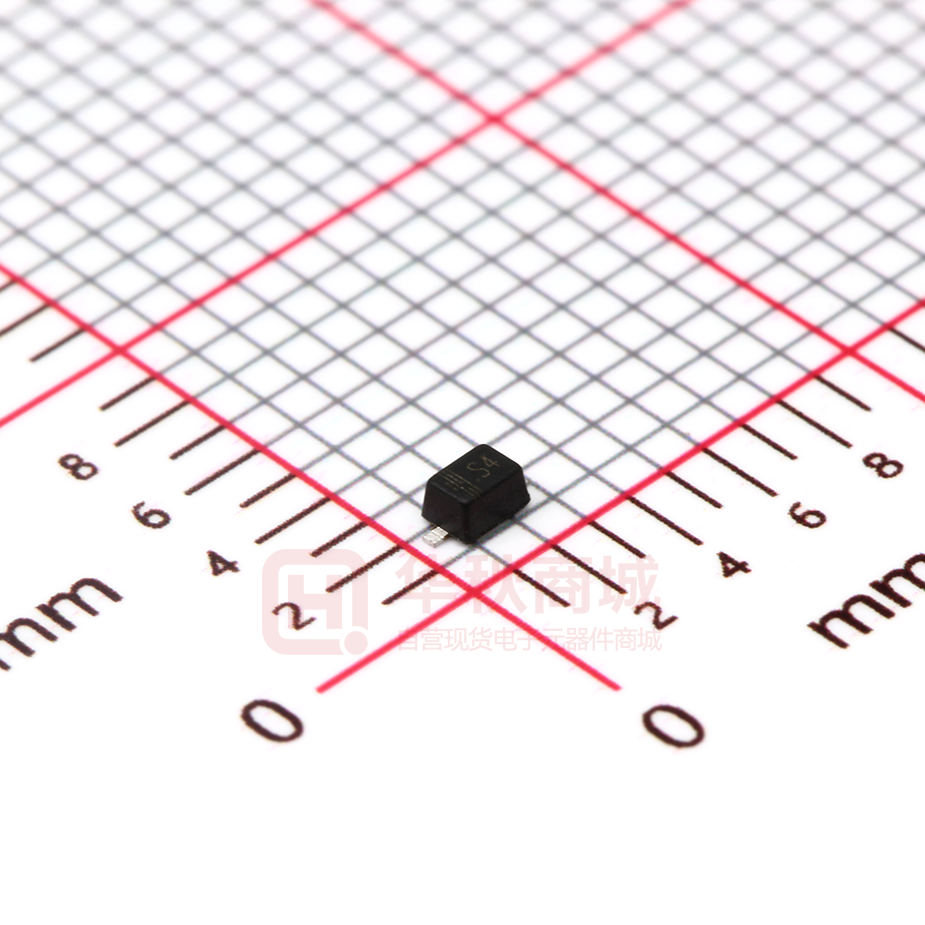

SD103AWS

SD103AWS...SD103CWS Surface Mount Schottky Barrier Diodes PINNING PIN Features • Low Forward Voltage DESCRIPTION 1 Cathode 2 Anode 2 1 S4 Top View Marking Code: S4 Simplified outline SOD-323 and symbol Absolute Maximum Ratings (Ta = 25 OC) Parameter Peak Repetitive Reverse Voltage Reverse Voltage Symbol SD103AWS SD103BWS SD103CWS SD103AWS SD103BWS SD103CWS Value Unit 40 30 20 40 30 20 VRRM VR V V Average Forward Rectified Current IF(AV) 350 mA Non-Repetitive Peak Forward Surge Current at t = 1 s IFSM 2 A Power Dissipation Ptot 200 mW Tj, Tstg - 65 to + 125 Operating and Storage Temperature Range C O Characteristics at Ta = 25 OC Symbol Min. Typ. Max. 40 30 20 - - - - 5 5 5 VF - - 0.37 0.6 V Total Capacitance at VR = 0 V, f = 1 MHz CT - 50 - pF Reverse Recovery Time at IF = IR = 200 mA, Irr = 0.1 IR, RL = 100 Ω trr - 10 - ns Parameter Reverse Breakdown Voltage at IR = 10 µA Reverse Leakage Current at VR = 30 V at VR = 20 V at VR = 10 V Forward Voltage at IF = 20 mA at IF = 200 mA SD103AWS SD103BWS SD103CWS SD103AWS SD103BWS SD103CWS V(BR)R IR Unit V µA SEMTECH ELECTRONICS LTD. Subsidiary of Sino-Tech International (BVI) Limited ® Dated : 29/10/2009 SD103AWS...SD103CWS SEMTECH ELECTRONICS LTD. Subsidiary of Sino-Tech International (BVI) Limited ® Dated : 29/10/2009 SD103AWS...SD103CWS PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-323 A c HE A D E bp UNIT A bp mm 1.10 0.80 0.40 0.25 C 0.15 0.10 D E HE 1.80 1.60 1.35 1.15 2.80 2.30 SEMTECH ELECTRONICS LTD. Subsidiary of Sino-Tech International (BVI) Limited ® Dated : 29/10/2009
