2N5550 / 2N5551
NPN Silicon Epitaxial Planar Transistors
for general purpose, high voltage amplifier
applications.
As complementary types the PNP transistors
2N5400 and 2N5401 are recommended.
On special request, these transistors can be
manufactured in different pin configurations.
1. Emitter 2. Base 3. Collector

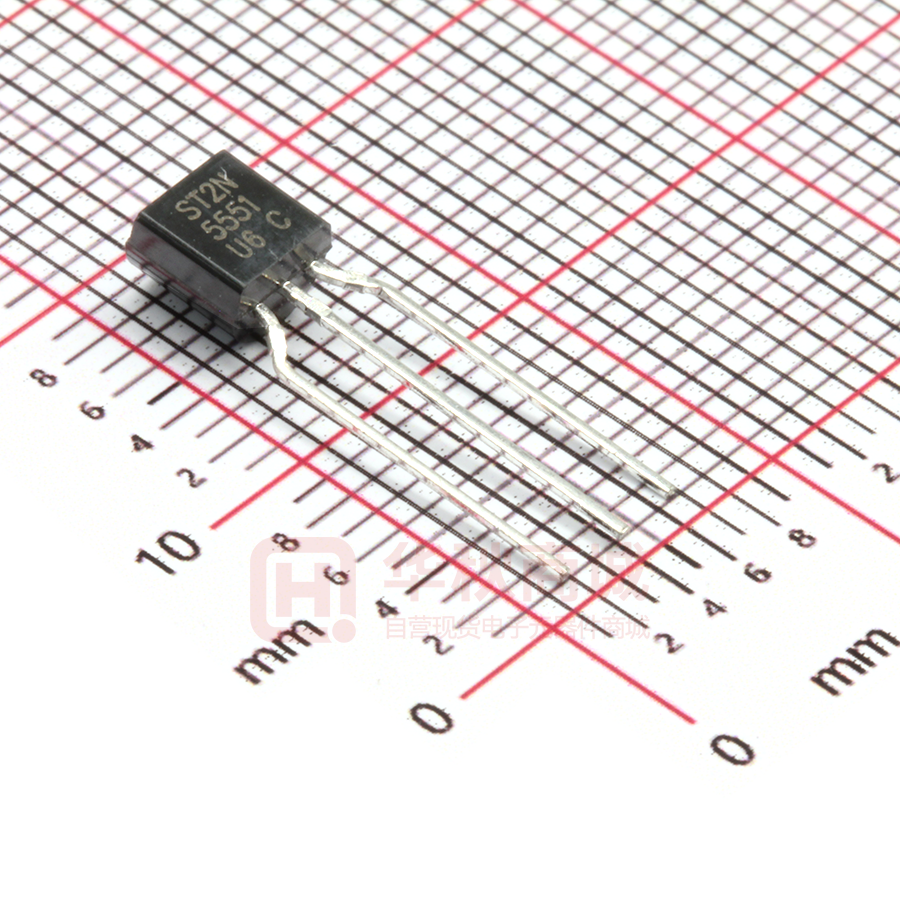

TO-92 Plastic Package
Absolute Maximum Ratings (Ta = 25 OC)
Parameter
Collector Base Voltage
Collector Emitter Voltage
Symbol
2N5550
2N5551
2N5550
2N5551
Emitter Base Voltage
VCBO
VCEO
Value
160
180
140
160
Unit
V
V
VEBO
6
V
Collector Current
IC
600
mA
Power Dissipation
Ptot
625
mW
Tj
150
O
Tstg
- 55 to + 150
O
Junction Temperature
Storage Temperature Range
C
C
SEMTECH ELECTRONICS LTD.
®
Dated : 16/08/2016
Rev: 01
2N5550 / 2N5551
Characteristics at Ta = 25 OC
Parameter
DC Current Gain
at VCE = 5 V, IC = 1 mA
at VCE = 5 V, IC = 10 mA
at VCE = 5 V, IC = 50 mA
Collector Base Cutoff Current
at VCB = 100 V
at VCB = 120 V
Emitter Base Cutoff Current
at VEB = 4 V
Collector Base Breakdown Voltage
at IC = 100 µA
Collector Emitter Breakdown Voltage
at IC = 1 mA
Emitter Base Breakdown Voltage
at IE = 10 µA
Collector Emitter Saturation Voltage
at IC = 10 mA, IB = 1 mA
at IC = 50 mA, IB = 5 mA
Base Emitter Saturation Voltage
at IC = 10 mA, IB = 1 mA
at IC = 50 mA, IB = 5 mA
Symbol
Min.
Max.
Unit
2N5550
2N5551
2N5550
2N5551
2N5550
2N5551
hFE
hFE
hFE
hFE
hFE
hFE
60
80
60
80
20
30
250
250
-
-
2N5550
2N5551
ICBO
-
100
50
nA
IEBO
-
50
nA
2N5550
2N5551
V(BR)CBO
160
180
-
V
2N5550
2N5551
V(BR)CEO
140
160
-
V
V(BR)EBO
6
-
V
2N5550
2N5551
VCE(sat)
-
0.15
0.25
0.2
V
2N5550
2N5551
VBE(sat)
-
1
1.2
1
V
fT
100
300
MHz
Cob
-
6
pF
Gain Bandwidth Product
at VCE = 10 V, IC = 10 mA, f = 100 MHz
Collector Output Capacitance
at VCB = 10 V, f = 1 MHz
SEMTECH ELECTRONICS LTD.
®
Dated : 16/08/2016
Rev: 01
2N5550 / 2N5551
SEMTECH ELECTRONICS LTD.
®
Dated : 16/08/2016
Rev: 01
