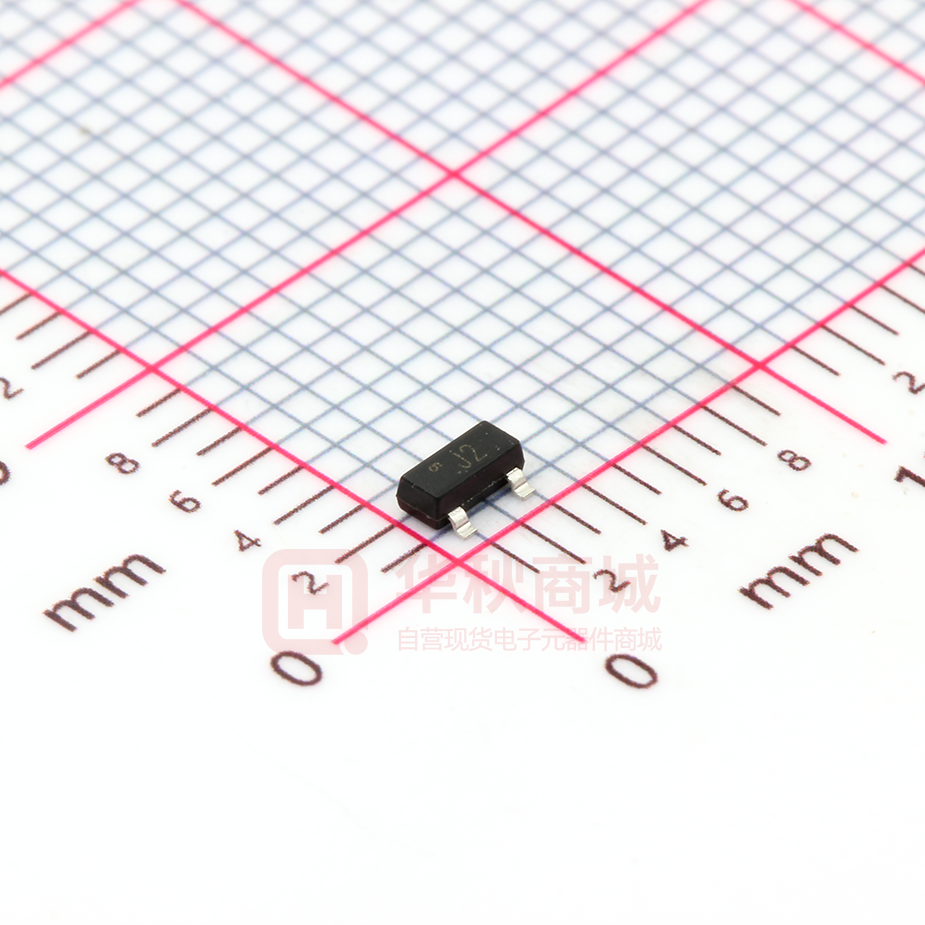

MMBT9013
NPN Silicon Epitaxial Planar Transistors
for switching and amplifier applications.
As complementary types the PNP transistor
MMBT9012 is recommended.
TO-236 Plastic Package
Absolute Maximum Ratings (Ta = 25 OC)
Parameter
Symbol
Value
Unit
Collector Base Voltage
VCBO
40
V
Collector Emitter Voltage
VCEO
30
V
Emitter Base Voltage
VEBO
5
V
Collector Current
IC
500
mA
Power Dissipation
Ptot
200
mW
Tj
150
O
Tstg
- 55 to + 150
O
Junction Temperature
Storage Temperature Range
Characteristics at Ta = 25 OC
Parameter
DC Current Gain
at VCE = 1 V, IC = 50 mA
Current Gain Group G
H
at VCE = 1 V, IC = 500 mA
Collector Base Cutoff Current
at VCB = 35 V
Emitter Base Cutoff Current
at VEB = 5 V
Collector Bae Breakdown Voltage
at IC = 100 μA
Collector Emitter Breakdown Voltage
at IC = 1 mA
Emitter Base Breakdown Voltage
at IE = 100 μA
Collector Emitter Saturation Voltage
at IC = 500 mA, IB = 50 mA
Base Emitter Saturation Voltage
at IC = 500 mA, IB = 50 mA
Base Emitter Voltage
at VCE = 1 V, IC = 100 mA
Gain Bandwidth Product
at VCE = 6 V, IC = 20 mA
C
Symbol
Min.
Max.
Unit
hFE
hFE
hFE
100
160
40
250
400
-
-
ICBO
-
100
nA
IEBO
-
100
nA
V(BR)CBO
40
-
V
V(BR)CEO
30
-
V
V(BR)EBO
5
-
V
VCE(sat)
-
0.6
V
VBE(sat)
-
1.2
V
VBE
-
1
V
fT
100
-
MHz
SEMTECH ELECTRONICS LTD.
®
C
Dated : 16/03/2015 Rev:01
MMBT9013
SEMTECH ELECTRONICS LTD.
®
Dated : 16/03/2015 Rev:01
TO-236 Package Outline
Package Outline Dimensions (Units: mm)
M
E
S
E
T
H
C
SEMTECH ELECTRONICS LTD.
®
Dated : 23/10/2010 Rev:01
