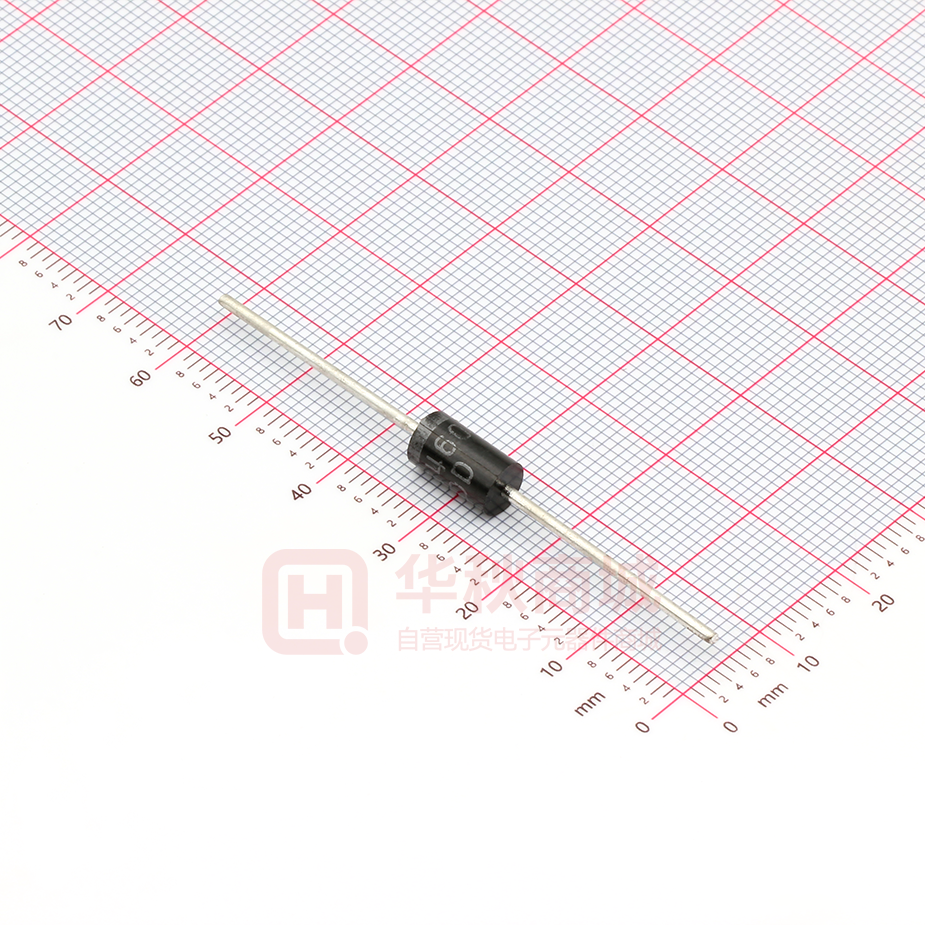

MUR460

MUR405 THRU MUR4100 ULTRA FAST RECTIFIERS Reverse Voltage - 200 to 600 Volts Forward Current - 4.0 Amperes FEATURES DO-201AD The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Ultra fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.220(5.6) 0.197(5.0) DIA. 0.375(9.5) 0.285(7.2) MECHANICAL DATA Case: JEDEC DO-201AD molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.04 ounce, 1.10 grams 1.0 (25.4) MIN. 0.052(1.3) 0.048(1.2) DIA. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 0.375”(9.5mm) lead length Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 4.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=150 C Maximum reverse recovery time (NOTE 1) SYMBOLS MUR405 MUR410 VRRM VRMS VDC 50 35 50 100 70 100 MUR415 150 105 150 MUR420 MUR440 200 140 200 400 280 400 MUR460 MUR480 600 420 600 800 550 800 MUR4100 UNITS 1000 700 1000 VOLTS VOLTS VOLTS I(AV) 4.0 Amps IFSM 150 Amps VF 0.875 IR 2.0 50.0 5.0 150.0 trr 25 50 ns 50.0 C/W C Typical thermal resistance (NOTE 2) RθJA Operating junction and storage temperature range TJ,TSTG 1.25 27.0 -65 to +175 Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted 1.85 Volts µA FIG. 1- FORWARD CURRENT DERATING CURVE 5 4 3 Single Phase Half Wave 60Hz Resistive or inductive Load 2 1 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CURVES MUR405 THRU MUR4100 175 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE MUR405-MUR420 1 MUR440-MUR4100 0.4 0.8 1.2 1.6 1.8 JUNCTION CAPACITANCE, pF INSTANTANEOUS FORWARD VOLTAGE, VOLTS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES 20 0 40 30 20 1025 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 FIG. 4-TYPICAL REVERSE CHARACTERISTICS PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE 200 TJ=25 C 100 10 2 0.1 1.0 10 100 NUMBER OF CYCLES AT 60 Hz FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 0.1 50 0 AMBIENT TEMPERATURE, C 10 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 REVERSE VOLTAGE,VOLTS The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)!
