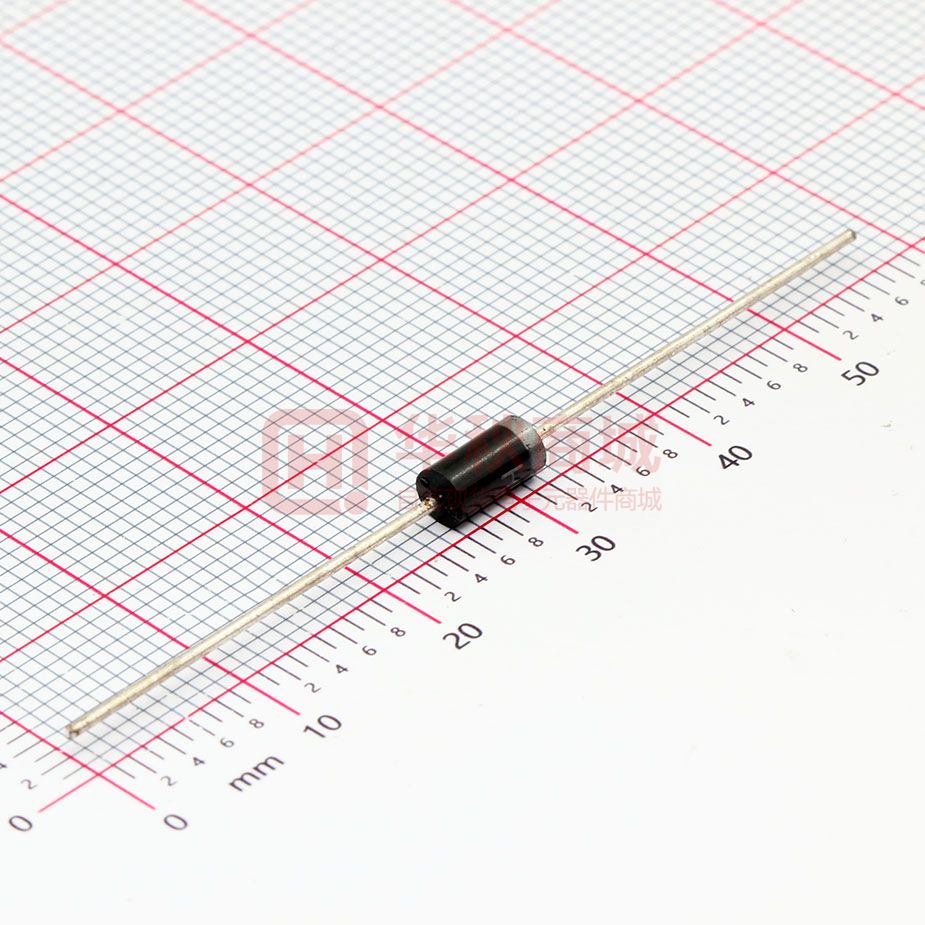

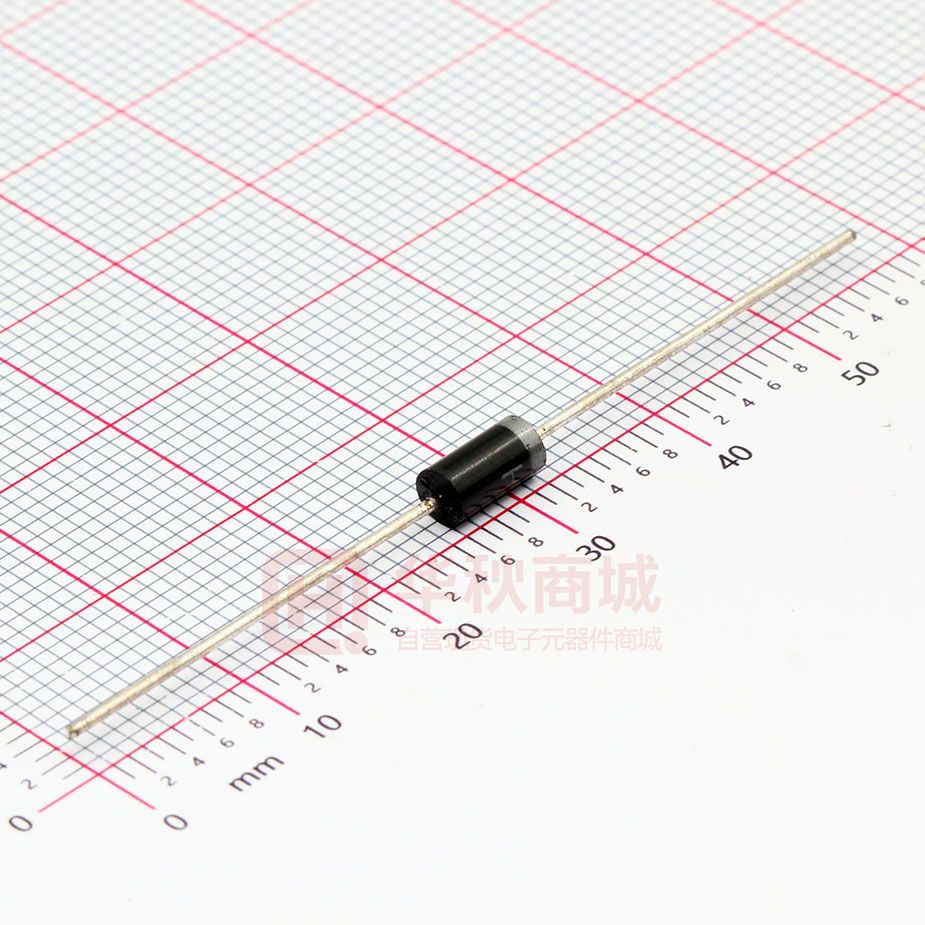

HER205

HER201 THRU HER208 HIGH EFFICIENCY RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes FEATURES DO-15 The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 High speed switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.140(3.6) 0.104(2.6) DIA. 0.300(7.6) 0.230(5.8) MECHANICAL DATA 1.0 (25.4) MIN. 0.034(0.86) 0.028(0.70) DIA. Dimensions in inches and (millimeters) Case: JEDEC DO-15 molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.014 ounce, 0.40 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=50 C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Maximum reverse recovery time (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction and storage temperature range SYMBOLS HER VRRM VRMS VDC 201 HER 202 50 35 50 100 70 100 HER 203 HER HER 204 205 200 300 140 210 200 300 400 280 400 HER 206 HER 207 HER 208 UNITS 600 420 600 800 560 800 1000 700 1000 VOLTS VOLTS VOLTS I(AV) 2.0 Amps IFSM 60.0 Amps VF 1.3 1.0 1.70 5.0 100.0 IR Volts µA trr 50 70 ns CJ 30.0 20.0 pF C/W C RθJA TJ,TSTG 50.0 -65 to +150 Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted FIG. 1- FORWARD CURRENT DERATING CURVE 2.0 1.6 1.2 Single Phase Half Wave 60Hz Resistive or inductive Load 0.8 0.4 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CURVES HER201 THRU HER208 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 60 50 40 30 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 20 175 10 1 10 AMBIENT TEMPERATURE, C TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 1 0.1 HER201-HER203 HER204-HER205 HER206-HER208 0.01 0.2 0.6 1.0 1.4 1.8 2.0 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 20 10 1,000 100 TJ=100 C 10 1 TJ=25 C 0.1 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 0 20 40 60 80 100 TJ=25 C 10 HER201-HER205 HER206-HER208 TRANSIENT THERMAL IMPEDANCE, C/W 200 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 1 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 100 NUMBER OF CYCLES AT 60 Hz 100 t,PULSE DURATION,sec. The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 100
