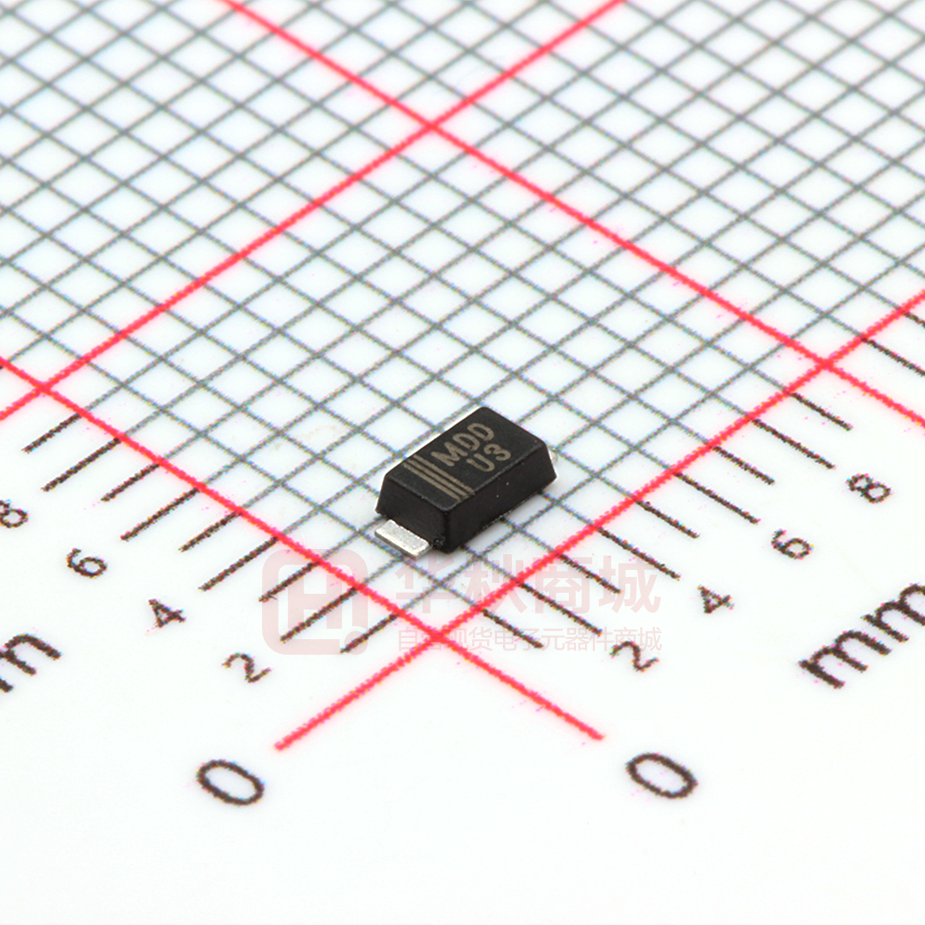

SOD1H3

SOD1H1 THRU SOD1H8 SURFACE MOUNT HIGH EFFICIENCY RECTIFIER Reverse Voltage - 50 to 1000 Volts SOD-123FL FEATURES Cathode Band Top View 1.8± 0.1 １．０±0.2 Glass passivated device Ideal for surface mouted applications Low reverse leakage Metallurgically bonded construction High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 0.10-0.30 2.8±0.1 1.3± 0.15 Forward Current - 1.0 Ampere 0.6±0.25 MECHANICAL DATA Case: JEDEC SOD-123FL molded plastic body over passivated chip Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.0007 ounce, 0.02 grams 3.7±0.2 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SYMBOLS MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Maximum reverse recovery time (NOTE 1) VRRM VRMS VDC ２０１４－０３　０１版 U1 U2 U3 50 35 50 100 70 100 200 140 200 SOD1H4 SOD1H5 SOD1H6 SOD1H7 SOD1H8 U4 300 210 300 U5 U6 U7 U8 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS VOLTS VOLTS VOLTS I(AV) 1.0 Amp IFSM 25.0 Amps VF 1.0 trr 1.3 1.7 5.0 100.0 IR Typical thermal resistance RθJA Operating junction and storage temperature range TJ,TSTG Note: 1.Measured with IF=0.5A, IR=1A, Irr=0.25A. SOD1H1 SOD1H2 SOD1H3 µA 75 50 180 -50 to +150 Volts ns K/W C AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CURVES SOD1H1 THRU SOD1H8 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT PEAK FORWARD SURGE CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE 1.0 0.8 0.6 Single Phase Half Wave 60Hz Resistive or inductive Load 0.4 0.2 0 0 25 50 75 100 125 150 30 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 25 20 15 10 5.0 0 1 175 10 100 NUMBER OF CYCLES AT 60 Hz AMBIENT TEMPERATURE, C 20 10 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 1 0.1 SOD1H1-SOD1H4 SOD1H5 SOD1H6-SOD1H8 0.01 0.2 0.6 1.0 1.4 1.8 2.0 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 1,000 100 TJ=100 C 10 1 TJ=25 C 0.1 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS ２０１４－０３　０１版 0 20 40 60 80 PERCENT OF PEAK REVERSE VOLTAGE,% 100
