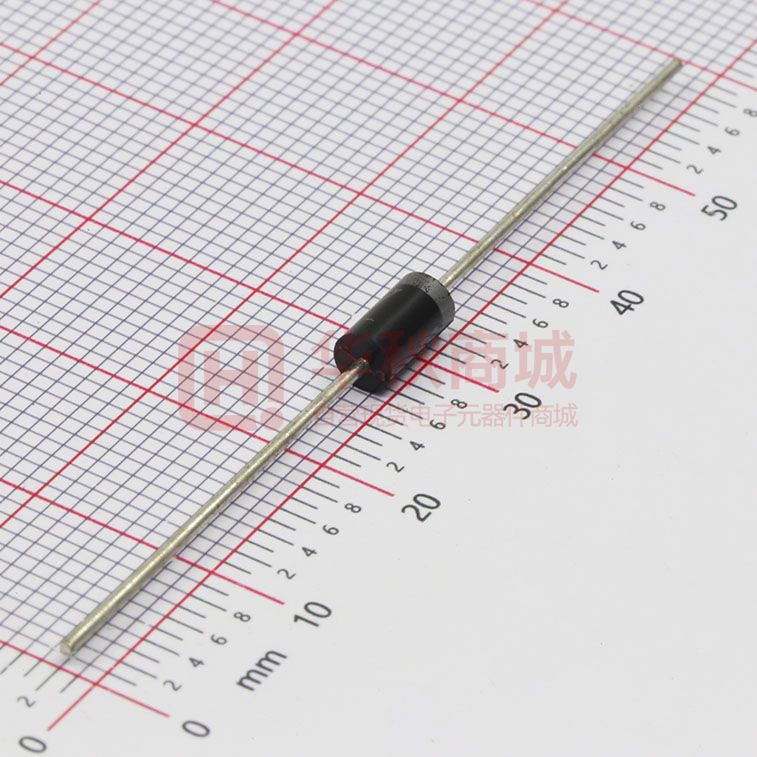

FR207

FR201 THRU FR207 Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere FAST RECOVERY RECTIFIERS Features DO-15  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 1.0 (25.4) MIN.  Idea for printed circuit board  Fast switching for high efficiency  Low reverse leakage  High forward surge current capability 0.140(3.6) 0.104(2.6) DIA.  High temperature soldering guaranteed 0.300(7.6) 0.230(5.8) 250℃/10 seconds at terminals Mechanical Data 1.0 (25.4) MIN. Case : JEDEC DO-15 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.014 ounce, 0.40 grams 0.034(0.86) 0.028(0.70) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter FR201 FR202 FR203 FR204 FR205 FR206 FR207 MDD FR201 MDD FR202 MDD FR203 MDD FR204 MDD FR205 MDD FR206 MDD FR207 UNITS VRRM 50 VRMS VDC 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TA=75℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) I(AV) 2.0 A IFSM 70 A Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ VF 1.30 V IR 5.0 100.0 μA Maximum reverse recovery time trr (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction and storage temperature range 150 250 40.0 500 ns CJ RθJA 40.0 pF ℃/W TJ,TSTG -65 to +150 ℃ Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted http://www.microdiode.com Rev:2024A1 Page :1 FR201 THRU FR207 Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 2.0 1.6 1.2 Single Phase Half Wave 60Hz Resistive or inductive Load 0.8 0.4 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 70 60 50 40 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 30 175 20 1 10 AMBIENT TEMPERATURE, C 20 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.01 0.6 0.8 1.0 1.2 1.4 1.5 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 0.1 1,000 100 10 TJ=100 C 1 0.1 TJ=25 C 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS TJ=25 C 10 TRANSIENT THERMAL IMPEDANCE, C/W FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 200 100 100 NUMBER OF CYCLES AT 60 Hz FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 1 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2
