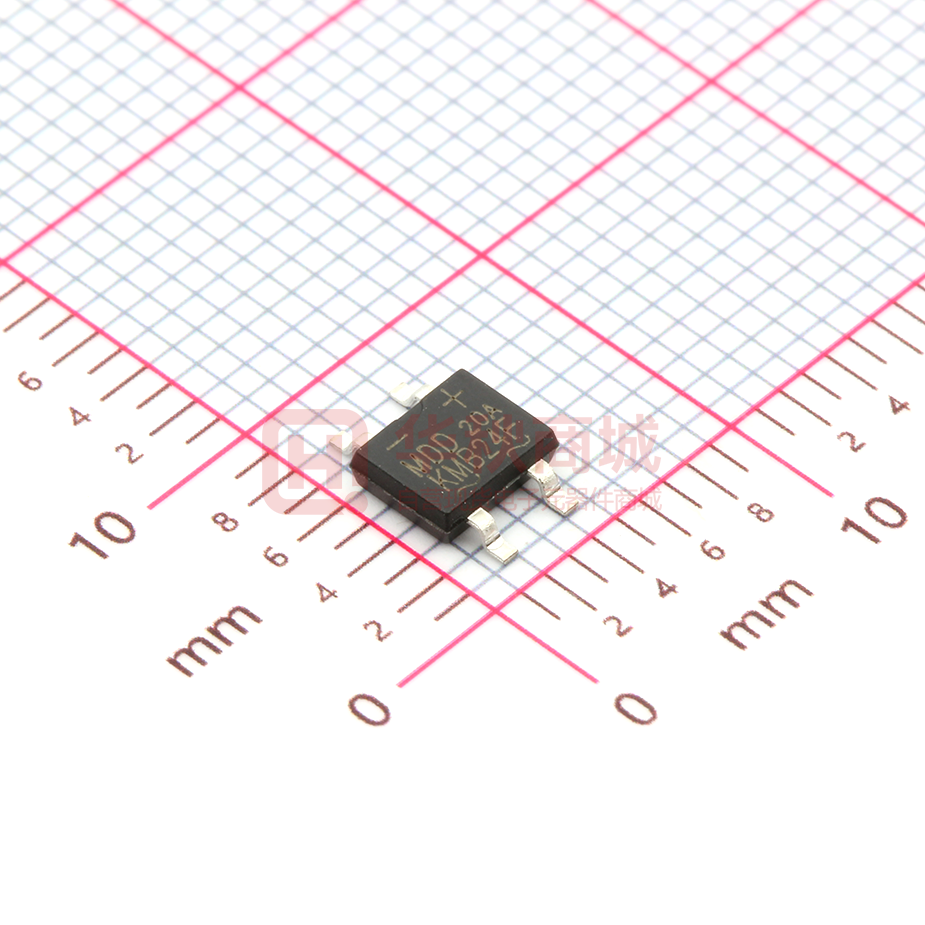

KMB24F

KMB24F THRU KMB220F Voltage Range - 40 to 200 V olts Forward Current - 2.0 Ampere Schottky Surface Mount Flat Bridge Rectifier Features MBF  • Reverse Voltage - 40 t o 2 00 V  • Forward Current - 2.0 A High  Surge Current Capability + • Designed for Surface Mount Application Mechanical Data MAX Case : JEDEC MBF Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on case Mounting Position : Any Weight : 0.0026 ounce, 0.075 grams （2） - ~ （3） Maximum Ratings And Electrical Characteristics （1） + ~ （4） Dimensions in inches and (millimeters) Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage per at 2A Maximum DC reverse current at rated DC blocking voltage TA=25°C TA=100°C Typical thermal resistance(NOTE2) Typical junction capacitance(NOTE1) Operating temperature range storage temperature range VRRM VRMS VDC IF(AV) MDD MDD MDD MDD MDD MDD UNITS KMB24F KMB26F KMB28F KMB210F KMB215F KMB220F 40 28 40 0.55 0.70 0.5 10 150 105 150 220 200 140 200 V V V A 40 A 0.85 V 0.3 5 mA 75 RθJA TJ TSTG 100 70 100 50 IR Cj 80 56 80 2.0 IFSM VF 60 42 60 80 -55 to +125 -55 to +150 °C/W pF °C °C Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. Mounted on glass epoxy PC board with4×1.5"×1.5"（3.81×3.81 cm）copper pad. http://www.microdiode.com Rev:2024A2 Page :1 KMB24F THRU KMB220F Voltage Range - 40 to 200 V olts Forward Current - 2.0 Ampere Ratings And Characteristic Curves Fig.2 Typical Reverse Characteristics Fig.1 Forward Current Derating Curve Instaneous Reverse Current（μ A） 3.0 Average Forward Current (A) 2.5 2.0 1.5 1.0 0.5 0.0 25 75 50 100 125 10 4 10 3 10 2 TJ=100°C TJ=75°C KMB24F/KMB26F KMB28F-KMB220F 101 10 TJ=25°C 0 150 0 Case Temperature (°C) 20 40 60 80 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Fig.4 Typical Junction Capacitance 500 TJ=25°C 20 200 1.0 Junction Capacitance (pF) Instaneous Forward Current (A) 10 KMB24F KMB26F KMB28F/KMB220F 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 100 50 KMB24F 20 KMB26F-KMB220F 10 1.8 0.1 40 30 20 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 100 Number of Cycles at 60Hz Transient Thermal Impedance（°C/W） Peak Forward Surage Current (A) KMB28F-KMB220F 10 100 1000 KMB24F-KMB26F 50 10 Fig.6- Typical Transient Thermal Impedance Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 60 1 Reverse Voltage (V) Instaneous Forward Voltage (V) 00 100 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 KMB24F THRU KMB220F Voltage Range - 40 to 200 V olts Forward Current - 2.0 Ampere Suggested Pad Layout P2 P1 Dim Min P1 6.00 P2 2.40 Q1 1.84 Q2 1.20 Q1 Q2 Dimensions in millimeters http://www.microdiode.com Rev:2024A2 Page :3
