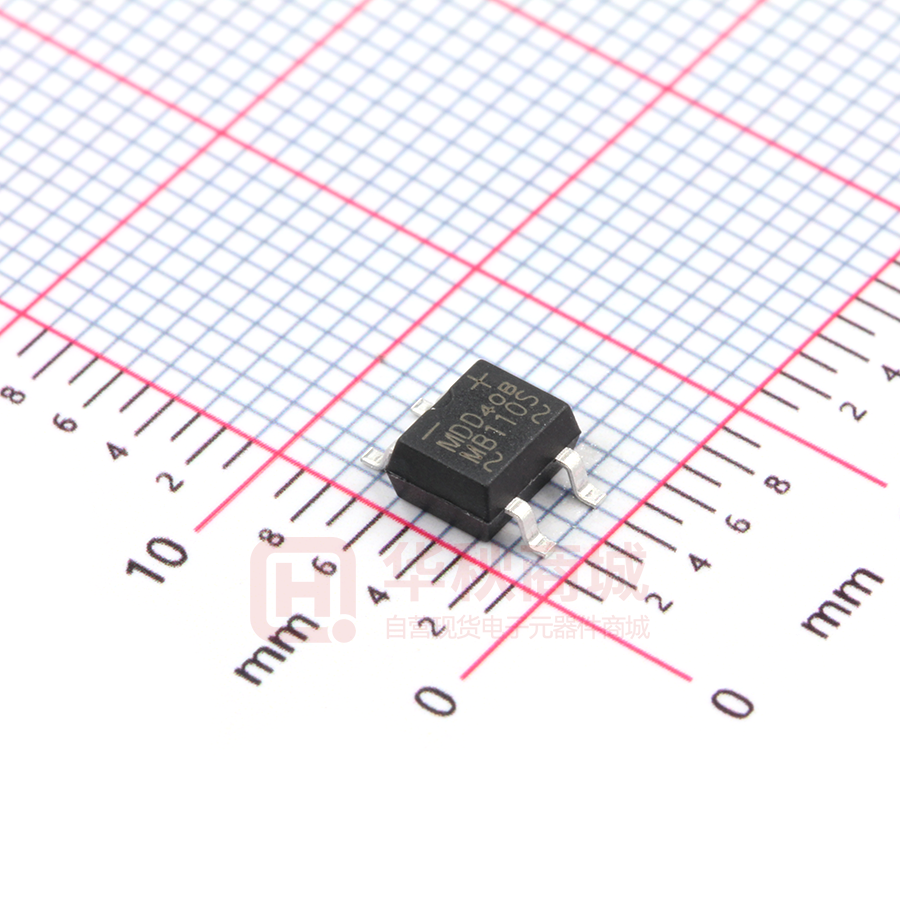

MB110S

MB14S THRU MB120S Voltage Range - 40 to 200 V olts Current - 1.0 Ampere Schottky Surface Mount Flat Bridge Rectifier Features MBS  Ideal for printed circuit board .043(1.10) .028(0.70)  Reliable low cost construction utilizing molded plastic technique .193(4.90) .177(4.50) .053(1.53) .037(0.95)  High temperature soldering guaranteed: 260°/10 seconds at 5 .033(0.84) .022(0.56) lbs., (2.3kg) tension + .157(4.00)  Small size, simple installation  High surge current capability .276(7.0) MAX .142(3.60) .083(2.12) .043(1.10) .014(0.35) .006(0.15) .102(2.60) .087(2.20) Mechanical Data （1） （2） - Case : JEDEC MBS Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.008 ounce, 0.22 grams .106(2.70) .118(3.0) .090(2.30) MAX + .008(0.20) MAX ~ ~ （3） （4） Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 1A VRRM VRMS VDC IF(AV) MDD MB16S MDD MB18S MDD MB110S MDD MB120S 40 28 40 60 42 60 80 56 80 100 70 100 200 140 200 1.0 IFSM VF TA=25°C TA=100°C IR Typical junction capacitance at 4.0V,1.0MHz Cj Maximum DC reverse current at rated DC blocking voltage MDD MB14S 30 40 0.55 0.70 0.85 0.2 5 0.3 10 110 80 UNITS V V V A A 0.90 0.1 2 V mA pF Typical thermal resistance（Note1） RθJA 100 °C/W Operating temperature range TJ TSTG -55 to +125 -55 to +150 °C °C storage temperature range Note：1.Mounted on glass epoxy PC board with 4×1.5"×1.5"（3.81×3.81 cm）copper pad. http://www.microdiode.com Rev:2024A2 Page :1 MB14S THRU MB120S Voltage Range - 40 to 200 V olts Current - 1.0 Ampere Ratings And Characteristic Curves Fig.2 Typical Reverse Characteristics Fig.1 Forward Current Derating Curve Average Forward Current (A) 1.0 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 25 75 50 100 125 150 Instaneous Reverse Current ( μA) 1.2 10 4 10 3 10 2 TJ=100°C TJ=75°C 101 TJ=25°C 10 0 0 Case Temperature (°C) 20 40 60 80 100 Percent of Rated Peak Reverse Voltage（%） 500 TJ=25°C 20 10 1.0 MB14S MB16S MB18S/MB110S MB120S 0.1 TJ=25°C 200 Junction Capacitance (pF) Instaneous Forward Current (A) Fig.4 Typical Junction Capacitance 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 100 50 MB14S 20 MB16S-MB120S 10 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current MB18S-MB120S 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 Number of Cycles at 60Hz 100 1000 MB14S-MB16S 40 00 10 Fig.6- Typical Transient Thermal Impedance 100 Transient Thermal Impedance（°C/W） Peak Forward Surage Current (A) 50 1 Reverse Voltage (V) Instaneous Forward Voltage (V) 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 MB14S THRU MB120S Voltage Range - 40 to 200 V olts Current - 1.0 Ampere Suggested Pad Layout P2 P1 Dim Min P1 6.00 P2 2.40 Q1 1.84 Q2 1.20 Q1 Q2 Dimensions in millimeters http://www.microdiode.com Rev:2024A2 Page :3
