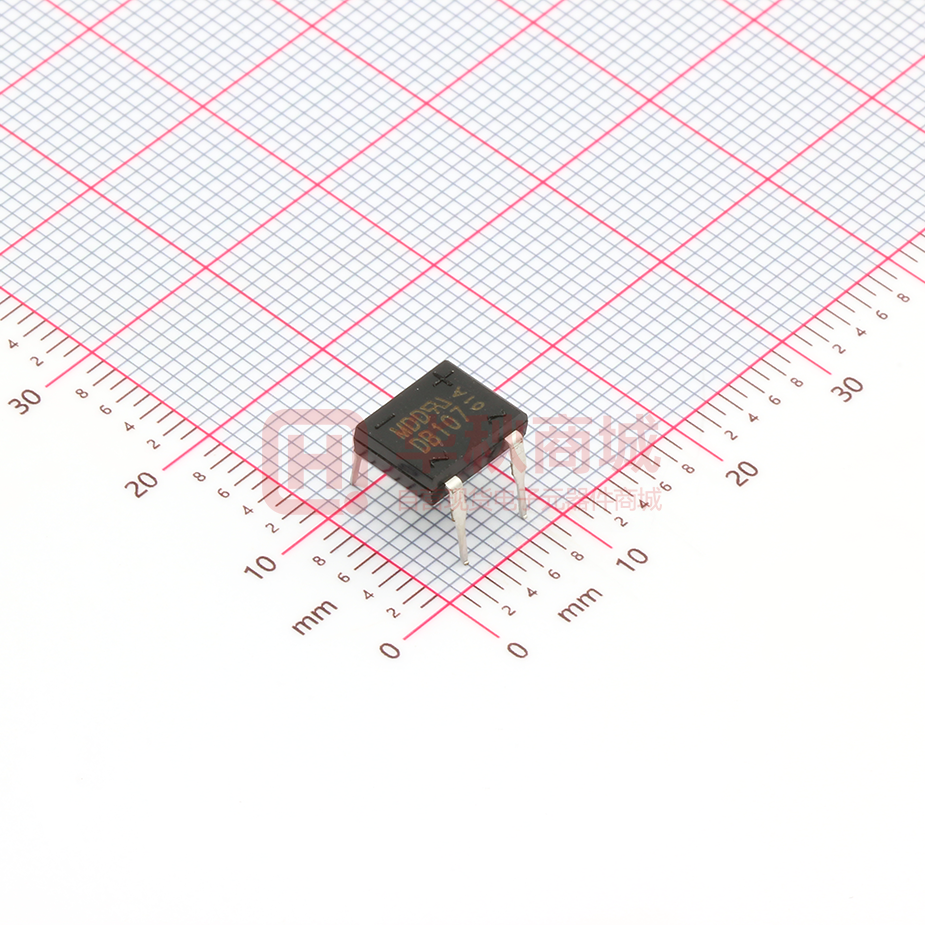

DB107

DB101 THRU DB107 SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS Voltage Range - 50 to 1000 Volts Current - 1.0 Ampere FEATURES DB The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Ideal for printed circuit boards Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 260 C/10 seconds,5 lbs. (2.3kg) tension + 0.255(6.5) 0.350(8.9) 0.245(6.2) 0.300(7.6) 0.335(8.51) 0.325(8.10) MECHANICAL DATA 0.135(3.4) 0.115(2.9) 0.185(4.69) 0.150(3.81) 0.020(.51) Case: Molded plastic body Terminals: Plated leads solderable per MIL-STD-750, Method 2026 Polarity: Polarity symbols marked on case Mounting Position: Any Weight:0.02 ounce, 0.4 grams 0.016(.41) 0.060 0.205(5.2) (1.5) 0.195(5.0) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25* ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load, For capacitive load derate current by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TA=40¡ãC Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage drop per birdge element at 1.0A Maximum DC reverse current TA=25¡ãC at rated DC blocking voltage TA=125¡ãC Operating temperature range storage temperature range SYMBOLS VRRM VRMS VDC MDD MDD MDD MDD MDD MDD MDD DB101 DB102 DB103 DB104 DB105 DB106 DB107 UNITS 50 100 200 400 600 800 1000 VOLTS 35 70 140 280 420 560 700 VOLTS 50 100 200 400 600 800 1000 VOLTS IF(AV) 1.0 Amps IFSM 50 Amps VF 1.1 Volts 10 500 -55 to +150 -55 to +150 µA µA IR TJ TSTG NOTES: 1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts. 2.Unit mounted on P.C. board with 0.51” x 0.51”(13x13mm) copper pads. C C FIG. 1- FORWARD CURRENT DERATING CURVE 1.0 0.8 0.6 Single Phase Half Wave 60Hz Resistive or inductive Load 0.4 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CURVES DB101 THRU DB107 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 50 40 30 20 10 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 20 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.01 0.6 0.8 1.0 1.2 1.4 1.5 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 0.1 1,000 100 10 TJ=25 C 0.1 0.01 0 20 40 60 80 TJ=25 C 10 TRANSIENT THERMAL IMPEDANCE, C/W 200 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 1 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF TJ=100 C 1 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 100 100 NUMBER OF CYCLES AT 60 Hz 100 t,PULSE DURATION,sec. The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 100
