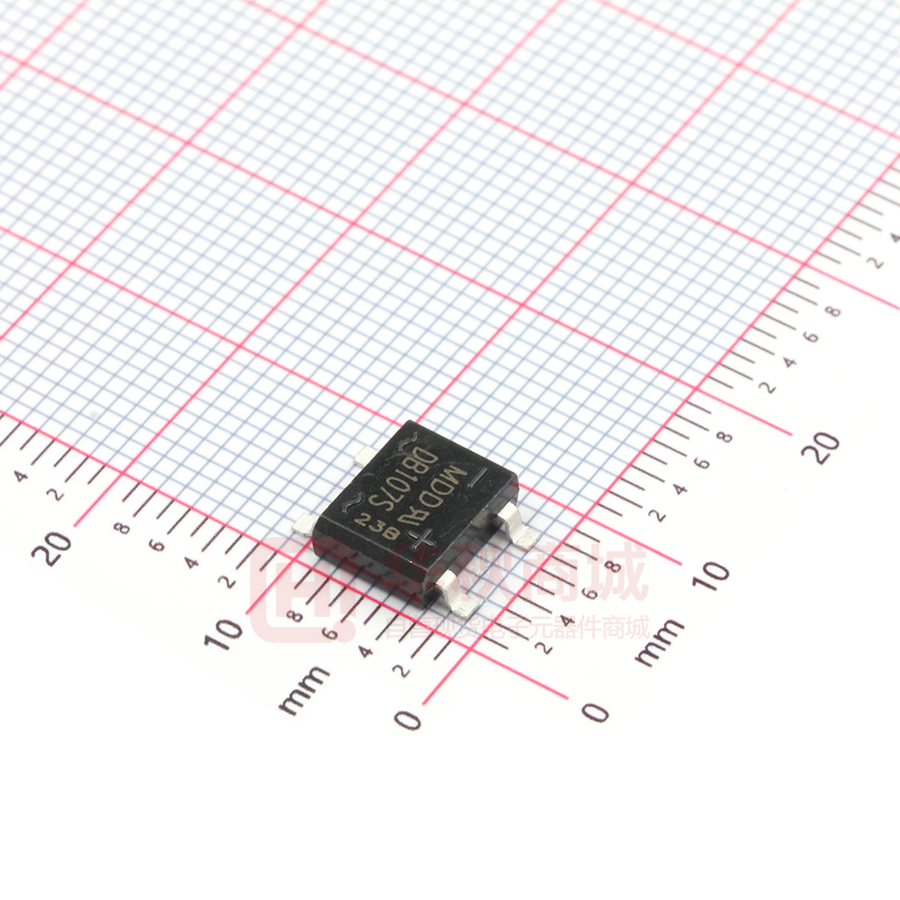

DB107S

DB101S THRU DB107S Voltage Range - 50 to 1000 Volts Current - 1.0 Ampere SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS Features DBS  Ideal for printed circuit board  Reliable low cost construction utilizing molded plastic technique .205(5.2)  High temperature soldering guaranteed: 260°/10 seconds at 5 .195(5.0) .335(8.50) .307(7.8) lbs., (2.3kg) tension 45 .118(3.0)  Small size, simple installation  High surge current capability + .087(2.20) .047(1.20) .035(0.88) （1） （2） - .402(10.2) + .382(9.70) Mechanical Data .255(6.5) .245(6.2) .014(0.35) .008(0.15) Case : JEDEC DBS Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on case Mounting Position : Any Weight : 0.02 ounce, 0.4 grams .008(0.20) .060(1.53) ~ ~ （3） .002(0.05) （4） .040(1.02) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TC=40°C Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage drop per leg at 1A Typical thermal resistance Maximum DC reverse current at rated DC blocking voltage TA=25°C TA=100°C Operating temperature range storage temperature range MDD SYMBOLS DB101S VRRM VRMS VDC 50 35 50 MDD MDD MDD MDD MDD MDD DB102S DB103S DB104S DB105S DB106S DB107S 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V IF(AV) 1.0 A IFSM 30 A VF 1.1 V RθJA °C/W IR 110 10 500 TJ TSTG -55 to +150 -55 to +150 °C °C µA µA NOTES:DBS for surface mount package. http://www.microdiode.com Rev:2024A4 Page :1 DB101S THRU DB107S Voltage Range - 50 to 1000 Volts Current - 1.0 Ampere Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT PEAK FORWARD CURRENT.(A) AVERAGE FORWARD CURRENT(A) FIG. 1- MAXIMUN DERATING CURVE FOR OUTPUT RECTIFIED CURRENT 1.0 0.6''(1.5mm) 0.8 Copper Pauls .51''x.51'' (13mmx13mm) 0.6 0.4 Single Phase Half Wave 60Hz Resistive or inductive Load 0.2 60 TJ=25* Single sine-wave (JEDEC Method) 50 40 30 20 10 0 20 40 60 80 100 120 140 150 0 1 2 FIG. 3-TYPICAL REVERSE CHARACTERISTICS PER BRIDGE ELEMENT 100 TJ=125* 10 1 1.0 0.1 TJ=25* .10 0.01 .01 0 20 40 60 80 100 120 4 6 10 20 40 100 60 NUMBER OF CYCLES AT 60 Hz INSTANTANEOUS REVERSE CURRENT.(A) INSTANTANEOUS REVERSE CURRENT(*A) AMBIENT TEMPERATURE, C 140 FIG. 4-TYPICAL FORWARD CHARACTERISTICS PER BRIDGE ELEMNT 10 1 0.1 TJ=25* PULSE WIDTH:300*S 1% DUTY CYCLE 0.01 0.4 0.6 0.8 1.0 1.2 1.4 1.6 FORWARD VOLTAGE,(V) PERCENT OF RATED PEAK REVERSE VOLTAGE.(%) FIG. 3-TYPICAL JUNCTION CAPACITANCE PER BRIDGE ELEMENT CAPACITANCE.(pF) 100 10 TJ=25* f=1.0MHZ Visg=50mV p-p 1 1 10 100 REVERSE VOLTAGE.(V) The curve above is for reference only. http://www.microdiode.com Rev:2024A4 Page :2
