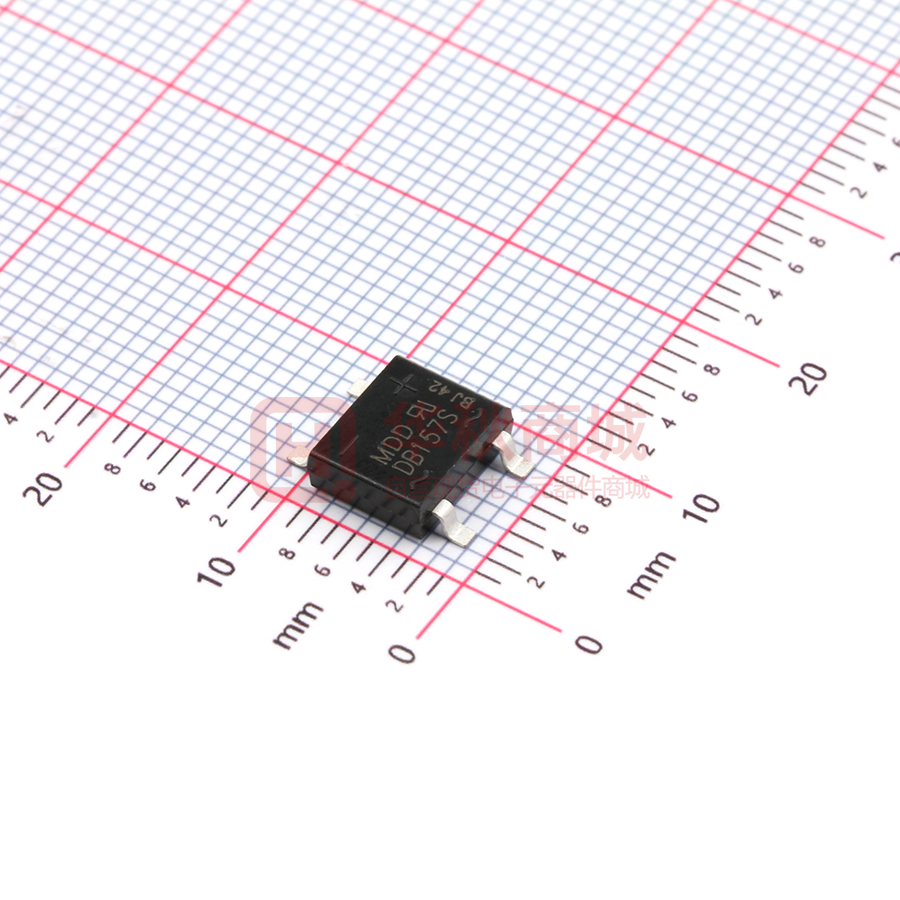

DB157S

DB151S THRU DB157S Voltage Range - 50 to 1000 Volts Current - 1.5 Ampere SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS Features DBS  Ideal for printed circuit board  Reliable low cost construction utilizing molded plastic technique .205(5.2)  High temperature soldering guaranteed: 260°/10 seconds at 5 .195(5.0) .335(8.50) .307(7.8) lbs., (2.3kg) tension 45 .118(3.0)  Small size, simple installation  High surge current capability + .087(2.20) .047(1.20) .035(0.88) （1） （2） - .402(10.2) + .382(9.70) Mechanical Data .255(6.5) .245(6.2) .014(0.35) .008(0.15) Case : JEDEC DBS Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.02 ounce, 0.4 grams .008(0.20) .060(1.53) ~ ~ （3） .002(0.05) （4） .040(1.02) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TC=40°C Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage drop per leg at 1.5A TA=25°C Maximum DC reverse current TA=100°C at rated DC blocking voltage Operating temperature range storage temperature range VRRM VRMS VDC MDD MDD MDD MDD MDD MDD MDD DB151S DB152S DB153S DB154S DB155S DB156S DB157S 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V IF(AV) 1.5 A IFSM 50 A VF 1.1 V IR 10 500 µA µA TJ TSTG -55 to +150 -55 to +150 °C °C NOTES:DBS for surface mount package. http://www.microdiode.com Rev:2024A3 Page :1 DB151S THRU DB157S Voltage Range - 50 to 1000 Volts Current - 1.5 Ampere Ratings And Characteristic Curves The curve above is for reference only. http://www.microdiode.com Rev:2024A3 Page :2
