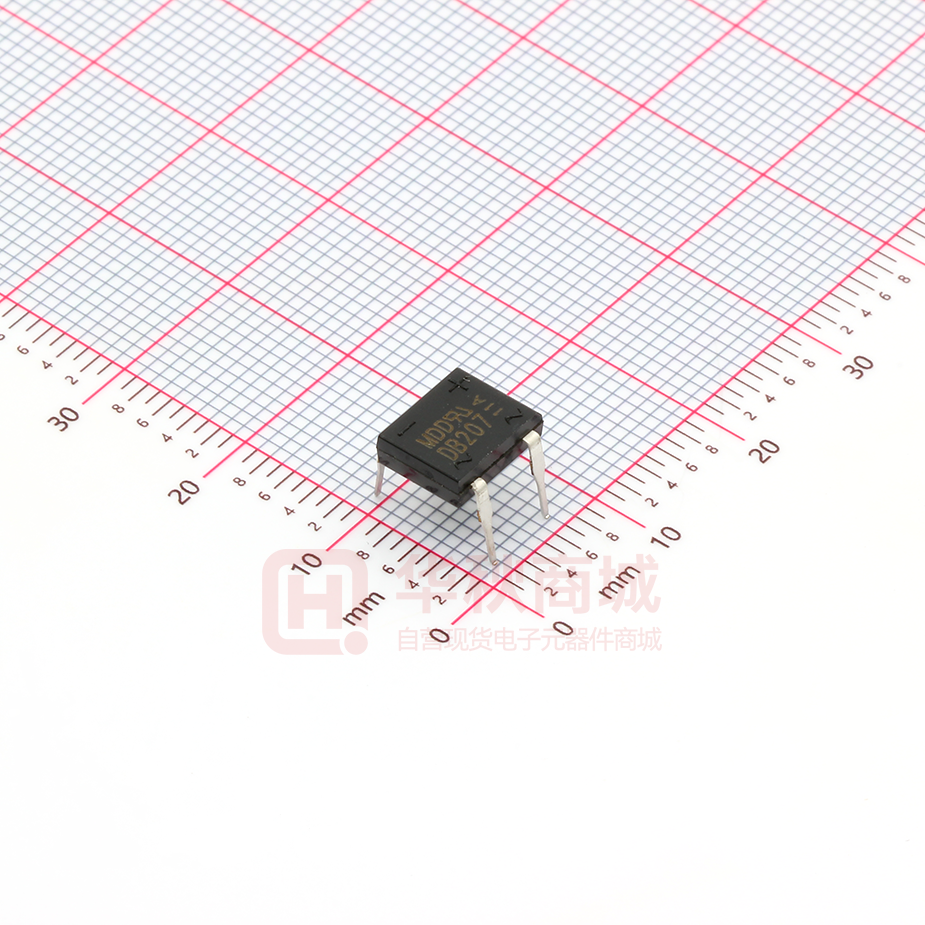

DB207

DB201 THRU DB207 Voltage Range - 50 to 1000 Volts Current - 1.0 Ampere SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS Features DB  Ideal for printed circuit board  Reliable low cost construction utilizing molded plastic technique +  High temperature soldering guaranteed: 260°/10 seconds at 5 lbs., (2.3kg) tension  Small size, simple installation  High surge current capability 0.255(6.5) 0.350(8.9) 0.245(6.2) 0.300(7.6) 0.335(8.51) 0.325(8.10) （1） （2） - + 0.135(3.4) 0.115(2.9) Mechanical Data 0.185(4.69) 0.150(3.81) 0.020(.51) 0.016(.41) 0.060 0.205(5.2) Case : JEDEC DB Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on case Mounting Position : Any Weight : 0.02 ounce, 0.4 grams (1.5) 0.195(5.0) ~ ~ （3） （4） Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TC=40°C Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage drop per leg at 2A Maximum DC reverse current TA=25°C at rated DC blocking voltage TA=100°C Operating temperature range storage temperature range VRRM VRMS VDC MDD MDD MDD MDD MDD MDD MDD UNITS DB201 DB202 DB203 DB204 DB205 DB206 DB207 V 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V 50 100 200 400 600 800 1000 IF(AV) 2.0 A IFSM 50 A VF 1.1 V IR 10 500 µA µA TJ TSTG -55 to +150 -55 to +150 °C °C Note: 1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts. 2.Unit mounted on P.C. board with 0.51” x 0.51”(13x13mm) copper pads. http://www.microdiode.com Rev:2024A2 Page :1 DB201 THRU DB207 Voltage Range - 50 to 1000 Volts Current - 1.0 Ampere Ratings And Characteristic Curves Average Forward Output Current, Amperes 2.0 60Hz Resistive of Inductive Load 1.0 Fig. 2 Maximum Non-repetitive Peak Forward Surge Current Peak Forward Surge Current, Amperes Fig. 1 Derating Curve for Output Rectified Current 60 8.3ms Single half-sine-Wave [JEDEC Method] 50 40 30 20 10 0 10 1 100 Number of Cycles at 60HZ Fig. 4 Typical Revers Characteristics 100 0 60 80 100 120 140 Ambient Temperature, C Fig. 3 Typical Instantaneous Forward Characteristics Tj=125 C 10 1.0 Tj=25 C 0.1 .01 Tj=25 C Pulse Width=300us 2% duty cycle 1.0 0 20 40 60 100 100 120 140 Tj=25C f=1.0MHz Vsig =50mV p.p. 0.1 .01 0.4 80 Percent of Rated Peak Reverse Voltage, % Fig. 5 Typical Junction Capacitance 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage, Volts 1.4 Capacitance, pF Instantaneous Forward Current, Amperes 10 Instantaneous Reverse Current ,Amperes 40 10 1 1.5 2 10 100 Reverse Voltage, Volts The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2
