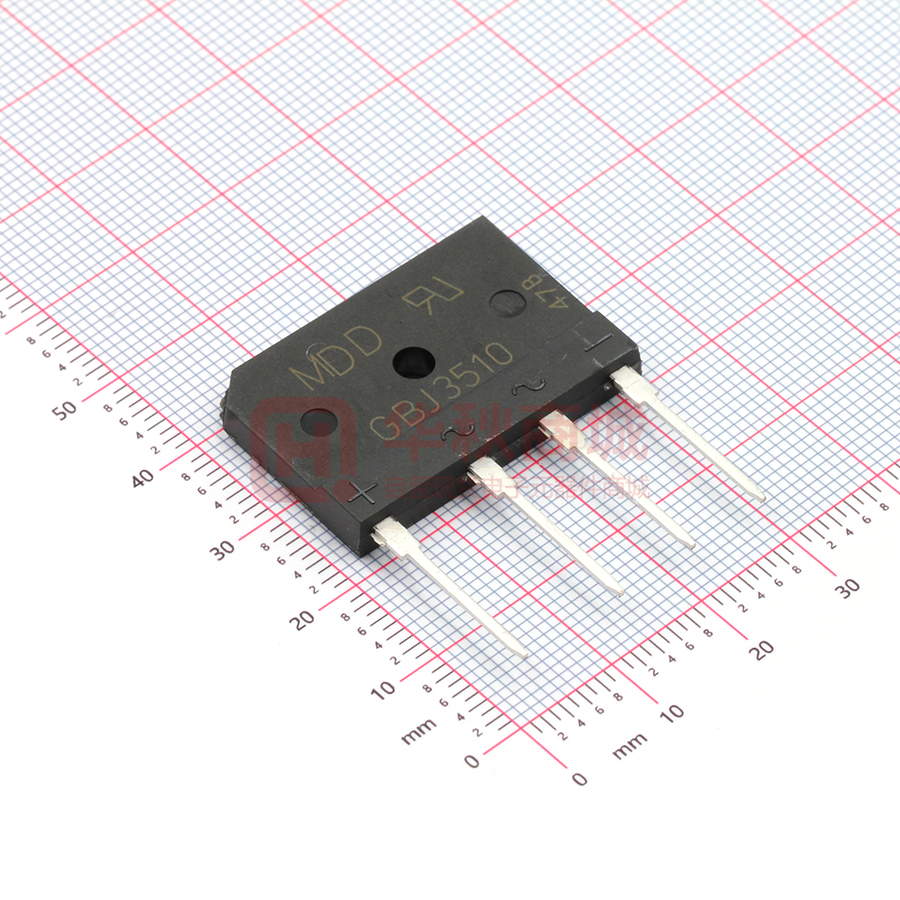

GBJ35005 THRU GBJ3510
SILICON BRIDGE RECTIFIERS
Reverse Voltage - 50 to 1000 Volts
GBJ
? .134(3.4)
? .122(3.1)
.189(4.8)
.173(4.4)
.150(3.8)
.134(3.4)
.094(2.4)
.078(2.0)
.043(1.1)
.035(0.9)
FEATURES
.441(11.2)
.425(10.8)
? .134(3.4)
? .122(3.1)
Rating to 1000V PRV
Ideal for printed circuit board
Low forward voltage drop,high current capability
Reliable low cost construction utilizing molded
plastic technique results in inexpensive product
.165(4.2)
.142(3.6)
.708(18.0)
.669(17.0)
+
~ ~ _
.198 MAX
(5.1)
.800(20.3)
.776(19.7)
1.193(30.3)
1.169(29.7)
.118(3.0)*45°
.106(2.7)
.096(2.3)
Forward Current - 35.0 Amperes
The plastic material has U/L flammability
.114(2.9)
.098(2.5)
classification 94V-0
.031(0.8)
.023(0.6)
.402(10.2) .303(7.7).303(7.7)
SPACING
.386(9.8) .287(7.3).287(7.3)
Dimensions in inches and (milimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
MDD Catalog Number
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum Average Forward (with heatsink Note 2)
Rectified Current @ T C =100℃ (without heatsink)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage drop
per birdge element at 17.5A
Maximum DC reverse current
TA=25 C
at rated DC blocking voltage
TA=125 C
It Rating for Fusing (t
