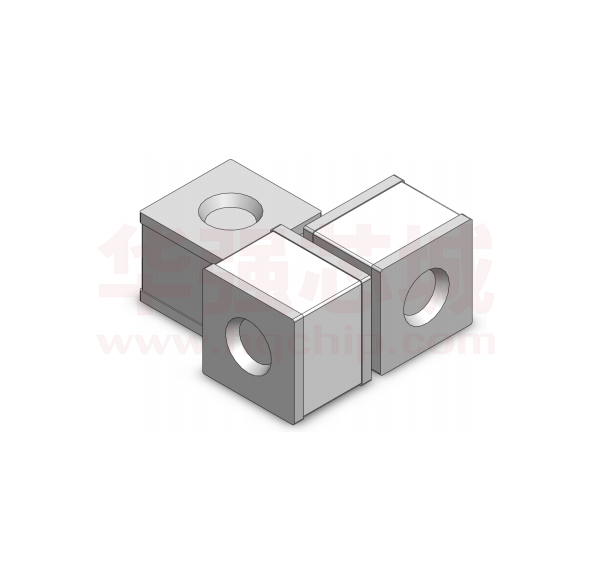

UN3E5-230L

3-Electrode Gas Discharge Tube (GDT) UN3E5 Series UN3E5-XXXLM Description UN3E5-XXXL Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters. They are thus fitted at the input of the power supply UN3E5-XXXLSMD system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems. These protective components are also indispensable in other Schematic Symbol sectors, In AC power transmission systems, they are often used with current-limiting varistors, In customer premises equipment such as DSL modems, WLAN routers, TV sets and cable modems a a = Tip b = Ring e = Ground (Center electrode) b In air-conditioning equipment, the integral black-box concept offers graduated protection by combining arresters with varistors, PTC, e diodes and inductor. Agency Approvals Features u Non-Radioactive u RoHS compliant u Low insertion loss u Excellent response to fast rising transients u Ultra low capacitance u 5KA surge capability tested with 8/20μs AGENCY E341061 Product Characteristics Materials pulse as defined by IEC 61000-4-5 Applications u u u u u u u u u u u Product Marking Communication equipment CATV equipment Test equipment Data lines Power supplies Telecom SLIC protection Broadband equipment ADSL equipment, including ADSL2+ XDSL equipment Satellite and CATV equipment Consumer electronics Leaded Device: Nickel-plated Tinplated wires Surface Mount: Dull Tin-plated XXX L -Nominal voltage -5KA < 0.5 Amps Glow Voltage ~60 Volts Storage and Operational Temperature -40 to +90°C Climatic category (IEC 60068-1) with UNION XXXL Glow to Arc Transition Current Weight SOCAY Electronics Co., Ltd. Revision March 6, 2014 AGENCY FILE NUMBER UN3E5-XXXLM ~0.78g UN3E5-XXXLM ~0.66g UN2E5-XXXLSMD ~0.68g 40/ 90/ 21 www.socay.com 1/4 @SOCAY Electronics Co., Ltd. 2014 Specifications are subject to change without notice. Please refer to www.socay.com for current information. 3-Electrode Gas Discharge Tube (GDT) UN3E5 Series Dimensions (Unit: mm) Radial Leaded Devices (UN3E5-XXXLM) Without wire Devices (UN3E5-XXXL) Surface Mount Devices (UN3E5-XXXLSMD) Recommended Pad Outline Electrical Characteristics Service Life DC Spark-over Voltage Part Number UN3E5-75LM UN3E5-75L UN3E5-75LSMD UN3E5-90LM UN3E5-90L UN3E5-90LSMD UN3E5-150LM UN3E5-150L UN3E5-150LSMD UN3E5-230LM UN3E5-230L UN3E5-230LSMD UN3E5-250LM UN3E5-250L UN3E5-250LSMD UN3E5-300LM UN3E5-300L UN3E5-300LSMD UN3E5-350LM UN3E5-350L UN3E5-350LSMD UN3E5-420LM UN3E5-420L UN3E5-420LSMD UN3E5-470LM UN3E5-470L UN3E5-470LSMD UN3E5-600LM UN3E5-600L UN3E5-600LSMD Maximum Impulse Spark-over Voltage Marking @100V/S @100V/μs @1KV/μs UNION 75L 75V±20% ＜500V ＜600V UNION 90L 90V±20% ＜500V ＜600V UNION 150L 150V±20% ＜500V ＜600V UNION 230L 230V±20% ＜600V ＜700V UNION 250L 250V±20% ＜600V ＜700V UNION 300L 300V±20% ＜800V ＜900V UNION 350L 350V±20% ＜800V ＜900V UNION 420L 420V±20% ＜900V ＜1000V UNION 470L 470V±20% ＜900V ＜1000V UNION 600L 600V±20% ＜1100V ＜1200V Maximum Minimum Capacitance Insulation Resistance 1 GΩ (at 25V) 1 GΩ (at 50V) 1 GΩ (at 50V) 1 GΩ (at 100V) 1 GΩ (at 100V) 1 GΩ (at 100V) 1 GΩ (at 100V) 1 GΩ (at 100V) 1 GΩ (at 100V) 1 GΩ (at 100V) Arc Voltage Nominal Impulse Discharge Current Nominal Max Impulse Alternating Discharge Discharge Current Current Impulse Life @1MHz @1A @8/20μs 4) ±5 times @8/20μs 4) 1 time @50Hz 4) 1 Sec 10 times @10/1000μs 4) 300 times ＜1.5pF ~15V 5KA 10KA 5A 200A ＜1.5pF ~15V 5KA 10KA 5A 200A ＜1.5pF ~20V 5KA 10KA 5A 200A ＜1.5pF ~20V 5KA 10KA 5A 200A ＜1.5pF ~20V 5KA 10KA 5A 200A ＜1.5pF ~20V 5KA 10KA 5A 200A ＜1.5pF ~20V 5KA 10KA 5A 200A ＜1.5pF ~20V 5KA 10KA 5A 200A ＜1.5pF ~20V 5KA 10KA 5A 200A ＜1.5pF ~20V 5KA 10KA 5A 200A Notes: 1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008 2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859 3). Tip or ring electrode to center electrode 4). Total current through center electrode, half value through tip respectively ring electrode SOCAY Electronics Co., Ltd. Revision March 6, 2014 www.socay.com 2/4 @SOCAY Electronics Co., Ltd. 2014 Specifications are subject to change without notice. Please refer to www.socay.com for current information. 3-Electrode Gas Discharge Tube (GDT) UN3E5 Series Electrical Rating Item Test Condition / Description DC Spark-over Voltage Impulse Spark-over Voltage Insulation Resistance Capacitance Requirement The voltage is measured with a slowly rate of rise dv / dt=100V/s The maximum impulse spark-over voltage is measured with a rise time of dv / dt=100V//μs or 1KV/μs The resistance of gas tube shall be measured each terminal each other terminal, please see above spec. The capacitance of gas tube shall be measured each terminal to each other terminal. Test frequency :1MHz The maximum current applying a waveform of 8/20μs that can be applied across the terminals of the gas tube. One hour after the test is completed, re-testing of the DC spark-over voltage does not exceed ±30% of the nominal DC spark-over voltage. Dwell time between pulses is 3 minutes. I 1.0 0.9 To meet the specified value Nominal Impulse Discharge Current 0.5 0.1 0.0 8μsec 20μsec Nominal Alternating Discharge Current 30% Max T Rated RMS value of AC current at 50Hz, 1 sec. 10 times. Intervals: 3min. The DC spark-over voltage does not exceed ±30% of the nominal DC spark-over voltage. 8 IR > 10 ohms. Recommended soldering profile Reflow soldering Wave soldering Soldering profile applied a single process Soldering Parameters - Hand Soldering Solder Iron Temperature: 350°C +/-5°C Heating Time: 5 seconds max. SOCAY Electronics Co., Ltd. Revision March 6, 2014 www.socay.com 3/4 @SOCAY Electronics Co., Ltd. 2014 Specifications are subject to change without notice. Please refer to www.socay.com for current information. 3-Electrode Gas Discharge Tube (GDT) UN3E5 Series Part Numbering UN3E5 – XXX L M M, with wire No, without wire SMD, Surface Mount 8/20μs Level L, 5KA Nominal DC Spark-over Voltage 75 = 75V 300=300V 90 =90V 350 =350V 150 = 150V 470 =470V 230 = 230V 600 = 600V Series Packaging Part Number Description Quantity UN3E5-XXXLM 100PCS per Tray, 10 Trays / Inner 1000 UN3E5-XXXL 100PCS per Tray, 10 Trays / Inner 1000 100PCS per Tray, 10 Trays/ Inner 1000 16mmTape & 13″ Reel 1000 UN3E5-XXXLSMD Tray Dimension Tape and Reel Dimension (Unit: mm) (Unit: mm) Cautions and warnings u u u u Gas discharge tubes (GDT) must not be operated directly in power supply networks. Gas discharge tubes (GDT) may become hot in case of longer periods of current stress (danger of burning). Gas discharge tubes (GDT) may be used only within their specified values. In the event of overload, the head contacts may fail or the component may be destroyed. Damaged Gas discharge tubes (GDT) must not be re-used. SOCAY Electronics Co., Ltd. Revision March 6, 2014 www.socay.com 4/4 @SOCAY Electronics Co., Ltd. 2014 Specifications are subject to change without notice. Please refer to www.socay.com for current information.
