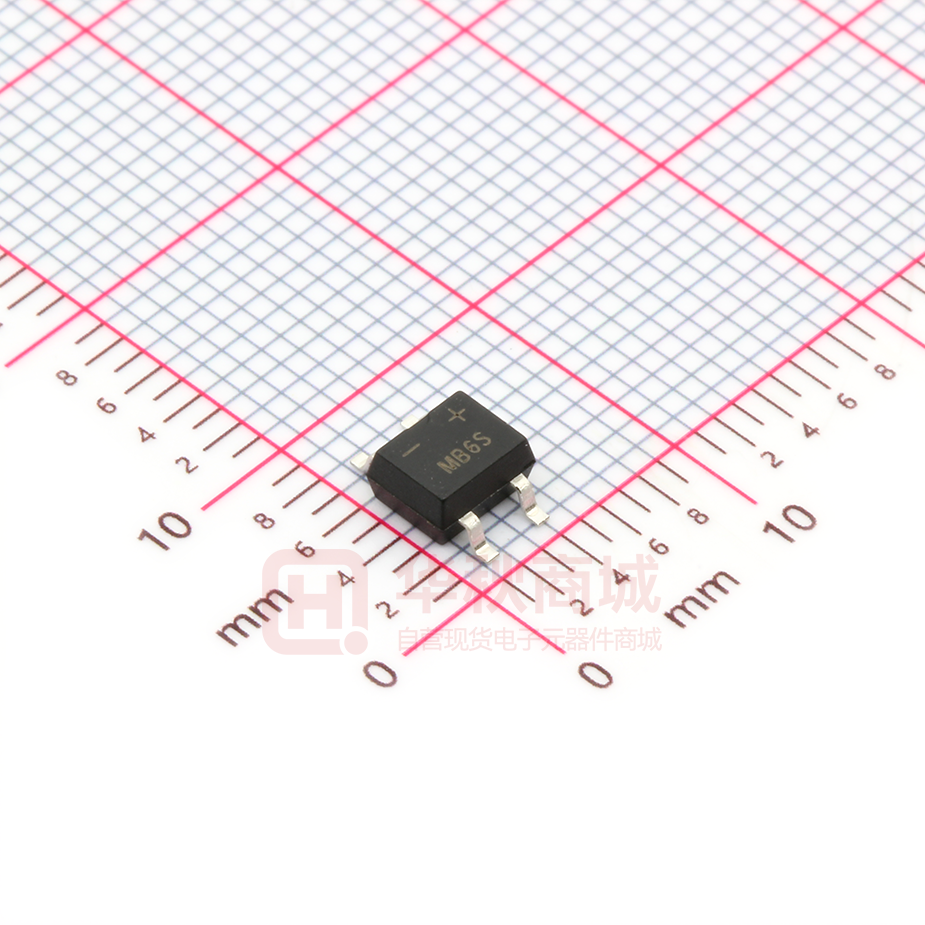

0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
FEATURES:
• Glass Passivated Chip Junction
• Reverse Voltage - 100 to 1000 V
• Forward Current - 0.8 A
• High Surge Current Capability
• Designed for Surface Mount Application
MECHANICAL DATA
• Case: MBS
• Terminals: Solderable per MIL-STD-750,
750, Method 2026
• Approx. Weight: 100mg /0.0035oz
Maximum Ratings and Electrical characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.Single phase half-wave
half wave 60 Hz, resistive or inductive load, for capacitive load
current derate by 20 %.
Parameter
Symbols
MB1S
MB2S
MB4S
MB6S
MB8S
MB10S
Units
Maximum Repetitive Peak Reverse Voltage
VRRM
100
200
400
600
800
1000
V
Maximum RMS voltage
VRMS
70
140
280
420
560
700
V
Maximum DC Blocking Voltage
VDC
100
200
400
600
800
1000
V
Average Rectified Output Current
at Ta = 50 °C
IO
0.8
A
IFSM
30
A
Peak Forward Surge Current 8.3 ms Single
Half Sine Wave Superimposed on Rated Load
(JEDEC Method)
at 0.4 A
1.0
VF
Maximum Forward Voltage
V
1.1
at 0.8 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@TA=25 °C
5
IR
Typical Junction Capacitance(Note1)
Cj
13
RθJA
95
RθJL
30
Tj, Tstg
-55 ~ +150
Typical Thermal Resistance(Note2)
Operating and Storage Temperature Range
μA
40
@TA=125 °C
Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C.
1 of 3
pF
℃/W
℃
2. Mounted on glass epoxy PC board with 44×(5×5mm2 )copper pad.
2 of 3
PACKAGE OUTLINE
Plastic surface mounted package; 4 leads
MBS mechanical data
3 of 3
