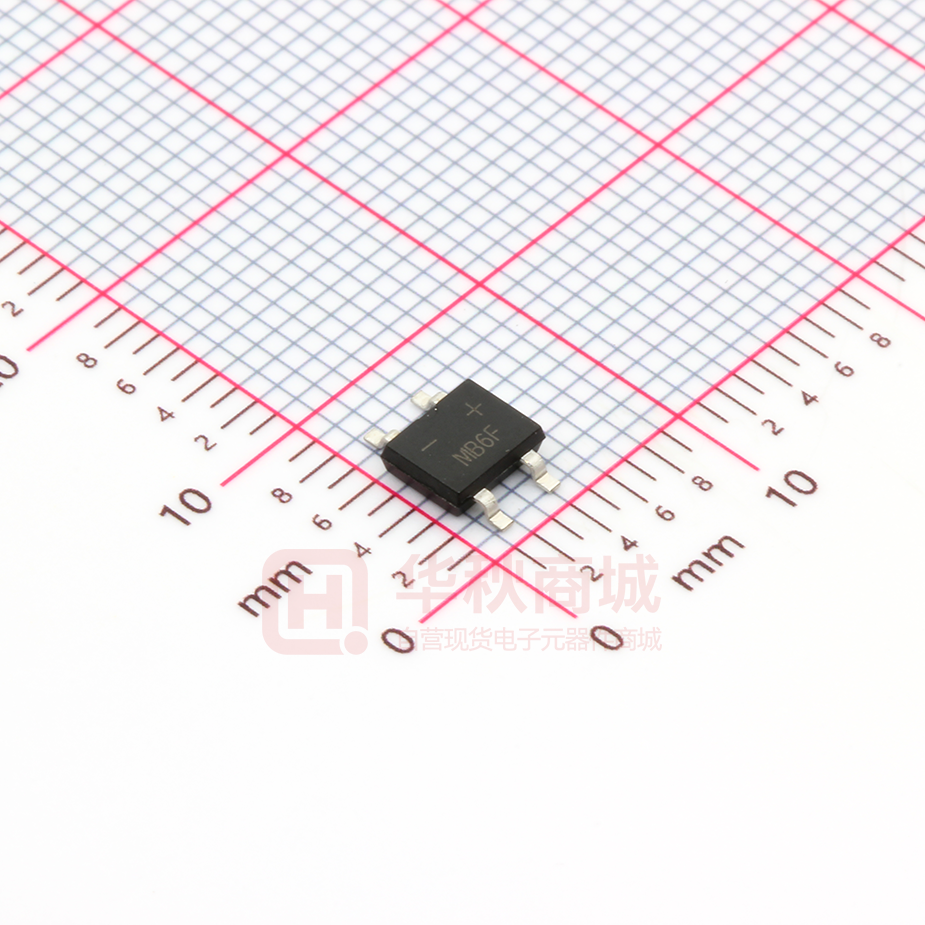

MB6F

0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: • Glass Passivated Chip Juntion • Reverse Voltage - 50 to 1000 V • Forward Current - 0.8 A • High Surge Current Capability • Designed for Surface Mount Application MECHANICAL DATA • Case: MBF • Terminals: Solderable per MIL-STD-750, 750, Method 2026 • Approx. Weight: 75mg 0.0024oz Maximum Ratings and Electrical characteristics Ratings at 25°C C ambient temperature unless otherwise specified.Single phase half-wave wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 % Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. Mounted on glass epoxy PC board with 1.3mm2 copper pad pad. 1 of 3 2 of 3 PACKAGE OUTLINE Plastic surface mounted package; 4 leads MBF 3 of 3
