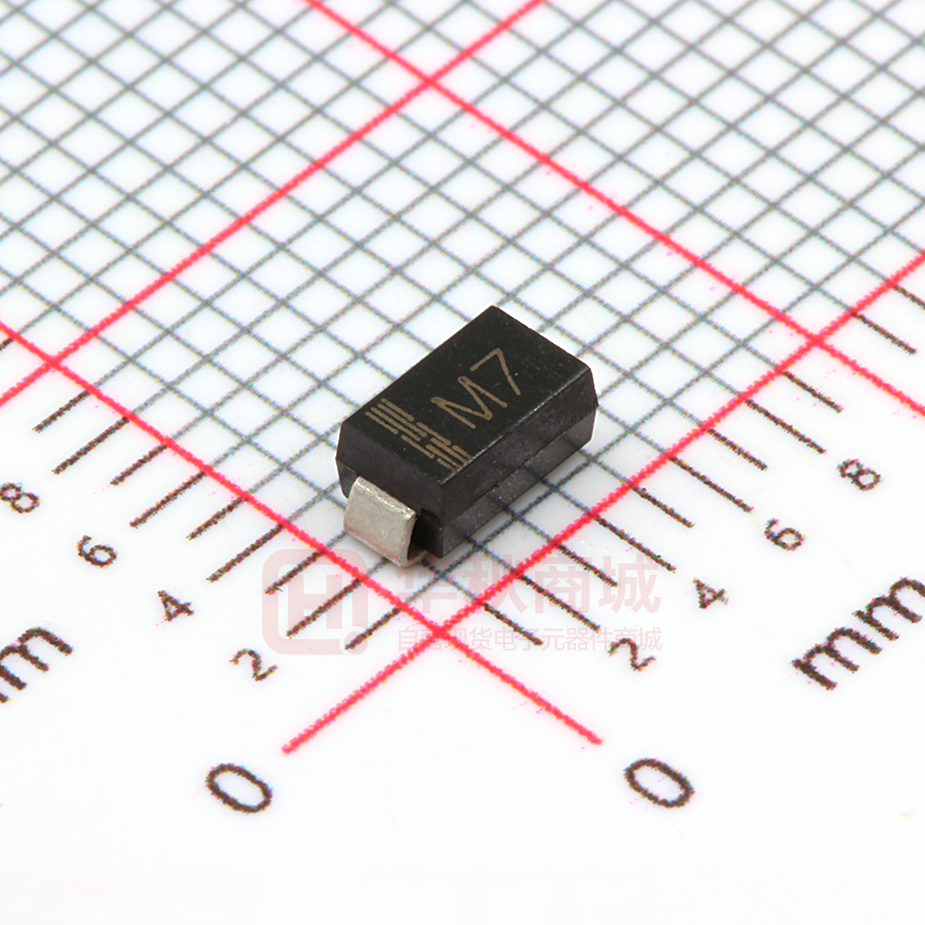

M1 thru M7 SURFACE MOUNT GLASS PASSIVATED RECTIFIER REVERSE VOLTAGE – 50 to 1000 Volts FORWARD CURRENT – 1.0 Ampere FEATURES • Glass passivated chip • For surface mounted applications • Low reverse leakage current • Low forward voltage drop • High current capability SMA A SMA B MECHANICAL DATA • Case: Molded plastic • Case Material: “Green” molding compound, UL flammability classification 94V-0, (No Br. Sb. Cl.), “Halogen-free” • Suffix "Q" with Part No. means AEC-Q101 Qualified • Polarity: Indicated by cathode band • Weight : 0.07 grams ( Approximate ) C G DIM. MIN. MAX A 4.06 4.57 B 2.29 2.92 C 1.27 1.63 D 0.15 0.31 E 4.83 5.59 F 0.05 0.20 1.96 2.40 G D F H H E 0.76 1.52 All dimension in millimeter MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. ABSOLUTE RATINGS SYMBOL M1 M2 M3 M4 M5 M6 M7 Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V PARAMETER @ TL=100°C Average rectified output current @ TC=100°C Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load. ( JEDEC METHOD) Operation and storage temperature range UNIT IF(AV) 1.0 A IFSM 30 A TJ, TSTG -55 to +150 °C SYMBOL MAX UNIT VF 1.1 V IR 5.0 50 uA CJ 10 pF SYMBOL TYP. UNIT RthJL RthJC 75 °C/W STATIC ELECTRICAL CHARACTERISTICS PARAMETER TEST CONDITION Forward voltage IF=1.0A Reverse leakage current VR at rated TJ=25°C TJ=125°C Typical junction capacitance (Note 1) THERMAL CHARACTERISTICS PARAMETER Typical thermal resistance (Note 2) DYNAMIC ELECTRICAL CHARACTERISTICS Note : (1) (2) Measured at 1.0MHz and applied reverse voltage of 4.0V DC. Thermal resistance junction to ambient, case and lead. 1/2 M1 thru M7 RATING AND CHARACTERISTIC CURVES FIG.2- MAXIMUM NON-REPETITIVE SURGE CURRENT FIG.1- FORWARD CURRENT DERATING CURVE 35 PEAK FORWARD SURGE CURRENT,(A) AVERAGE FORWARD CURRENT, (A) 1.2 1 0.8 0.6 0.4 0.2 30 25 20 15 10 8.3ms single half sine-wave 5 8.3ms single half sine-wave 0 0 0 25 50 75 100 125 1 150 10 NUMBER OF CY CLES AT 60Hz LEAD TEMPERATURE, (°C) FIG.3- TYPICAL FORWORD CHARACTERISTICS FIG.4- TYPICAL REVERSE CHARACTERISTICS 100 INSTANTANEOUS REVERSE CURRENT, (uA) 10 INSTANTANEOUS FORWARD CURRENT, (A) 100 1 TJ= 25°C 0.1 10 TJ= 125°C 1 TJ= 75°C 0.1 TJ= 25°C 0.01 0.01 0 0.2 0.4 0.6 0.8 1 1.2 1.4 0 1.6 200 400 600 800 1000 1200 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) INSTANTANEOUS FORWARD VOLTAGE, (V) 2/2 1400
