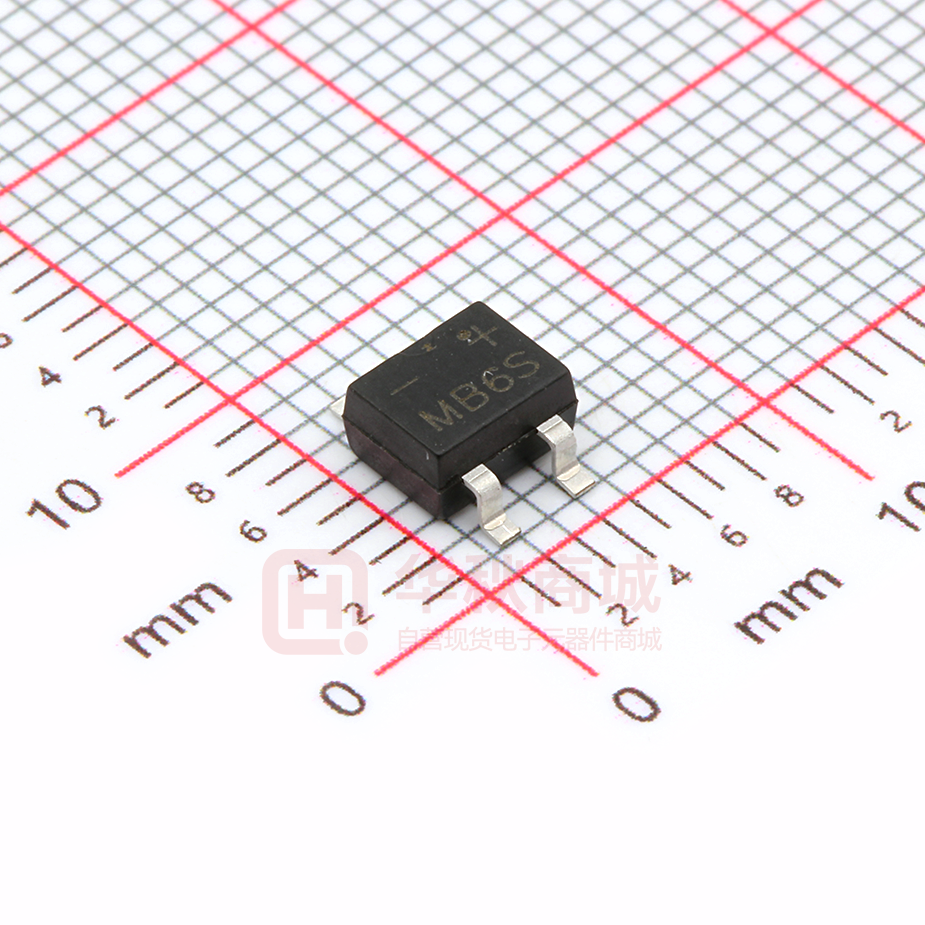

MB6S

MB1S~MB10S Single Phase 1.0Amp Glass passivated Bridge Rectifiers Features MBS The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Idea for printed circuit board Glass passivated Junction chip Low reverse leakage High forward surge current capability High temperature soldering guaranteed 250 C/10 seconds at terminals Mechanical Data Case: Molded plastic body Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Polarity symbol marking on body Mounting Position: Any Dimensions in inches and (millimeters) Weight : 0.008 ounce, 0.22 grams Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load, for capacitive load current derate by 20%. SYMBOLS MB1S MB2S MB4S MB6S MB8S MB10S UNITS Maximum repetitive peak reverse voltage VRRM 100 200 400 600 800 1000 VOLTS Maximum RMS voltage VRMS 70 140 280 420 560 700 VOLTS Maximum DC blocking voltage VDC 100 200 400 600 800 1000 VOLTS Maximum average forward rectified current at TL =30 C On glass-epoxy P.C.B (Note 1) I(AV) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM Maximum instantaneous forward voltage at 1.0A 1.0 Amp 35.0 Amps VF 1.0 Volts Maximum DC reverse current T A =25 C at rated DC blocking voltage TA=125 C IR 5.0 500 uA Typical junction capacitance (Note 2) CJ 25.0 pF RqJA 55.0 C/W TJ,TSTG -50 to +155 C Typical thermal resistance Operating junction and storage temperature range Note:1.Mounted on glass epoxy PC board with 1.3*1.3mm solder pad 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. Rev.2013A Page 1 MB1S~MB10S Ratings And Characteristic Curves MB1S THRU MB10S FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT PERLEG 35 Peak Forward Surage Current Amperes 1.0 0.9 0.8 Amperes Average Forward Rectified Current FIG. 1- DERATING CURVE OUTPUT RECTIFIED CURRENT 0.7 0.6 0.5 0.4 0.3 0.2 0 20 40 60 80 100 120 140 30 25 20 15 f=50Hz 10 5 160 1Cycle 0 1 10 FIG. 4-TYPICAL REVERSE LEAKAGE CHARACTERISTICS 1 Amperes Instantneous Forward Current 10 TJ=25 Pulse Width=300us 1% Duty Cycle 0.01 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 Volts Instantaneou Foward Voltage 100 Micro Amperes Instantaneous Reverse Leakage Current FIG. 3-TYPICAL FORWARD VOLTAGE CHARACTERISTICS 0.1 100 Number of cycles Ambient Temperature Tj = 125°C 10 1.0 Tj = 25°C 0.1 0.01 0 20 40 60 80 100 120 140 Percent Of Rated Peak Reverse Voltage(%) FIG. 5-TYPICAL JUNCTION CAPACTITANE 30 TJ=25 f=1.0MHZ Vsig=50mV p-p 20 pF Junction Capacitance 25 15 10 5 0 0.1 1 10 100 200 Volts Reverse Voltage Rev.2013A Page 2
