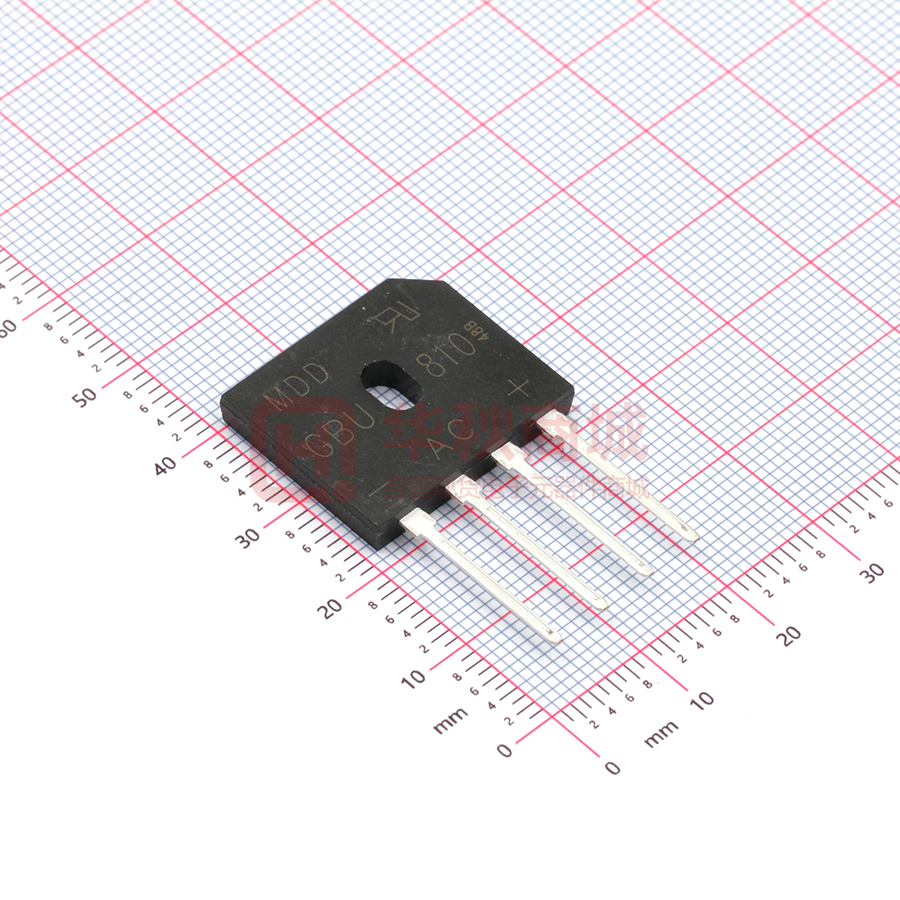

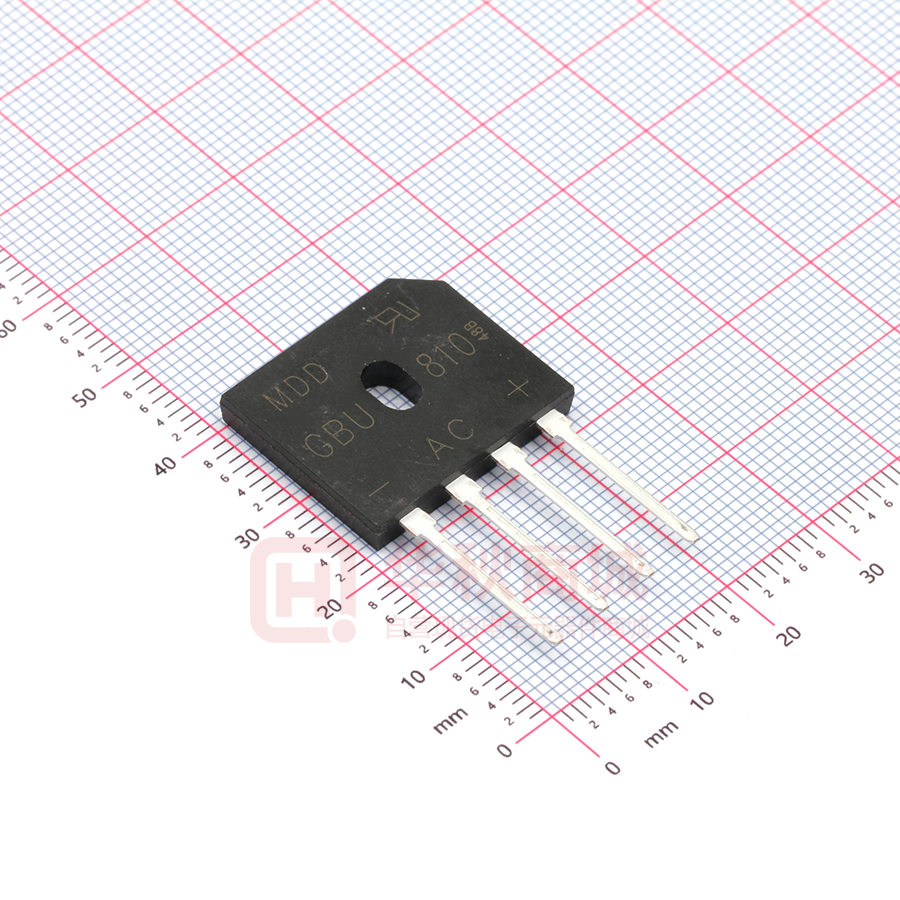

GBU8005 THRU GBU810
GLASS PASSIVATED BRIDGE RECTIFIERS
Reverse Voltage - 50 to 1000 Volts
Forward Current - 8.0 Amperes
GBU
.437(11.1)
.430(10.9)
FEATURES
.126(3.2)*45°
CHAMFER
.874(22.2)
.860(21.8)
.139(3.53)
.133(3.37)
Surge overload rating -175 amperes peak
Ideal for printed circuit board
.154(3.9)
.146(3.7)
.752(19.1)
.720(18.3)
Reliable low cost construction utilizing
.232(5.9)
.224(5.7)
molded plastic technique
.401(10.2)
.392(9.80)
.073(1.85)
.057(1.45)
Plastic material has U/L
lammability classification 94V-0
Mounting postition:Any
.100(2.54)
.085(2.16)
.720(18.29)
.680(17.27)
.047(1.2)
.035(0.9)
.080(2.03)
.065(1.65)
.210 .210
.190 .190
(5.3) (5.3)
(4.8) (4.8)
.210
.190
(5.3)
(4.8)
.106(2.7)
.091(2.3)
.022(.56)
.018(.46)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
MDD Catalog Number
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward(with heatsink NOTE 2)
Rectified current @ T c =100 C(without heatsink)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
SYMBOLS
GBU
8005
GBU
801
GBU
802
GBU
804
GBU
806
GBU
808
GBU
810
UNITS
VRRM
VRMS
VDC
50
35
50
100
70
100
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
1000
VOLTS
VOLTS
VOLTS
I(AV)
8.0
2.9
Amps
IFSM
200.0
Amps
Rating for Fusing(t
