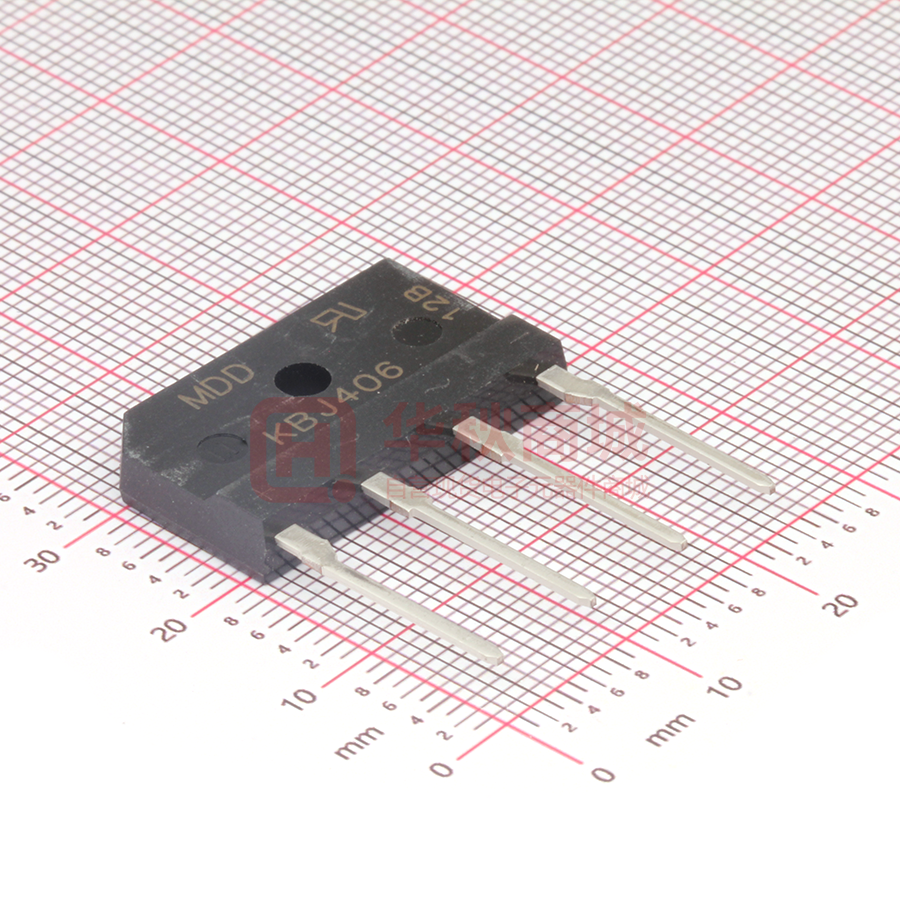

KBJ406

KBJ4005 THRU KBJ410 Reverse Voltage - 50 to 1000 Volts Forward Current - 4.0 Amperes GLASS PASSIVATED BRIDGE RECTIFIERS Features KBJ  Surge overload rating -135 amperes peak ? .134(3.4) ? .122(3.1)  Reliable low cost construction utilizing molded plastic technique .150(3.8) .130(3.3) Case : JEDEC KBJ Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any ~ .074(1.9) .059(1.5) Mechanical Data + ~ .057(1.45) .041(1.05) .083(2.1) .069(1.7) .043(1.1) .035(0.9) .114(2.9) .098(2.5) .708(18.0) .669(17.0) .157 (4.0) .118(3.0)*45° .602(15.3) .578(14.7)  Plastic material has U/L lammability classification 94V-0 .189(4.8) .173(4.4) .150(3.8) .134(3.4) ? .134(3.4) ? .122(3.1) .995(25.3) .983(24.7) .382(9.7) .366(9.3)  Ideal for printed circuit board .031(0.8) .023(0.6) .303(7.7) .303(7.7) .303(7.7) SPACING .287(7.3) .287(7.3) .287(7.3) Maximum Ratings And Electrical Characteristics Dimensions in inches and (millimeters) Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward(with heatsink NOTE 2) Rectified current @T c =100°C(without heatsink) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Rating for Fusing(t
