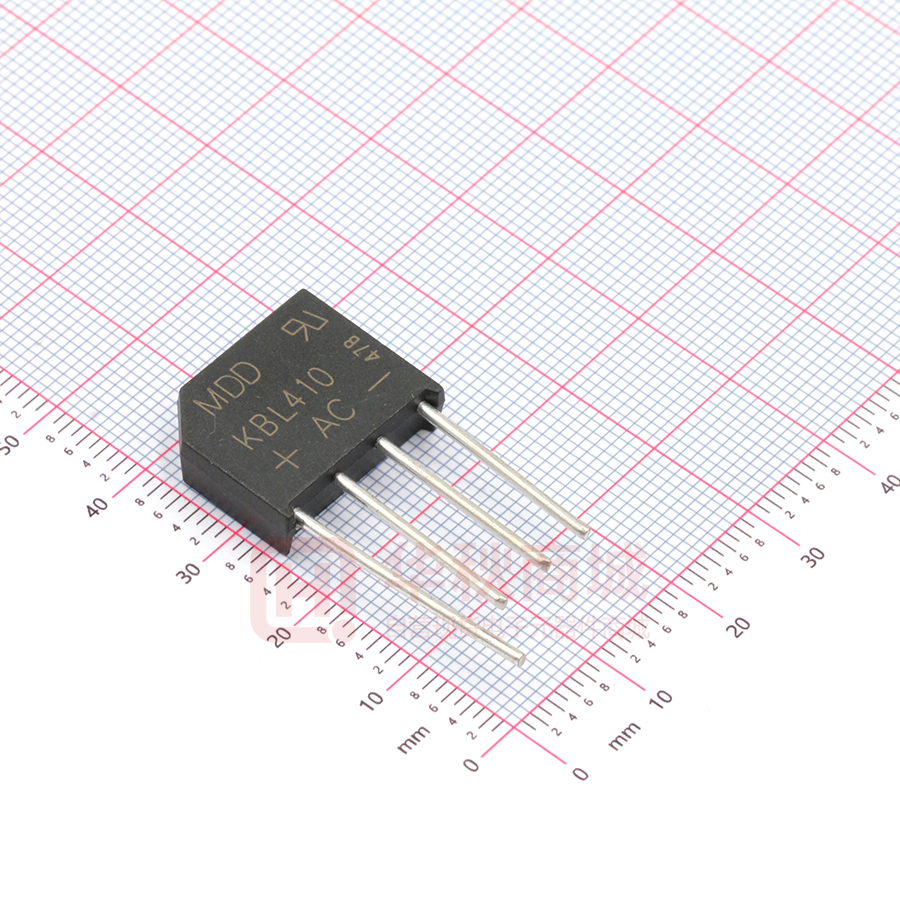

KBL4005 THRU KBL410 Reverse Voltage - 50 to 1000 V olts Forward Current - 4.0 Amperes SILICON BRIDGE RECTIFIERS Features KBL  The plastic package carries Underwriters Laboratory 0.768(19.5) 0.728(18.5) Flammability Classification 94V-0  Ideal for printed circuit boards  Low reverse leakage  High forward surge current capability 0.580(14.7) 0.540(13.7) 0.640(16.3) 0.598(15.2) +  High temperature soldering guaranteed: 260°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension AC - 0.670 (17.0) 0.052(1.3) 0.046(1.18) Mechanical Data MIN. Case : JEDEC KBL Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.22 ounce , 6.21 grams 0.083 (2.1) 0.220(5.6) 0.180(4.6) 0.256(6.5) 0.217(5.5) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward output rectified current at TA=50°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Rating for Fusing(t
