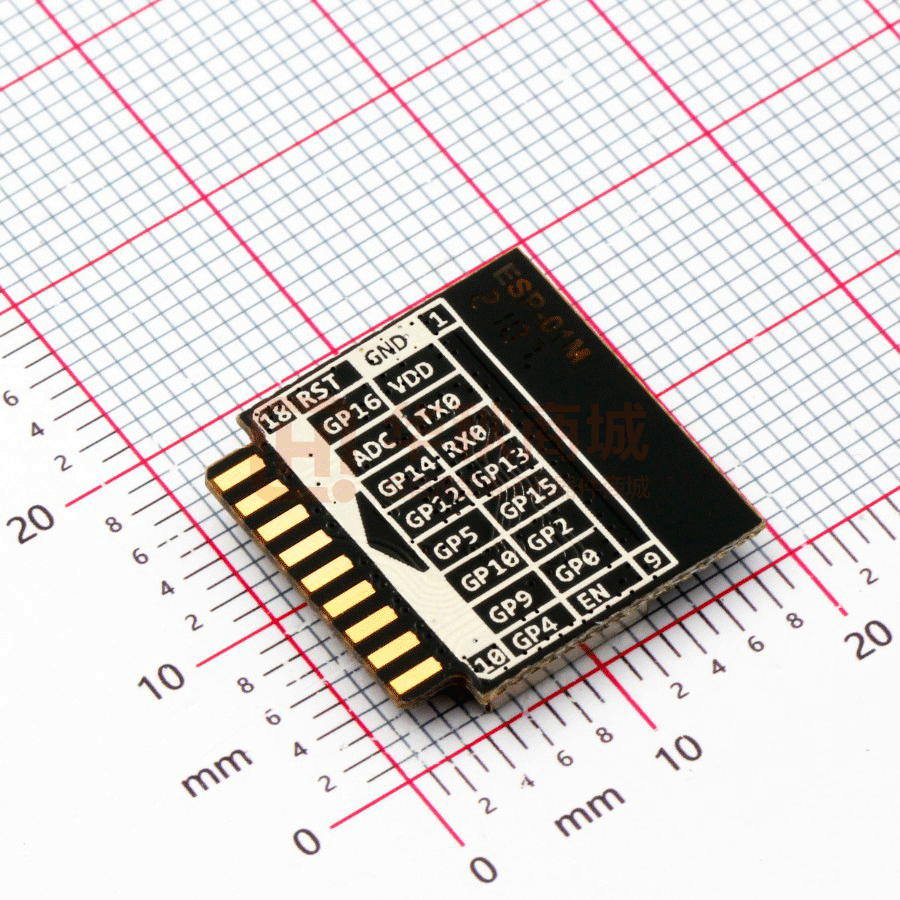

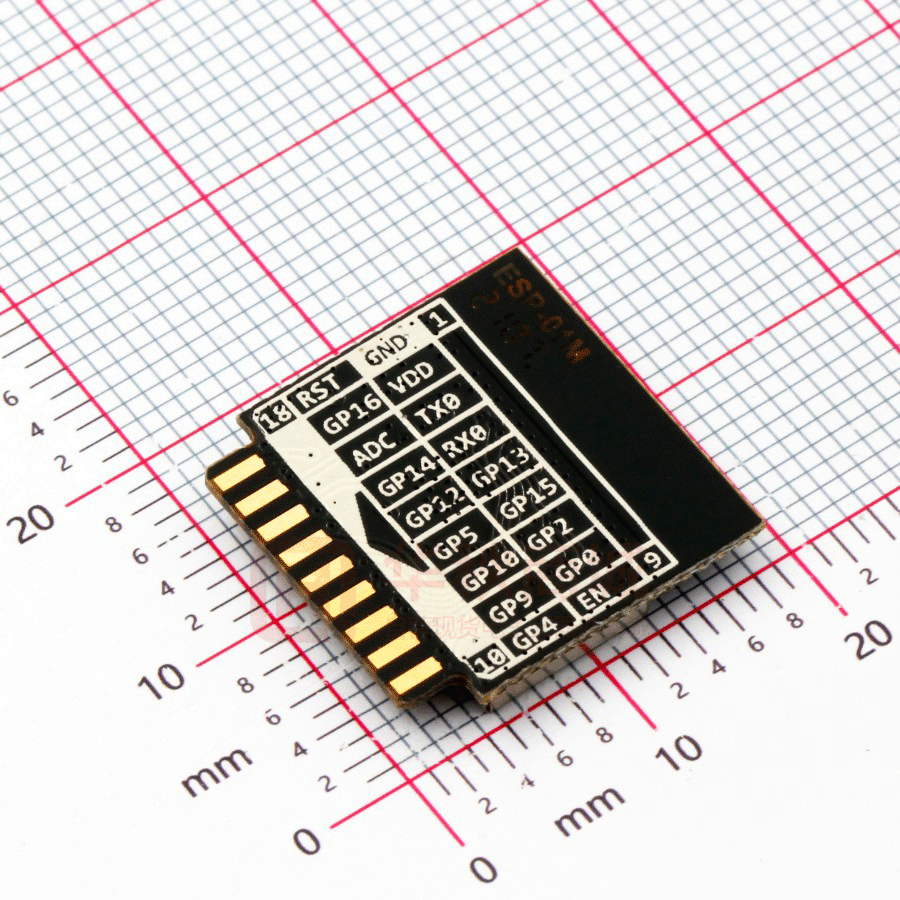

ESP-01M

ESP-01M 802.11 b/g/n Wi-Fi Module V1.1 1 4 2 5 8 Features ink er ESP-01M 802.11 b/g/n Wi-Fi Module 3 6 9 Overview - The smallest 802.11b/g/n Wi-Fi SOC module ESP-01M has a highly competitive package -T h - Low power 32-bit CPU, can also serve as the size and ultra-low power technology. application processor - Up to 160MHz clock speed - Built-in 10 bit high precision ADC - Supports UART/GPIO/PWM/ADC - Integrated Wi-Fi MAC/BB/RF/PA/LNA - Deep sleep current as low as 20uA - Embedded lwIP protocol stack - Supports STA/AP/STA + AP operation mode ESP-01M can be widely used in a variety of networking, for home automation, industrial wireless control, baby monitors, wearable electronic products, wireless location sensing devices, wireless positioning system signals and other networking applications. ESP-01M in DIP package, unique plug-in package design, it can be flexible access to - UART baudrate up to 4Mbps existing products, especially for automation, - General AT commands can be used quickly large-scale, - Supports remote firmware upgrade (FOTA) methods, easy to apply to a variety of things Ai - Support Smart Config/AirKiss technology low-cost modern production networking hardware terminal occasions. Copyright © 2017 ShenZhen Ai-Thinker Technology Co., Ltd All Rights Reserved Page 1 of 2 ESP-01M 802.11 b/g/n Wi-Fi Module V1.1 Product Specifications ESP-01M Package DIP-18 Size 18*18*2.8 SPI Flash Built-in 1MByte Interface UART/GPIO/PWM/ADC IO Port 11 UART Baudrate Support 300 ~ 4608000 bps Frequency Range 2412 ~ 2484MHz Antenna PCB antenna, 2 dBi ink er Module Model ±0.2 mm Default 115200 bps Secondary Development Support Receiving Sensitivity CCK, 1 Mbps : -90dBm CCK, 11 Mbps: -85dBm 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm Power (Typical Values) Continuous Transmission => Average: ~ 71mA, Peak: 300mA Modem Sleep: ~20mA Light Sleep: ~2mA Deep Sleep: ~0.02mA Security WEP/WPA-PSK/WPA2-PSK Power Supply Voltage 3.0V ~ 3.6V Operating temperature -20 ~ 85 Storage Environment -40 ~ 90 weight 0.4g Ai -T h Transmit Power 802.11b: 16±2 dBm (@11Mbps) 802.11g: 14±2 dBm (@54Mbps) 802.11n: 13±2 dBm (@HT20, MCS7) Current >300mA , < 90%RH Contact US ShenZhen Ai-Thinker Technology Co., Ltd Address: 6/F, Block C2, Huafeng Industrial Park, Hangcheng Road, Bao'an Road, Baoan District, Shenzhen ,China Website: www.ai-thinker.com Tel: 400-855-5368 Copyright © 2017 ShenZhen Ai-Thinker Technology Co., Ltd All Rights Reserved E-mail: support@aithinker.com Page 2 of 2
