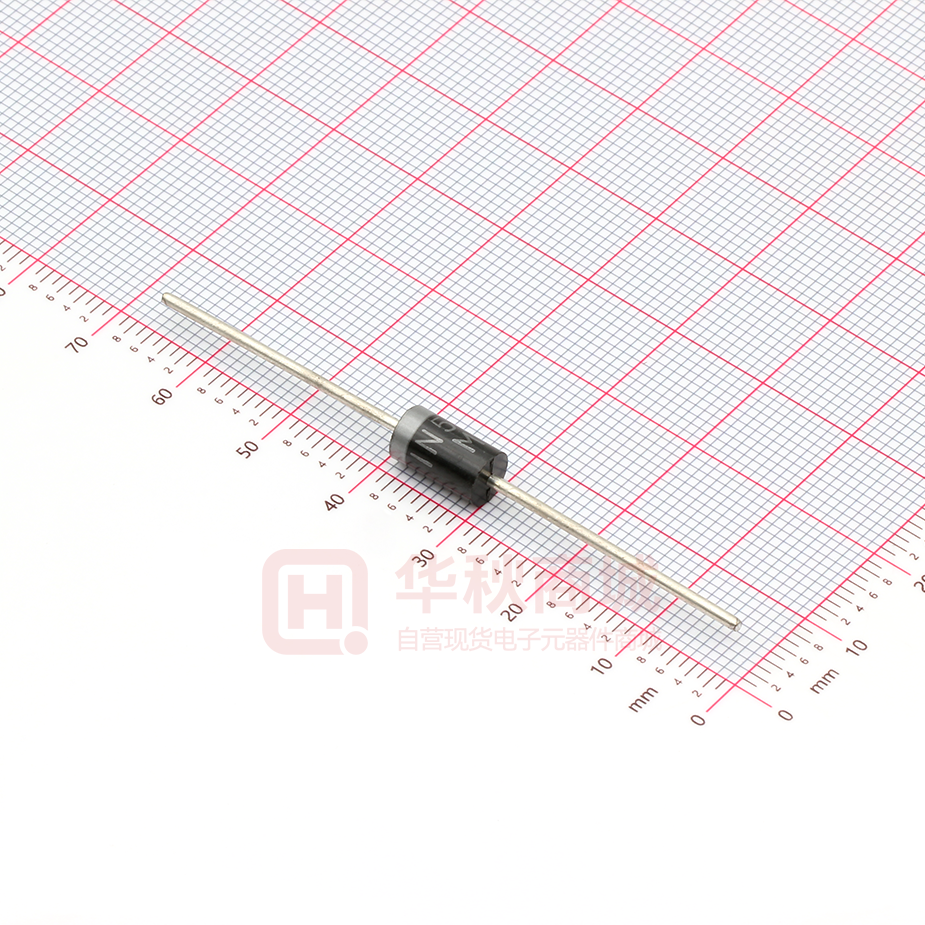

1N5822

1N5820 THRU 1N5822 Reverse Voltage - 20 to 40 Volts Forward Current - 3.0 Ampere SCHOTTKY BARRIER RECTIFIER Features DO-201AD  Plastic package has Underwriters Laboratory Flammability Classification 94V-0  Metal silicon junction,majority carrier conduction 1.0 (25.4) MIN.  Guardring for overvoltage protection  Low power loss,high efficiency  High current capability,low forward voltage drop  High surge capability 0.220(5.6) 0.190(5.0) DIA. 0.375 (9.50) 0.285(7.20)  For use in low voltage,high frequency inverters, free wheeling,and polarity protection applications  High temperature soldering guaranteed: 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.052 (1.3) 0.048 (1.2) DIA. Mechanical Data Case : JEDEC DO-201AD Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.04 ounce, 1.1 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS MDD 1N5820 MDD 1N5821 MDD 1N5822 UNITS VRRM VRMS VDC 20 14 20 30 21 30 40 28 40 V V V Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 0.375”(9.5mm) lead length at TL=95℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) I(AV) 3.0 A IFSM 80 A Maximum instantaneous forward voltage at 3.0A TA=25℃ Maximum DC reverse current at rated DC blocking voltage TA=100℃ VF IR 0.5 40.0 Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) CJ 300.0 RθJA 40.0 pF ℃/W TJ,TSTG -65 to +125 ℃ Operating junction and storage temperature range 0.475 0.500 0.525 V mA Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted http://www.microdiode.com Rev:2024A1 Page :1 1N5820 THRU 1N5822 Reverse Voltage - 20 to 40 Volts Forward Current - 3.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE AVERAGE FORWARD CURRENT,AMPERES 4 3 RESISTIVE OR INDUCTIVE LOAD 0.375” (9.5mm) LEAD LENGTH 2 1 0 0 20 40 60 80 100 120 140 LEAD TEMPERATURE, C PEAK FORWARD SURGE CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 80 70 60 50 40 30 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) TJ=TJmax 20 10 1 10 100 NUMBER OF CYCLES AT 60 Hz FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 50 10 TJ=125 C TJ=25 C 1 PULSE WIDTH=300 µs 1%DUTY CYCLE 0.1 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 100 1 TJ=75 C 0.1 TJ=25 C 0.01 0.001 0 1.6 TJ=25 C f=1.0MHz Vsig=50mVp-p 100 TRANSIENT THERMAL IMPEDANCE, C/W FIG. 5-TYPICAL JUNCTION CAPACITANCE 400 1.0 10 REVERSE VOLTAGE,VOLTS 40 60 80 100 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 10 0.1 20 PERCENT OF PEAK REVERSE VOLTAGE,% INSTANTANEOUS FORWARD VOLTAGE, VOLTS JUNCTION CAPACITANCE, pF TJ=100 C 10 0.1 1 10 100 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2 1N5820 THRU 1N5822 Reverse Voltage - 20 to 40 Volts Forward Current - 3.0 Ampere Package Information Taping Specifications Item Symbol Specifications(mm) Component Pitch A 10.0±0.5 Inner Tape Pitch B 52.4±1.5 Component alignment Z 1.2 Max Tape width T 6.0±0.5 Exposed adhesive E 0.8 Max Body eccentricity L1-L2 1.0 Max Ammunition Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 255*74*145 1000 410*275*340 10000 Bulk Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 198*86*21 200 460*220*250 10000 http://www.microdiode.com Rev:2024A1 Page :3
