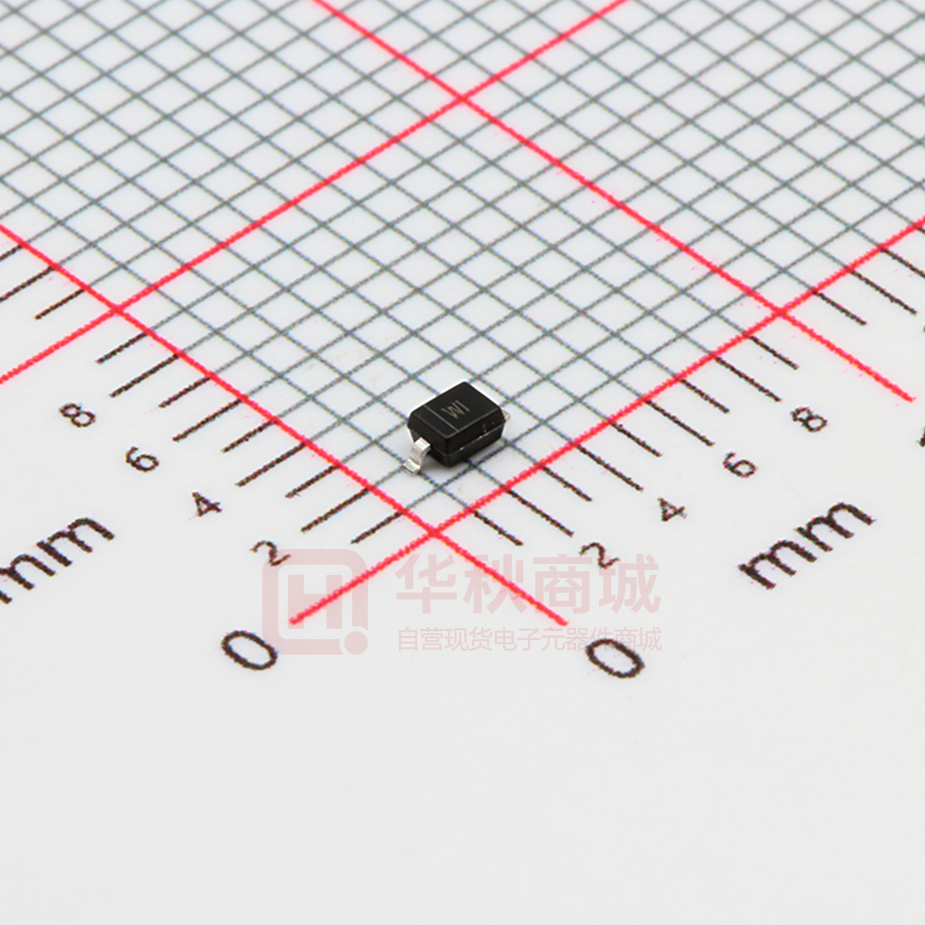

BZT52C13S

BZT52C2V4S-BZT52C51S ZENER DIODE SOD-323 FEATURES 1.35(0.053) 1.26(.050) 1.15(0.045) 1.24(.048) Planar die construction Ultra-Small surface mount package 2.75(0.108) 1.80(0.071) 2.75(0.108) 1.80(0.071) 2.30(0.091) 1.60(0.063) 2.30(0.091) 1.60(0.063) Ideally suited for automated assembly processes MECHANICAL DATA .177(.007) .089(.003) 0.4(0.016) .305(0.012) .25(0.010) .295(0.010) 1.00(.040) 0.1(0.004) 0.80(.031) MIN .72(0.028) .69(0.027) .08(.003) MIN Case: Molded plastic body Terminals: Plated leads solderable per MIL-STD-750, Method 2026 Polarity: Polarity symbols marked on case Dimensions in millimeters and (inches) ORDERING INFORMATION Type No BZT52C2V4S - BZT52C39S Type No Type No See table 2 SOD-323 Maximum ratings (Tamb=25 C unless otherwise specified) SYMBOLS Limits UNITS VF 0.9 V Pd 200 mW RΘJA 625 C/W Operating and storage temperature range TJ 150 C Storage temperature range TSTG -65 to +150 C PARAMETER Forward voltage (Note 2) @IF=10mA Power dissipation (Note1) Thermal resistance, Junction to ambient air (Note1) NOTES: 1.Valid provided that device terminals are kept at ambient temperature. 2.Short duration test pulse used in minimize self-heating effect. 3.f=1KHz. BZT52C2V4 S-BZT52C39 S ELECTRICAL CHARACTERISTICS Type Number BZT52C2V4S BZT52C2V7S BZT52C3V0S BZT52C3V3S BZT52C3V6S BZT52C3V9S BZT52C4V3S BZT52C4V7S BZT52C5V1S BZT52C5V6S BZT52C6V2S BZT52C6V8S BZT52C7V5S BZT52C8V2S BZT52C9V1S BZT52C10S BZT52C11S BZT52C12S BZT52C13S BZT52C15S BZT52C16S BZT52C18S BZT52C20S BZT52C22S BZT52C24S BZT52C27S BZT52C30S BZT52C33S BZT52C36S BZT52C39S BZT52C43S BZT52C47S BZT52C51S Type Code WX W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WQ WR WS WT WU WV WW Zener Voltage Range (Note 2) Vz@Izr Izr Nom(V) Min(V) Max(V) mA 2.2 5 2.4 2.6 2.5 5 2.7 2.9 2.8 5 3.0 3.2 3.1 5 3.3 3.5 3.4 5 3.6 3.8 3.7 5 3.9 4.1 4.0 5 4.3 4.6 4.4 5 4.7 5.0 4.8 5 5.1 5.4 5.2 5 5.6 6.0 5.8 5 6.2 6.6 6.4 5 6.8 7.2 7.0 5 7.5 7.9 7.7 5 8.2 8.7 8.5 5 9.1 9.6 9.4 10 10.6 5 10.4 11.6 5 11 11.4 12.7 5 12 12.4 14.1 5 13 13.8 15.6 5 15 15.3 17.1 5 16 16.8 19.1 5 18 18.8 21.2 5 20 20.8 23.3 5 22 22.8 25.6 5 24 25.1 28.9 2 27 28.0 32.0 2 30 31.0 35.0 2 33 34.0 38.0 2 36 37.0 41.0 2 39 40.0 46.0 2 43 44.0 50.0 2 47 48.0 54.0 2 51 @ Ta=25℃ unless otherwise specified Maximum Zener Impedance (Note 3) Zzr@Izr 100 100 95 95 90 90 90 80 60 40 10 15 15 15 15 20 20 25 30 30 40 45 55 55 70 80 80 80 90 130 100 100 100 Zzr@Izk 600 600 600 600 600 600 600 500 480 400 150 80 80 80 100 150 150 150 170 200 200 225 225 250 250 300 300 325 350 350 700 750 750 Note: 1.Valid prvided device terminals are kept at ambient temperatrue 2.Test with pluses, period=5ms,pluse width=300us. 3.f=1KHz Izk mA 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.5 0.5 0.5 0.5 0.5 1.0 1.0 1.0 Maximum Reverse Current (Note 2) IR uA 50 20 10 5 5 3 3 3 2 1 3 2 1 0.7 0.5 0.2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 VR V 1.0 1.0 1.0 1.0 1.0 1.0 1.0 2.0 2.0 2.0 4.0 4.0 5.0 5.0 6.0 7.0 8.0 8.0 8.0 10.5 11.2 12.6 14.0 15.4 16.8 18.9 21.0 23.1 25.2 27.3 32.0 35.0 38.0 Temperature Coefficent of zener voltage @IZT=5mA mV / C Min -3.5 -3.5 -3.5 -3.5 -3.5 -3.5 -3.5 -3.5 -2.7 -2.0 0.4 1.2 2.5 3.2 3.8 4.5 5.4 6.0 7.0 9.2 10.4 12.4 14.4 16.4 18.4 21.4 24.4 27.4 30.4 33.4 10 10 10 Max 0 0 0 0 0 0 0 0.2 1.2 2.5 3.7 4.5 5.3 6.2 7.0 8.0 9.0 10.0 11.0 13.0 14.0 16.0 18.0 20.0 22.0 25.3 29.4 33.4 37.4 41.2 12.0 12.0 12.0 RATINGS AND CHARACTERISTIC CURVES BZT52C2V4S-BZT52C51S FIG. 1- POWER DERATING CURVE FIG. 2-ZENER BREAKDOWN CHARACTERISTICS 500 400 300 200 C3V3 40 Tj=25 C5V6 C6V6 C4V7 C8V2 30 20 Test current Iz 5mA 10 100 0 0 100 0 0 200 1 FIG. 3-ZENER BREAKDOWN CHARACTERISTICS 4 5 6 7 8 9 10 1000 C10 Tj=25 C12 C15 20 C18 C22 Test current Iz 2mA C27 10 Test current Iz 5mA C33 C36 Tj=25 Va=1V Va=2V 100 Va=1V Va=2V 10 0 0 3 FIG. 4-JUNCTION CAPACITANCE VS NOMINAL ZENER VOLTAGE CJ, JUNCTION CAPACITANCE (pF) 30 2 VZ,ZENER VOLTAGE (V) TA, AMBIENT TEMPERATURE( C) Vz, ZENER CURRENT (mA) C3V9 C2V7 See Note1 Iz, ZENER CURRENT (mA) Pd, POWER DISSPATION (mW) 50 10 20 VZ,ZENER VOLTAGE (V) 30 40 0 10 Vz, NOMINAL ZENER VOLTAGE(V) The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 100 BZT52C2V4S-BZT52C51S PACKAGE OUTLINE Plastic surface mounted package SOD-323 SOD-323 K B C A D J E Dim Min Max A 1.275 1.325 B 1.675 1.725 C D 0.25 0.35 E 0.27 0.37 H 0.02 0.1 J H 0.9 Typical K 0.1 Typical 2.6 2.7 All Dimensions in mm SOLDERING FOOTPRINT Unit : mm PACKAGE INFORMATION Device Package Shipping BZT52C2V4S-BZT52C51S SOD-323 3000/Tape&Reel
