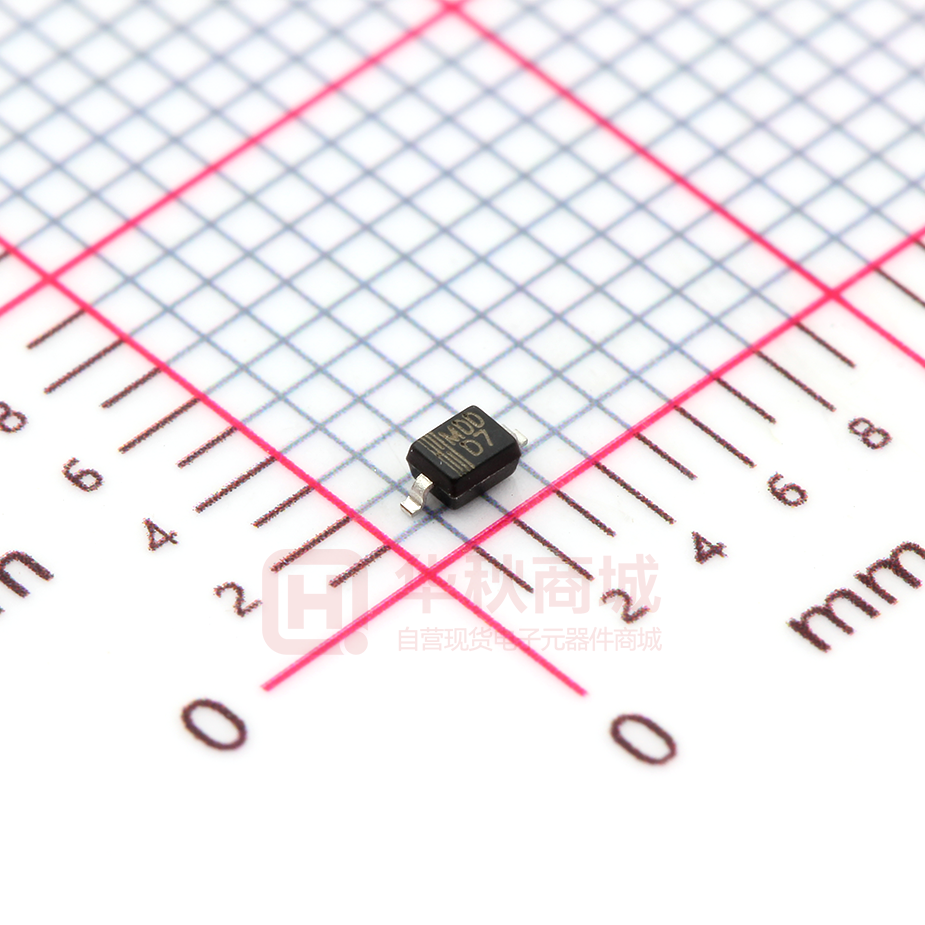

1N4007WS

1N4001WS THRU 1N4007WS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER Features SOD-323  Glass passivated device  Ideal for surface mouted applications  Low reverse leakage  Metallurgically bonded construction 0.008(0.20)max. Cathode bar 0.055(1.40) 0.016(0.40) 0.009(0.25) 0.047(1.20) 0.070 (1.80)  High temperature soldering guaranteed:  250°C/10 seconds,0.375”(9.5mm) lead length, 5 0.063 (1.40) 0.108 (2.75) 0.019 (0.475) ref. Case : 6OD-323 Terminals : Solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.0019 ounce, 0.00548 grams 0.10 (0.0031) 8° 0.0079 (0.20) 0° to Mechanical Data 0.15 (0.0059) 0.016 (0.45) 0.008 (0.2 ) 0.043 (1.10) lbs. (2.3kg) tension 0.032 (0.8) 0.100 (2.55) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter 1N4001WS 1N4002WS 1N4003WS 1N4004WS 1N4005WS 1N4006WS 1N4007WS SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRMM VRMS VDC MDD MDD MDD MDD MDD MDD MDD D1 D2 D3 D4 D5 D6 D7 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V Maximum average forward rectified current at TL(see fig.1) I(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 25 A Maximum instantaneous forward voltage at 1.0A VF V Maximum DC reverse current at rated DCblocking voltage IR 1.1 5 50 CJ RJA 5 pF 55.0 ℃/W -55 to +150 ℃ -55 to +150 ℃ TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range TJ Storage temperature range TSTG Note:1.Measured at 1.0MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 3.The typical data above is for reference only. http://www.microdiode.com Rev:2024A1 uA Page :1 1N4001WS THRU 1N4007WS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere Typical Characterisitics Fig.2 Typical Instaneous Reverse Characteristics 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current (μA) Average Forward Current (A) Fig.1 Forward Current Derating Curve 100 T J=150°C T J=125°C 10 1.0 T J=75°C 0.1 T J =25°C 0.01 1N4007W 0 Junction Capacitance (pF) C 2 5° TJ = 0°C TJ = 10 15 0°C 0.5 TJ = Instaneous Forward Current (A) 1.0 0.2 0.7 0.8 0.9 600 800 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 0.6 400 Instaneous Reverse Voltage (V) Case Temperature (°C) 0.1 0.5 200 1.0 1.1 100 T J=25°C 10 1 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surge Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surae Current 35 30 25 20 15 10 05 00 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2 1N4001WS THRU 1N4007WS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width A B C d D D1 D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 SOD-323 E F B A W P D2 T D1 C W1 D 1.46 2.90 1.25 1.50 330.00 50.00 178.00 54.40 13.00 1.75 3.50 4.00 4.00 2.00 0.06 8.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) SOD-323 7" 3,000 4.0 45,000 210*208*203 178 430*430*235 180,000 APPROX. GROSS WEIGHT (kg) 9.0 Suggested Pad Layout Symbol A http://www.microdiode.com Unit (mm) Unit (inch) 0.047 B 1.2 1.2 C 2.6 0.102 D 1.4 0.055 E 3.8 0.149 0.047 Rev:2024A1 Page :3
