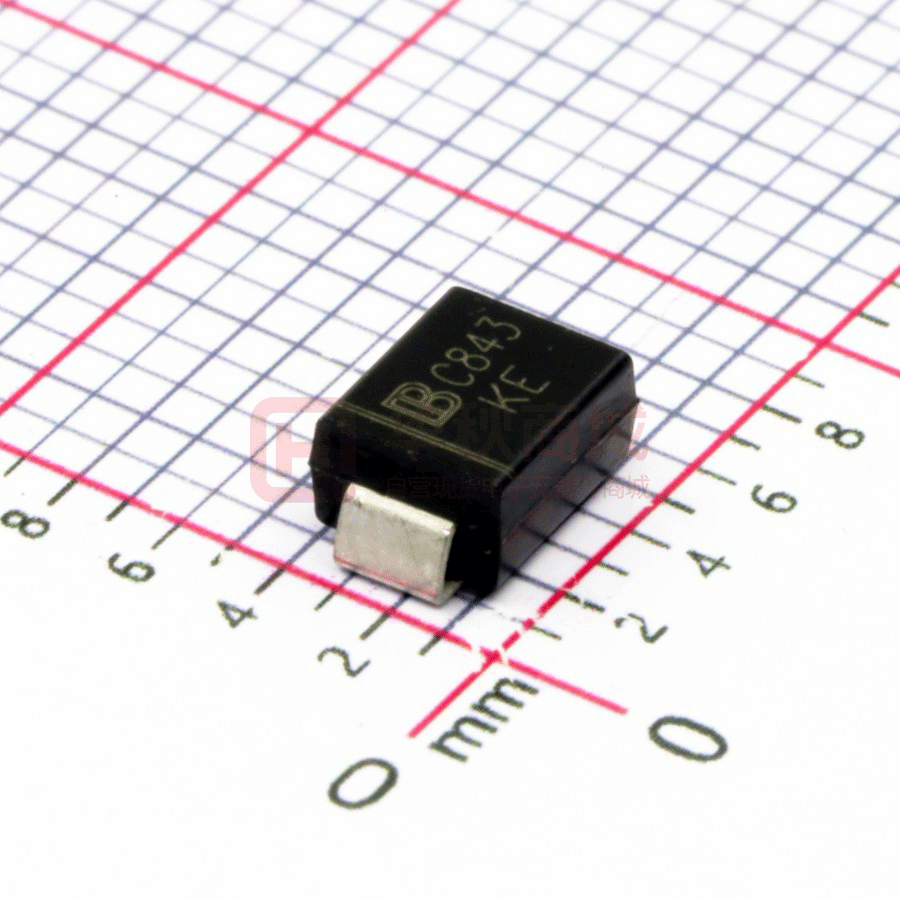

SMBJ SERIES
Transient Voltage Suppressors (TVS) Data Sheet
Features
■
■
■
■
■
■
■
■
■
■
■
■
■
■
For surface mounted applications in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
600W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical IR less than 1μA above 10V
High Temperature soldering: 260℃/10 seconds at terminals
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
AEC-Q101 qualified (SMBJ8.0~SMBJ440)
Mechanical Data
■
■
■
■
■
Case: JEDEC DO-214AA. Molded plastic over glass passivated junction
Terminal: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Standard Packaging: 12mm tape (EIA STD RS-481)
Weight: 0.10g
Applications
■ I/O interface
■ AC/DC power supply
■ Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Symbol
Value
Units
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
PPPM
Minimum 600
Watts
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
IPPM
See Table
Amps
PM(AV)
5.0
Watts
IFSM
100
Amps
TJ,TSTG
-65 to +150
℃
Typical thermal resistance junction to lead
RθJL
20
℃/W
Typical thermal resistance junction to ambient
RθJA
100
℃/W
Steady state power dissipation at TA=50℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Range.
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2.
2. Mounted on 5.0mm×5.0mm (0.03mm thick) copper pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
Revision:25-Nov-15
www.brightking.com
SMBJ SERIES
Dimensions (SMB/DO-214AA)
Symbol
Millimeters
Inches
Min.
Max.
Min.
Max.
L
4.06
4.57
0.160
0.180
D
3.30
3.94
0.130
0.155
D1
1.95
2.20
0.077
0.086
T
5.21
5.59
0.205
0.220
T1
0.76
1.52
0.030
0.060
d
-
0.203
-
0.008
H
2.15
2.65
0.085
0.104
H1
2.13
2.47
0.084
0.097
Electrical Characteristics (TA=25℃)
Part Number
Device
Marking
Code
Reverse
Stand-Off
Voltage
Breakdown
Voltage
@IT
Test
Current
Maximum
Clamping
Voltage
@IPP
Peak
Pulse
Current
Reverse
Leakage
@VRWM
Unidirectional
Bidirectional
UNI
BI
VRWM(V)
VBR(V)
IT(mA)
VC(V)
IPP(A)
IR(μA)
SMBJ5.0A
SMBJ5.0CA
KE
AE
5.0
6.40~7.00
10
9.2
65.3
800
SMBJ6.0A
SMBJ6.0CA
KG
AG
6.0
6.67~7.37
10
10.3
58.3
800
SMBJ6.5A
SMBJ6.5CA
KK
AK
6.5
7.22~7.98
10
11.2
53.6
500
SMBJ7.0A
SMBJ7.0CA
KM
AM
7.0
7.78~8.60
10
12.0
50.0
200
SMBJ7.5A
SMBJ7.5CA
KP
AP
7.5
8.33~9.21
1
12.9
46.6
100
SMBJ8.0A
SMBJ8.0CA
KR
AR
8.0
8.89~9.83
1
13.6
44.2
50
SMBJ8.5A
SMBJ8.5CA
KT
AT
8.5
9.44~10.40
1
14.4
41.7
20
SMBJ9.0A
SMBJ9.0CA
KV
AV
9.0
10.00~11.10
1
15.4
39.0
10
SMBJ10A
SMBJ10CA
KX
AX
10.0
11.10~12.30
1
17.0
35.3
5
SMBJ11A
SMBJ11CA
KZ
AZ
11.0
12.20~13.50
1
18.2
33.0
1
SMBJ12A
SMBJ12CA
LE
BE
12.0
13.30~14.70
1
19.9
30.2
1
SMBJ13A
SMBJ13CA
LG
BG
13.0
14.40~15.90
1
21.5
28.0
1
SMBJ14A
SMBJ14CA
LK
BK
14.0
15.60~17.20
1
23.2
25.9
1
SMBJ15A
SMBJ15CA
LM
BM
15.0
16.70~18.50
1
24.4
24.6
1
SMBJ16A
SMBJ16CA
LP
BP
16.0
17.80~19.70
1
26.0
23.1
1
SMBJ17A
SMBJ17CA
LR
BR
17.0
18.90~20.90
1
27.6
21.8
1
SMBJ18A
SMBJ18CA
LT
BT
18.0
20.00~22.10
1
29.2
20.6
1
SMBJ20A
SMBJ20CA
LV
BV
20.0
22.20~24.50
1
32.4
18.6
1
SMBJ22A
SMBJ22CA
LX
BX
22.0
24.40~26.90
1
35.5
16.9
1
SMBJ24A
SMBJ24CA
LZ
BZ
24.0
26.70~29.50
1
38.9
15.5
1
Revision:25-Nov-15
www.brightking.com
SMBJ SERIES
Electrical Characteristics (TA=25℃)
Part Number
Device
Marking
Code
Reverse
Stand-Off
Voltage
Breakdown
Voltage
@IT
Test
Current
Maximum
Clamping
Voltage
@IPP
Peak
Pulse
Current
Reverse
Leakage
@VRWM
Unidirectional
Bidirectional
UNI
BI
VRWM(V)
VBR(V)
IT(mA)
VC(V)
IPP(A)
IR(μA)
SMBJ26A
SMBJ26CA
ME
CE
26.0
28.90~31.90
1
42.1
14.3
1
SMBJ28A
SMBJ28CA
MG
CG
28.0
31.10~34.40
1
45.4
13.3
1
SMBJ30A
SMBJ30CA
MK
CK
30.0
33.30~36.80
1
48.4
12.4
1
SMBJ33A
SMBJ33CA
MM
CM
33.0
36.70~40.60
1
53.3
11.3
1
SMBJ36A
SMBJ36CA
MP
CP
36.0
40.00~44.20
1
58.1
10.4
1
SMBJ40A
SMBJ40CA
MR
CR
40.0
44.40~49.10
1
64.5
9.3
1
SMBJ43A
SMBJ43CA
MT
CT
43.0
47.80~52.80
1
69.4
8.7
1
SMBJ45A
SMBJ45CA
MV
CV
45.0
50.00~55.30
1
72.7
8.3
1
SMBJ48A
SMBJ48CA
MX
CX
48.0
53.30~58.90
1
77.4
7.8
1
SMBJ51A
SMBJ51CA
MZ
CZ
51.0
56.70~62.70
1
82.4
7.3
1
SMBJ54A
SMBJ54CA
NE
DE
54.0
60.00~66.30
1
87.1
6.9
1
SMBJ58A
SMBJ58CA
NG
DG
58.0
64.40~71.20
1
93.6
6.5
1
SMBJ60A
SMBJ60CA
NK
DK
60.0
66.70~73.70
1
96.8
6.2
1
SMBJ64A
SMBJ64CA
NM
DM
64.0
71.10~78.60
1
103.0
5.9
1
SMBJ70A
SMBJ70CA
NP
DP
70.0
77.80~86.00
1
113.0
5.3
1
SMBJ75A
SMBJ75CA
NR
DR
75.0
83.30~92.10
1
121.0
5.0
1
SMBJ78A
SMBJ78CA
NT
DT
78.0
86.70~95.80
1
126.0
4.8
1
SMBJ85A
SMBJ85CA
NV
DV
85.0
94.40~104.00
1
137.0
4.4
1
SMBJ90A
SMBJ90CA
NX
DX
90.0
100.00~111.00
1
146.0
4.1
1
SMBJ100A
SMBJ100CA
NZ
DZ
100.0
111.00~123.00
1
162.0
3.7
1
SMBJ110A
SMBJ110CA
PE
EE
110.0
122.00~135.00
1
177.0
3.4
1
SMBJ120A
SMBJ120CA
PG
EG
120.0
133.00~147.00
1
193.0
3.1
1
SMBJ130A
SMBJ130CA
PK
EK
130.0
144.00~159.00
1
209.0
2.9
1
SMBJ150A
SMBJ150CA
PM
EM
150.0
167.00~185.00
1
243.0
2.5
1
SMBJ160A
SMBJ160CA
PP
EP
160.0
178.00~197.00
1
259.0
2.3
1
SMBJ170A
SMBJ170CA
PR
ER
170.0
189.00~209.00
1
275.0
2.2
1
SMBJ180A
SMBJ180CA
PT
ET
180.0
201.00~222.00
1
292.0
2.1
1
SMBJ190A
SMBJ190CA
PA
EC
190.0
211.00~233.00
1
308.0
2.0
1
SMBJ200A
SMBJ200CA
PV
EV
200.0
224.00~247.00
1
324.0
1.9
1
SMBJ210A
SMBJ210CA
PB
ED
210.0
237.00~263.00
1
340.0
1.8
1
SMBJ220A
SMBJ220CA
PX
EX
220.0
246.00~272.00
1
356.0
1.7
1
SMBJ250A
SMBJ250CA
PZ
EZ
250.0
279.00~309.00
1
405.0
1.5
1
SMBJ300A
SMBJ300CA
QE
FE
300.0
335.00~371.00
1
486.0
1.3
1
SMBJ350A
SMBJ350CA
QG
FG
350.0
391.00~432.00
1
567.0
1.1
1
SMBJ400A
SMBJ400CA
QK
FK
400.0
447.00~494.00
1
648.0
0.9
1
SMBJ440A
SMBJ440CA
QM
FM
440.0
492.00~543.00
1
713.0
0.9
1
Notes: For bidirectional type having VRWM of 10V and less, the IR limit is double.
Revision:25-Nov-15
www.brightking.com
SMBJ SERIES
Ratings and Characteristic Curves (TA=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
Figure 2. Pulse Derating Curve
100
80
60
40
20
0
0
25
50
75
100
125
150
175
TA-Ambient Temperature (℃)
Figure 3. Pulse Waveform
150
tr=10µs
Figure 4. Typical Junction Capacitance
TJ=25℃
Pulse Width(td) is defined as
the point where the peak
current decays to 50% of IPPM
Peak Value IPPM
100
Half Value IPPM (IPPM/2)
50
0
10/1000µs Waveform
as defined by R.E.A
td
0
1.0
2.0
3.0
4.0
t-Time (ms)
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
PM(AV), Steady State Power Dissipation (W)
Figure 5. Steady State Power Dissipation Derating
Curve
Revision:25-Nov-15
www.brightking.com
SMBJ SERIES
Recommended Soldering Conditions
Reflow Soldering
Recommended Conditions
Profile Feature
Pb-Free Assembly
Average ramp-up rate (TL to TP)
3℃/second max.
Preheat
-Temperature Min (TS min)
-Temperature Max (TS max)
-Time (min to max) ( tS)
150℃
200℃
60-180 seconds
TS max to TL
-Ramp-up Rate
3℃/second max.
Time maintained above:
-Temperature (TL)
-Time (tL)
217℃
60-150 seconds
Peak Temperature (TP)
260℃
Time within 5℃ of actual Peak Temperature (tP)
Ramp-down Rate
Time 25℃ to Peak Temperature
20-40 seconds
6℃/second max.
8 minutes max.
Marking Code
Revision:25-Nov-15
www.brightking.com
SMBJ SERIES
Part Number Code
Packaging
Tape
P0
P1
P2
D0
B
T
E
F
W
B0
D1
A
A
B
K0
SECTION B-B
A0
SECTION A-A
7” Reel
Symbol
Dimension (mm)
W
12.00±0.20
P0
4.00±0.10
P1
8.00±0.10
P2
2.00±0.10
D0
Φ1.55±0.10
D1
Φ1.5±0.10
E
1.75±0.10
F
5.50±0.10
A0
3.86±0.15
B0
5.65±0.10
K0
2.75±0.15
T
0.25±0.05
D2
Φ178.0±2.0
D3
Φ50.0Min.
D4
Φ13.0±0.5
W1
16.0±2.0
Quantity: 500PCS
13” Reel
D5
Φ330.0±2.0
D6
Φ13.5±0.5
H
2.5±1.0
W2
16.0±2.0
Quantity: 3000PCS
Revision:25-Nov-15
www.brightking.com
