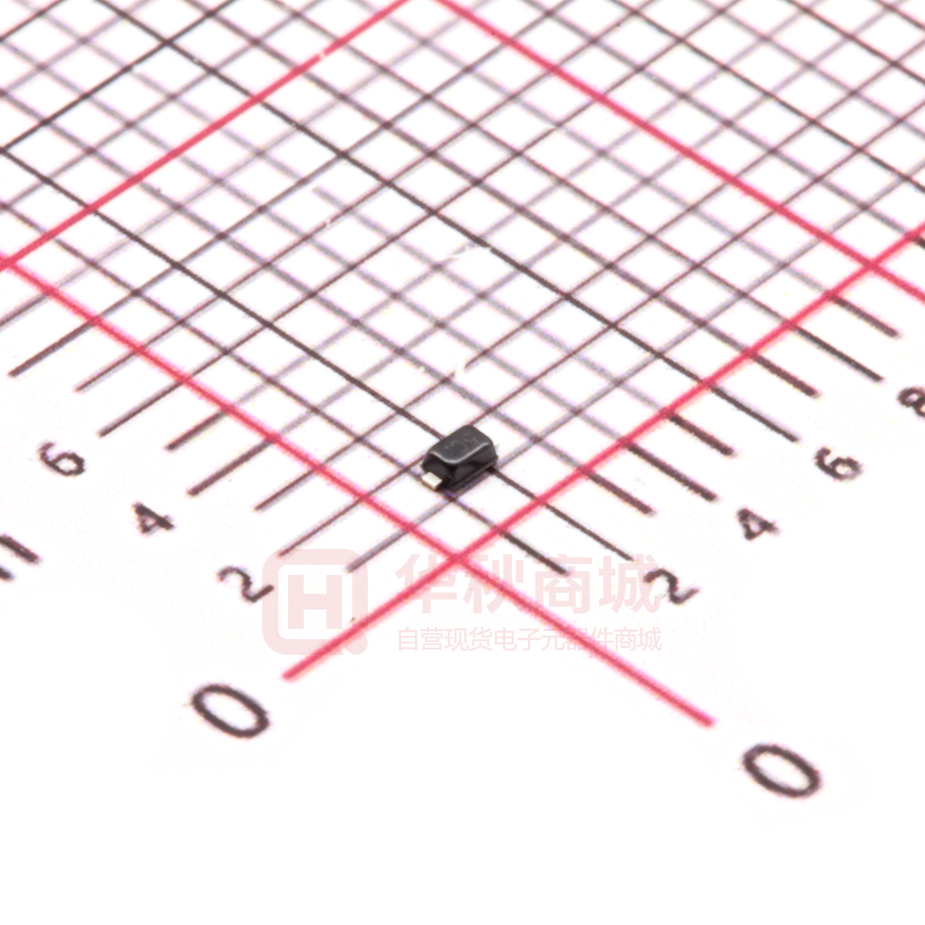

SBD52C05L01

SBD52C05L01 Electrostatic Discharged Protection Devices (ESD) Data Sheet Description The SBD52 series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computer, and PDAs. They offer superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs. They are designed to protect sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD), lightning, electrical fast transients (EFT), and cable discharge events (CDE). Features ● ● ● ● ● ● ● ● ● ● ● ● ● IEC61000-4-2 ESD 15KV Air, 8KV contact compliance SOD-523 surface mount package Protects bi-directional line Peak power dissipation of 150W under 8/20μs waveform Working voltage: 5V Low leakage current Low operating and clamping voltages Solid-state silicon avalanche technology Lead Free/RoHS compliant Solder reflow temperature: Pure Tin-Sn, 260~270℃ Flammability rating UL 94V-0 Meets MSL level 1, per J-STD-020 Marking: 5C Pin Configuration Applications ● ● ● ● Cellular handsets & Accessories Cordless phones Personal digital assistants (PDAs) Notebooks & Handhelds ● ● ● ● Portable instrumentation Digital cameras Peripherals MP3 players Maximum Ratings Rating Peak pulse power (tp=8/20μs waveform) ESD voltage (Contact discharge) ESD voltage (Air discharge) Storage & operating temperature range Revision：13-Jan-16 Symbol Value Unit PPP 150 W VESD TSTG ,TJ ±8 ±15 -55~+150 kV ℃ www.brightking.com SBD52C05L01 Electrical Characteristics (TJ=25℃) Parameter Reverse stand-off voltage Reverse breakdown voltage Symbol Condition Min. Typ. VRWM 5.6 Max. Unit 5 V 8 V VBR IBR=1mA Reverse leakage current IR VR=5V 5 μA Clamping voltage (tp=8/20μs) VC IPP=1A 9.8 V Off state junction capacitance CJ 0Vdc,f=1MHz 30 pF Typical Characteristics Curves Peak Power Dissipation (%) Figure 1. Power Derating Curve Figure 2. Pulse Waveforms 110 100 tr Peak value Ipp Waveform Parameters: tr=8µs td=20µs 90 80 70 60 50 40 30 td=t|IPP/2 20 10 0 0 5 10 15 20 25 30 t-Time (μs) Figure 4. ESD Clamping(8kV Contact IEC61000-4-2) Clamping Voltage (V) Figure 3. Clamping Voltage vs. Peak Pulse Current Revision：13-Jan-16 www.brightking.com SBD52C05L01 Recommended Soldering Conditions Reflow Soldering Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate Time 25℃ to Peak Temperature Revision：13-Jan-16 20-40 seconds 6℃/second max. 8 minutes max. www.brightking.com SBD52C05L01 Dimensions (SOD-523) Dimension (mm) Symbol Millimeters Inches Min. Max. Min. Max. A 0.50 0.70 0.020 0.028 B 0.07 0.20 0.003 0.008 C 0.70 0.90 0.028 0.035 D 0.25 0.35 0.010 0.014 E 1.10 1.30 0.043 0.051 F 1.50 1.70 0.059 0.067 G 0.15 0.25 0.006 0.010 Packaging Tape Reel Symbol Dimension (mm) W 8.00±0.30 P0 4.00±0.10 P1 2.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ0.50±0.05 E 1.75±0.10 F 3.50±0.10 A 1.00±0.10 A0 0.50±0.10 B 1.80±0.10 B0 1.30±0.10 K 0.65±0.10 t 0.20±0.05 D Φ178.0±2.0 D2 Φ13.0 W1 9.5 D2 D Revision：13-Jan-16 W1 Quantity: 3000PCS www.brightking.com
