PESDxS1UB series

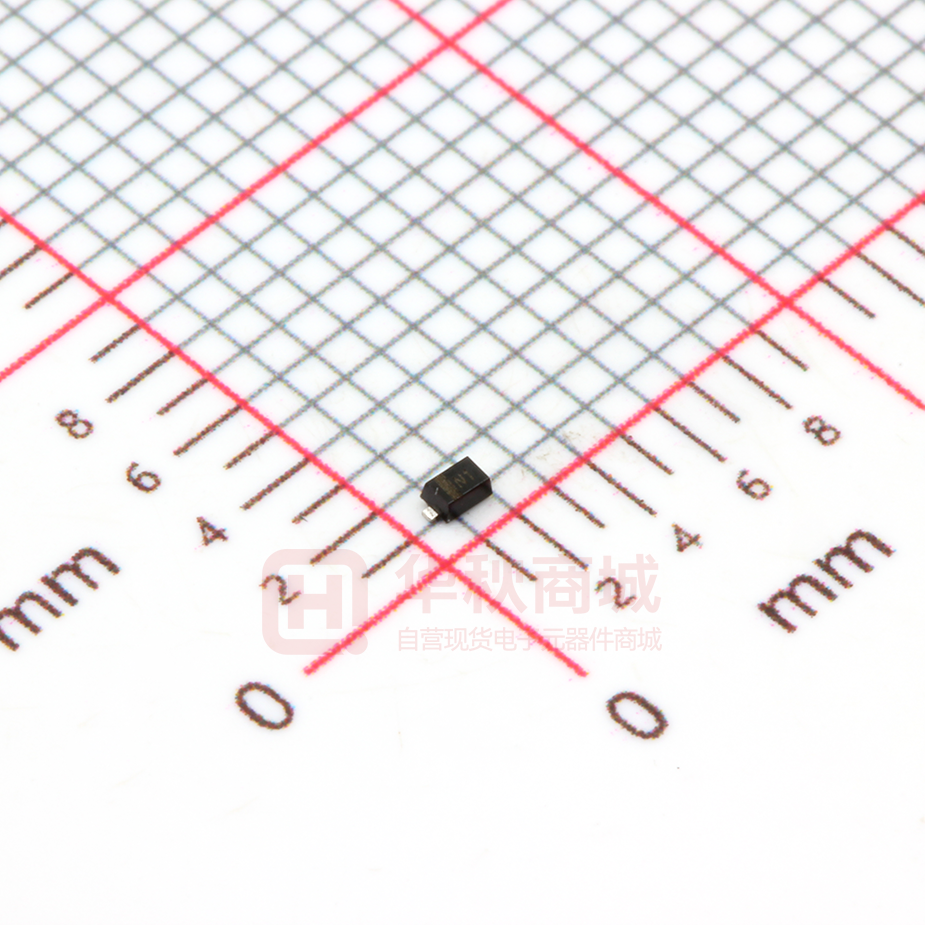

ESD protection diodes in SOD523 package
Rev. 02 — 24 August 2009
Product data sheet
1. Product profile
1.1 General description
Unidirectional ESD protection diode in a SOD523 plastic package designed to protect one
transmission or data line from the damage caused by ESD (ElectroStatic Discharge) and
other transients.
1.2 Features
n
n
n
n
n
n
n
Unidirectional ESD protection of one line
Max. peak pulse power: PPP = 330 W at tp = 8/20 µs
Low clamping voltage: VCL = 20 V at IPP = 18 A
Ultra low leakage current: IRM < 700 nA
ESD protection > 23 kV
IEC 61000-4-2, level 4 (ESD)
IEC 61000-4-5 (surge); IPP = 18 A at tp = 8/20 µs
1.3 Applications
n
n
n
n
n
Computers and peripherals
Communication systems
Audio and video equipment
Data lines
CAN bus protection
1.4 Quick reference data
Table 1.
Quick reference data
Symbol
Parameter
VRWM
reverse standoff voltage
Conditions
Value
Unit
PESD3V3S1UB
3.3
V
PESD5V0S1UB
5
V
PESD12VS1UB
12
V
PESD15VS1UB
15
V
PESD24VS1UB
24
V
PESDxS1UB series
NXP Semiconductors
ESD protection diodes in SOD523 package
Table 1.
Quick reference data …continued
Symbol
Parameter
Conditions
Cd
diode capacitance
VR = 0 V; f = 1 MHz
Value
Unit
PESD3V3S1UB
207
pF
PESD5V0S1UB
152
pF
PESD12VS1UB
38
pF
PESD15VS1UB
32
pF
PESD24VS1UB
23
pF
number of protected
lines
1
2. Pinning information
Table 2.
Discrete pinning
Pin
Description
1
cathode
2
anode
Simplified outline
Symbol
[1]
1
1
2
2
sym035
[1]
The marking bar indicates the cathode.
3. Ordering information
Table 3.
Ordering information
Type number
PESDxS1UB
Package
Name
Description
Version
SC -79
plastic surface mounted package; 2 leads
SOD523
4. Marking
Table 4.
Marking
Type number
Marking code
PESD3V3S1UB
N1
PESD5V0S1UB
N2
PESD12VS1UB
N3
PESD15VS1UB
N4
PESD24VS1UB
N5
PESDXS1UB_SERIES_2
Product data sheet
© NXP B.V. 2009. All rights reserved.
Rev. 02 — 24 August 2009
2 of 15
PESDxS1UB series
NXP Semiconductors
ESD protection diodes in SOD523 package
5. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Min
Max
Unit
PESD3V3S1UB
-
330
W
PESD5V0S1UB
-
260
W
PESD12VS1UB
-
180
W
PESD15VS1UB
-
160
W
-
160
W
PESD3V3S1UB
-
18
A
PESD5V0S1UB
-
15
A
PESD12VS1UB
-
5
A
PESD15VS1UB
-
5
A
PESD24VS1UB
-
3
A
Tj
junction temperature
-
150
°C
Tamb
operating ambient
temperature
−65
+150
°C
Tstg
storage temperature
−65
+150
°C
Min
Max
Unit
-
30
kV
PPP
Parameter
Conditions
peak pulse power
8/20 µs
[1]
PESD24VS1UB
peak pulse current
IPP
[1]
8/20 µs
Non-repetitive current pulse 8/20 µs exponentially decay waveform; see Figure 1.
Table 6.
ESD maximum ratings
Symbol
Parameter
Conditions
ESD
electrostatic discharge
capability
IEC 61000-4-2
(contact discharge)
PESD3V3S1UB
-
30
kV
PESD12VS1UB
-
30
kV
PESD15VS1UB
-
30
kV
PESD24VS1UB
-
23
kV
-
10
kV
HBM MIL-STD883
Device stressed with ten non-repetitive ElectroStatic Discharge (ESD) pulses; see Figure 2.
Table 7.
ESD standards compliance
Standard
Conditions
IEC 61000-4-2, level 4 (ESD)
> 15 kV (air); > 8 kV (contact)
HBM MIL-STD883, class 3
> 4 kV
PESDXS1UB_SERIES_2
Product data sheet
[1]
PESD5V0S1UB
PESDxS1UB series
[1]
[1]
© NXP B.V. 2009. All rights reserved.
Rev. 02 — 24 August 2009
3 of 15
PESDxS1UB series
NXP Semiconductors
ESD protection diodes in SOD523 package
001aaa631
IPP
001aaa630
120
100 %
90 %
100 % IPP; 8 µs
IPP
(%)
80
e−t
50 % IPP; 20 µs
40
10 %
tr = 0.7 ns to 1 ns
0
0
10
20
30
t (µs)
Fig 1.
60 ns
8/20 µs pulse waveform according to
IEC 61000-4-5
Fig 2.
ElectroStatic Discharge (ESD) pulse waveform
according to IEC 61000-4-2
PESDXS1UB_SERIES_2
Product data sheet
t
30 ns
40
© NXP B.V. 2009. All rights reserved.
Rev. 02 — 24 August 2009
4 of 15
PESDxS1UB series
NXP Semiconductors
ESD protection diodes in SOD523 package
6. Characteristics
Table 8.
Characteristics
Tamb = 25 °C unless otherwise specified
Symbol
Parameter
VRWM
reverse standoff voltage
Conditions
Min
Typ
Max
PESD3V3S1UB
-
-
3.3
V
PESD5V0S1UB
-
-
5
V
PESD12VS1UB
-
-
12
V
PESD15VS1UB
-
-
15
V
-
-
24
V
PESD24VS1UB
IRM
VBR
reverse leakage current
see Figure 7
PESD3V3S1UB
VRWM = 3.3 V
-
0.7
2
µA
PESD5V0S1UB
VRWM = 5 V
-
0.1
1
µA
PESD12VS1UB
VRWM = 12 V
-
