PESD12VV1BL
Very low capacitance bidirectional ESD protection diode
14 October 2016
Product data sheet
1. General description
Very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode designed to
protect one signal line from the damage caused by ESD and other transients. The device is housed

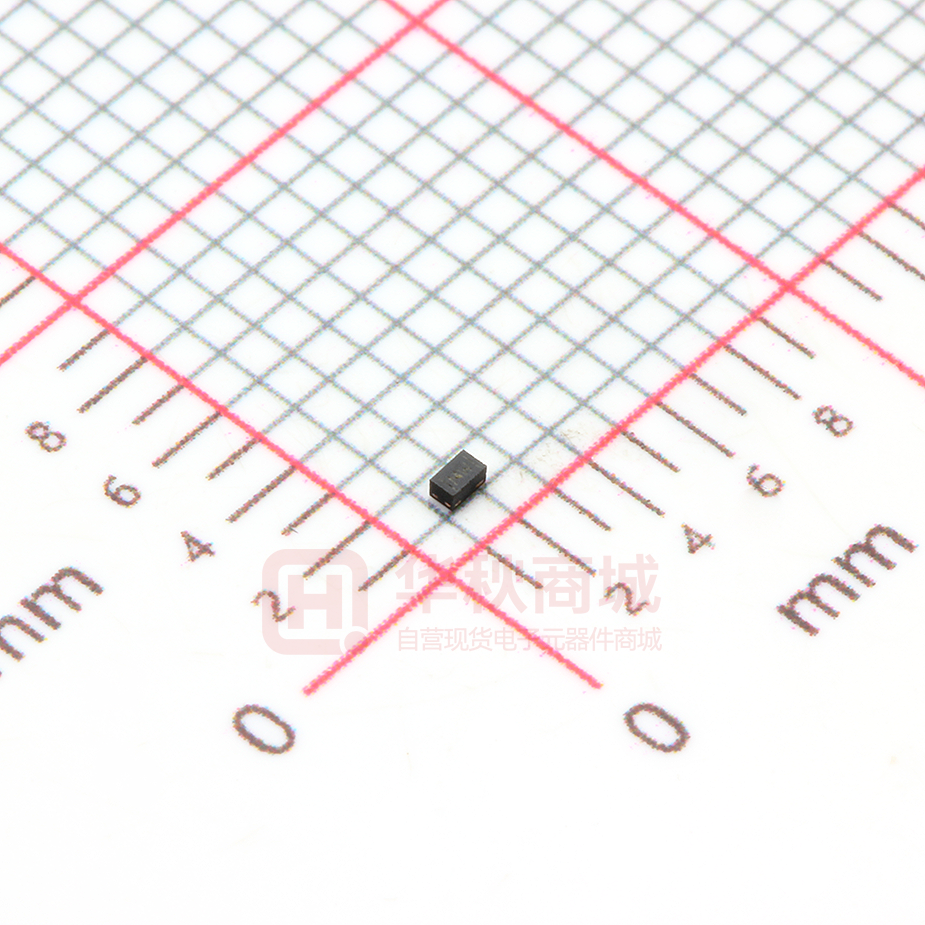

in a leadless ultra small DFN1006-2 (SOD882) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
•
•
•
•
•
•
•
•
Bidirectional ESD protection of one line
Low diode capacitance Cd = 17 pF
Rated peak pulse power: PPPM = 290 W
Ultra low leakage current IRM < 1 nA
ESD protection up to 30 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPPM = 7.8 A
AEC-Q101 qualified
3. Applications
•
•
•
•
•
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
Portable electronics
Communication systems
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
VRWM
reverse standoff
voltage
Tamb = 25 °C
-
-
12
V
Cd
diode capacitance
f = 1 MHz; VR = 0 V; Tamb = 25 °C
-
17
25
pF
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
1
K
cathode
2
K
cathode
Simplified outline
1
Graphic symbol
1
2
2
sym045
Transparent
top view
DFN1006-2 (SOD882)
6. Ordering information
Table 3. Ordering information
Type number
Package
PESD12VV1BL
Name
Description
Version
DFN1006-2
DFN1006-2: leadless ultra small plastic package; 2 terminals
SOD882
7. Marking
Table 4. Marking codes
Type number
Marking code
PESD12VV1BL
MW
8. Limiting values
Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Parameter
Conditions
Min
Max
Unit
PPPM
rated peak pulse power
[1]
-
290
W
IPPM
rated peak pulse current
[1]
-
7.8
A
Tj
junction temperature
-
150
°C
Tamb
ambient temperature
-55
150
°C
Tstg
storage temperature
-65
150
°C
-
30
kV
machine model
-
400
V
human body model (MIL-STD-883)
-
10
kV
tp = 8/20 µs
ESD maximum ratings
VESD
[1]
[2]
electrostatic discharge
voltage
IEC 61000-4-2; contact discharge
[2]
Device stressed with non-repetitive current pulses (8/20 µs exponential decay waveform according to IEC 61000-4-5 and IEC
61643-321).
Device stressed with ten non-repetitive ESD pulses.
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
2 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
001aaa631
001aaa630
120
IPP
100 %
100 % IPP; 8 µs
IPP
(%)
80
90 %
e-t
50 % IPP; 20 µs
40
10 %
0
Fig. 1.
0
10
20
30
tp (µs)
t
tr = 0.6 ns to 1 ns
40
30 ns
60 ns
8/20 µs pulse waveform according to
IEC 61000-4-5 and IEC 61643-321
Fig. 2.
ESD pulse waveform according to
IEC 61000-4-2
9. Characteristics
Table 6. Characteristics
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
VRWM
reverse standoff
voltage
Tamb = 25 °C
-
-
12
V
VBR
breakdown voltage
IR = 5 mA; Tamb = 25 °C
14.6
15.7
16.8
V
IRM
reverse leakage
current
VRWM = 12 V; Tamb = 25 °C
-
1
10
nA
Cd
diode capacitance
f = 1 MHz; VR = 0 V; Tamb = 25 °C
-
17
25
pF
VCL
clamping voltage
IPP = 1 A; Tamb = 25 °C
[1]
-
-
22
V
IPPM = 7.8 A; Tamb = 25 °C
[1]
-
-
38
V
IR = 10 A; Tamb = 25 °C
[2]
-
0.7
-
Ω
Rdyn
[1]
[2]
dynamic resistance
Device stressed with 8/20 μs exponential decay waveform according to IEC 61000-4-5 and IEC 61643-321.
Non-repetitive current pulse, Transmission Line Pulse (TLP) tp = 100 ns; square pulse; ANSI / ESD STM5.5.1-2008.
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
3 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
aaa-002723
103
Cd
(pF)
PPP
(W)
aaa-002724
20
15
102
10
10
5
1
10-4
Fig. 3.
10-3
tp (s)
0
10-2
0
2
4
6
8
10
VR (V)
12
Tamb = 25 °C
f = 1 MHz; Tamb = 25 °C
Rated peak pulse power as a function of square Fig. 4.
pulse duration; maximum values
Diode capacitance as a function of reverse
voltage; typical values
IPPM
IPP
-VCL -VBR -VRWM
IR
IRM
-IRM
-IR
VRWM VBR VCL
-
+
-IPP
-IPPM
Fig. 5.
006aab325
V-I characteristics for a bidirectional ESD protection diode
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
4 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
ESD TESTER
Rd
450 Ω
RG 223/U
50 Ω coax
4 GHz DIGITAL
OSCILLOSCOPE
10x
ATTENUATOR
Cs
50 Ω
DUT
(DEVICE
UNDER
TEST)
IEC 61000-4-2 network
Cs = 150 pF; Rd = 330 Ω
vertical scale = 20 V/div
horizontal scale = 50 ns/div
vertical scale = 2 kV/div
horizontal scale = 10 ns/div
GND
GND
unclamped +8 kV ESD pulse waveform
(IEC 61000-4-2 network)
clamped +8 kV ESD pulse waveform
(IEC 61000-4-2 network)
vertical scale = 20 V/div
horizontal scale = 50 ns/div
vertical scale = 2 kV/div
horizontal scale = 10 ns/div
GND
GND
unclamped -8 kV ESD pulse waveform
(IEC 61000-4-2 network)
Fig. 6.
clamped -8 kV ESD pulse waveform
(IEC 61000-4-2 network)
aaa-002726
ESD clamping test setup and waveforms
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
5 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
10. Application information
The device is designed for the protection of one bidirectional data line from surge pulses and ESD
damage. The device is suitable on lines where the signal polarities are both positive and negative
with respect to ground.
line to be protected
ESD protection diode
GND
aaa-002737
Fig. 7.
Application diagram
Circuit board layout and protection device placement
Circuit board layout is critical for the suppression of ESD, Electrical Fast Transient (EFT) and surge
transients. The following guidelines are recommended:
1.
2.
3.
4.
5.
6.
7.
8.
Place the device as close to the input terminal or connector as possible.
Minimize the path length between the device and the protected line.
Keep parallel signal paths to a minimum.
Avoid running protected conductors in parallel with unprotected conductors.
Minimize all Printed-Circuit Board (PCB) conductive loops including power and ground loops.
Minimize the length of the transient return path to ground.
Avoid using shared transient return paths to a common ground point.
Use ground planes whenever possible. For multilayer PCBs, use ground vias.
11. Test information
Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC)
standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in
automotive applications.
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
6 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
12. Package outline
0.50
0.46
0.62
0.55
2
0.30
0.22
0.65
0.30
0.22
1
0.55
0.47
cathode marking on top side (if applicable)
Dimensions in mm
Fig. 8.
1.02
0.95
03-04-17
Package outline DFN1006-2 (SOD882)
13. Soldering
1.3
0.7
R0.05 (8×)
solder lands
0.6 0.7 0.8
(2×) (2×) (2×)
0.9
solder resist
solder paste
occupied area
0.3
(2×)
Dimensions in mm
0.4
(2×)
0.5
(2×)
Fig. 9.
sod882_fr
Reflow soldering footprint for DFN1006-2 (SOD882)
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
7 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
14. Revision history
Table 7. Revision history
Data sheet ID
Release date
Data sheet status
Change notice
Supersedes
PESD12VV1BL v.3
20161014
Product data sheet
-
PESD12VV1BL v.2
Modifications:
•
Deleted section "Packing information"
PESD12VV1BL v.2
20130318
Product data sheet
-
PESD12VV1BL v.1
PESD12VV1BL v.1
20120403
Product data sheet
-
-
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
8 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
Notwithstanding any damages that customer might incur for any reason
whatsoever, Nexperia’s aggregate and cumulative liability towards
customer for the products described herein shall be limited in accordance
with the Terms and conditions of commercial sale of Nexperia.
15. Legal information
Right to make changes — Nexperia reserves the right to
make changes to information published in this document, including without
limitation specifications and product descriptions, at any time and without
notice. This document supersedes and replaces all information supplied prior
to the publication hereof.
Data sheet status
Document
status [1][2]
Product
status [3]
Objective
[short] data
sheet
Development This document contains data from
the objective specification for product
development.
Preliminary
[short] data
sheet
Qualification
This document contains data from the
preliminary specification.
Product
[short] data
sheet
Production
This document contains the product
specification.
[1]
[2]
[3]
Definition
Suitability for use in automotive applications — This Nexperia
product has been qualified for use in automotive
applications. Unless otherwise agreed in writing, the product is not designed,
authorized or warranted to be suitable for use in life support, life-critical or
safety-critical systems or equipment, nor in applications where failure or
malfunction of a Nexperia product can reasonably be expected
to result in personal injury, death or severe property or environmental
damage. Nexperia and its suppliers accept no liability for
inclusion and/or use of Nexperia products in such equipment or
applications and therefore such inclusion and/or use is at the customer's own
risk.
Please consult the most recently issued document before initiating or
completing a design.
The term 'short data sheet' is explained in section "Definitions".
The product status of device(s) described in this document may have
changed since this document was published and may differ in case of
multiple devices. The latest product status information is available on
the Internet at URL http://www.nexperia.com.
Definitions
Preview — The document is a preview version only. The document is still
subject to formal approval, which may result in modifications or additions.
Nexperia does not give any representations or warranties as to
the accuracy or completeness of information included herein and shall have
no liability for the consequences of use of such information.
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. Nexperia does not give any
representations or warranties as to the accuracy or completeness of
information included herein and shall have no liability for the consequences
of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is
intended for quick reference only and should not be relied upon to contain
detailed and full information. For detailed and full information see the
relevant full data sheet, which is available on request via the local Nexperia
sales office. In case of any inconsistency or conflict with the
short data sheet, the full data sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
Nexperia and its customer, unless Nexperia and
customer have explicitly agreed otherwise in writing. In no event however,
shall an agreement be valid in which the Nexperia product
is deemed to offer functions and qualities beyond those described in the
Product data sheet.
Disclaimers
Limited warranty and liability — Information in this document is believed
to be accurate and reliable. However, Nexperia does not give
any representations or warranties, expressed or implied, as to the accuracy
or completeness of such information and shall have no liability for the
consequences of use of such information. Nexperia takes no
responsibility for the content in this document if provided by an information
source outside of Nexperia.
In no event shall Nexperia be liable for any indirect, incidental,
punitive, special or consequential damages (including - without limitation lost profits, lost savings, business interruption, costs related to the removal
or replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
PESD12VV1BL
Product data sheet
Quick reference data — The Quick reference data is an extract of the
product data given in the Limiting values and Characteristics sections of this
document, and as such is not complete, exhaustive or legally binding.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. Nexperia makes
no representation or warranty that such applications will be suitable for the
specified use without further testing or modification.
Customers are responsible for the design and operation of their
applications and products using Nexperia products, and Nexperia
accepts no liability for any assistance with applications or
customer product design. It is customer’s sole responsibility to determine
whether the Nexperia product is suitable and fit for the
customer’s applications and products planned, as well as for the planned
application and use of customer’s third party customer(s). Customers should
provide appropriate design and operating safeguards to minimize the risks
associated with their applications and products.
Nexperia does not accept any liability related to any default,
damage, costs or problem which is based on any weakness or default
in the customer’s applications or products, or the application or use by
customer’s third party customer(s). Customer is responsible for doing all
necessary testing for the customer’s applications and products using Nexperia
products in order to avoid a default of the applications
and the products or of the application or use by customer’s third party
customer(s). Nexperia does not accept any liability in this respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those
given in the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale — Nexperia
products are sold subject to the general terms and conditions of commercial
sale, as published at http://www.nexperia.com/profile/terms, unless otherwise
agreed in a valid written individual agreement. In case an individual
agreement is concluded only the terms and conditions of the respective
agreement shall apply. Nexperia hereby expressly objects to
applying the customer’s general terms and conditions with regard to the
purchase of Nexperia products by customer.
No offer to sell or license — Nothing in this document may be interpreted
or construed as an offer to sell products that is open for acceptance or the
grant, conveyance or implication of any license under any copyrights, patents
or other industrial or intellectual property rights.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
9 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
Trademarks
Notice: All referenced brands, product names, service names and
trademarks are the property of their respective owners.
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
10 / 11
PESD12VV1BL
Nexperia
Very low capacitance bidirectional ESD protection diode
16. Contents
1. General description......................................................1
2. Features and benefits.................................................. 1
3. Applications.................................................................. 1
4. Quick reference data....................................................1
5. Pinning information......................................................2
6. Ordering information....................................................2
7. Marking.......................................................................... 2
8. Limiting values............................................................. 2
9. Characteristics..............................................................3
10. Application information............................................. 6
11. Test information......................................................... 6
12. Package outline.......................................................... 7
13. Soldering..................................................................... 7
14. Revision history..........................................................8
15. Legal information....................................................... 9
©
Nexperia B.V. 2017. All rights reserved
For more information, please visit: http://www.nexperia.com
For sales office addresses, please send an email to: salesaddresses@nexperia.com
Date of release: 14 October 2016
PESD12VV1BL
Product data sheet
All information provided in this document is subject to legal disclaimers.
14 October 2016
©
Nexperia B.V. 2017. All rights reserved
11 / 11
很抱歉,暂时无法提供与“PESD12VV1BL,315”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 20+0.15691
- 100+0.14265
- 500+0.13314
- 1000+0.12363
- 5000+0.11222
- 10000+0.10746
