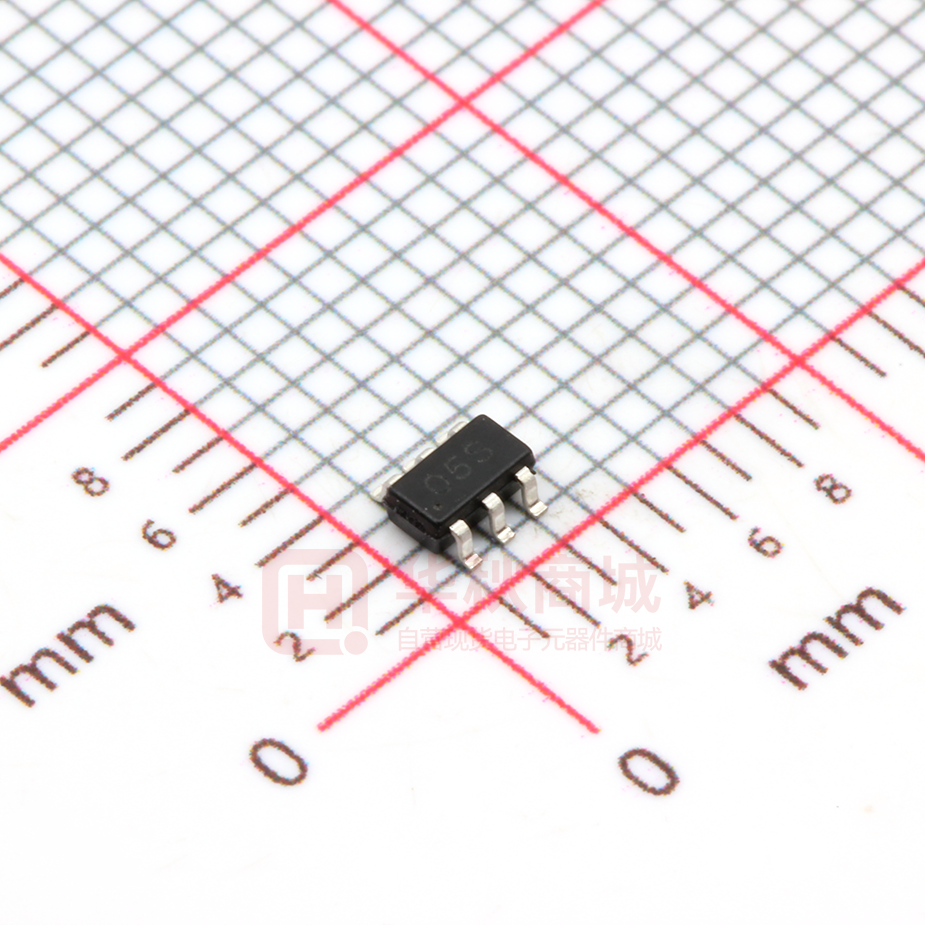

ESDA6V1-5SC6

ESDA6V1-5SC6 TVS Protection Array RoHS Device Halogen Free Features - Solid -state silicon -avalanche technology - 250 Watts Peak Pulse Power per Line (t p =8/20μs) - Low operating and clamping voltages SOT23-6 - Protects five I/O lines - Working Voltage: 5 V - Low Leakage Mechanical Characteristics - SOT -23-6 package - Molding compound flammability rating: I/O1 I/O5 Gnd I/O4 I/O2 I/O3 UL 94V- 0 - Marking : Marking Code - Packaging: Tape and Reel Applications - Cell phone Handsets & Accessories Personal Digital Assistants (PDAs) Notebook , Laptop, and Palmtop Computers Portable Instrumentation IEC COMPATI BILITY (EN61000-4) - IEC 61000 -4-2 (ESD) ± 30kV (air), ±30kV (contact) - IEC 61000 -4-4 (EFT) 40A (5/50ns) - IEC 61000 -4-5 (Lightning) 14A(8/20us) Digital Cameras MP3 Player Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power（tp =8/20μs） PPP 250 Watts Peak Forward Voltage (I F = 1A, tp=8/20μs) VFP 1.5 V Operating Temperature TJ -55 to + 125 ℃ TSTG -55 to +150 ℃ Storage Temperature 1 ESDA6V1-5SC6 TVS Protection Array Electrical Parameters (T=25℃) Symbol Parameter I I PP Reverse Peak Pulse Current VC Clamping Voltage @ IPP V RWM IR V BR IF Reverse Stand Off Voltage - VC VBR V RWM Reverse Leakage Current @ V RWM Breakdown Voltage @ I T IT Test Current IF Forward Current VF Forward Voltage @ IF V IR VF IT IPP Electrical Characteristics Parameter Reverse Stand-Off Voltage Reverse Breakdown Voltage Symbol Conditions Minimum Typical V RWM Maximum Units 5.0 V 6.1 VBR IT =1mA Reverse Leakage Current IR V RWM=5V,T=25℃ 0.5 μA Peak Pulse Current IPP tp =8/20μs 14 A Clamping Voltage VC IPP=1A, tp =8/20μs 9.5 V Clamping Voltage VC IPP=14A, tp =8/20 μs 15 17 V Junction Capacitance Cj Between I/O pins and Ground V R = 0V, f = 1MHz 90 100 pF 2 V ESDA6V1-5SC6 TVS Protection Array Typical Characteristics Figure 2: Power Derating Curve 10 1 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 250w 8/20µs Waveform 0.1 110 100 90 80 70 60 50 40 30 20 10 0 0.01 0.1 1 10 100 0 1,000 td – Pulse Duration - µs 50 75 100 125 150 Ambient Temperature - TA (℃) Figure 4: Normalized Junction Capacitance vs. Reverse Voltage Figure 3: Clamping Voltage vs. Peak Pulse Current 1.1 18 1.0 16 F=1MHz 0.9 Cj(VR)/Cj(VR=0) 14 12 10 8 Test Waveform Paramters tr=8µs td=20µs 6 4 2 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 0 2 4 6 8 10 12 0 14 1 Peak Pulse Current -Ipp(A) 2 3 4 Reverse Voltage -VR(V) Figure 6: ESD Clamping( 8kV Contact per IEC 61000-4-2) Figure 5: Pulse Waveform Tek Run : 5.00GS/s Sample tr=8µs 110 WE05S Waveform Paramters tr=8µs td=20µs 100 90 Percent Ipp Clamping Voltage -Vc(V) 25 80 70 60 50 40 Half Value Ipp/2 30 20 td=20µs 10 R1 0 0 5 10 15 20 25 30 Ch1 5.00V Time (µs) 3 M 10.0ns Ch1 8.6V 5 ESDA6V1-5SC6 TVS Protection Array Product dimension (SOT-23-6L) A （6） θ B C J （1） D K E H F G Millimeters Inches Dim MIN MAX MIN MAX 2.820 3.020 0.111 0.119 B 1.500 1.700 0.059 0.067 C 2.650 2.950 0.104 0.116 A D 0.950（BSC） 0.037（BSC） E 1.800 2.000 0.071 0.079 F 0.300 0.500 0.012 0.020 G 1.050 1.150 0.041 0.045 H 0.000 0.100 0.000 0.004 J 0.45 0.60 0.0180 0.0236 K 0.100 0.200 0.004 0.008 θ 0° 8° 0° 8° 4
