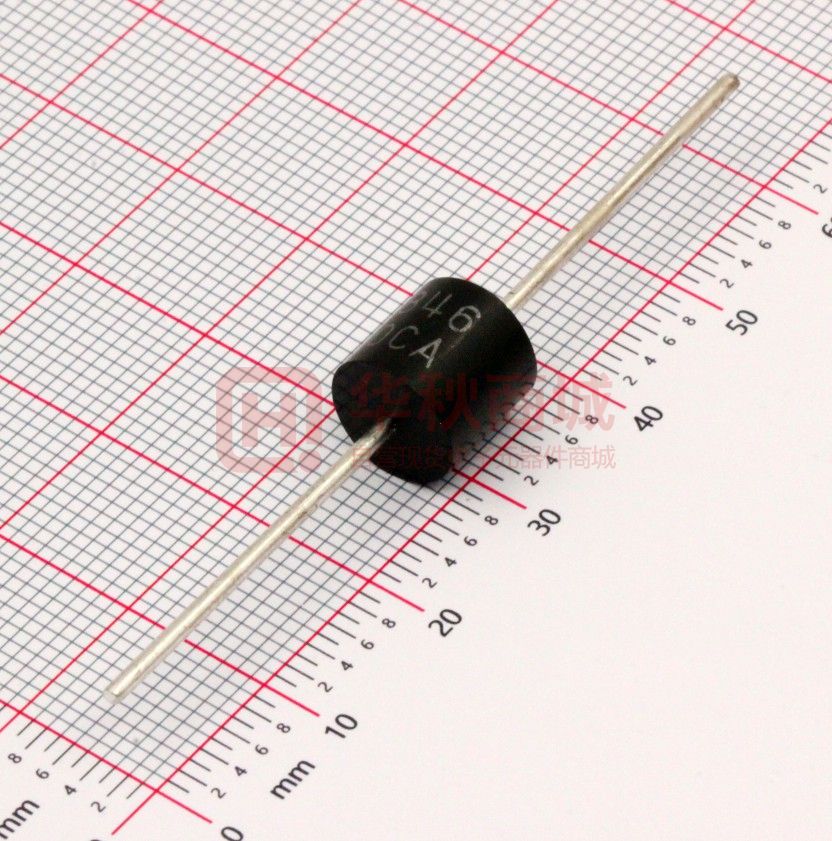

5KP30CA

5KP SERIES Transient Voltage Suppressors (TVS) Data Sheet Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Glass passivated junction Low incremental surge resistance. Excellent clamping capability 5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.05% Fast response time Typical IR less than 2μA above 10V. High Temperature soldering guaranteed: 265℃/10 seconds/.375″, (9.5mm) lead length, 5lbs (2.3kg) tension Plastic package has underwriters laboratory flammability 94V-0 Meets MSL level 1, per J-STD-020. Safety certification: UL: E244458 Mechanical Data ■ ■ ■ ■ ■ Case: Moulded plastic over glass passivated junction Terminal: Plated Axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode except bi-directional models Mounting Position: Any Weight: 2.10g Applications ■ I/O interface ■ AC/DC power supply ■ Low frequency signal transmission line (RS232, RS485, etc.) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (Note1, Fig.1) PPPM Minimum 5000 Watts Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table Amps PM(AV) 8.0 Watts IFSM 400 Amps TJ,TSTG -55 to +175 ℃ Typical thermal resistance junction to lead RθJL 8 ℃/W Typical thermal resistance junction to ambient RθJA 40 ℃/W Steady state power dissipation at TL=75℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note2, Fig.6) Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2. 2. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum. Revision：30-Sep-15 www.brightking.com 5KP SERIES Dimensions (P600) Millimeters Symbol Inches Min. Max. Min. Max. L 25.40 - 1.000 - T 8.60 9.10 0.340 0.360 d 8.60 9.10 0.340 0.360 s 1.19 1.32 0.047 0.052 Electrical Characteristics (TA=25℃) Part Number Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) 5KP5.0A 5KP5.0CA 5.0 6.40~7.00 50 9.2 554.3 5000 5KP6.0A 5KP6.0CA 6.0 6.67~7.37 50 10.3 495.1 5000 5KP6.5A 5KP6.5CA 6.5 7.22~7.98 50 11.2 455.4 2000 5KP7.0A 5KP7.0CA 7.0 7.78~8.60 50 12.0 425.0 1000 5KP7.5A 5KP7.5CA 7.5 8.33~9.21 5 12.9 395.3 250 5KP8.0A 5KP8.0CA 8.0 8.89~9.83 5 13.6 375.0 150 5KP8.5A 5KP8.5CA 8.5 9.44~10.40 5 14.4 354.2 50 5KP9.0A 5KP9.0CA 9.0 10.00~11.10 5 15.4 331.2 20 5KP10A 5KP10CA 10.0 11.10~12.30 5 17.0 300.0 15 5KP11A 5KP11CA 11.0 12.20~13.50 5 18.2 280.2 2 5KP12A 5KP12CA 12.0 13.30~14.70 5 19.9 256.3 2 5KP13A 5KP13CA 13.0 14.40~15.90 5 21.5 237.2 2 5KP14A 5KP14CA 14.0 15.60~17.20 5 23.2 219.8 2 5KP15A 5KP15CA 15.0 16.70~18.50 5 24.4 209.0 2 5KP16A 5KP16CA 16.0 17.80~19.70 5 26.0 196.2 2 5KP17A 5KP17CA 17.0 18.90~20.90 5 27.6 184.8 2 5KP18A 5KP18CA 18.0 20.00~22.10 5 29.2 174.7 2 5KP20A 5KP20CA 20.0 22.20~24.50 5 32.4 157.4 2 5KP22A 5KP22CA 22.0 24.40~26.90 5 35.5 143.7 2 5KP24A 5KP24CA 24.0 26.70~29.50 5 38.9 131.1 2 5KP26A 5KP26CA 26.0 28.90~31.90 5 42.1 121.1 2 Revision：30-Sep-15 www.brightking.com 5KP SERIES Electrical Characteristics (TA=25℃) Part Number Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) 5KP28A 5KP28CA 28.0 31.10~34.40 5 45.4 112.3 2 5KP30A 5KP30CA 30.0 33.30~36.80 5 48.4 105.4 2 5KP33A 5KP33CA 33.0 36.70~40.60 5 53.3 95.7 2 5KP36A 5KP36CA 36.0 40.00~44.20 5 58.1 87.8 2 5KP40A 5KP40CA 40.0 44.40~49.10 5 64.5 79.1 2 5KP43A 5KP43CA 43.0 47.80~52.80 5 69.4 73.5 2 5KP45A 5KP45CA 45.0 50.00~55.30 5 72.7 70.2 2 5KP48A 5KP48CA 48.0 53.30~58.90 5 77.4 65.9 2 5KP51A 5KP51CA 51.0 56.70~62.70 5 82.4 61.9 2 5KP54A 5KP54CA 54.0 60.00~66.30 5 87.1 58.6 2 5KP58A 5KP58CA 58.0 64.40~71.20 5 93.6 54.5 2 5KP60A 5KP60CA 60.0 66.70~73.70 5 96.8 52.7 2 5KP64A 5KP64CA 64.0 71.10~78.60 5 103.0 49.5 2 5KP70A 5KP70CA 70.0 77.80~86.00 5 113.0 45.1 2 5KP75A 5KP75CA 75.0 83.30~92.10 5 121.0 42.1 2 5KP78A 5KP78CA 78.0 86.70~95.80 5 126.0 40.5 2 5KP85A 5KP85CA 85.0 94.40~104.00 5 137.0 37.2 2 5KP90A 5KP90CA 90.0 100.00~111.00 5 146.0 34.9 2 5KP100A 5KP100CA 100.0 110.00~123.00 5 162.0 31.5 2 5KP110A 5KP110CA 110.0 122.00~135.00 5 177.0 28.8 2 5KP120A 5KP120CA 120.0 133.00~147.00 5 193.0 26.4 2 5KP130A 5KP130CA 130.0 144.00~159.00 5 209.0 24.4 2 5KP150A 5KP150CA 150.0 167.00~185.00 5 243.0 21.0 2 5KP160A 5KP160CA 160.0 178.00~197.00 5 259.0 19.7 2 5KP170A 5KP170CA 170.0 189.00~209.00 5 275.0 18.5 2 5KP180A 5KP180CA 180.0 201.00~222.00 5 292.0 17.5 2 5KP190A 5KP190CA 190.0 211.00~233.00 5 310.0 16.5 2 5KP200A 5KP200CA 200.0 224.00~247.00 5 329.2 15.5 2 5KP210A 5KP210CA 210.0 237.00~263.00 5 349.5 14.6 2 5KP220A 5KP220CA 220.0 246.00~272.00 5 371.1 13.7 2 5KP250A 5KP250CA 250.0 277.00~306.00 5 425.0 12.0 2 Notes: For bidirectional type having VRWM of 10V and less, the IR limit is double. Revision：30-Sep-15 www.brightking.com 5KP SERIES Ratings and Characteristic Curves (TA=25℃ unless otherwise noted) Figure 1. Peak Pulse Power Rating Curve Figure 2. Pulse Derating Curve 100 75 50 25 0 0 25 50 75 100 125 150 175 200 TA-Ambient Temperature (℃) Figure 3. Pulse Waveform 150 tr=10µs Figure 4. Typical Junction Capacitance TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM Peak Value IPPM 100 Half Value IPPM (IPPM/2) 50 0 10/1000µs Waveform as defined by R.E.A td 0 1.0 2.0 3.0 4.0 t-Time (ms) Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only PM(AV), Steady State Power Dissipation (W) Figure 5. Steady State Power Dissipation Derating Curve Revision：30-Sep-15 www.brightking.com 5KP SERIES Recommended Soldering Conditions Wave Soldering Item Conditions Peak Temperature 265℃ Dipping Time 10 seconds Soldering 1 time Marking Code Cathode Band Logo YXXX 5KP5.0A Date Code Marking Code Revision：30-Sep-15 Logo YXXX 5KP5.0CA Date Code Marking Code www.brightking.com 5KP SERIES Part Number Code Packaging Tape Z ±5° A E Symbol Dimension (mm) A 10.0±0.5 B 53.0±1.0 Z 1.2Max. T 6.0±0.4 E 0.8Max. L1-L2 1.0Max. L 250.0±5.0 W 75.0±5.0 H 114.0±5.0 L1 B L2 E Box T Quantity: 300PCS Reel D 330.0±3.0 D0 16.4±2.0 D1 86.0±2.0 W1 76.0±3.0 Quantity: 800PCS Revision：30-Sep-15 www.brightking.com
