5.0SMDJ-AT SERIES
Transient Voltage Suppressors (TVS) Data Sheet
Features
■
■
■
■
■
■
■
■
■
■
■
■
■
■
For surface mounted applications in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
5000W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical IR less than 2μA above 22V
High Temperature soldering: 260℃/10 seconds at terminals
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
AEC-Q101 qualified
Mechanical Data
■
■
■
■
■

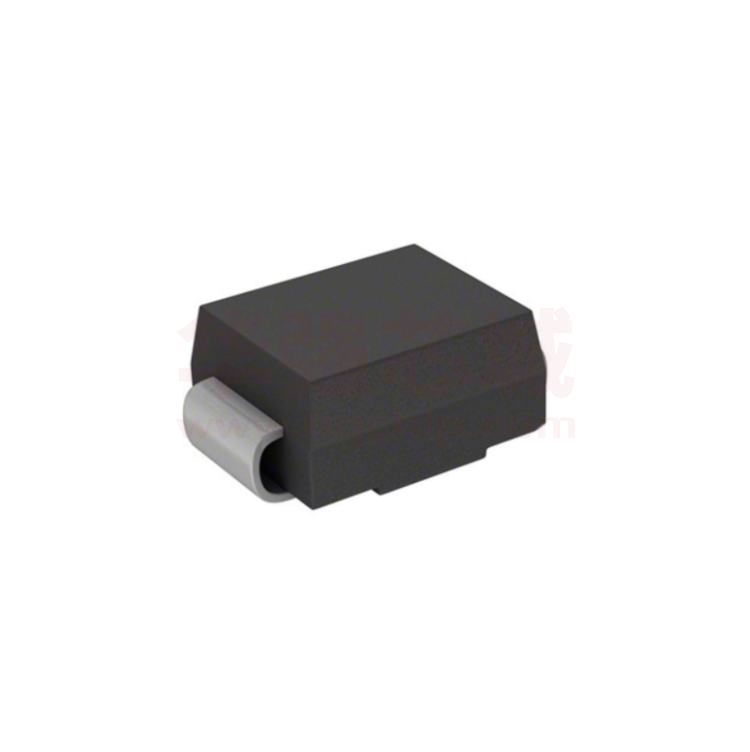

Case: JEDEC DO-214AB. Molded plastic over glass passivated junction
Terminal: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Standard Packaging: 16mm tape (EIA STD RS-481)
Weight: 0.28g
Applications
■ I/O interface
■ AC/DC power supply
■ Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Symbol
Value
Units
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
PPPM
Minimum 5000
Watts
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
IPPM
See Table
Amps
PM(AV)
6.5
Watts
IFSM
300
Amps
TJ,TSTG
-65 to +150
℃
Typical thermal resistance junction to lead
RθJL
15
℃/W
Typical thermal resistance junction to ambient
RθJA
75
℃/W
Steady state power dissipation at TA=50℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Range.
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2.
2. Mounted on 8.0mm×8.0mm copper pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
Revision:29-Nov-16
www.brightking.com
5.0SMDJ-AT SERIES
Dimensions (SMC/DO-214AB)
Symbol
Millimeters
Inches
Min.
Max.
Min.
Max.
L
6.60
7.11
0.260
0.280
D
5.59
6.22
0.220
0.245
D1
2.90
3.20
0.114
0.126
T
7.75
8.13
0.305
0.320
T1
0.76
1.52
0.030
0.060
d
-
0.203
-
0.008
H
2.20
2.80
0.087
0.110
H1
2.06
2.62
0.079
0.103
Electrical Characteristics (TA=25℃)
Part Number
Device
Marking
Code
Reverse
Stand-Off
Voltage
Breakdown
Voltage
@IT
Test
Current
Maximum
Clamping
Voltage
@IPP
Peak
Pulse
Current
Reverse
Leakage
@VRWM
Unidirectional
Bidirectional
UNI
BI
VRWM(V)
VBR(V)
IT(mA)
VC(V)
IPP(A)
IR(μA)
5.0SMDJ22A-AT
5.0SMDJ22CA-AT
5PEX
5BEX
22.0
24.40~26.90
1
35.5
141.00
5
5.0SMDJ24A-AT
5.0SMDJ24CA-AT
5PEZ
5BEZ
24.0
26.70~29.50
1
38.9
129.00
2
5.0SMDJ26A-AT
5.0SMDJ26CA-AT
5PFE
5BFE
26.0
28.90~31.90
1
42.1
119.00
2
5.0SMDJ28A-AT
5.0SMDJ28CA-AT
5PFG
5BFG
28.0
31.10~34.40
1
45.4
110.00
2
5.0SMDJ30A-AT
5.0SMDJ30CA-AT
5PFK
5BFK
30.0
33.30~36.80
1
48.4
103.00
2
5.0SMDJ33A-AT
5.0SMDJ33CA-AT
5PFM
5BFM
33.0
36.70~40.60
1
53.3
93.90
2
5.0SMDJ36A-AT
5.0SMDJ36CA-AT
5PFP
5BFP
36.0
40.00~44.20
1
58.1
86.10
2
5.0SMDJ40A-AT
5.0SMDJ40CA-AT
5PFR
5BFR
40.0
44.40~49.10
1
64.5
77.60
2
5.0SMDJ43A-AT
5.0SMDJ43CA-AT
5PFT
5BFT
43.0
47.80~52.80
1
69.4
72.10
2
5.0SMDJ45A-AT
5.0SMDJ45CA-AT
5PFV
5BFV
45.0
50.00~55.30
1
72.7
68.80
2
5.0SMDJ48A-AT
5.0SMDJ48CA-AT
5PFX
5BFX
48.0
53.30~58.90
1
77.4
64.70
2
5.0SMDJ51A-AT
5.0SMDJ51CA-AT
5PFZ
5BFZ
51.0
56.70~62.70
1
82.4
60.70
2
5.0SMDJ54A-AT
5.0SMDJ54CA-AT
5PGE
5BGE
54.0
60.00~66.30
1
87.1
57.50
2
5.0SMDJ58A-AT
5.0SMDJ58CA-AT
5PGG
5BGG
58.0
64.40~71.20
1
93.6
53.50
2
Revision:29-Nov-16
www.brightking.com
5.0SMDJ-AT SERIES
Electrical Characteristics (TA=25℃)
Part Number
Device
Marking
Code
Reverse
Stand-Off
Voltage
Breakdown
Voltage
@IT
Test
Current
Maximum
Clamping
Voltage
@IPP
Peak
Pulse
Current
Reverse
Leakage
@VRWM
Unidirectional
Bidirectional
UNI
BI
VRWM(V)
VBR(V)
IT(mA)
VC(V)
IPP(A)
IR(μA)
5.0SMDJ60A-AT
5.0SMDJ60CA-AT
5PGK
5BGK
60.0
66.70~73.70
1
96.8
51.70
2
5.0SMDJ64A-AT
5.0SMDJ64CA-AT
5PGM
5BGM
64.0
71.10~78.60
1
103.0
48.60
2
5.0SMDJ70A-AT
5.0SMDJ70CA-AT
5PGP
5BGP
70.0
77.80~86.00
1
113.0
44.30
2
5.0SMDJ75A-AT
5.0SMDJ75CA-AT
5PGR
5BGR
75.0
83.30~92.10
1
121.0
41.40
2
5.0SMDJ78A-AT
5.0SMDJ78CA-AT
5PGT
5BGT
78.0
86.70~95.80
1
126.0
39.70
2
5.0SMDJ85A-AT
5.0SMDJ85CA-AT
5PGV
5BGV
85.0
94.40~104.00
1
137.0
36.50
2
5.0SMDJ90A-AT
5.0SMDJ90CA-AT
5PGX
5BGX
90.0
100.00~111.00
1
146.0
34.30
2
5.0SMDJ100A-AT
5.0SMDJ100CA-AT
5PGZ
5BGZ
100.0
111.00~123.00
1
162.0
30.90
2
5.0SMDJ110A-AT
5.0SMDJ110CA-AT
5PHE
5BHE
110.0
122.00~135.00
1
177.0
28.30
2
5.0SMDJ120A-AT
5.0SMDJ120CA-AT
5PHG
5BHG
120.0
133.00~147.00
1
193.0
26.00
2
5.0SMDJ130A-AT
5.0SMDJ130CA-AT
5PHK
5BHK
130.0
144.00~159.00
1
209.0
24.00
2
5.0SMDJ150A-AT
5.0SMDJ150CA-AT
5PHM
5BHM
150.0
167.00~185.00
1
243.0
20.60
2
5.0SMDJ160A-AT
5.0SMDJ160CA-AT
5PHP
5BHP
160.0
178.00~197.00
1
259.0
19.30
2
5.0SMDJ170A-AT
5.0SMDJ170CA-AT
5PHR
5BHR
170.0
189.00~209.00
1
275.0
18.20
2
Revision:29-Nov-16
www.brightking.com
5.0SMDJ-AT SERIES
Ratings and Characteristic Curves (TA=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
Figure 2. Pulse Derating Curve
100
80
60
40
20
0
0
25
50
75
100
125
150
175
TA-Ambient Temperature (℃)
Figure 3. Pulse Waveform
150
tr=10µs
Figure 4. Typical Junction Capacitance
TJ=25℃
Pulse Width(td) is defined as
the point where the peak
current decays to 50% of IPPM
Peak Value IPPM
100
Half Value IPPM (IPPM/2)
50
0
10/1000µs Waveform
as defined by R.E.A
td
0
1.0
2.0
3.0
4.0
t-Time (ms)
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
PM(AV), Steady State Power Dissipation (W)
Figure 5. Steady State Power Dissipation Derating
Curve
Revision:29-Nov-16
www.brightking.com
5.0SMDJ-AT SERIES
Recommended Soldering Conditions
Reflow Soldering
Recommended Conditions
Profile Feature
Pb-Free Assembly
Average ramp-up rate (TL to TP)
3℃/second max.
Preheat
-Temperature Min (TS min)
-Temperature Max (TS max)
-Time (min to max) (tS)
150℃
200℃
60-180 seconds
TS max to TL
-Ramp-up Rate
3℃/second max.
Time maintained above:
-Temperature (TL)
-Time (tL)
217℃
60-150 seconds
Peak Temperature (TP)
260℃
Time within 5℃ of actual Peak Temperature (tP)
Ramp-down Rate
Time 25℃ to Peak Temperature
20-40 seconds
6℃/second max.
8 minutes max.
Marking Code
Revision:29-Nov-16
www.brightking.com
5.0SMDJ-AT SERIES
Part Number Code
Packaging
Tape
7” Reel
Symbol
Dimension (mm)
W
16.00±0.20
P0
4.00±0.10
P1
8.00±0.10
P2
2.00±0.10
D0
Φ1.5±0.10
D1
Φ1.5±0.10
E
1.75±0.10
F
7.50±0.10
A0
6.27±0.10
B0
8.30±0.10
K0
3.15±0.15
T
0.30±0.05
D2
Φ178.0±2.0
D3
Φ50.0Min.
D4
Φ13.0±0.5
W1
20.0±2.0
Quantity: 500PCS
13” Reel
D5
Φ330.0±2.0
D6
Φ13.5±0.5
H
2.5±1.0
W2
20.0±2.0
Quantity: 3000PCS
Revision:29-Nov-16
www.brightking.com
